hot sell coarse rake grid waste water clog trash 0.25mm fine bar filter screen machine
- Category: >>>
- Supplier: Xinxiang Yixin Environmental Engineering Co. Ltd.
Share on (1600463158558):
Product Overview
Description
Specification
item | value |
Condition | New |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Pump, Gear, Engine, Motor |
Place of Origin | China |
Henan | |
Brand Name | YI XIN |
Weight | 500公斤 |
Size | |
Power | |
Warranty | 1 Year |
Productivity | 5000L/Hour |
Weight (KG) | 300kg |
Feature | Mechanical, electrical double overload protection, safe and reliable |
Function | Remove Impurities |
Application | Water Purification |

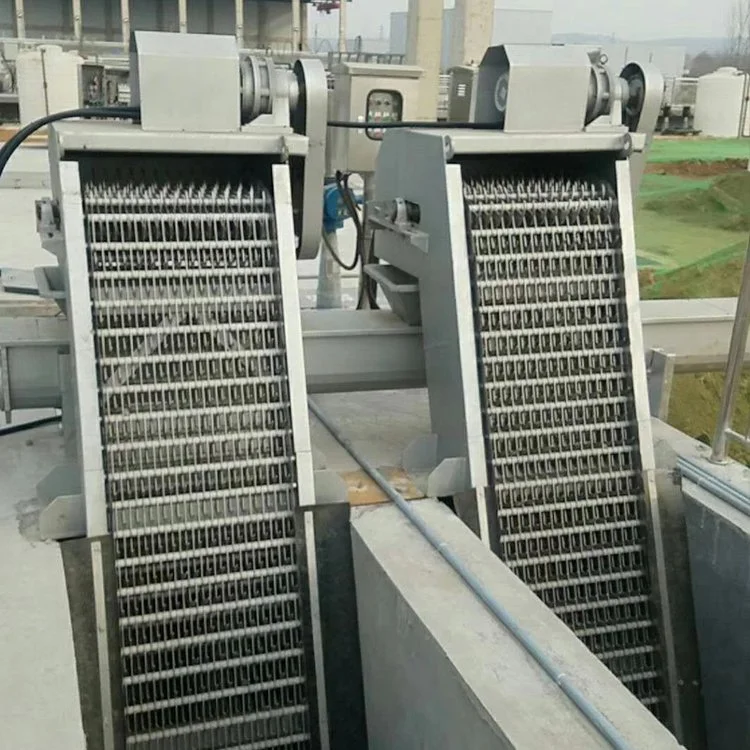

The reducer drives the sprocket to make the chain rake traction system rotate and run, and drive the tooth rake between the traction chains to run with it.
Because each tooth rake is inserted into the grid, can effectively intercept the dirt to the upper limit device of the frame, tooth rake in the process of chain rotation and reversing, the dirt is unloaded into the next process equipment by its own weight, a small amount of dirt stuck on the tooth rake, by the special cleaning mechanism clean up.

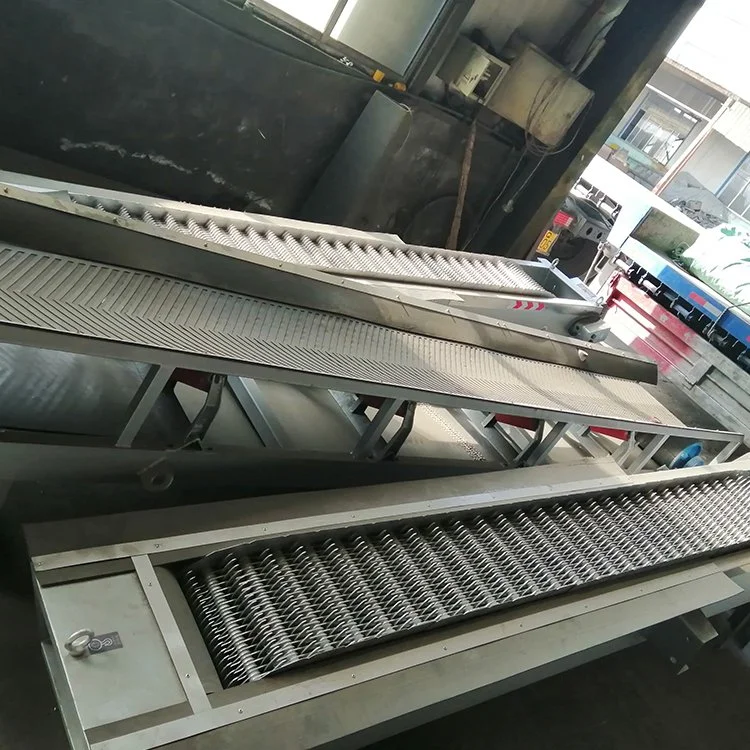

Rotary grille cleaning machine is mainly composed of driving mechanism, frame assembly, transmission chain, tooth rake group, grid bar, bottom fence and other parts.
Because each tooth rake is inserted into the grid, can effectively intercept the dirt to the upper limit device of the frame, tooth rake in the process of chain rotation and reversing, the dirt is unloaded into the next process equipment by its own weight, a small amount of dirt stuck on the tooth rake, by the special cleaning mechanism clean up.
Rotary grille cleaning machine is mainly composed of driving mechanism, frame assembly, transmission chain, tooth rake group, grid bar, bottom fence and other parts.
Not after the tooth rake bar, the bar before the slag, will not bring the slag into the water, slag thoroughly.
Fully enclosed transmission chain, no winding.
There is a movable fence under the water and no dead Angle at the bottom.
Mechanical and electrical double overload protection, safe and reliable.
Fully enclosed transmission chain, no winding.
There is a movable fence under the water and no dead Angle at the bottom.
Mechanical and electrical double overload protection, safe and reliable.
Compact structure, buffer slag discharge, overload protection.Material exquisite, wear resistance, reliable work, and can be fully automatic operation.
Complete machine supply, easy installation and debugging.It is one of the most widely used equipment in the indispensable grille of various water source import.Assembly, transmission chain, tooth rake group, bar, bottom fence and other parts.
Complete machine supply, easy installation and debugging.It is one of the most widely used equipment in the indispensable grille of various water source import.Assembly, transmission chain, tooth rake group, bar, bottom fence and other parts.
HGC300 | HGC400 | HGC500 | HGC600 | HGC700 | HGC800 | ||||||
Installation Angle | 60°~80° | ||||||||||
Motor power(kw) | 0.4~0.75 | 0.55~1.1 | 0.75~1.5 | ||||||||
Screen movement speed(m/min) | ≈2 | ||||||||||
Equipment wide B(mm) | 300 | 400 | 500 | 600 | 700 | 800 | |||||
Equipment had high H2(mm) | 3285~14350 | ||||||||||
Equipment had wide B2(mm) | 650 | 750 | 850 | 950 | 1050 | 1150 | |||||
Groove width B2(mm） | 380 | 480 | 580 | 680 | 780 | 880 | |||||
Groove depth H（mm） | 1535~12000 | ||||||||||
Length of diversion groove L2(mm) | 2400~8500 | ||||||||||
Maximum temperature of medium(℃) | ≥80 | ||||||||||
Foot to unloading mouth height(mm) | 400~1000 | ||||||||||
HGC900 | HGC1000 | HGC1100 | HGC1200 | HGC1250 | HGC1500 | ||||||
Installation Angle | 60°~80° | ||||||||||
Motor power(kw) | 0.4~0.75 | 1.1~2.2 | 1.5~3 | 0.75~1.5 | |||||||
Screen movement speed(m/min) | ≈2 | ||||||||||
Equipment wide B(mm) | 900 | 1000 | 1100 | 1200 | 1250 | 1500 | |||||
Equipment had high H2(mm) | 3285~14350 | ||||||||||
Equipment had wide B2(mm) | 1250 | 1350 | 1450 | 1550 | 1600 | 1850 | |||||
Groove width B2(mm） | 980 | 1080 | 1180 | 1280 | 1330 | 1580 | |||||
Groove depth H（mm） | 1535~12000 | ||||||||||
Length of diversion groove L2(mm) | 2400~8500 | ||||||||||
Maximum temperature of medium(℃) | ≥80 | ||||||||||
Foot to unloading mouth height(mm) | 400~1000 | ||||||||||
