Product Overview
Description

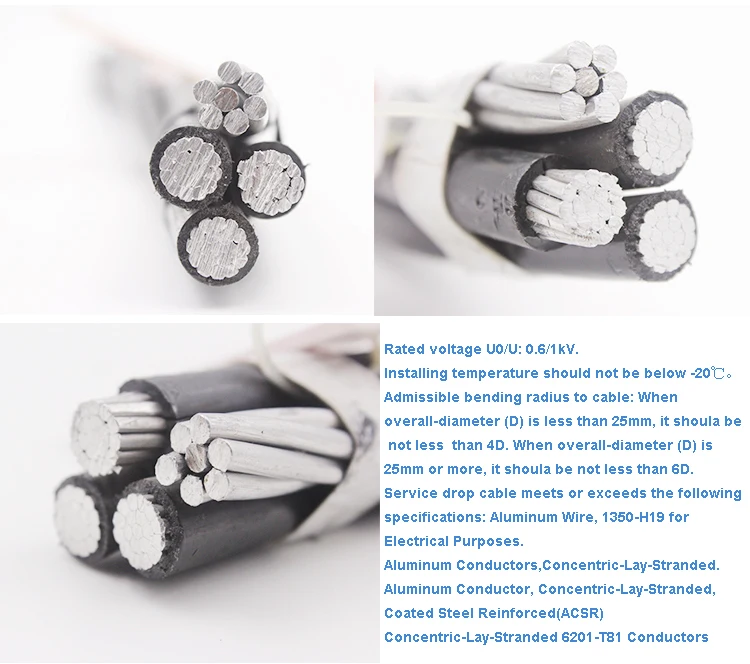

Insulated Cable AAC/ACSR/ABC/AAAC Aluminum Electrical Wire Manufacturer Aluminum Conductor Cables
Product Description
This bare conductor is widely used in the overhead power disturbution system all around the world, and it is one of the main products for forming electronic electrified wire network.
The specification about Overhead ABC Cable
NFC 33-209 standard specifications.
Insulated Conductors | Average Insulation Thickness
| Cable Bundle | |||||||
Type | Sectional Area | Wire Number | Maximum Resistance at 20℃ | Average Diameter | Rated Strength | Overall Diameter | |||
(mm²) | Minimum | (Ω/km) | Min.(mm) | Max. (mm) | Min. (daN) | (mm) | Min.(mm) | Max. (mm) | |
Phase neutral and public lighting | 16 | 7 | 1.91 | 4.6 | 5.1 | 190 | 1.2 | 7.0 | 7.8 |
25 | 7 | 1.20 | 5.8 | 6.3 | 300 | 1.4 | 8.6 | 9.4 | |
35 | 7 | 0.868 | 6.8 | 7.3 | - | 1.6 | 10.0 | 10.0 | |
50 | 7 | 0.641 | 7.9 | 8.4 | - | 1.6 | 11.1 | 12.0 | |
70 | 12 | 0.443 | 9.7 | 10.2 | - | 1.8 | 13.3 | 14.2 | |
95 | 19 | 0.320 | 11.0 | 12.0 | - | 1.8 | 14.6 | 15.7 | |
120 | 19 | 0.253 | 12.0 | 13.1 | - | 1.8 | 15.6 | 16.7 | |
150 | 19 | 0.206 | 13.9 | 15.0 | - | 1.7 | 17.3 | 18.6 | |
Porter | 54.6 | 7 | 0.63 | 9.2 | 9.6 | 1660 | 1.6 | 12.3 | 13.0 |
70 | 7 | 0.50 | 10.0 | 10.2 | 2050 | 1.5 | 12.9 | 13.6 | |
95 | 19 | 0.343 | 12.2 | 12.9 | 2750 | 1.6 | 15.3 | 16.3 | |
Our Customers

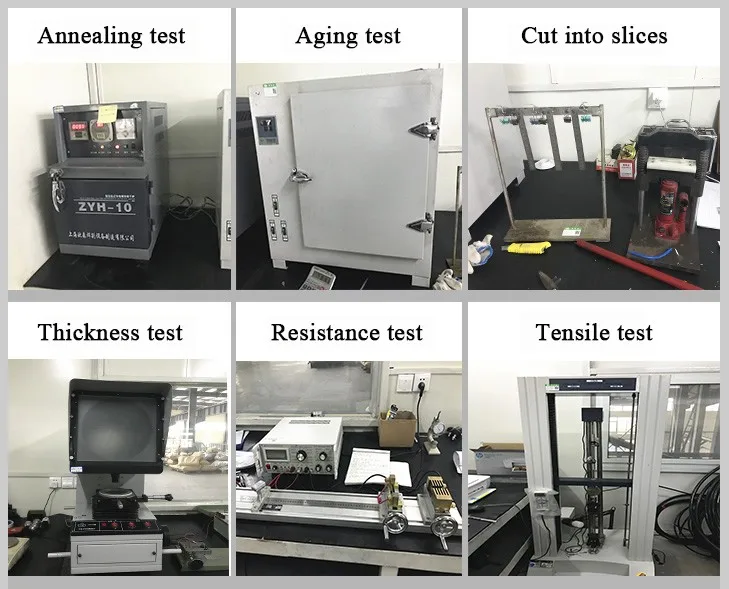

Laboratory
Certifications
company informations
Packaging
Packaging Details : Wooden drums or in coils, we have more than 20 types packages.
Port : Qingdao / Shanghai / Shenzhen , any port in China.
Lead Time : According to the order, normally 10-20 working days.
