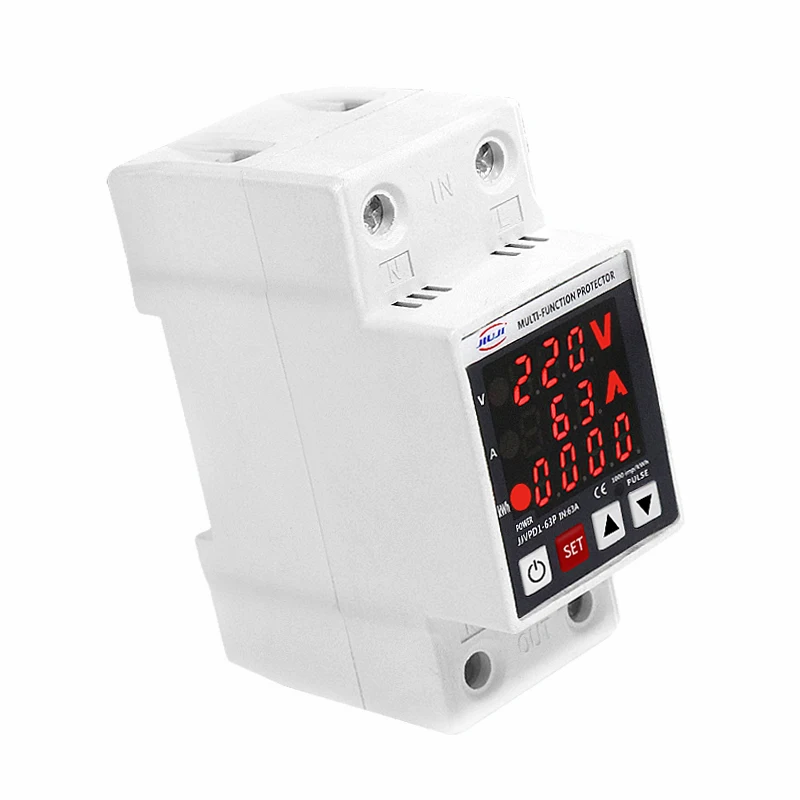

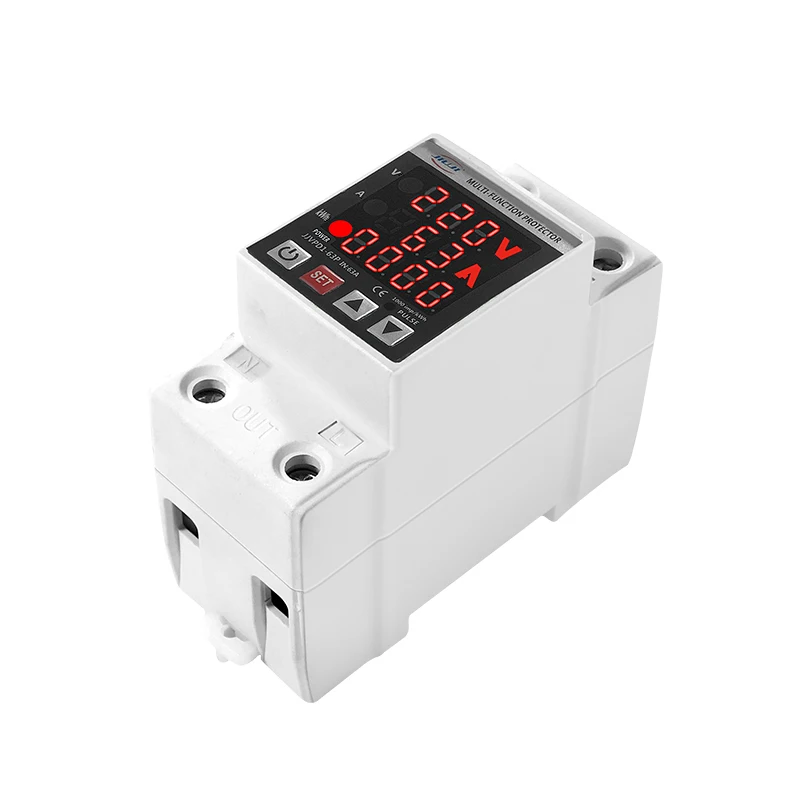

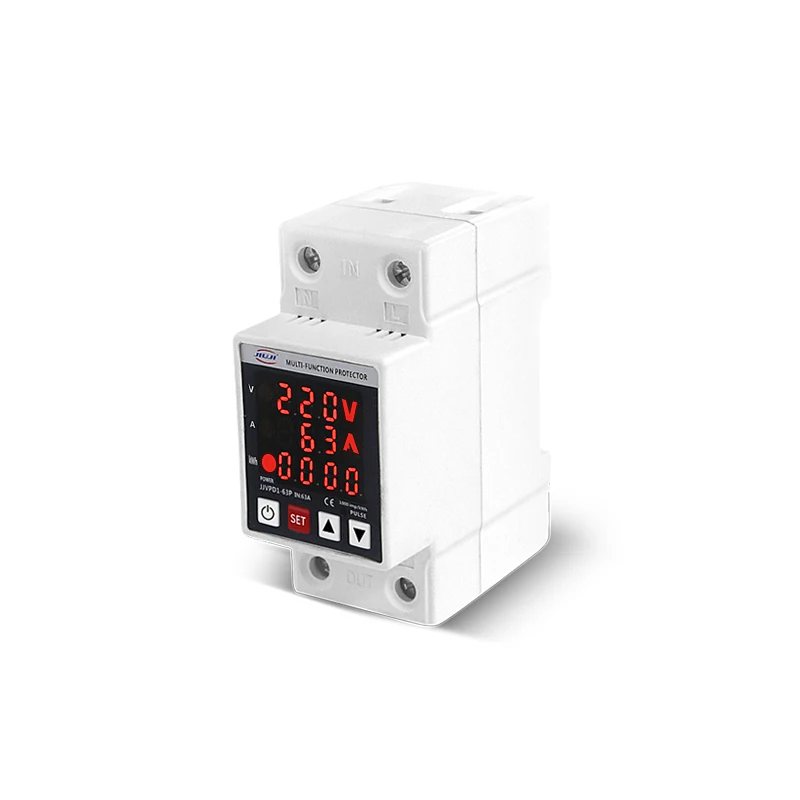

63A 230V Din rail adjustable over and under voltage protective device protector relay with current protection kwh energy merter
- Category: >>>
- Supplier: Zhejiang Jiuji Electric Co. Ltd.
Share on (1600463284282):
Product Overview
Description

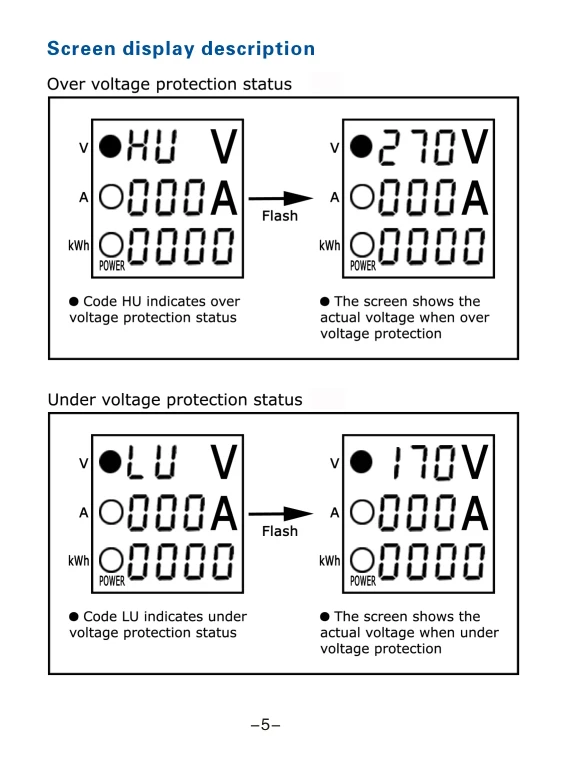

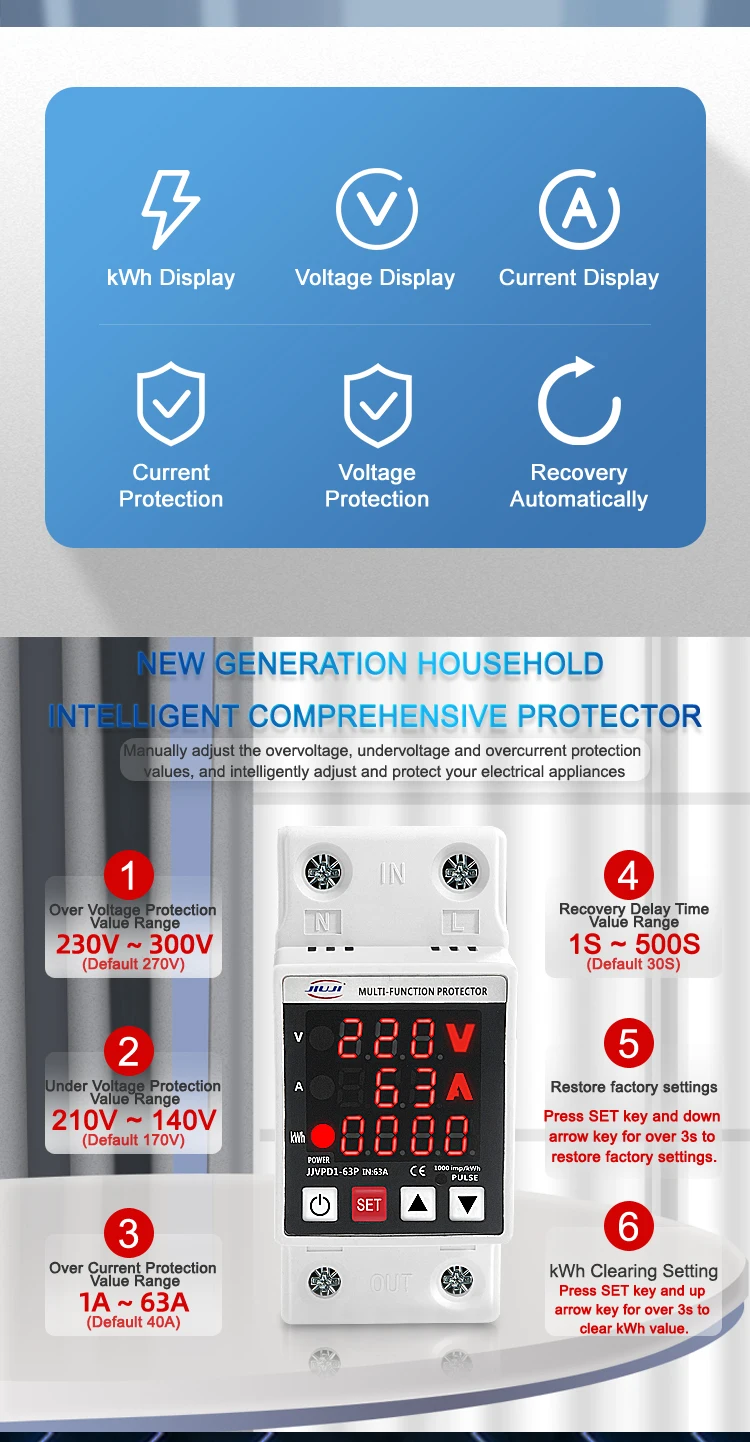

- Over-voltage Protection
- Under-voltage Protection

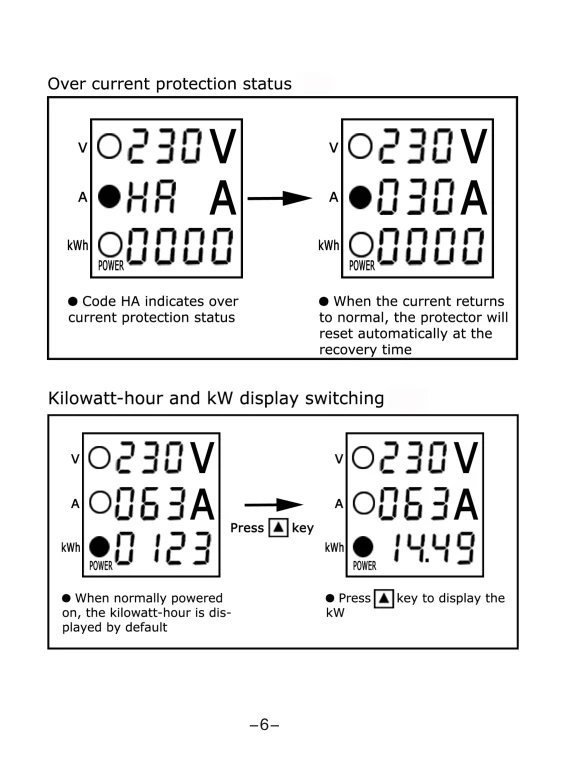

- Over-current Protection
- Automatic Recovery
- Action & Recovery Time Adjutable
- Voltage Meter
- Ammeter
- Energy Meter
| Function | Technical Parameter | Function | Technical Parameter |

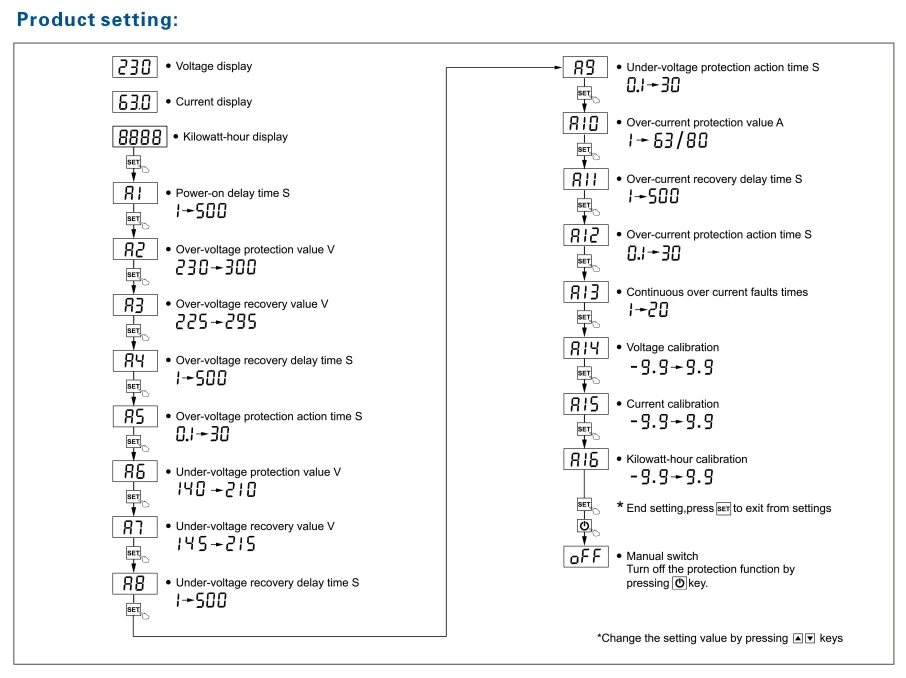

| Input voltage | AC 140-300V | Power-on delay time | 1-500s default 10s |
Over-voltage protection value | 230-300V default 270V | Over-voltage recovery value | 225-295V default 265V |
Under-voltage protection value | 140-210V default 170V | Under-voltage recovery value | 145-215V default 175V |
Over-current protection value | 63A:1-63A default 40A | Over-current recovery value | 0.5-62.5A |
80A:1-80A default 60A | 0.5-79.5A | ||
| Recovery delay time | 1-500s default 30s | Action time | 0.1-30s default 1s |
Continuous over current faults times | 1-20 times default OFF | Voltage/current/ kilowatt-hour calibration | -9.9-9.9% |
| Power consumption | ≤2W | Electrical and mechanical life | ≥100000cycles |

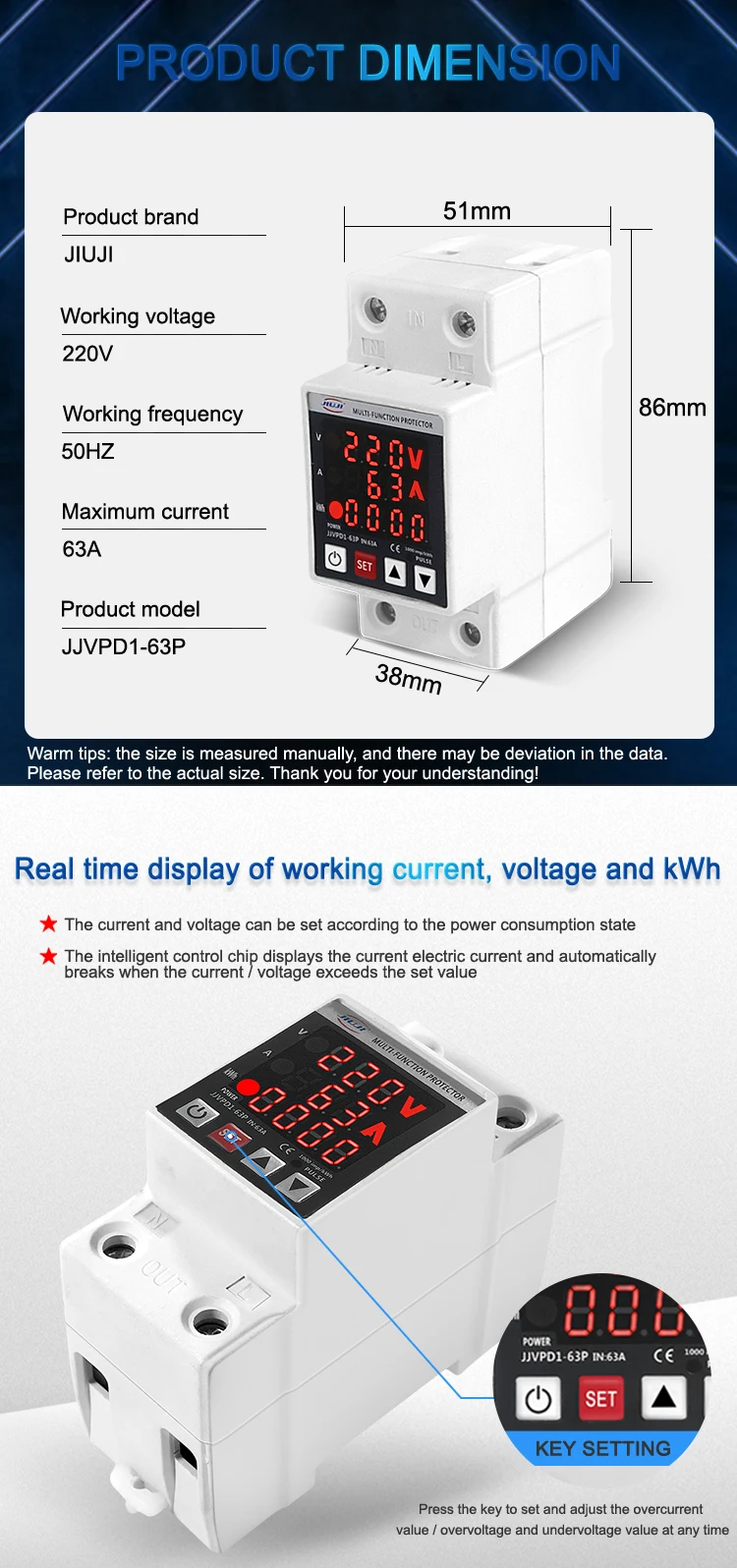

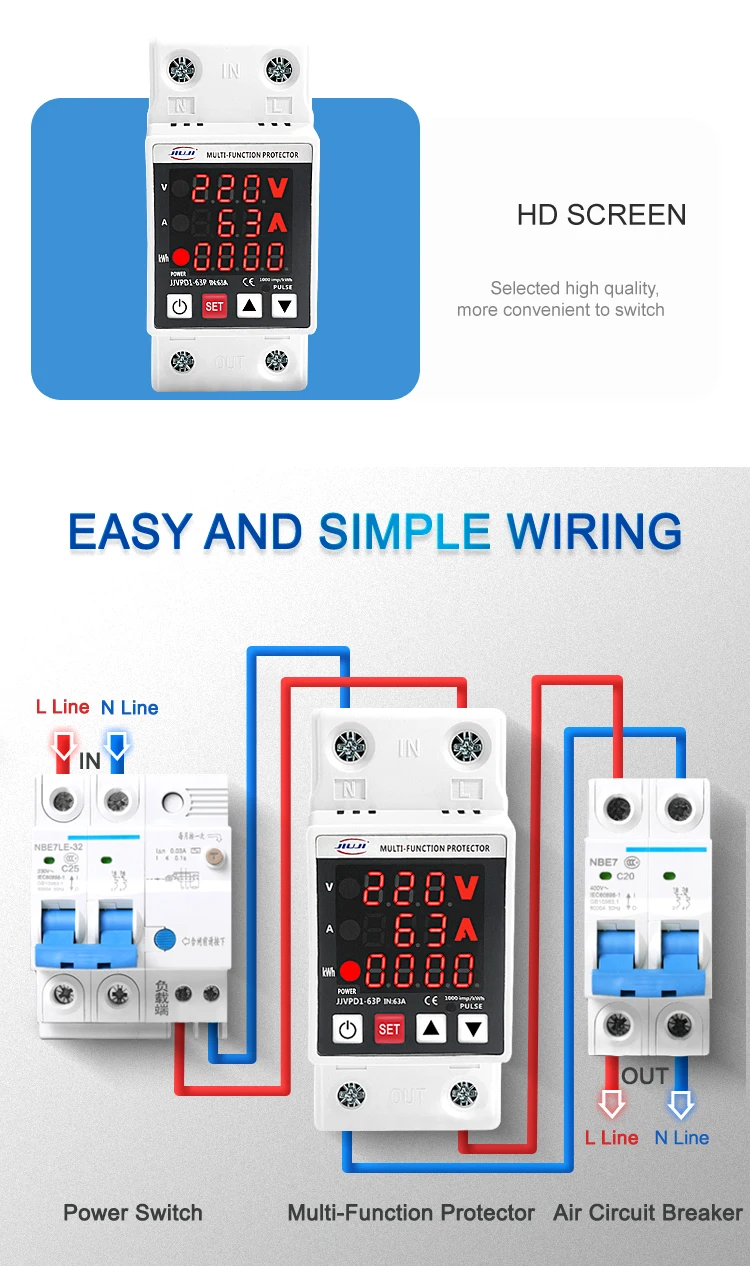

| Boundary dimendion | 86×38×68MM | Wiring | Over-entering down-out |
