Product Description


We are manufacturer (Quality Guaranteed , Integrity Services, Competitive price )


Main Features
1. Harness minimum 192 hooks, maximum 1056 hooks, can make diversify tapes.
2. The machine installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.
3. Independent development jacquard head, high precision & wear-resistant.
4. Bakeltie board & Harness are imported from Switzerland, the heald is imported from Italy.
5 Using import bearing on machines, INA bearing from Germany & NSK bearing from Japan.
6. High speed, can be up to 900-1200rpm, increasing the capacity.






This is jacquard loom to produce shoulder strap, belt, etc., the structure is same as Muller's, over 95% of spare parts can interchange with Muller. please check the following specification.

TNF4/66-192 HOOKS, 240 HOOKS, 320 HOOKS,384 HOOKS,448 HOOKS, 480 HOOKS,512 HOOKS, 640 HOOKS,720 HOOKS.

TNF6/42-192 HOOKS, 240 HOOKS, 320 HOOKS, 384 HOOKS,448 HOOKS
TNF8/27-192 HOOKS, 240 HOOKS,320 HOOKS,384 HOOKS

Besides, we installed the inverter system, can control the speed easily stop the machine immediately, also protect the yarn.

We also upgrade the structure of machine, in order to improve the speed, to compare with other brand, the output is 15% higher than others.

Video link
https://youtu.be/80VmuYpsSWg


Product Paramenters


Model
TNF8/27A
TNF6/42A
TNF6/42B
TNF4/66A
Number of hooks
192/240
192/240/320/384
384/448/480/512
192/240/320/384
Number of tapes
8
6
6
4
Width of reed
27
42
42
66
Maximum of tapes
25
40
40
62
Number of frame
12
12
12
12
Circulation
1:8/16-32
1:8/16-32
1:8/16-32
1:8/16-32
Speed
500-1200rpm
500-1200rpm
500-1200rpm
500-1200rpm


Model
TNF4/66B
TNF6/55A
Number of hooks
 384/448/320/512/640/720
 192
Number of tapes
 4
 6
Width of reed
 66
 27
Maximum of tapes
 64
 25
Number of frame
 12
 12
Circulation
1:8/16-32
1:8/16-32
Speed
500-1200rpm
500-1200rpm






Recommend Products

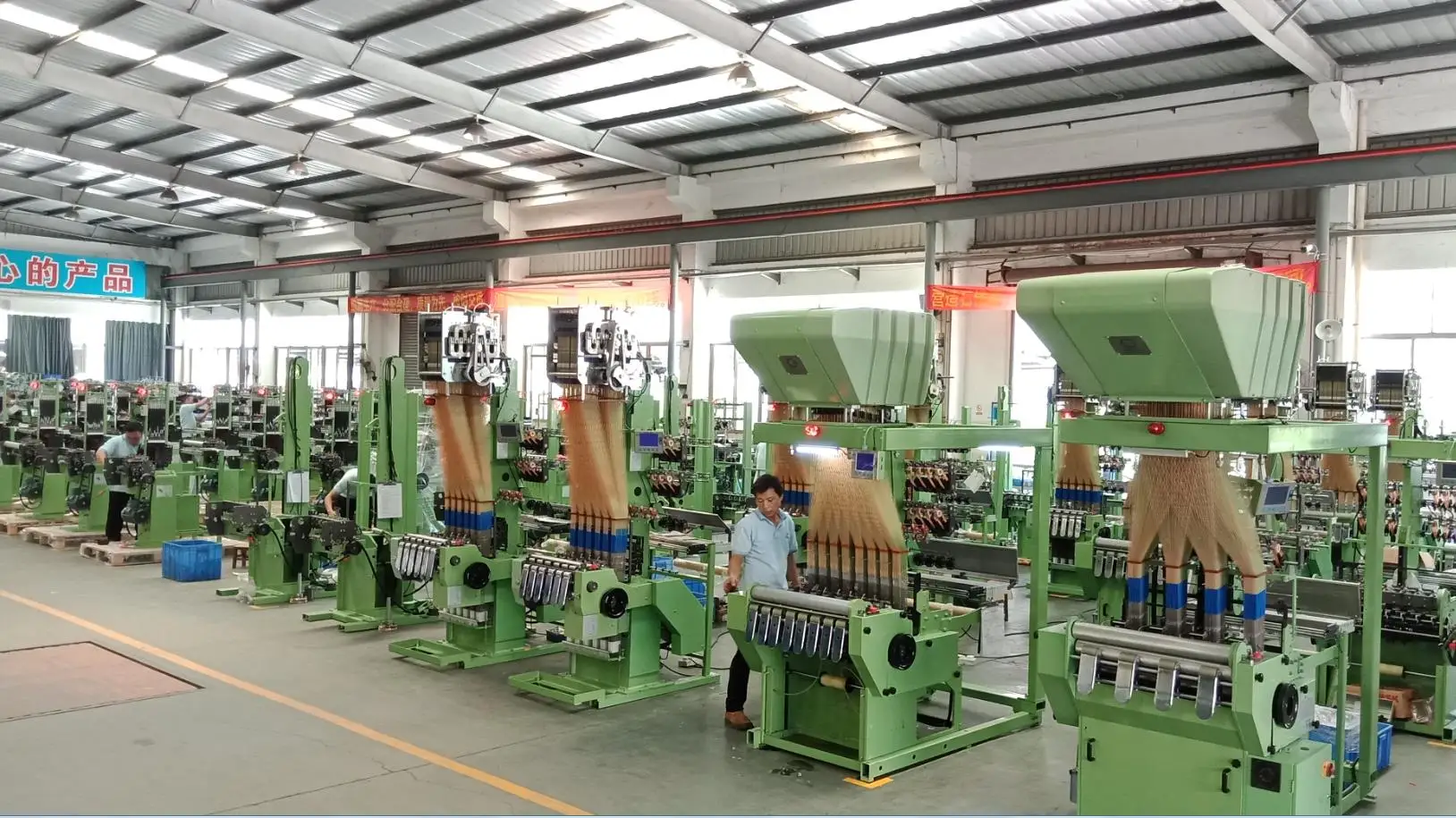

Company Profile














Product packaging




FAQ


Q1: Are you a factory or trading company?
A1: We are a factory with our own trading department.

Q2: Where is your factory?
A2: Our factory is located in the economic centre of Guangzhou province and welcome to Guangzhou.Warnty welcome to visit our factory.

Q3: How does your factory do regarding quality control?
A3: Quality is first priority.We always attach great importance to quality controlling.Our product has passed ISO9001 international quality system certification.

Q4: How does your service oversea?
A4: We have professional technical learn to install and setup our machine sold to abroad.We’re responsible for qualiy of the machine for 1 year.And engineers will provide technical support.

Q5: Can you make some change for me for my own design?
A5: Sure we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.

Q6: How long is the warranty period?
A6: 12 months warranty,if problem caused by quality factor,we will send you free spare parts by air within one week.
