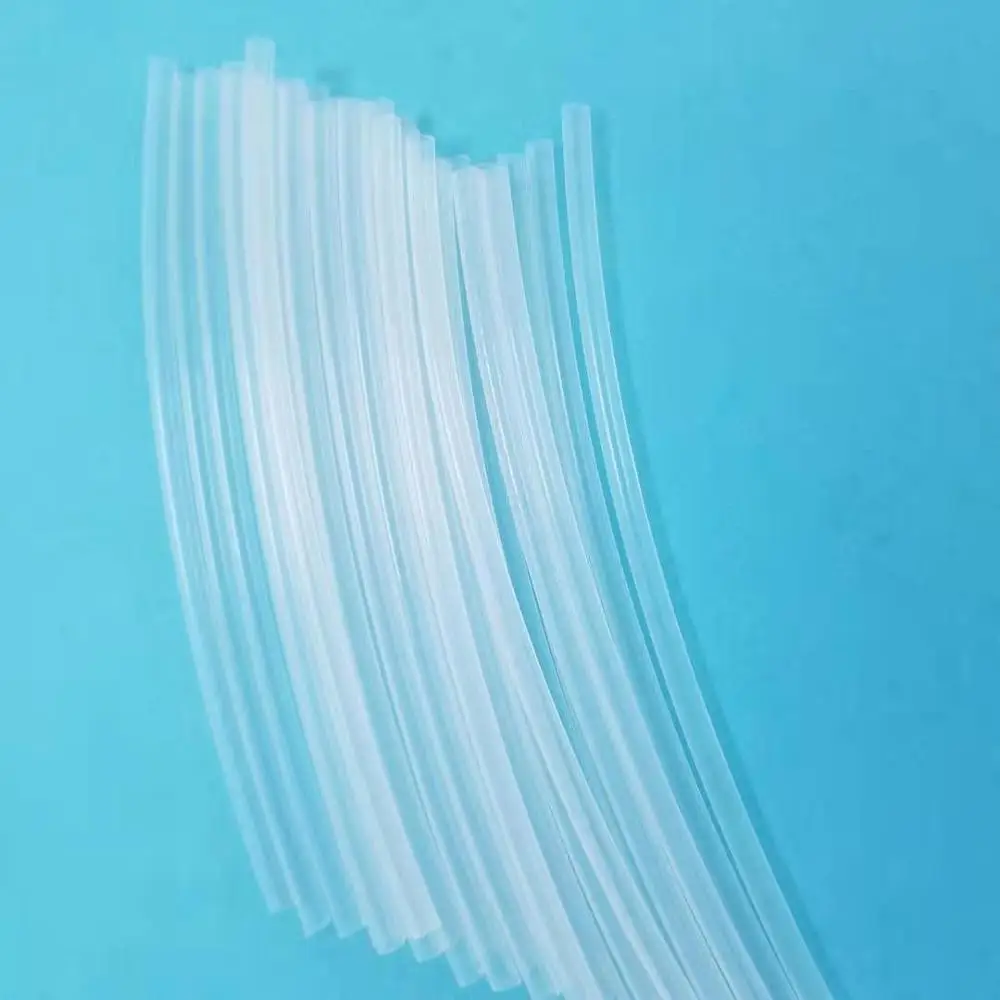

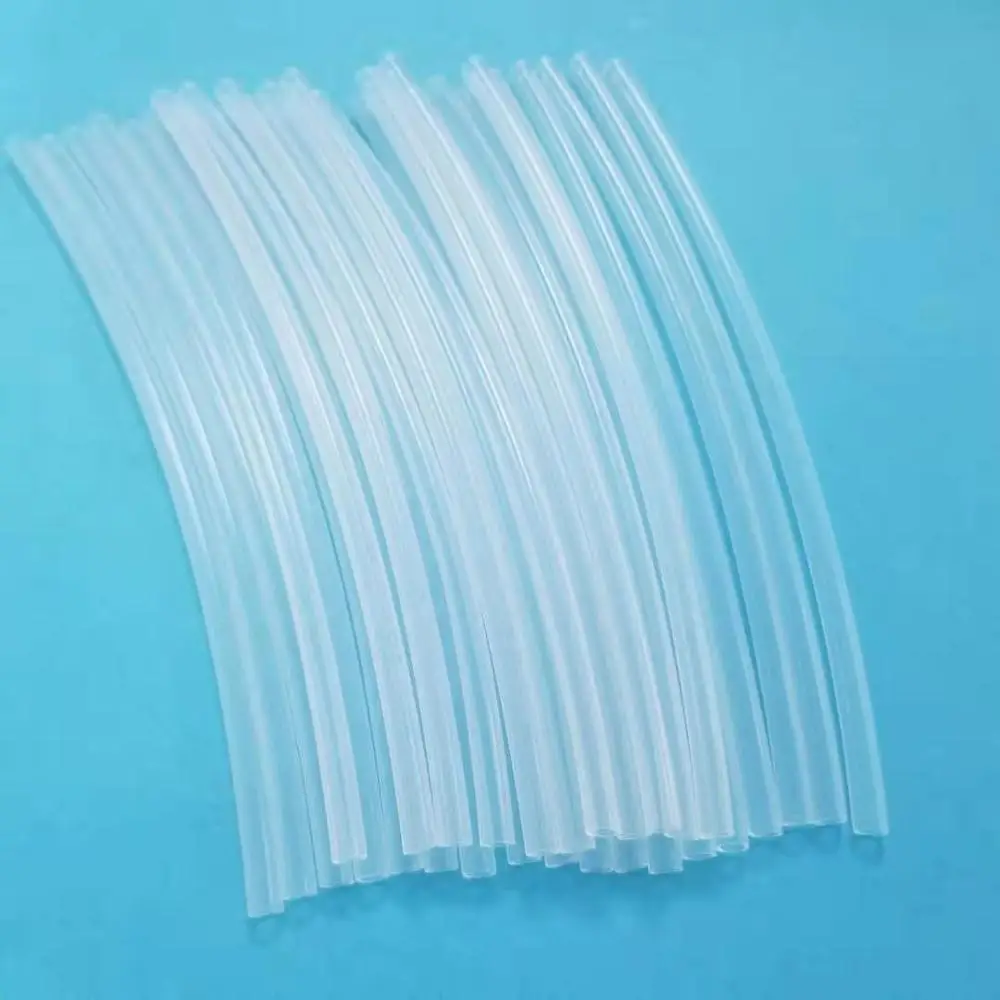

China Extrusion Small Diameter Transparent FEP Medical tube

Product Overviews

China Extrusion Small Diameter  Transparent FEP Medical tube

The performance of FEP copolymer is similar to that of PTEE, but the heat resistance is slightly lower, and it can work at -85 degrees +205 degrees and short-term at -200 degrees ~+300 degrees.

High impact strength, creep resistance, low temperature flexibility over PTEE;

The crystallinity varies with the heat treatment temperature and the forming process is good.

Non-toxic, non-viscous, electrical insulation, wear resistance, chemical stability are comparable to PTEE;

Can be colored, waste can be recycled.



Product Name	FEP Plastic Tube
Inner Diameter(ID)	0.2mm-9mm
Outer Diameter(OD)	0.5mm-10mm
Wall thickness	0.05mm-2.5mm
Tolerance	±0.015mm-0.25mm
Ovality	95%
Hardness	55D
Continuous working temperature	204℃
Melting point	260℃
Friction coefficient	0.2
Bonding Performance	Poor
Certificates	ROHS/REACH,MSDS Biocompatibility

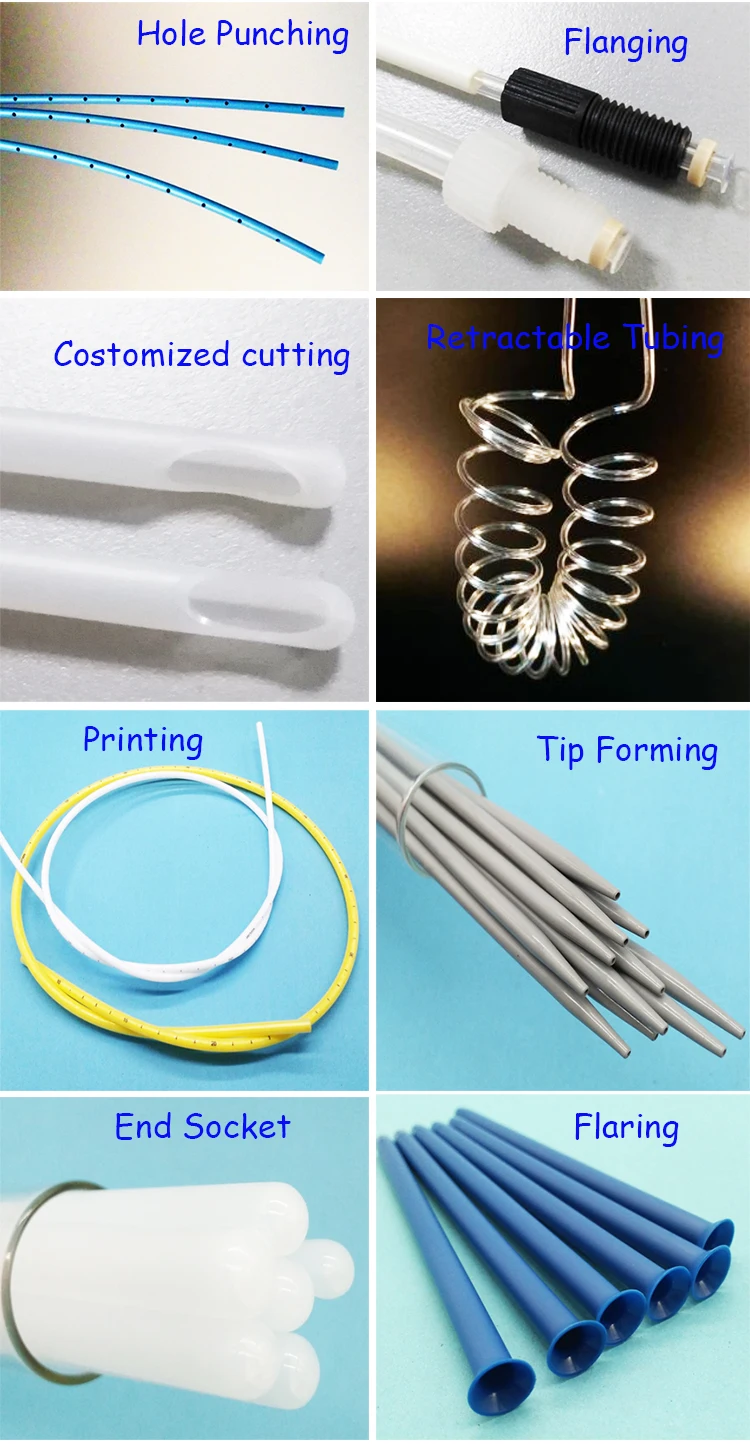

Secondary Process

   We are capable of secondary operations, like annealing, beveling, bonding, printing, marking, tipping, punching, flaring ect. Attached some pictures:

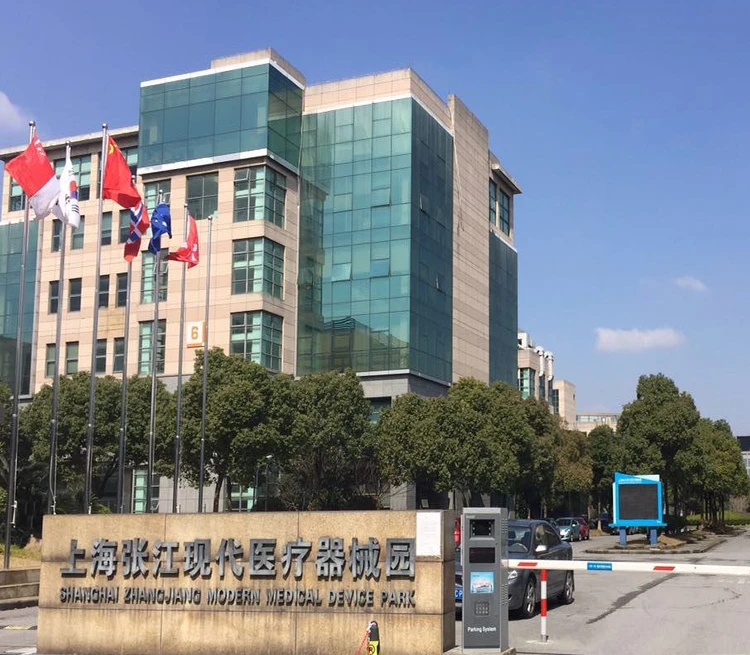

Company&OEM Factory

Eco Precision Extrusion Technology Co.,Ltd

   Established in 2009,Shanghai Eco Precision Extrusion Technology Co.,Ltd. Is located in the Modern Medical Device Park,Zhangjiang,Shanghai.we are agent of Zeus all the time.

   We are specialized in designing and manufacturing special plastic tube and parts for medical instrument industry.Ranging in various size and material, like PEEK, PTFE, PPSU, PSU, PU, NYLON, PEBAX, PP, PE, ABS, EVA, PETG, PVDF ect.we also make some OEM semi-finished and finished products, like double J stent, biliary drainage catheter, biliary plastic stent, cold snaredema, cytology brushes ect. we are capable of secondary operations, like annealing, beveling, bonding, printing, marking, tipping, punching, flaring ect.

   We company of Advanced technologies,strict quality control,perfect performance and sincere service will lead us to a better future.





OEM Factory

   The factory has 600 square meters of Class 10,000 clean room and 500 square meters of 100,000 production workshop,our factory is an ISO13485:2003 certified manufactures.

Four production line working all the time and the productive capacity about 30,000 meters per day.

Our most raw material could provide Biocompatibility report. We have a R&D center,could meet customer’s various demands.





Certifications

ISO13485:2003,CE,ROHS/REACH/BC(Biocompatibility) Report



How to custom your suit size tubing?

(1).Customers offer the drawing of the tubes (include the material, ID,OD,tolerance, length,          color, use )or send us the sample

(2).Our designer will make a professional evaluation according to your requirement

(3).Confirm all the details in the drawings

(4). We will do quote once get the confirmation of you.

(5).Note: Customers can order all kinds of tubes we put or you can also have your own idea, as we are custom-made tubes manufacturer, so different colors and types are available.
