B5K 10K 20K 50K 100K 9mm single 5 pins switch potentiometer
- Category: >>>
- Supplier: Sichuan Qixing Electronics Co. Ltd.
Share on (1600463335575):
Product Overview
Description
Product Description

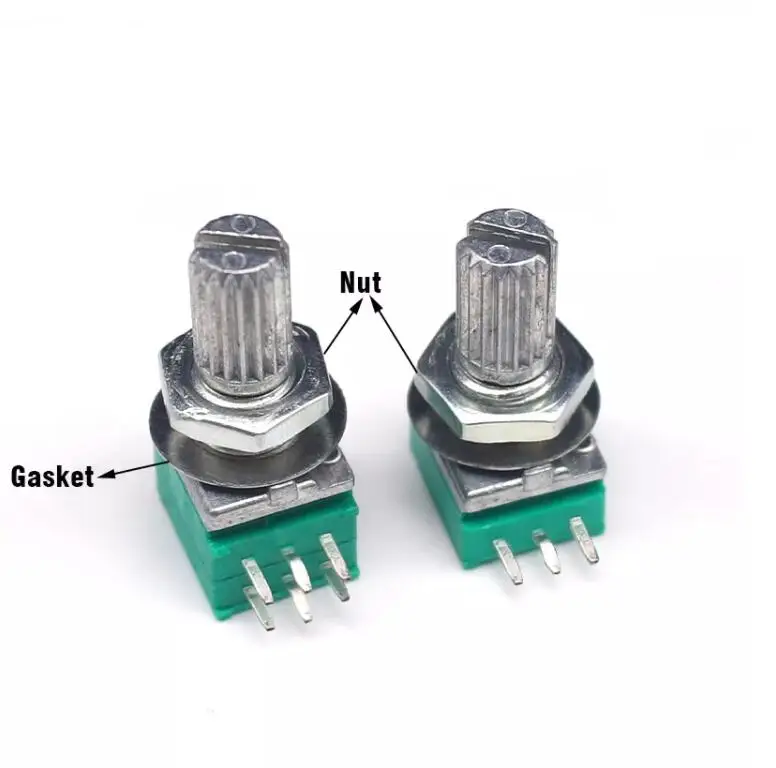

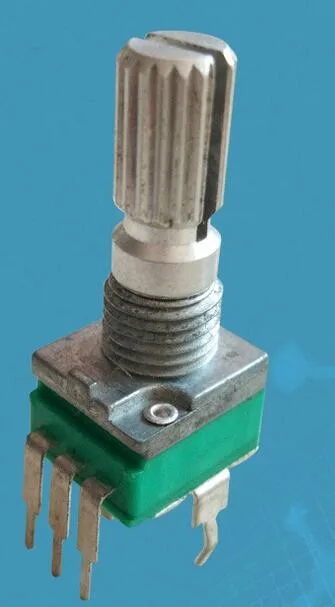

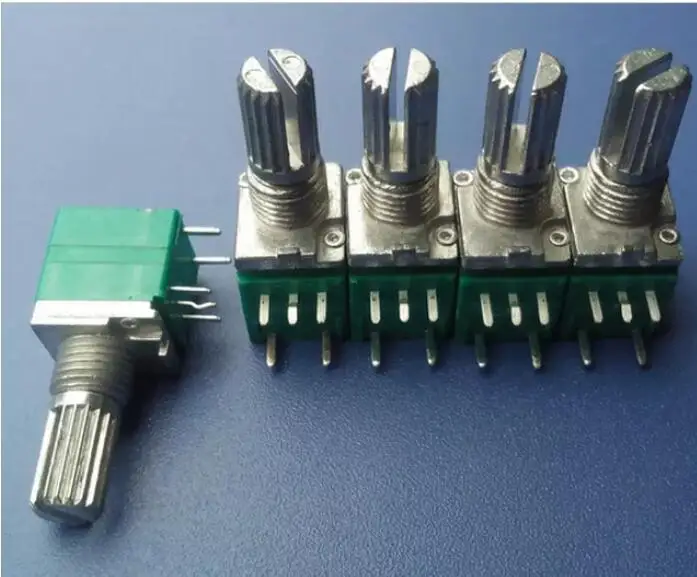

B5K 10K 20K 50K 100K 9mm single 5 pins switch potentiometer
Item | Content | Specification |
1.1 | Total Resistance | B1k~B500k |
1.2 | Total Resistance Tolerance | ± 20 % |
1.3 | Resistance Taper | B taper |
1.4 | Power Rating | B taper : 0.05W ; Other taper : 0.02W |
1.5 | Max. operating Voltage | 50V AC / 10V DC |
1.6 | Residual Resistance | R1-2 ≤__10___ W ； R2-3 ≤__20___ W |
1.7 | Rotational Noise | ≤100 mV |
1.8 | Tracking Error | / |
1.9 | Insulation Resistance | ≥100 MΩ at DC 250 V |
1.10 | Withstanding Voltage | 1 Minute at AC 250V |
1.11 | Switch Contact Resistance | ≤100mW |
1.12 | Switch Rated Power | 1A at DC 12V |
2.1 | Rotational life | 10,000 cycles min |
2.2 | Total Rotational Angle | 300∘±10∘ |
2.3 | Rotational Torque | 20~200 gf.cm |
2.4 | Switch Rotation Angle | ≤ 50∘ |
2.5 | Switch Action | ≤ 500gf.cm |
2.6 | Shaft Stop Strength | ≥ 2kgf.cm |
2.7 | Shaft Push & Pull Strength | ≥ 10kgf.cm |
2.8 | Shaft Wobble (mm p-p) | ≤ 0.7 x L / 20mm (p-p) L=shaft Length |
