Manufacturer 1.8 1.77 inch 128xRGBx160 ST7735S 20 Pins parallel HD17006H20 XH liyuan factory HX170S226 HZ177N1 TFT LCD Display
Details Images

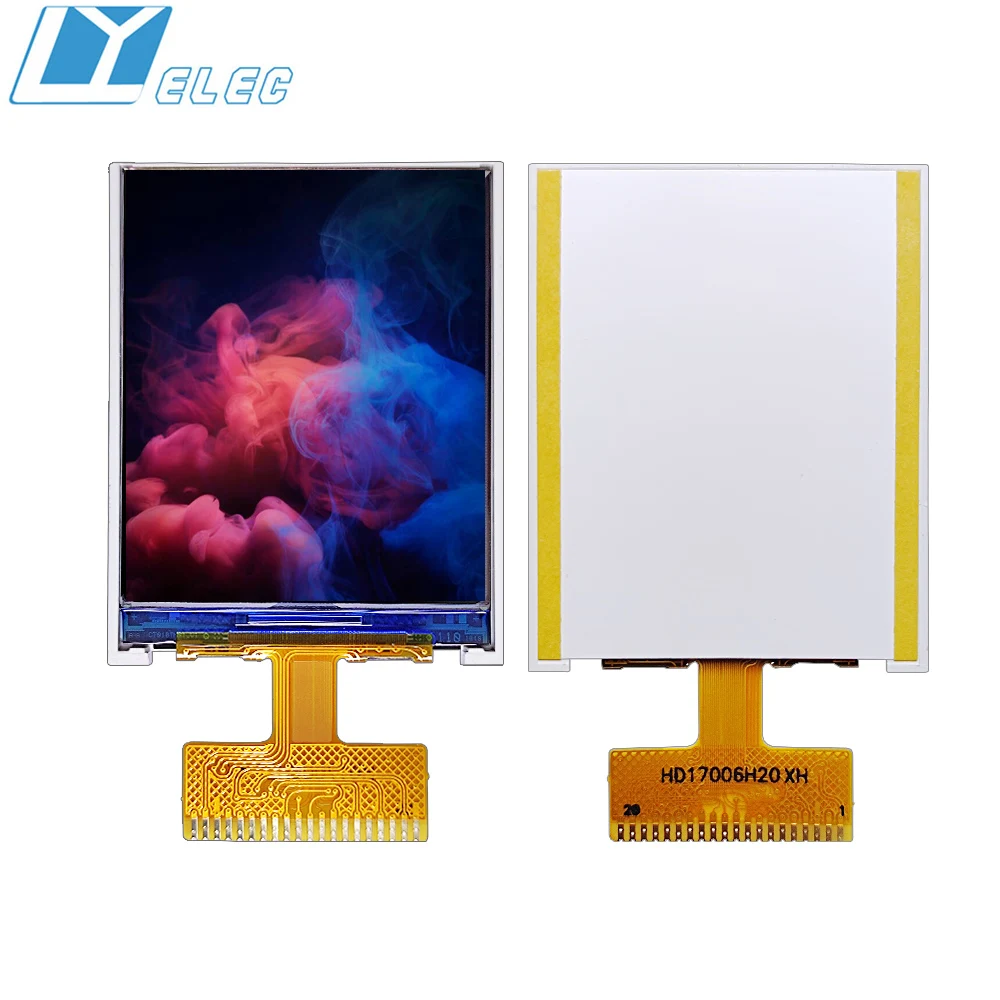

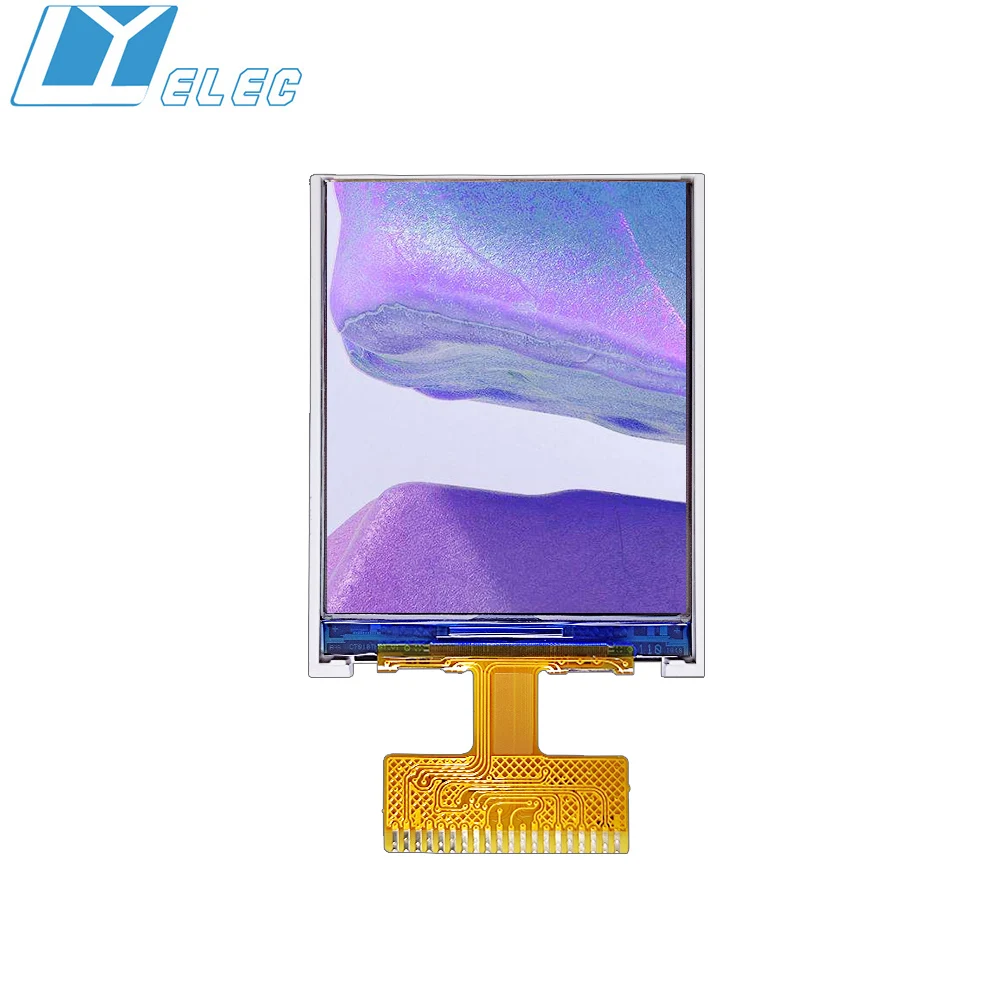

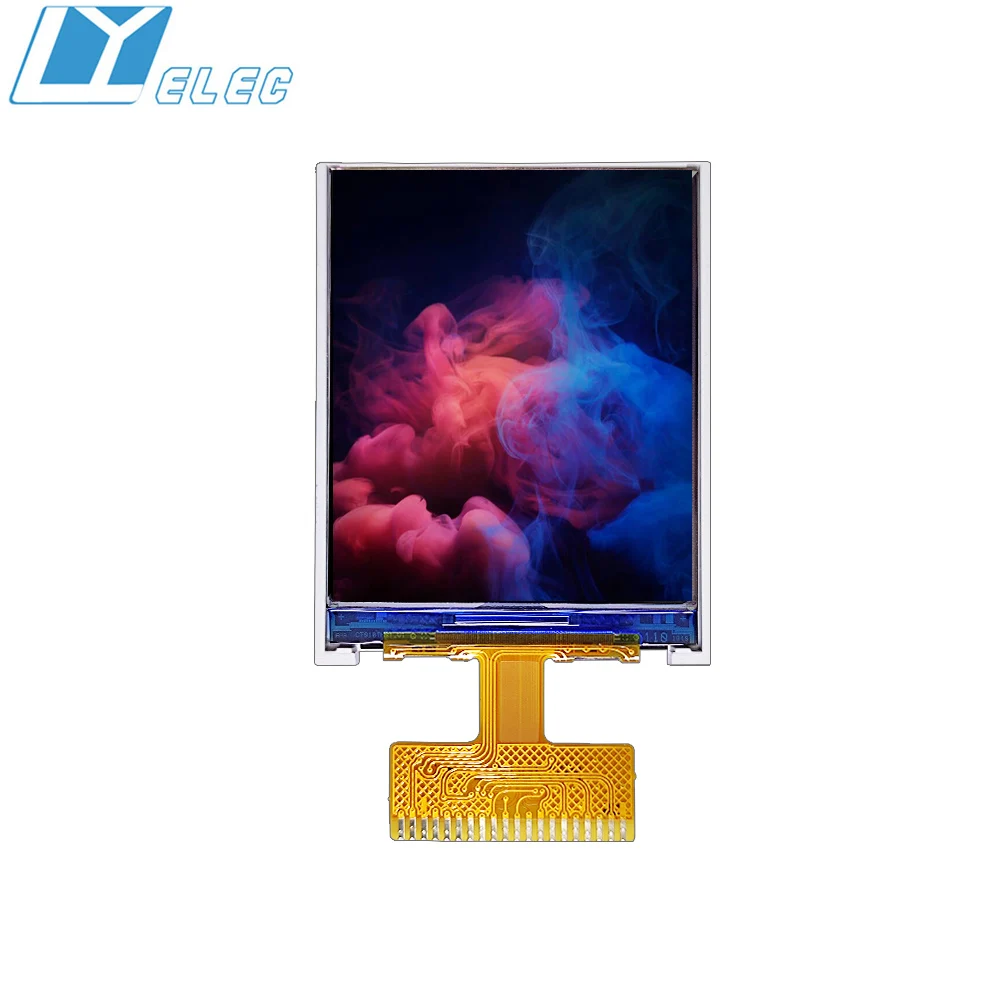

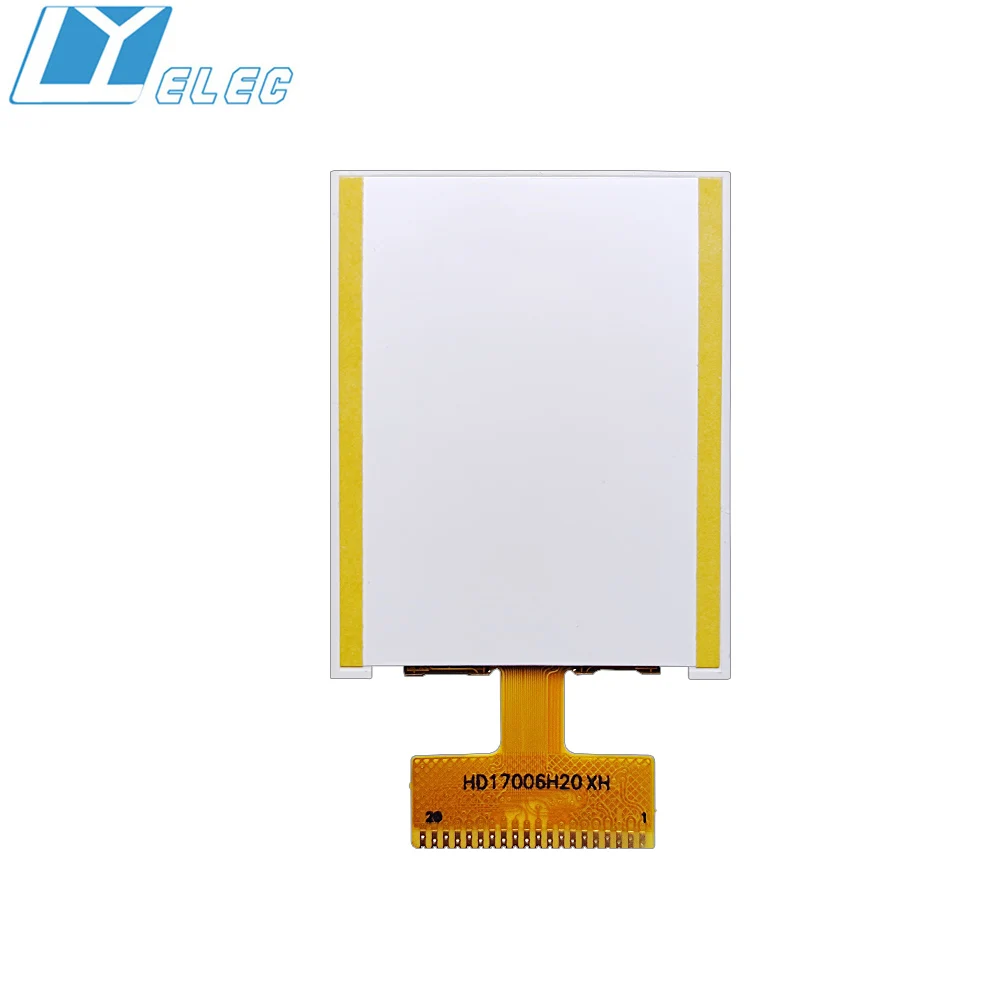

Product Overviews
TFTQ-T177NH20ZP03 is a 128xRGBx160 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight unit.

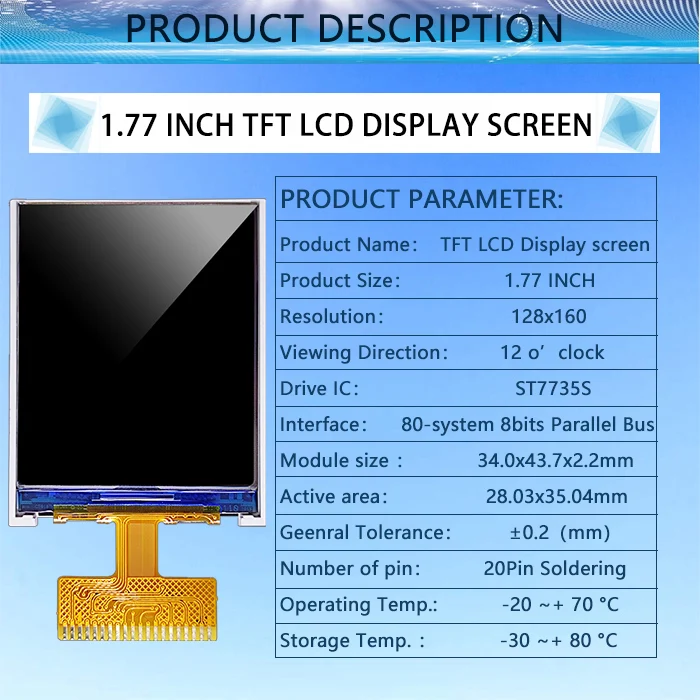

Product Specification
NO. | Item | Specification | Unit | Remark |
1 | LCD Size | 1.77" | inch | - |
2 | Panel Type | a-si TFT | - | - |
3 | Resolution | 128x(RGB)x160 | pixel | - |
4 | Display Mode | Normally White,Transmissive | - | - |
5 | Display Number of Colors | 262K | - | - |
6 | Viewing Direction | 12 o' clock | - | Note 1 |
7 | Contrast Ratio | 300 | - | - |
8 | Liuminance | 180 | cd/m2 | |
9 | Module Size | 34.0(W)x43.7(L)x2.2(T) | mm | Note 1 |
10 | Weight | TBD | g | - |
11 | Driver IC RAM Size | 128x16x160 | bit | - |
12 | Light Source | 2 White LEDs in Parallel | - | - |
13 | Interface | 80-system 8bits Parallel Bus | - | - |
14 | Operating Temperature | -20~70 | ℃ | - |
15 | Storage Temperature | -30~80 | ℃ | - |

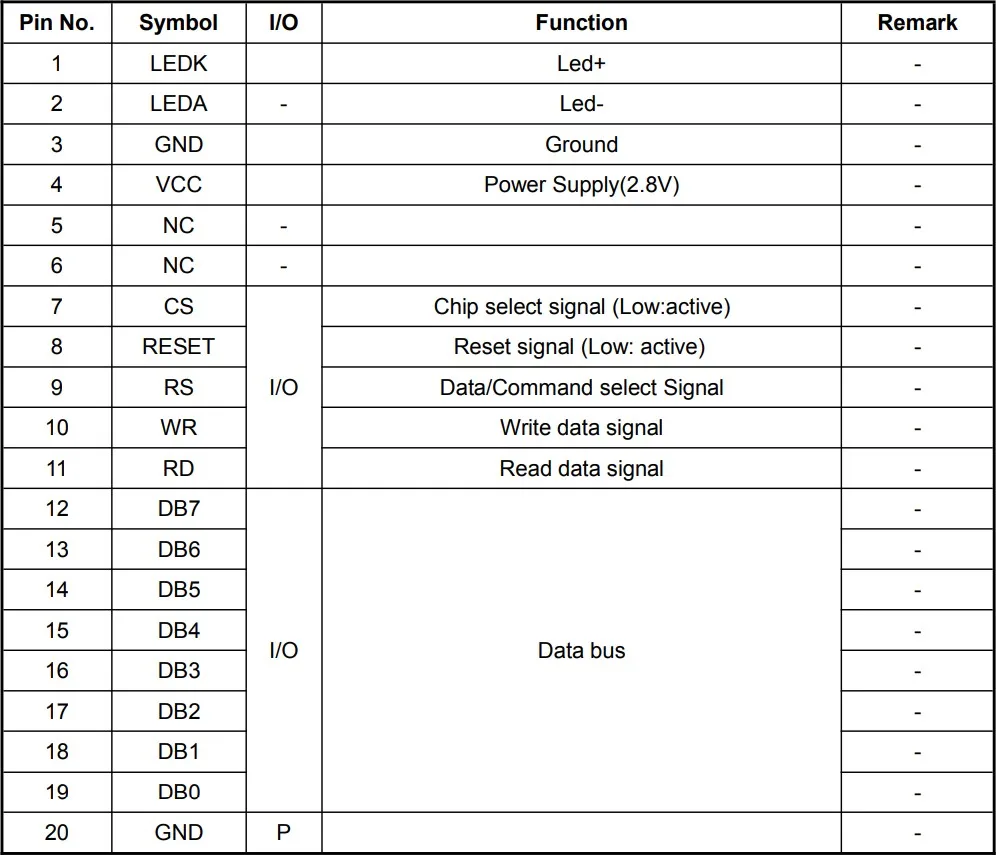

Pin Definition

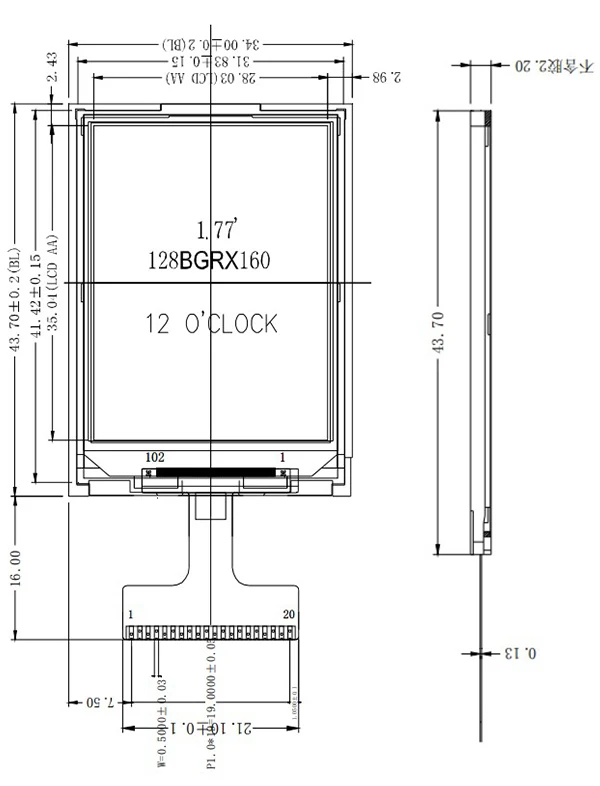

Mechanical Drawing
Related Products
Size | Model No. | Resolution | Driver IC | Interface | Pin |
0.96" | 80x160 | ST7735S | 4 Line SPI | 13 Pin | |
0.96" | 80x160 | ST7735S | 4 Line SPI | 8 Pin | |
0.99" | 40x160 | GC9D01 | SPI4 LINE | 10 Pin | |
0.99" | 40x160 | GC9D01 | SPI4 LINE | 10 Pin | |
1.06" | 96x160 | GC9107 | 4 LINE SPI | 13 Pin | |
1.14" | 135x240 | ST7789V | 4 Line SPI | 13 Pin | |
1.14" | 135x240 | ST7789V2 | 4 Line SPI | 8 Pin | |
1.28" | 240x240 | GC9A01 | 4 Line SPI | 12 Pin | |
1.3" | 240x240 | ST7789VW | 4 Line SPI | 12 Pin | |
1.3" | 240x240 | ST7789V2 | 4 Line SPI | 18 Pin | |
1.3" | 240x240 | ST7789VW | 8Bit 8080 MCU & 4 Line SPI | 24 Pin | |
1.3" | 240x240 | ST7789VW | 4 Line SPI | 12 Pin | |
1.54" | 240x240 | ST7789V | 8Bit MCU & 4L SPI | 22 Pin | |
1.69" | 240x280 | ST7789+CTC | SPI4W1L | 12 Pin | |
1.69" | 240x280 | ST7789+CTC | SPI4W1L | 12 Pin | |
1.77" | 128x160 | ST7735S+CTC | SPI4W1L | 10 Pin | |
1.77" | 128x160 | ST7735S | SPI-4wire | 14 Pin | |
1.77" | 128x160 | ST7735S | SPI | 14 Pin | |
1.77" | 128x160 | ST7735 | 4 Line SPI | 14 Pin | |
1.77" | 128x160 | ST7735S | 80-system 8bits Parallel bus | 20 Pin | |
2.0" | 240x320 | ST7789V | 8080 MCU 8bits | 22 Pin | |
2.0" | 240x320 | ST7789V | SPI | 12 Pin | |
2.1"with TP | 480x480 | ST7701S | 3SPI+18RGB | 40 Pin | |
2.1"with TP +HDM | 480x480 | ST7701S | 3SPI+18RGB | 40 Pin | |
2.1" | 480x480 | ST7701S | 3SPI+18RGB | 40 Pin | |
2.4" | 240X320 | ILI9341V | MCU | 18 Pin | |
2.4" | 240x320 | ST7789V2 | SPI/4W | 12 Pin | |
2.4" | 240x320 | ST7789V | MCU 8 bit/SPI4 | 22 Pin | |
2.8" | 240X320 | ST7789 | SPI4 | 10 Pin | |
2.8" | 240x320 | 9307 | MCU16/8/SPI | 40 Pin | |
2.8" | 240x320 | 7789V | MCU16 | 30 Pin | |
2.8" | 240x320 | 7789V2 | RGB/MCU16/SPI | 47 Pin | |
3.0" | 240x320 | - | 4 Line SPI | 51 Pin | |
3.5" | 320x480 | ILI9488 | 8 or 16BIT,3/4SPI | 40 Pin | |
3.95" | 480x480 | ST7701S | RGB | 30 Pin | |
3.97" | 480X800 | ST7701S | MIPI 2 LINE | 25 Pin | |
4.3" | 480x272 | ST7282 | Serial RGB 24 bit | 40 Pin | |
4.3" | 480X800 | ST7701S | MIPI 2 LINE | 13 Pin | |
4.3” | 480x800 | ST7701S | SPI+RGB24Bit | 45 Pin |
