Factory 2.0 inch graphic 240*320 RGB MIPI SPI MCU interface touch panel transmisive HD20003C22 FP-200H05B QVGA TFT LCD Module
Details Images

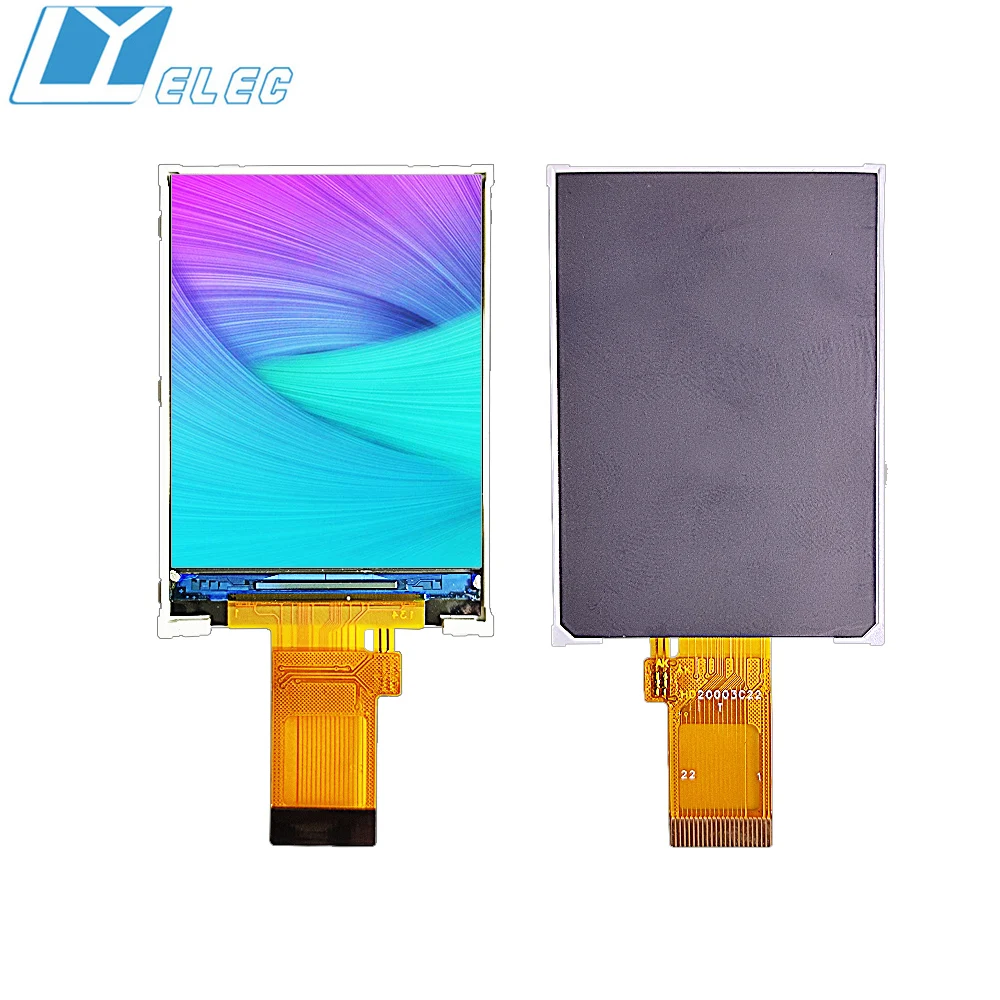

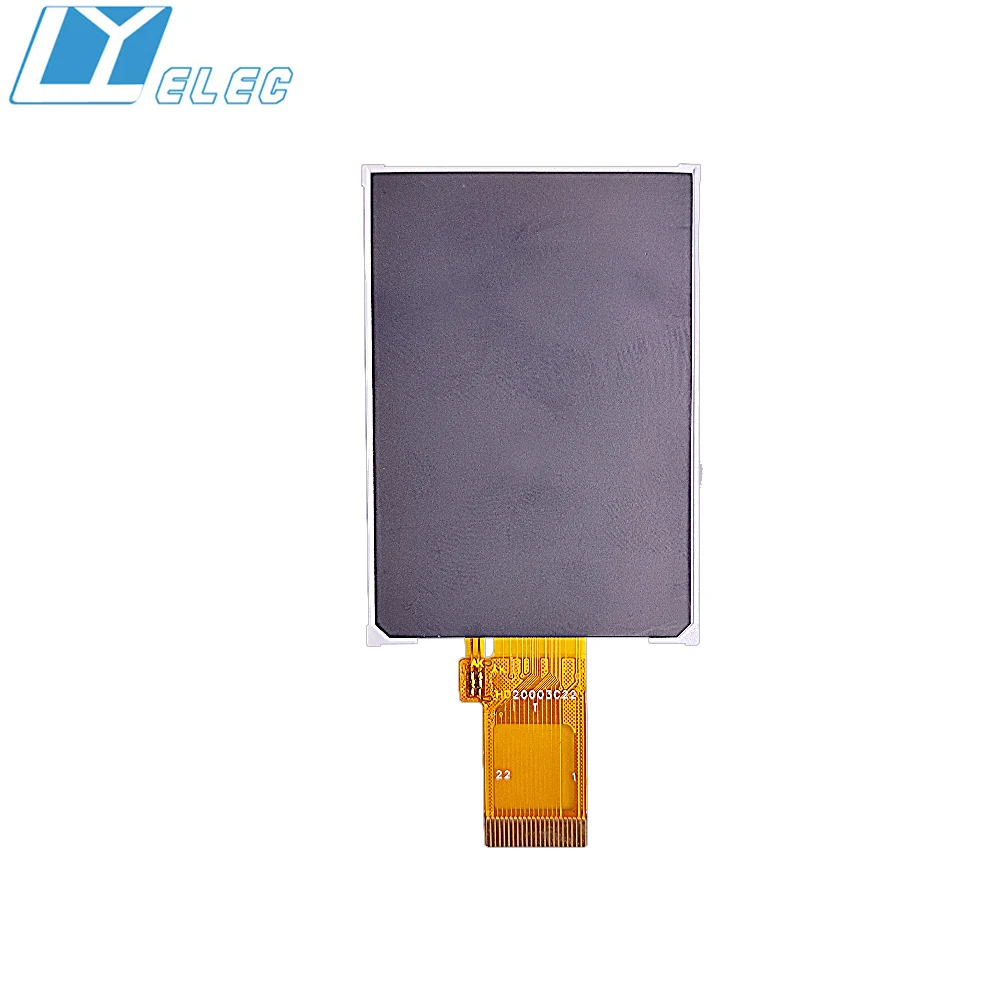

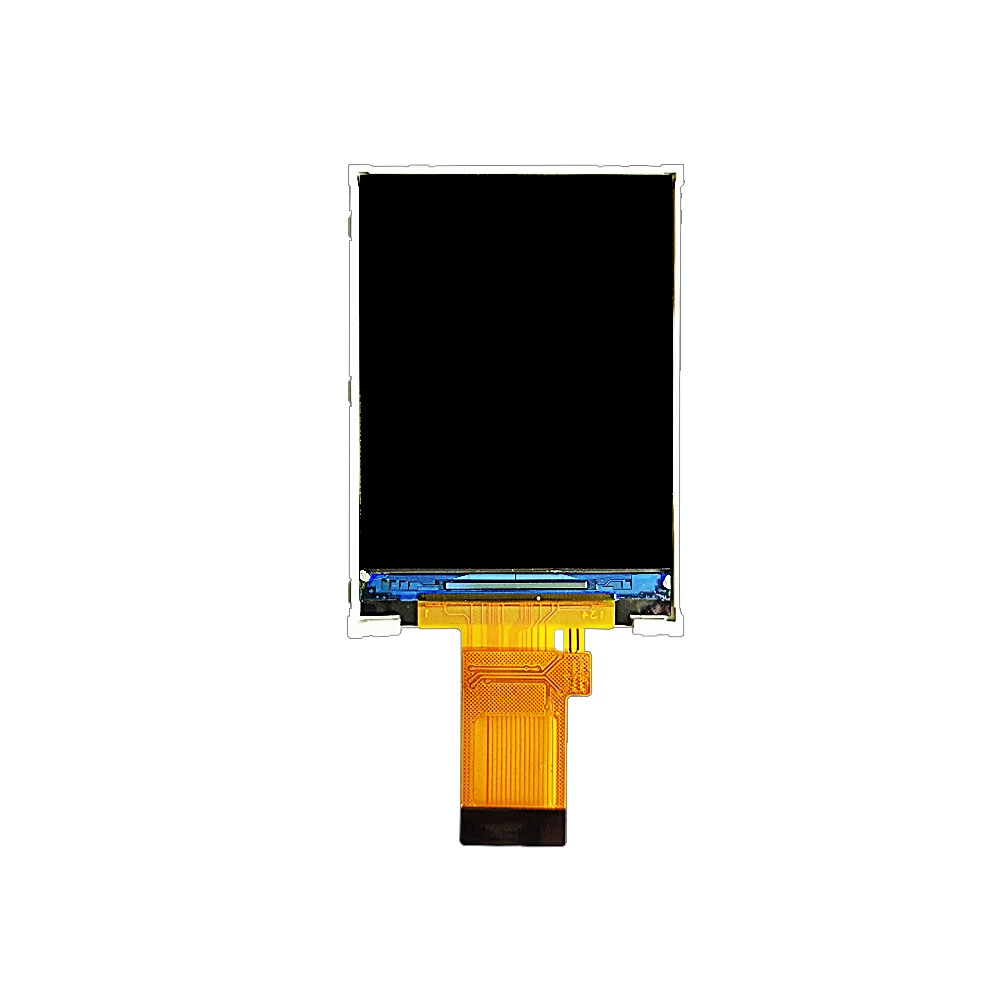

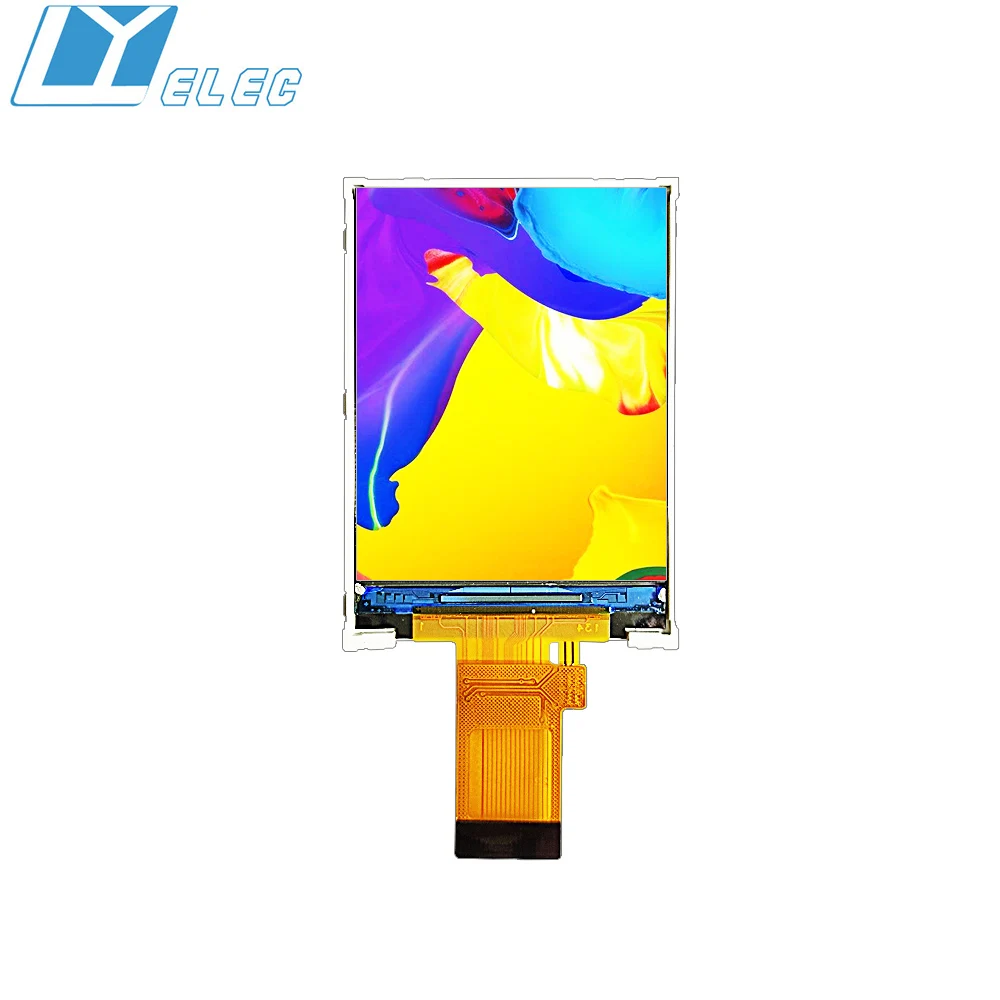

Product Overviews
TFTQ-T20ST22ZP01 is a 240xRGBx320 dot-matrix TFT LCD module. This module is composed of a TFT LCD Panel, driver ICs, FPC and a Backlight unit.

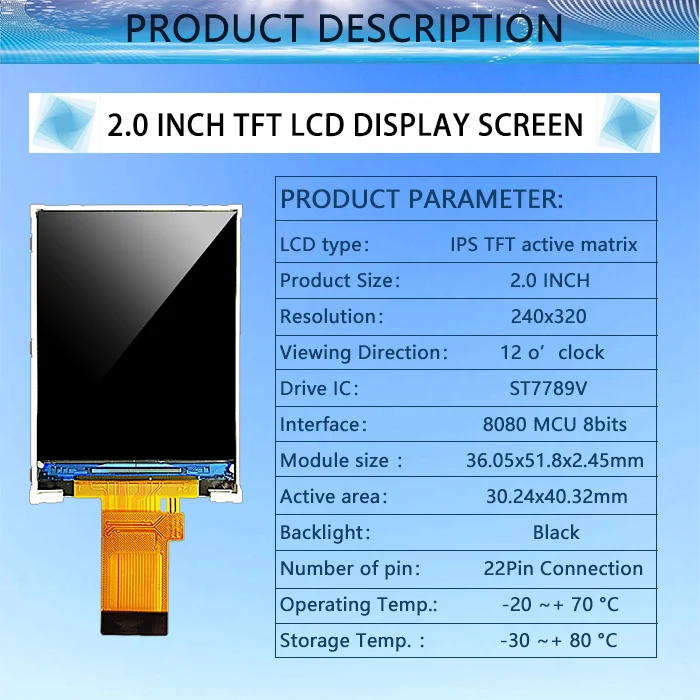

Product Specification
NO. | Item | Specifications | Unit |
1 | LCD Size | 2.0 inch (Diagonal) | - |
2 | Display Color | 262K | - |
3 | LCD Type | IPS TFT active matrix | - |
4 | Resolution | 240GRBx320 | - |
5 | Dot Pitch | 0.042(W)x0.126(V) | mm |
6 | Active Area | 30.24(W)x40.32(V) | mm |
7 | Module Size | 36.05(W)x51.8(V)x2.45(T) | mm |
8 | Interface | 8080 MCU 8 bits | - |
9 | Driver IC | ST7789V | - |
10 | Viewing Direction | 12 O' clock | - |
11 | Backlight | Black | - |
12 | Number of Pin | 22 Pin Connection | - |
13 | Operating Temperature | -20℃~+70℃ | - |
14 | Storage Temperature | -30℃~+80℃ | - |

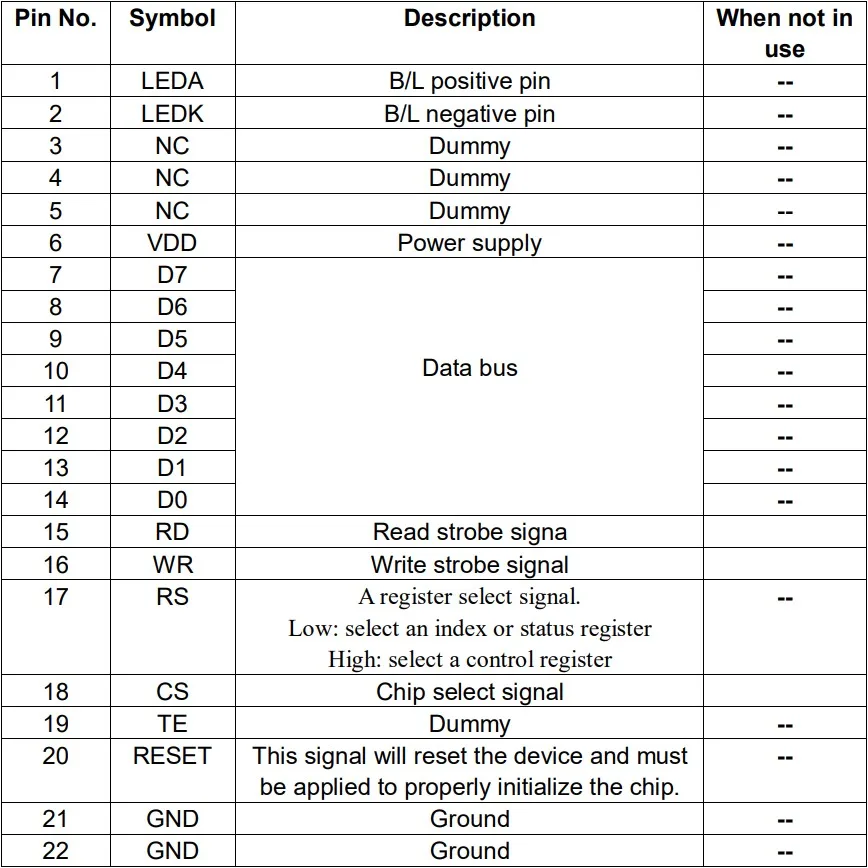

Pin Definition

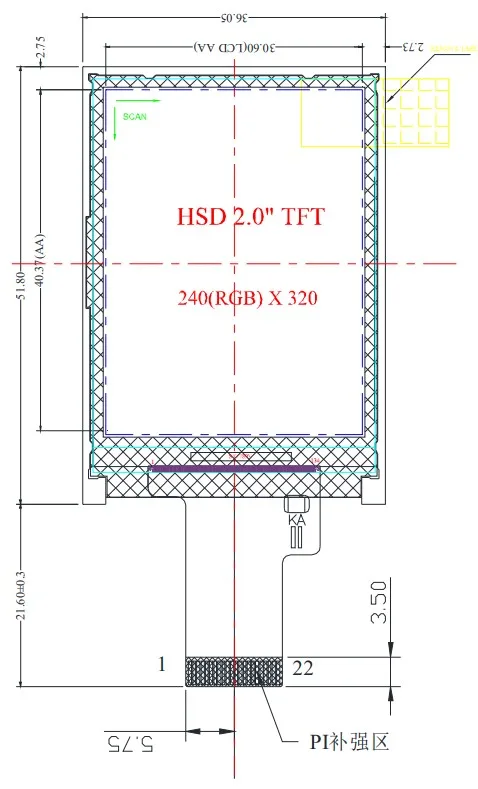

Mechanical Drawing
