jiemai Horizontal Pulse Vacuum High Pressure Steam Sterilizer ethylene oxide sterilization sterilizer
- Category: >>>
- Supplier: Jiangyin Jiemai Medical Instrument Co. Ltd.
Share on (1600463517997):
Product Overview
Description
Products Description

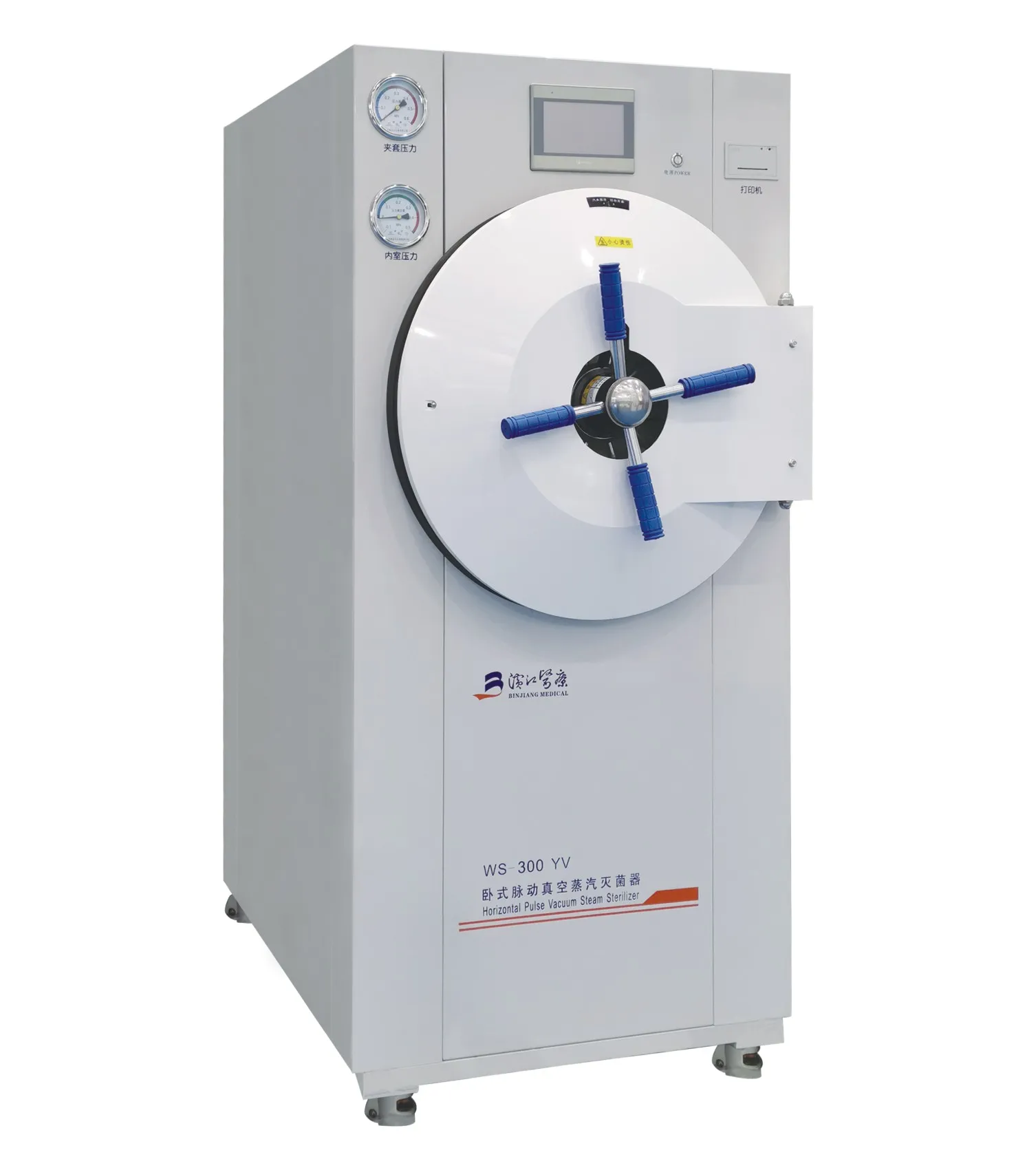

Horizontal Pressure steam sterilizer
Characteristics
• With drying function, suitable for the medical dressing drying.
• With overtemperature, overpressure autoprotect.
• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn't close well.
• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
• Automatically cut off the power if the waterlack happened, and alarm at the meanwhile.

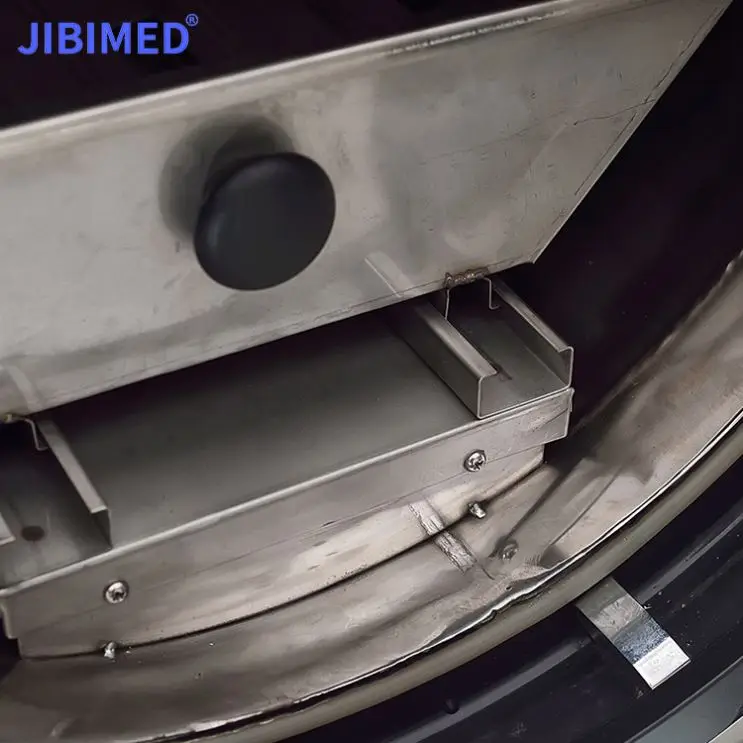

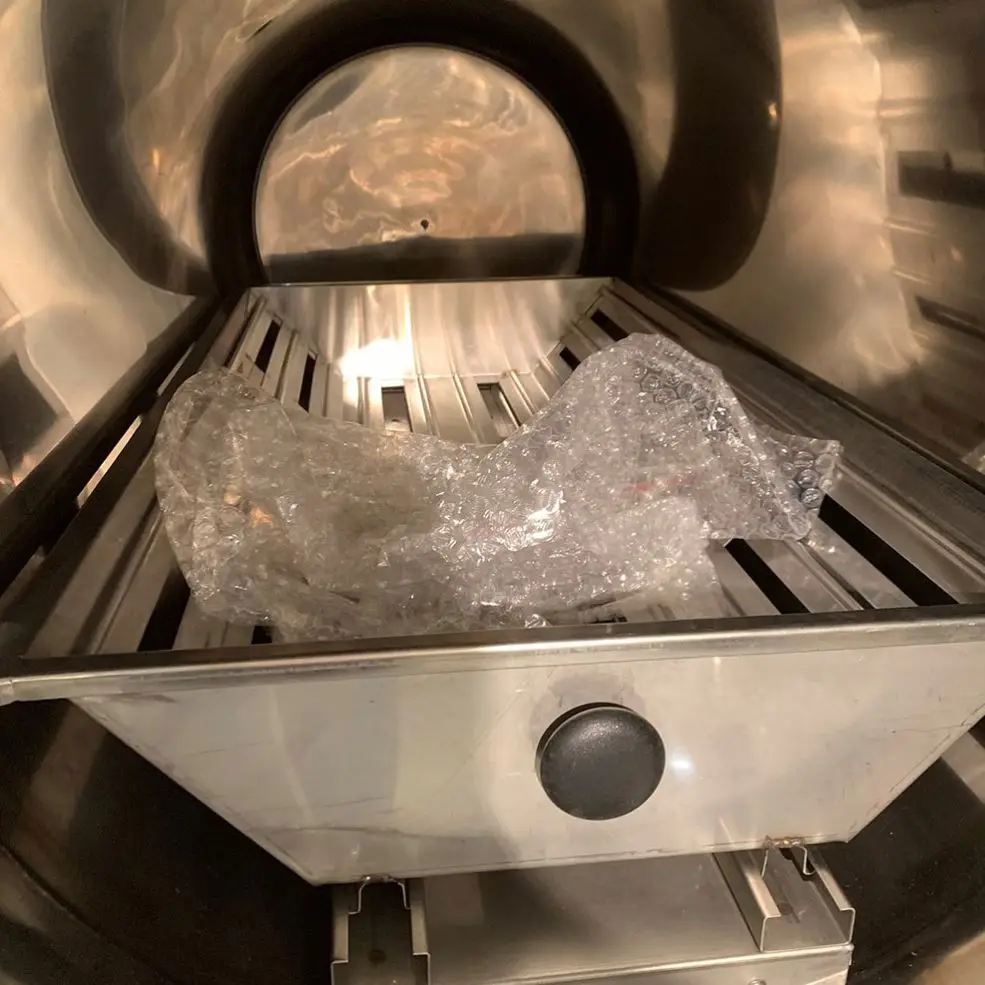

• The chamber of the sterilizer is made of stainless steel.
• Automatially controlled the sterilizing process, easy to operate.
• With drying function, suitable for the medical dressing drying.
• With overtemperature, overpressure autoprotect.
• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn't close well.
• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.
• Automatically cut off the power if the waterlack happened, and alarm at the meanwhile.
• The chamber of the sterilizer is made of stainless steel.
MODEL | WS-100YV | WS-150YV | WS-200YV | WS-300YV | |||||
Technical Data | |||||||||
Stenilizing chamber volume | 100L Φ440×670mm | 150L Φ440×1000mm | 200L Φ515×1000mm | 300L Φ600×1080mm | |||||
Working pressure | 0.22Mpa | ||||||||
Working temperature | 134℃ | ||||||||
Temperature adjust range | 115℃-134℃ | ||||||||
Time for sterilization | 0-99min | ||||||||
Time for drying | 0-99min | ||||||||
Heat average | ≤±2℃ | ||||||||
Power | 13kw/380V 50Hz | ||||||||
Dimension（mm） | 1400x660x1640 | 1400x660x1640 | 1400×750×1740 | 1520x850x1850 | |||||
Exerior package dimension（mm） | 1560x820x1820 | 1560x820x1820 | 1560x910x1880 | 1680x1080x2100 | |||||
G.W/N.W | 430/340kg | 440/350kg | 460/370Kg | 580/470kg | |||||
Factory park
Exhibition hall
CMEF Exhibition
Our Advantages
1.Manufacturer
2.Best price3.Fast delivery
4.Top quality
5.First class after-sales service
6.Long cycle life
