5Km 18dBi Antenna Gain PTP/PTMP 2 90n 2.4GHZ MIMO CPE Outdoor Wireless Access Point Bridge
- Category: >>>
- Supplier: Q-Tech Telecommunications Limited
Share on (1600463534984):
Product Overview
Description
Products Description
URwave QT 5-90ac 5GHZ MIMO CPE
500+ Mbps throughput - a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll 3). Incorporating a QCA 9563 CPU (750MHz), a QCA 9882 radio and 64MBytes of RAM and 16 MBytes of flash memory the, URwave ac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation—256-QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-multipoint network design. URwave ac series devices are backwards compatible with URwave devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.
The shape of the enclosure is now smaller, lighter and retains the IP-66 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new URwave QT 5-90ac design has no metal parts, which makes them lighter and corrosion resistant.

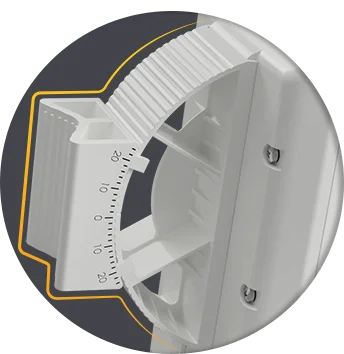

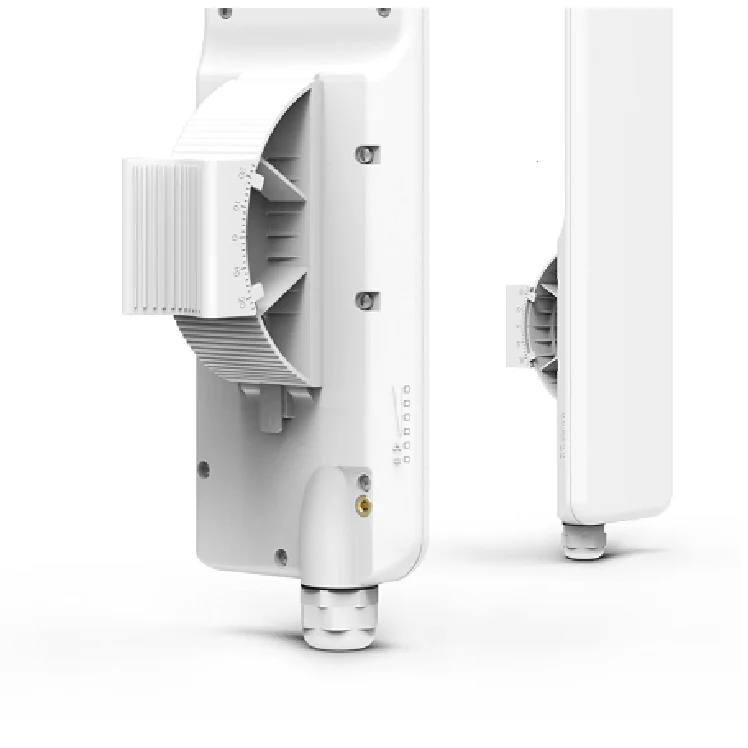

The adjustable mounting bracket is very easy to assemble and install. It consists of two easy to connect parts that allow tilting the device up and down when installing on a pole. A metal strap is included to securely tighten the device. This design includes additional reinforcements and thicker materials to ensure survival in extreme climate conditions.
Specification
Radio specifications | ||
Wireless technology | IEEE 802.11 a/n/ac, iPoll 3 , 2x2 MIMO | |
Operating mode | Bridge, router iPv4, router IPv6 | |
Radio frequency band | 5.150 - 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz) | |
Channel size | Configurable 5,10,20, 40,80 MHz | |
Max transmit power | 30 dBm (country dependent ) | |
Modulation schemes | 802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK) | |
Data rates@80Mhz | 802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps 802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps | |
Error correction | FEC, LDPC | |
Duplexing scheme | Time division duplex | |
Antenna | ||
Type | Integrated dual-polarized 90 degree sector antenna | |
Gain | 18 dBi | |
Cross-pol Isolation | 24dBi | |
Elevation beamwidth | H pol: 90deg, V pol: 90deg, Elevation: 90deg | |
Data Interface | ||
Physical interface | 10/100/1000 BaseT with POE | |
Protocol | Ethernet IEEE 802.3 | |
Connector type | RJ45 | |
Surge protection | Built-in (IEC 61000-4-2 (ESD) and IEC 61000-4-5 (SURGE)) | |
Link performance | ||
Real data throughput | 500 Mbps aggregate (250 Mbps full-duplex) | |
Max packets per second | 80,000 | |
Packet latency | 2 ms (64 bytes packet) | |
Recommended link distance | 5 km | |
Security | ||
Data encryption | WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation | |
Physical | ||
Dimensions | 380 mm, 10 mm, 35 mm | |
Weight | 460g (mount included) | |
Power supply | 24 VDC passive PoE (AC to 24 VDC adapter is included in the package) | |
Power source | 100 – 240 VAC | |
Power consumption | 10W | |
Environmental | ||
Operating temperature | -40°C (-40 F) ~ +65°C (+149 F) | |
Humidity | 0 ~ 90 % (non-condensing) | |
Management | ||
System configuration | Web UI, WNMS | |
Management system | SNMP, Syslog, Web UI, WNMS | |
Regulatory | ||
Certification | FCC/IC/CE/NCC | |
Ingress protection | IP-66 | |
Safety | RoHS compliant | |
