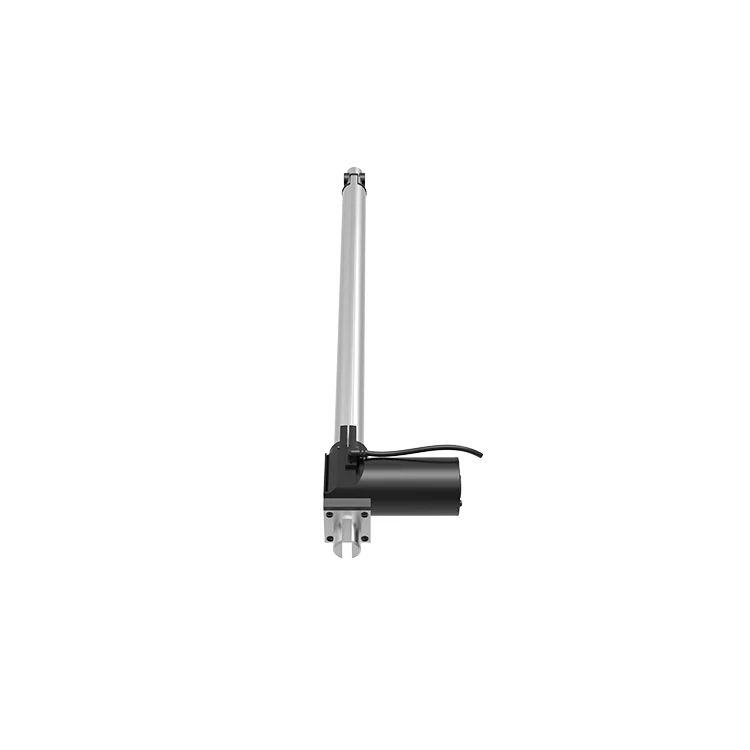

JIECANG JC35DH Medical Beds Lift Mechanism DC Linear Actuator
- Category: >>>
- Supplier: Zhejiang Jiecang Linear Motion Technology Co. Ltd.
Share on (1600463535567):
Product Overview
Description
Products Description
JIECANG 400mm Stroke Recliner Chair Sofa Electric 12v 24v Linear Actuator For Automatic Opener
Features
1. DC 24V permanent magnet motor
2. The maximum thrust is 6000N, the maximum pull is 4000N
3. The shell color is gray or black optional
4. Protection IP43
5. Aluminum alloy outer tube and inner tube, beautiful and corrosion-resistant
6. Low noise, the average noise level is lower than 48dB (environmental noise≤40dB)
7. Built-in electronic limit switch
8. High-strength front and rear fixing devices
9. After the power is off, the push rod can be raised and lowered by the hand crank
10. Certification: CE
2. The maximum thrust is 6000N, the maximum pull is 4000N
3. The shell color is gray or black optional
4. Protection IP43
5. Aluminum alloy outer tube and inner tube, beautiful and corrosion-resistant
6. Low noise, the average noise level is lower than 48dB (environmental noise≤40dB)
7. Built-in electronic limit switch
8. High-strength front and rear fixing devices
9. After the power is off, the push rod can be raised and lowered by the hand crank
10. Certification: CE
Options
·Safety nut: optional
·Only push no pull function: optional
·Hall sensor feedback: optional
·Reed switch feedback: optional
Usage
Ambient temperature: +5℃~ +40℃
Duty cycle: Max 10% or 2 minutes continues use followed by 18 minutes not in use
Matching control box: JCB35T
Matching control box: JCB35T
Company Profile
FAQ
Q: Do you get the relevant certifications?
A: Yes, so far, we have got certification of CE, TUV, UL, PSE, KC, SAA, ROSH, ISO9001:2015, ISO14001:2015 and so on.
Q: May I have a sample order before bulk one?
A: Of course, we can provide a sample for you.
Q: What is the shipping port?
A: Shanghai or Ningbo Port.
Q: How can I get the quotation?
A: You need to send up information, we will let our regional sales to contact with you, and the details you should to give: email address, telephone number, material, size, input, Load capacity, quantity, color, speed or frequency, etc
A: Yes, so far, we have got certification of CE, TUV, UL, PSE, KC, SAA, ROSH, ISO9001:2015, ISO14001:2015 and so on.
Q: May I have a sample order before bulk one?
A: Of course, we can provide a sample for you.
Q: What is the shipping port?
A: Shanghai or Ningbo Port.
Q: How can I get the quotation?
A: You need to send up information, we will let our regional sales to contact with you, and the details you should to give: email address, telephone number, material, size, input, Load capacity, quantity, color, speed or frequency, etc
