Product Overview
Description
Products Description

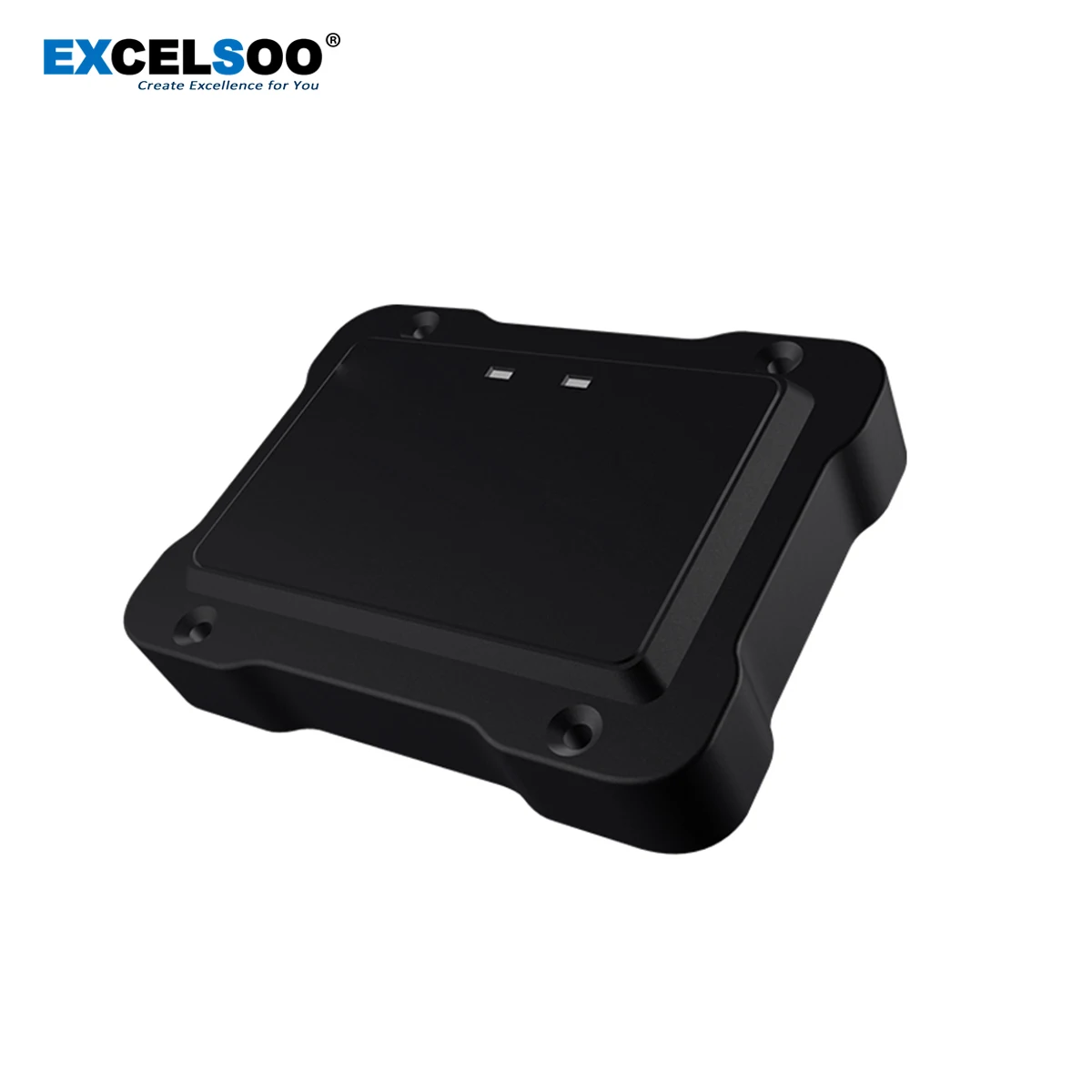

EX-RD01 Radar Vehicle Detector is a non-contact detection device for targets such as vehicles and pedestrians. It works in the millimeter wave band. The radar detector transmit linear frequency-modulated continuous wave signals to the target to perform high-speed real-time processing on the target's reflected echoes to achieve fast target Detection.
The Radar Vehicle Detector has the advantages of convenient installation and maintenance, no need to damage the road surface, no impact on vehicle access, advanced technology, reliable and stable operation, high cost performance, convenient setting of working distance, all-weather and all-weather work, compatible with straight poles and billboards/fence Advantages such as brake lever application.
PRODUCT SPECIFICATION OF RADAR VEHICLE DETECTOR EX-RD01 | 1 | |
Model NO. | EX-RD01 | |
Power Supply | DC 6V～18V | |
Frequency | 24 GHz | |
Response Time | 100ms | |
Signal Output | Relay | |
Detecting Range | 0 m~6 m | |
Vertical Detecting Width | 43° | |
Horizontal Detecting Width | 11° | |
Size | 105 mm×78 mm×26 mm | |
Waterproof Rate | IP65 | |
Certificate | CE, RoHS | |
OEM | Supported | |
2.1 Specifications
* Center Frequency: 24 GHz;
* Vertical Detecting Width: 43°;
* Horizontal Detecting Width: 11°;
* Coverage Range: 0 m～6 m;
* Distance Adjustment Range: 2.0 m～6 m (8 levels);
* Response Time: 100ms;
* Signal Output: switching value.
2.2 Detection Accuracy
* Vehicle Inspection Miss Rate: 0.1%;
* Pedestrian Detection Miss Rate: 0.1%;
* False Detection Rate: 0.05%.
2.3 Mechanical Properties
* Dimensions: 105 mm×78 mm×26 mm;
* Weight: 85g;
* Waterproof: IP65
* Supply Voltage Range: DC 6V～18V
* Supply Current: less than 90 mA/12V.
* Operating temperature: -40℃～+85℃;
* Humidity: relative humidity 99% at 25℃.
2.4 Reliability
The equipment can work continuously day and night under the specified conditions, and the Mean Time between Failure (MTBF) meets: MTBF≧15000 h.
* Center Frequency: 24 GHz;
* Vertical Detecting Width: 43°;
* Horizontal Detecting Width: 11°;
* Coverage Range: 0 m～6 m;
* Distance Adjustment Range: 2.0 m～6 m (8 levels);
* Response Time: 100ms;
* Signal Output: switching value.
2.2 Detection Accuracy
* Vehicle Inspection Miss Rate: 0.1%;
* Pedestrian Detection Miss Rate: 0.1%;
* False Detection Rate: 0.05%.
2.3 Mechanical Properties
* Dimensions: 105 mm×78 mm×26 mm;
* Weight: 85g;
* Waterproof: IP65
* Supply Voltage Range: DC 6V～18V
* Supply Current: less than 90 mA/12V.
* Operating temperature: -40℃～+85℃;
* Humidity: relative humidity 99% at 25℃.
2.4 Reliability
The equipment can work continuously day and night under the specified conditions, and the Mean Time between Failure (MTBF) meets: MTBF≧15000 h.
Key Features
a) Blind Zone without Detection Distance
b) All-weather Work
c) Detection Accuracy
d) Work Reliability
e) Installation Flexibility
f) Low Cost to Install and Maintain
g) Convenient Power Supply
h) Use Environment Adaptability
b) All-weather Work
c) Detection Accuracy
d) Work Reliability
e) Installation Flexibility
f) Low Cost to Install and Maintain
g) Convenient Power Supply
h) Use Environment Adaptability

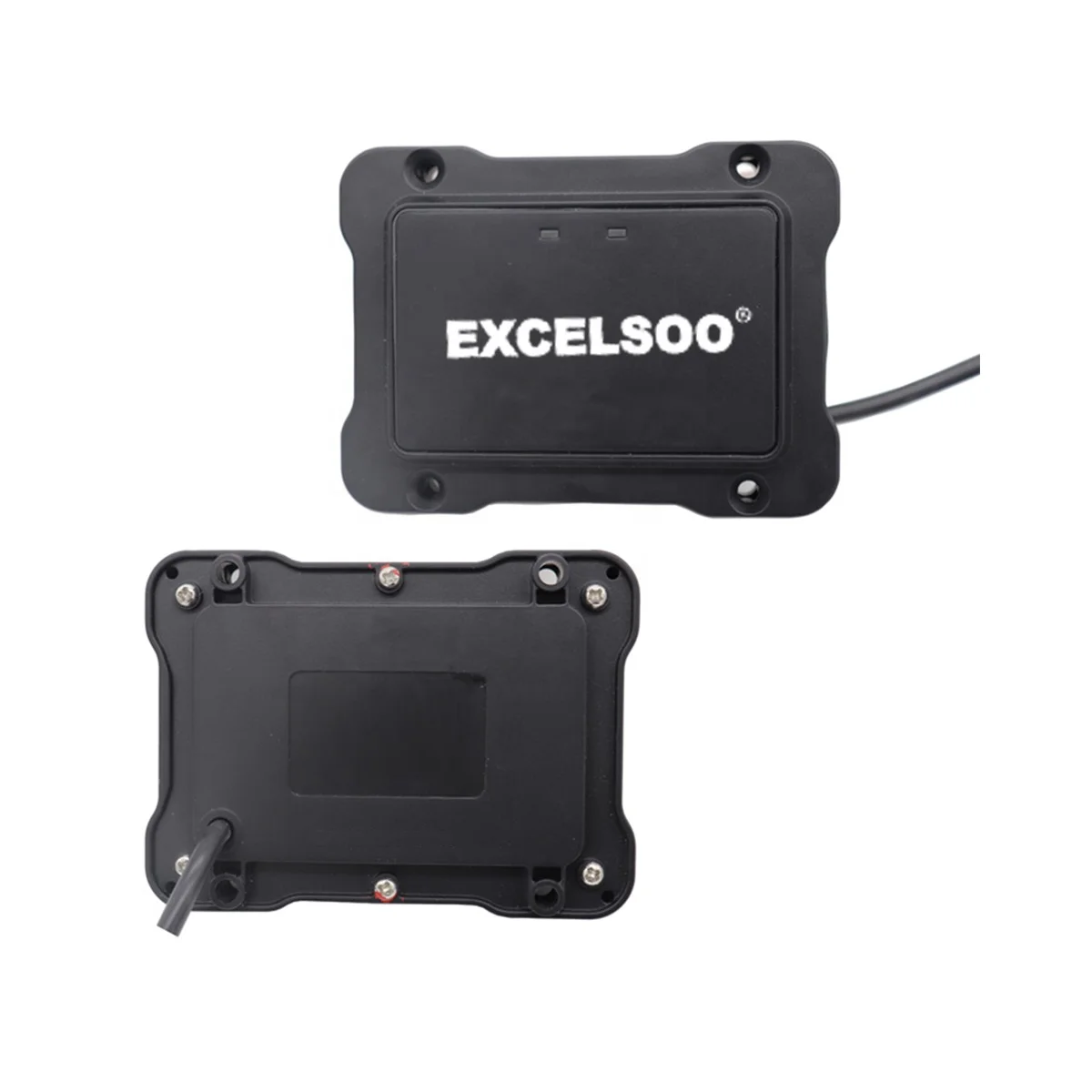

Details Images
Installation Instructions
Installation Guide
The radar detector is directly installed on the outer surface of the barrier chassis, and the radiation direction of the radar detector is perpendicular to the entrance or exit direction of the channel.
The installation height of the radar detector is about 0.6m from the center of the radar detector to the ground, and the fixed size of the barrier radar detector is 67mm×67mm, which is connected to the barrier gate cabinet by 4 M4×35 screws
The installation height of the radar detector is about 0.6m from the center of the radar detector to the ground, and the fixed size of the barrier radar detector is 67mm×67mm, which is connected to the barrier gate cabinet by 4 M4×35 screws
Product packaging
Package
Paper Cartons
Certifications
Manufacturing Technique
Why Choose Us
Professional security products for your business
We focus on you and your needs—and offer you fully Professional Parking Management System products and solution.
We help you simplify your parking management and work toward the goals that matter most to you. As your relationship grows with us, you gain access to exclusive rewards and benefits.
We focus on you and your needs—and offer you fully Professional Parking Management System products and solution.
We help you simplify your parking management and work toward the goals that matter most to you. As your relationship grows with us, you gain access to exclusive rewards and benefits.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if QTY less than 10pcs; we need to negotiate if QTY is more than 10pcs.
Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.
Q: What is your terms of payment ?
A: T/T.
Please feel free to contact us if any further information or clarification needed.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if QTY less than 10pcs; we need to negotiate if QTY is more than 10pcs.
Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.
Q: What is your terms of payment ?
A: T/T.
Please feel free to contact us if any further information or clarification needed.
