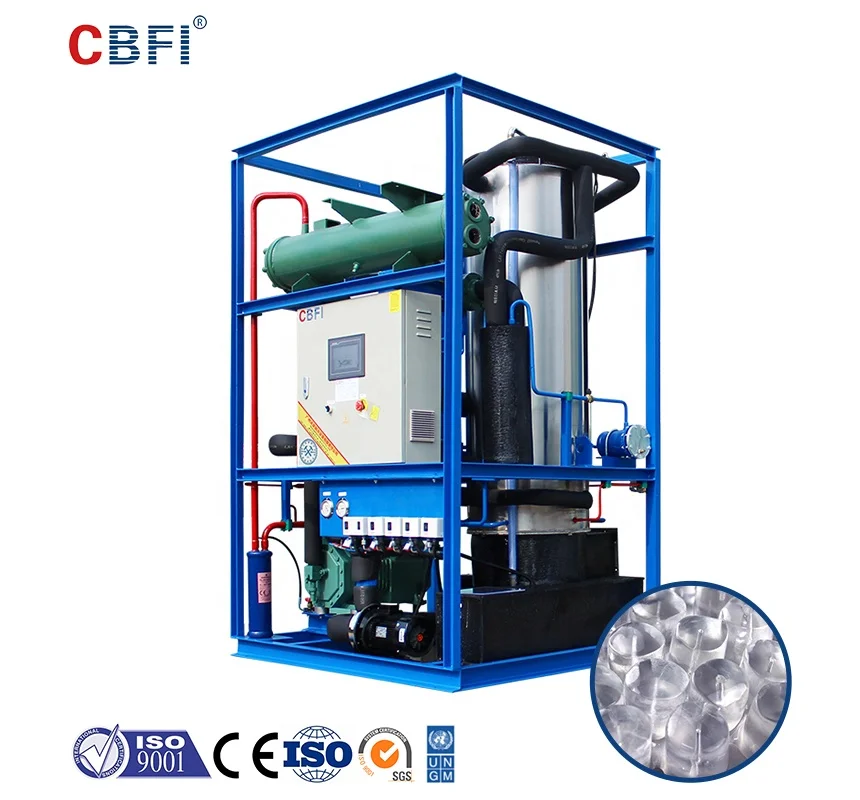

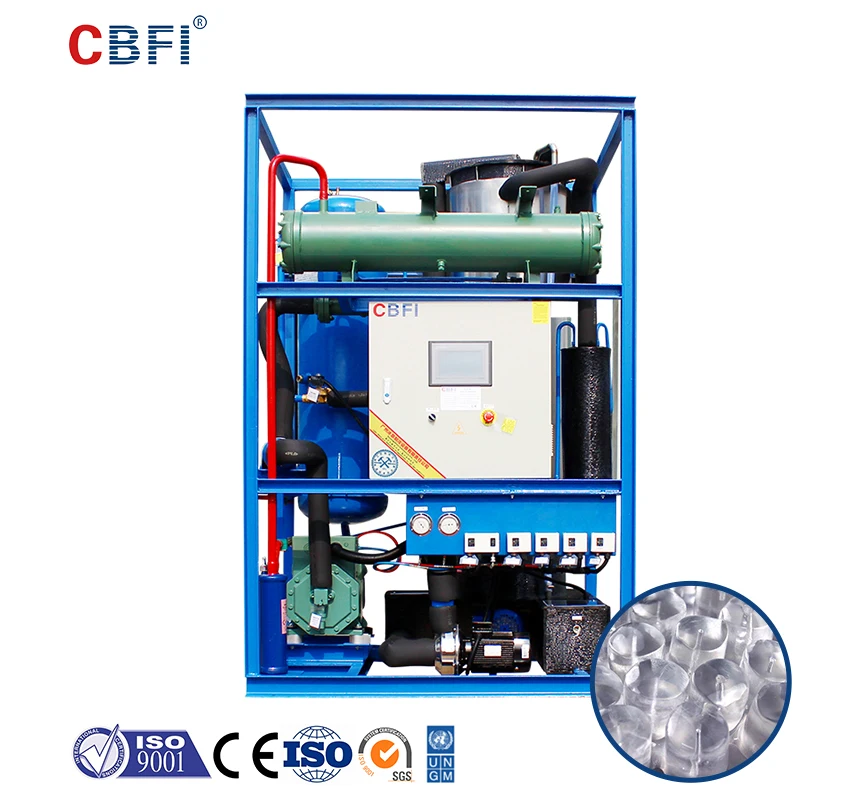

Fully Automatic 1 Ton Ice Tube Making Machine Ice Tubes 3000kg
Fully Automatic 1 Ton Ice Tube Making Machine Ice Tubes 3000kg
Fully Automatic 1 Ton Ice Tube Making Machine Ice Tubes 3000kg
Fully Automatic 1 Ton Ice Tube Making Machine Ice Tubes 3000kg
Fully Automatic 1 Ton Ice Tube Making Machine Ice Tubes 3000kg
Fully Automatic 1 Ton Ice Tube Making Machine Ice Tubes 3000kg
Fully Automatic 1 Ton Ice Tube Making Machine Ice Tubes 3000kg

Fully Automatic 1 Ton Ice Tube Making Machine Ice Tubes 3000kg

Share on (1600463540863):


Price:$17,000.00 - $20,000.00

Quantity:


Product Overview

Description



Product Description


Tube ice machine is a very good choice for a start of your ice business. Working with a water filter and a packing machine, tube ice plant is all completed. We provide you with tube ice plant solution design, helping you with the position design, water pipe arrangement and etc.


· Advantages
☺ Easy to install and maintain.

☺ Food grade SUS304 stainless steel to ensure that the ice is edible.

☺ PLC intelligent control, fully automatic production, without manual operation.

☺ Automatic laser welding, low failure rate.

☺ Special water system design, uniform thickness, clear and pure ice.

☺ You can choose manual or automatic packaging system.


· Product Features

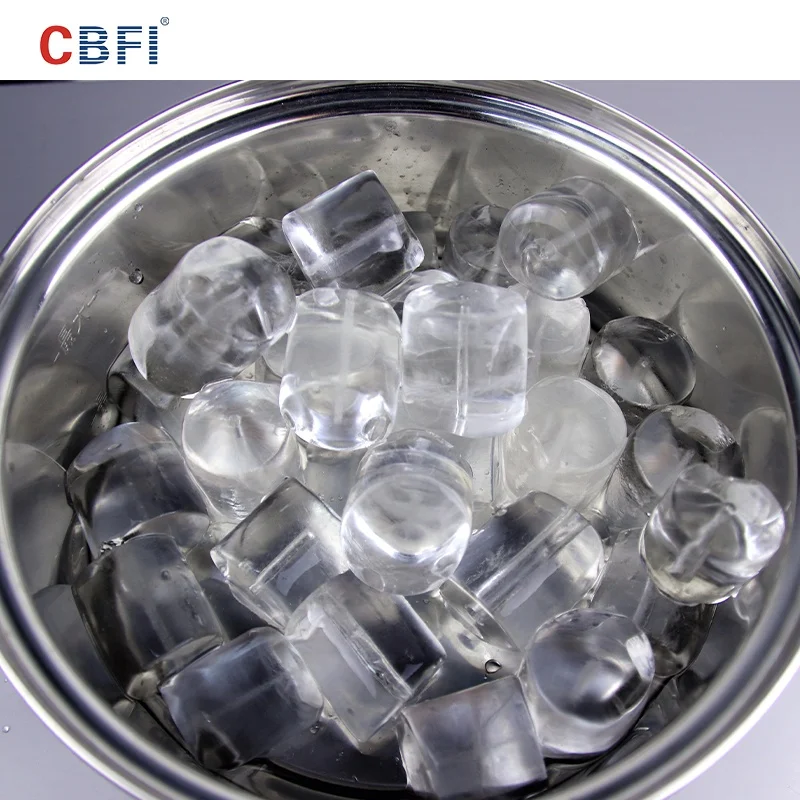

☺ The shape of the ice cube is a hollow tube with irregular length, and the diameter of the inner hole is 5mm ~ 15mm.
☺ The ice with the smallest contact area and the best melting resistance.
☺ Combining water purification technology with tube ice production, the tube ice produced is edible ice.
☺ Our company has tube ice machines with external diameters of 22mm, 28mm and 35mm for customers to choose from.


Product Configurations




Compared with peers, the important components of the company's production equipment are imported top-notch technology equipment, which has the advantages of good quality, simple operation, stable output, and high automation.


Product Parameters


Model
Daily output
(T/24 h)
CompressorPower
Fan Power for Cooling Tower
Cooling
Pump Power
Unit size (L*W*H mm)
(Integrated Type)
Unit N.W.(kg)
TV 10
1
4.1 kw
0.25 kw
1.1 kw
1100*900*1780
900
TV 20
2
7.44 kw
0.25 kw
1.5 kw
1250*1000*1950
1200
TV 30
3
10 kw
0.55 kw
1.5 kw
1300*1100*2200
1500
TV 50
5
19.9 kw
0.55 kw
2.2 kw
1600*1400*2250
1800
Model
Daily output
(T/24 h)
Compressor
Power
Fan Power for Cooling Tower
Cooling Pump Power
Unit size (L*W*H mm)
（Split type）
Unit N.W.
(kg)
Main Host
Brine Tank
TV 100
10
27.9 kw
1.5 kw
4 kw
1900*1600*1850
1200*1200*3390
3500
TV 100+
10
39.8 kw
1.5 kw
4 kw
2400*1700*2000
1200*1200*3390
3700
TV 150
15
46.4 kw
1.5 kw
5 kw
2700*2000*2200
1500*1200*4250
4250
TV 200
20
55.7 kw
2.2 kw
7.5 kw
2800*2200*2500
1500*1200*4700
6500
TV 300
30
83.6 kw
2.2 kw
7.5 kw
3100*2200*2500
1800*1500*5700
7200
TV 400
40
111.4 kw
2.2 kw
11 kw
3900*2250*2500
2000*1500*6800
8300
TV 500
50
139.3 kw
3.75 kw
15 kw
4500*2250*2500
2200*1800*7200
9500
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2.Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3.Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃.
4.(Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
5.(The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any
technical change. )

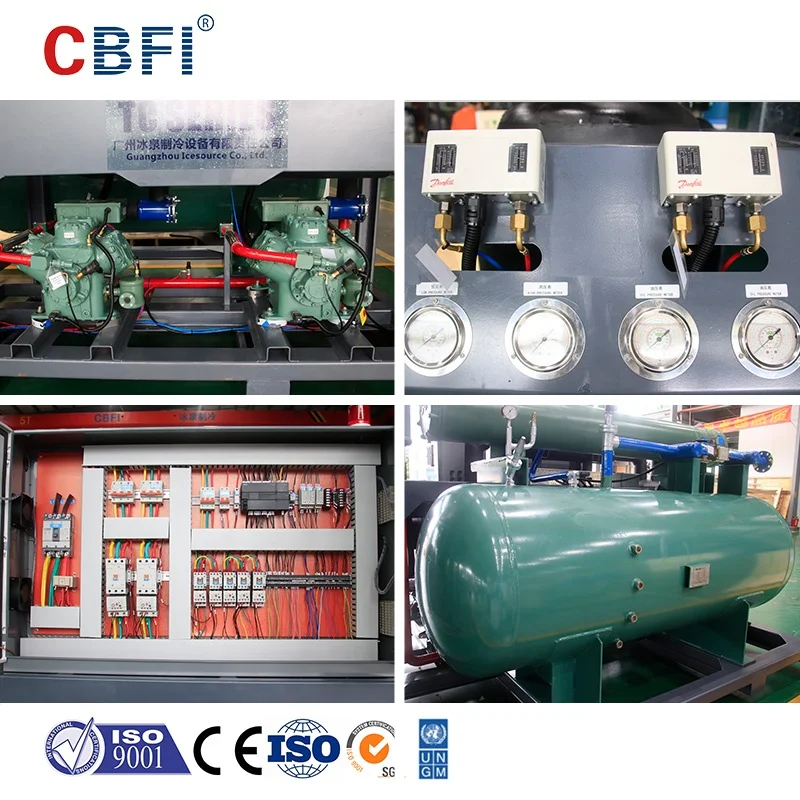

The main reason for the good quality of the ice machine produced by our company is that the compressor, condenser, expansion valve, PLC controller and other important parts are imported. The equipment has good performance and strong anti-interference ability. The external environment has an impact on the output and ice. The quality of the product has little effect.A variety of models can meet the needs of customers at different levels.


Successful Project




Product Application




The tube ice produced by the tube ice machine is crystal clear and the length of the tube ice can be adjusted. The entire
production process is clean and hygienic, without any harmful substances to the human body, and can be in direct contact with food. It is widely used in food preservation industries such as cold drinks, fisheries, and markets.


Contact us






About us






Our Services and FAQ


Our service
☺ Installing by the user:we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.

☺ Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready.
Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual
installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.


FAQ
1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(19.00%),
Southeast Asia(16.00%),Africa(15.00%),Mid East(14.00%),South Asia(12.00%),South America(10.00%),
Eastern Asia(6.00%),Eastern Europe(4.00%),Oceania(4.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Ice Block Machine,Ice Cube Machine,Ice Tube Machine,Ice Flake Machine,Cold Room

4. Why should you buy from us not from other suppliers?
We Guangzhou Icesource Refrigeration Equipment CO., LTD Specializes in innovating, designing, manufacturing various commercial and industrial ice machines and cold room with more than 10 years experience. Our Engineer department keep pursuing the newest technology.

5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish

6. Are you add refrigerant in the ice machine?
Yes, our equipment is filled with refrigerant, and it can be used as long as it is connected to electricity and water.

7.Do you test the ice machine in your factory?
Yes, Our equipment will be tested twice before being put into use: factory inspection and operation test after installation at
the buyer's destination to ensure that we provide the best service to customers.In addition, our company can provide a complet set of solutions for the actual needs of customers. Creating value and fulfilling customers is our principle.

8.All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for aboard? Such as 440V 60HZ or 220V three phase that suitable for America?
Our ice machine and power, voltage can suitable for your country, please make the power requirement be clear in your order.
