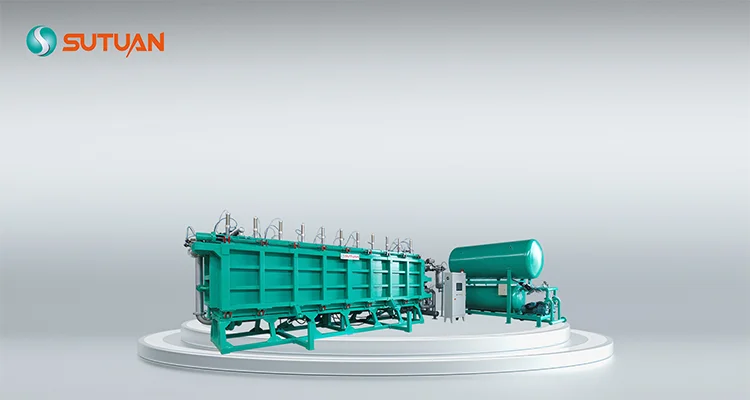

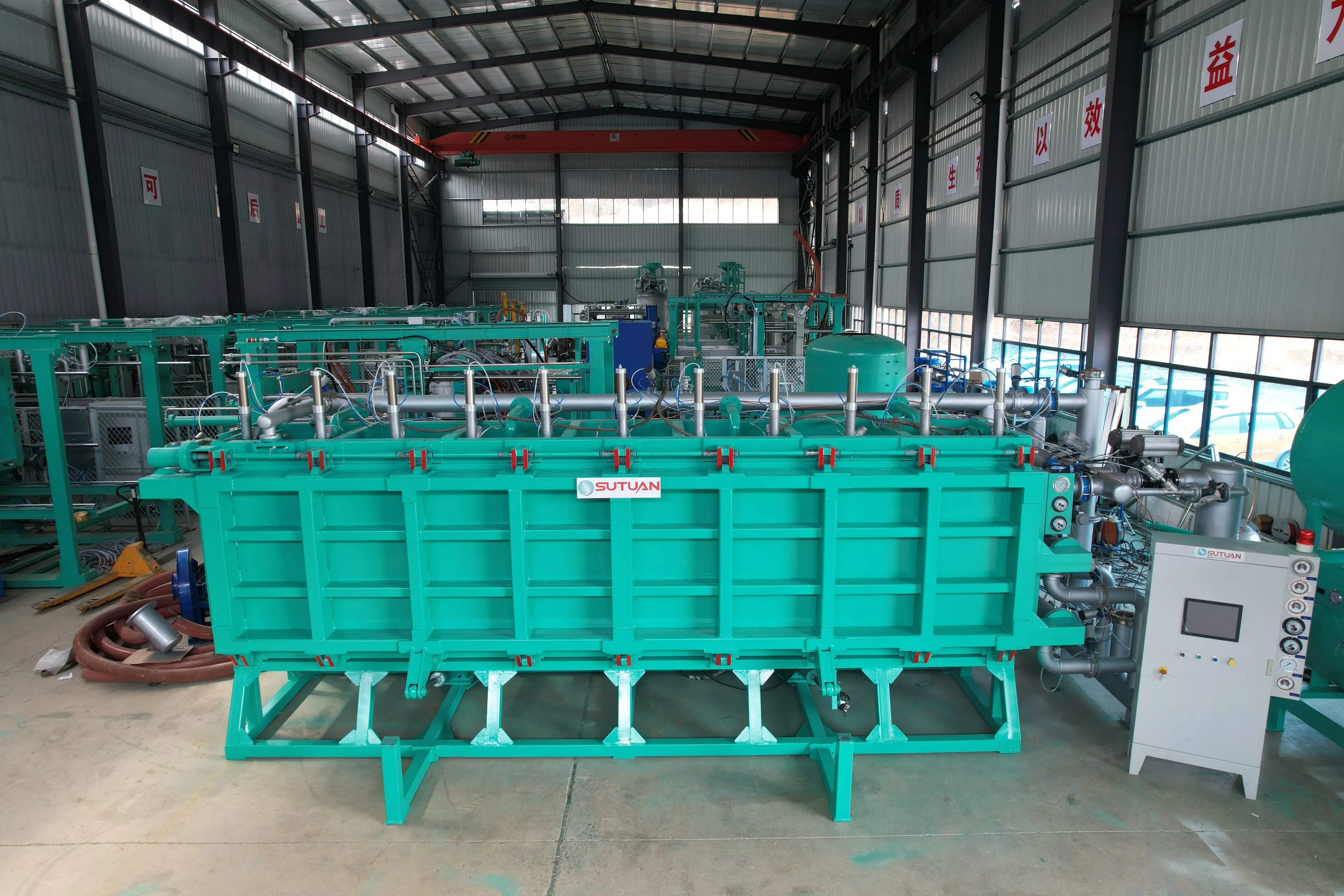

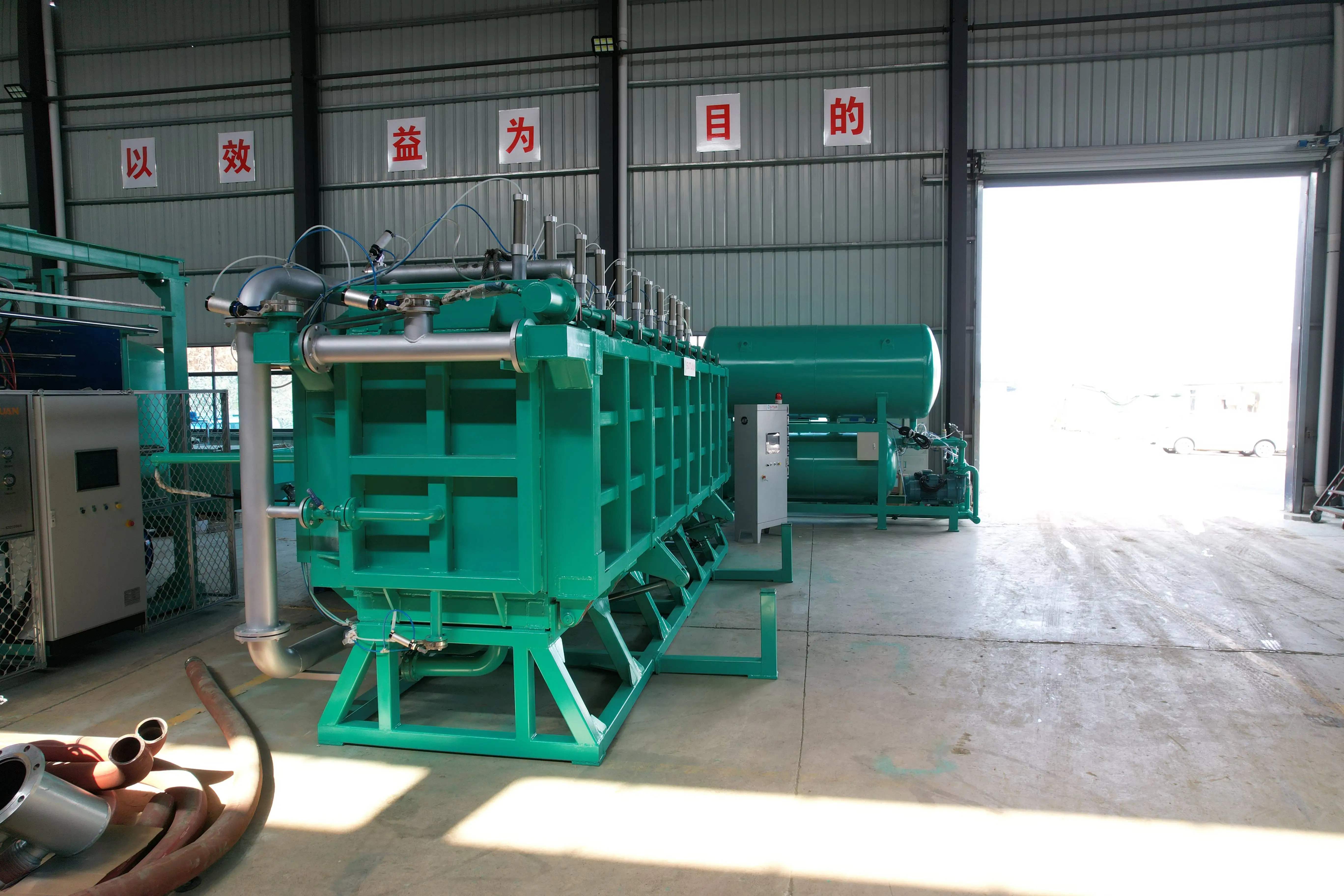

sutuan expandable polystyrene eps foam plate sheet block moulding machine
- Category: >>>
- Supplier: Hangzhou Sutuan Machinery Co. Ltd.
Share on (1600463558848):
Product Overview
Description
Product Information
Machine type | Automatic Block moulding machine | ||||||
Item | Unit | Model | |||||
PB6000VS | |||||||
Mould cavity Size | Mm | 6100*1240*1030 | |||||
Block Size | Mm | 6000*1200*1000 | |||||
Steam | Entry | inch(mm） | 8"（DN200） | ||||
Consumption | kg/cycle | 95~120 | |||||
Pressure | Mpa | 0.6~0.8 | |||||
Compressed Air | Entry | inch(mm） | 3"（DN80） | ||||
Consumption | m³/cycle | 2~3 | |||||
Pressure | Mpa | 0.6~0.8 | |||||
Vacuum cooling water | Entry | inch(mm） | 1.5"（DN40） | ||||
Consumption | m³/cycle | 1.0 | |||||
Pressure | Mpa | 0.2~0.4 | |||||
Drainage | vacuum vent | inch(mm） | 5"（DN125） | ||||
steam vent | inch(mm） | 8"（DN200） | |||||
air cooling vent | inch(mm） | 8"（DN200） | |||||
Capacity 15kg/m3 | m³/cycle | 8 | |||||
Connected load/Power | kw | 32.25 | |||||
Overall dimension(L*W*H） | mm | 12600*4500*3100 | |||||
kg | 14000 | ||||||
Related Products

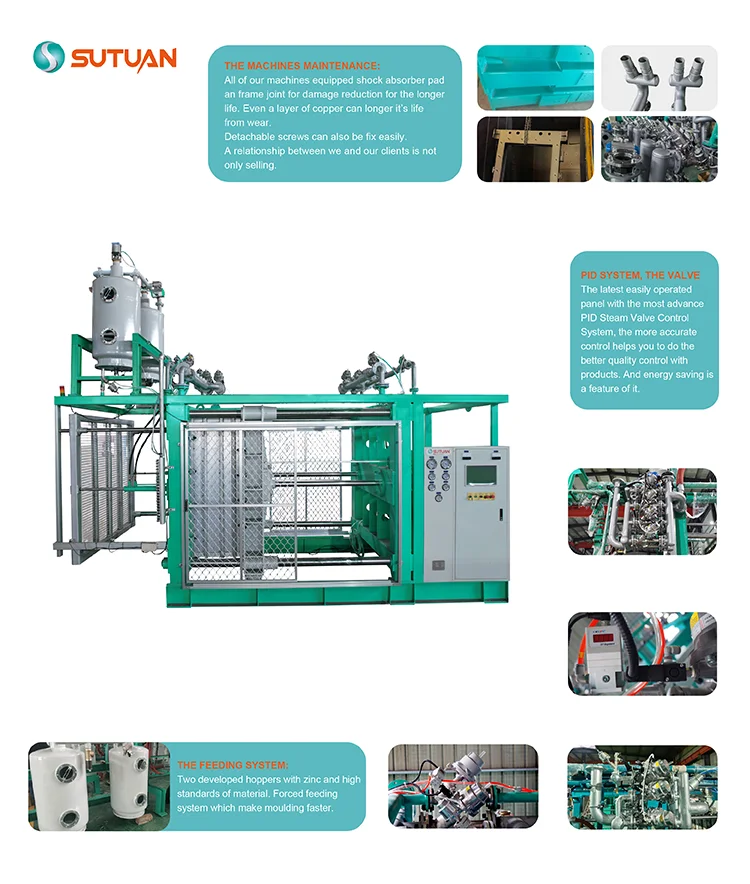

Energy-saving Eps Shape Moulding Machine

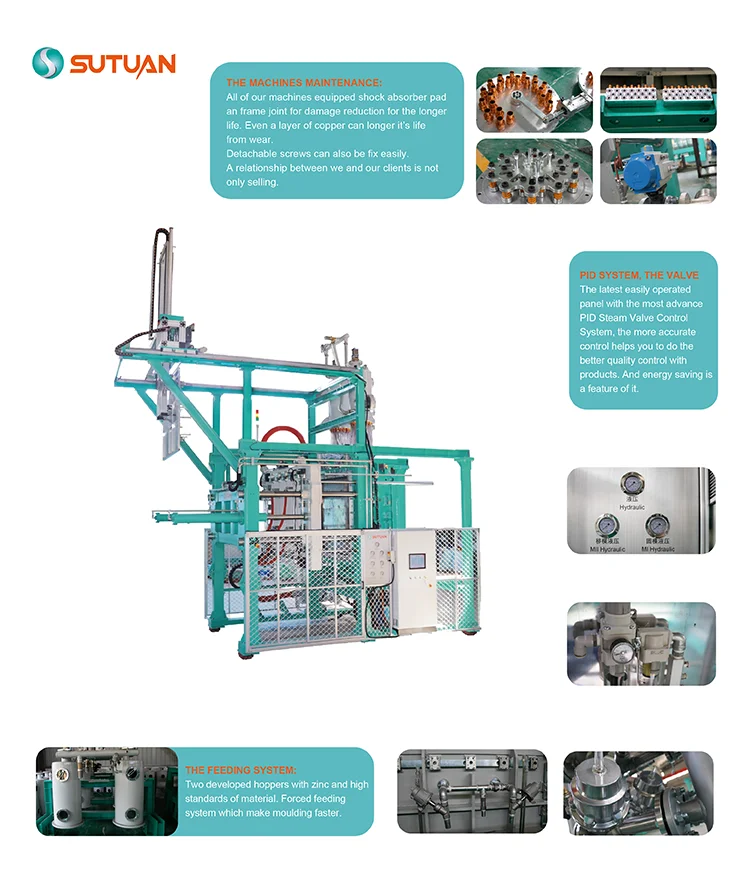

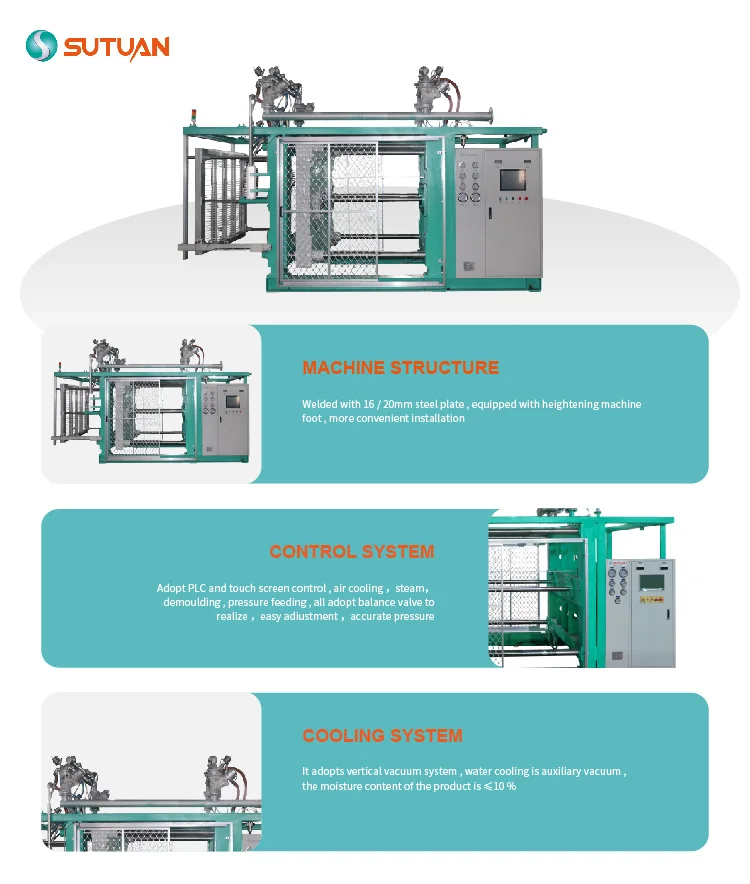

Eps Shape Moulding Machine
One-Touch Change Mould Machine

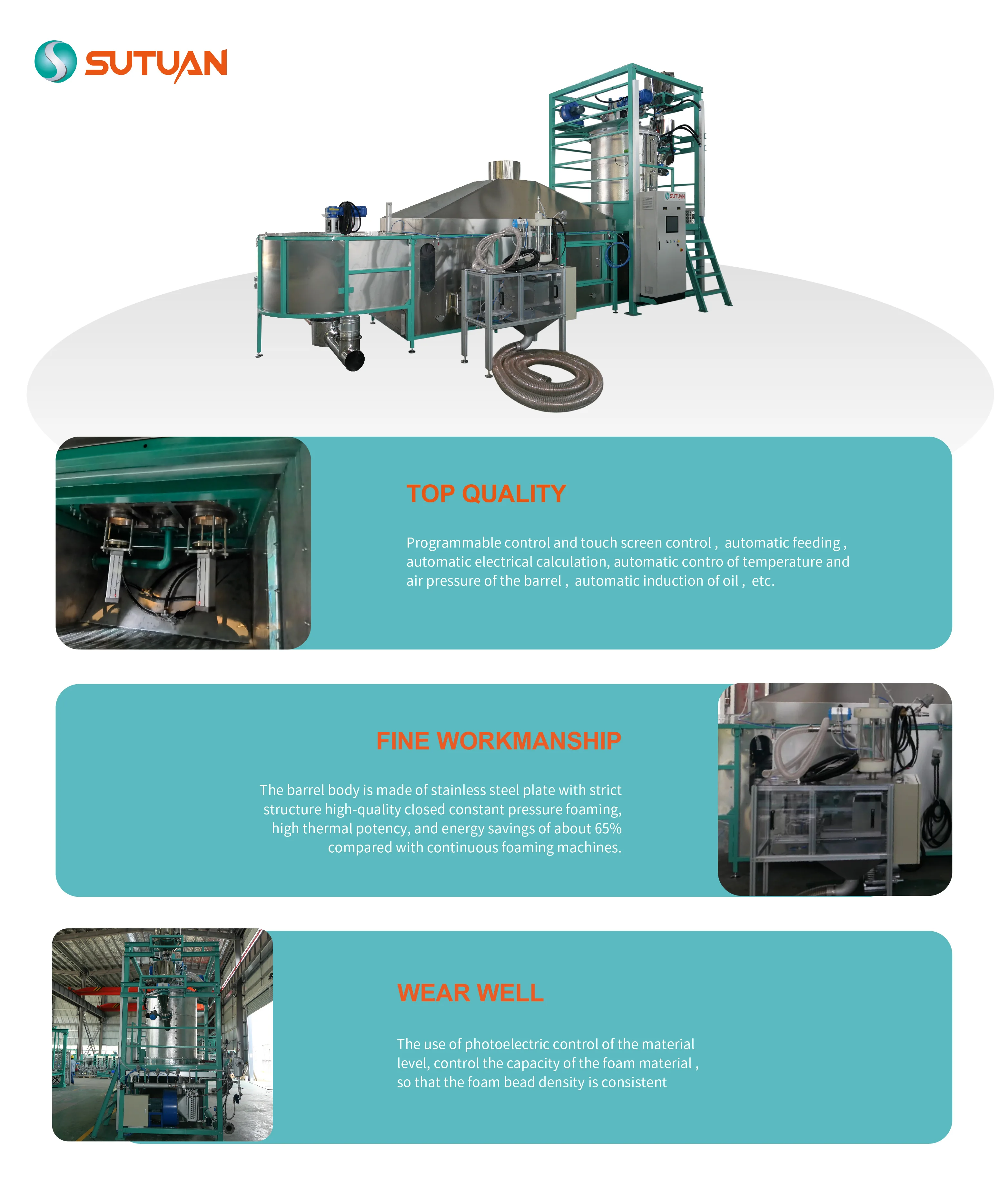

Eps Pre-expander
Product Application
Recommend Products
Company Profile
Why Choose Us

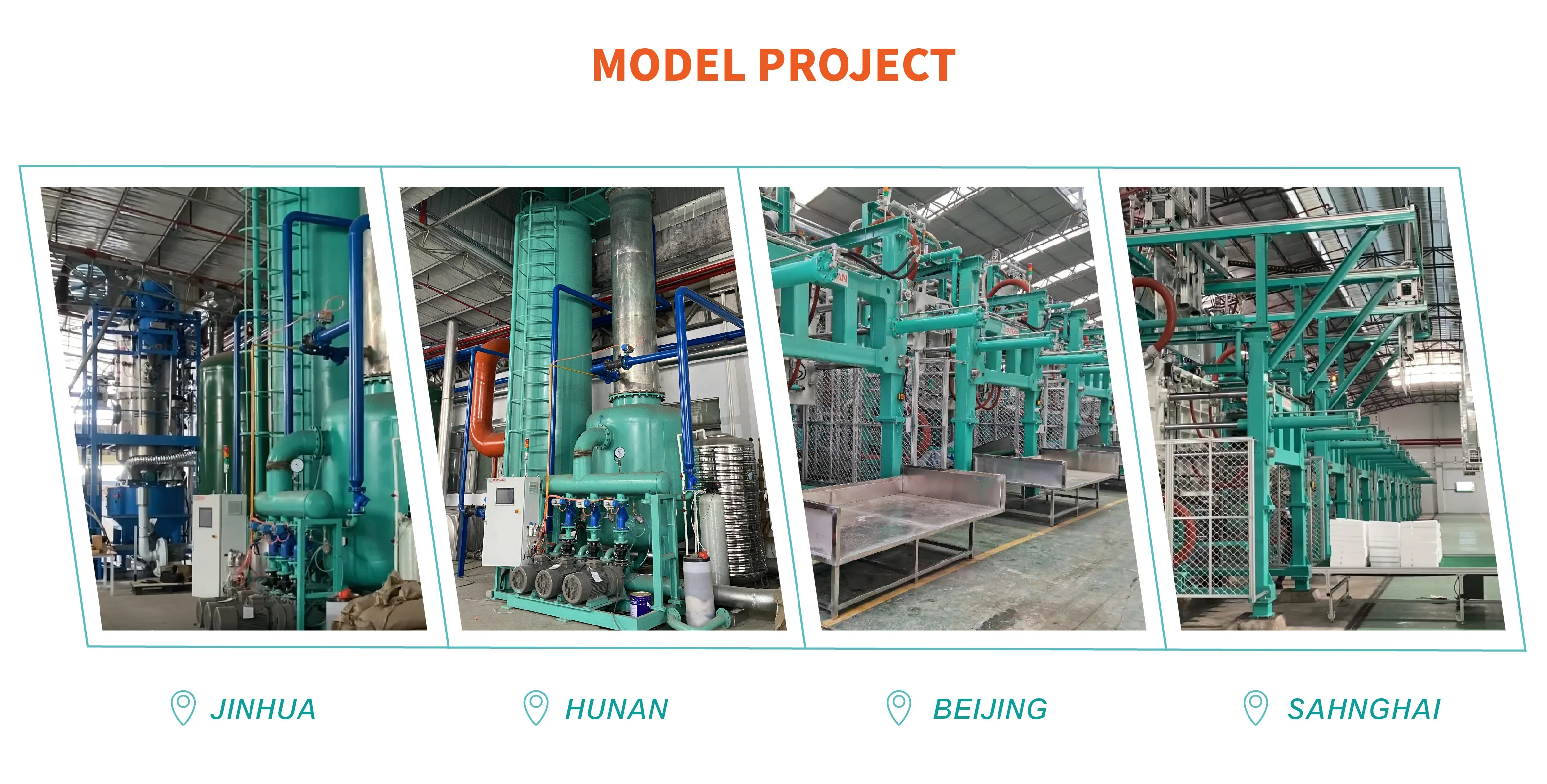

Project

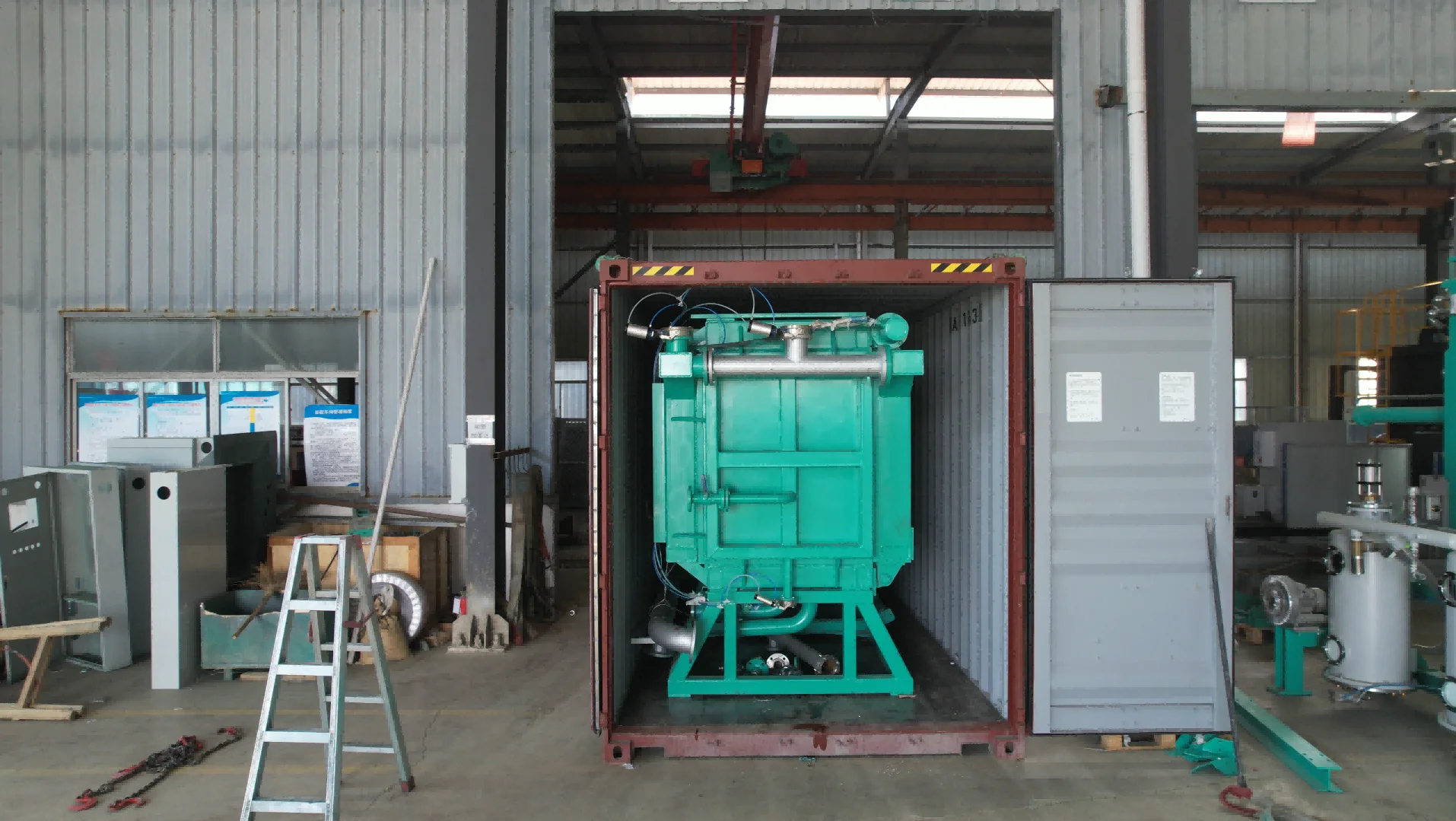

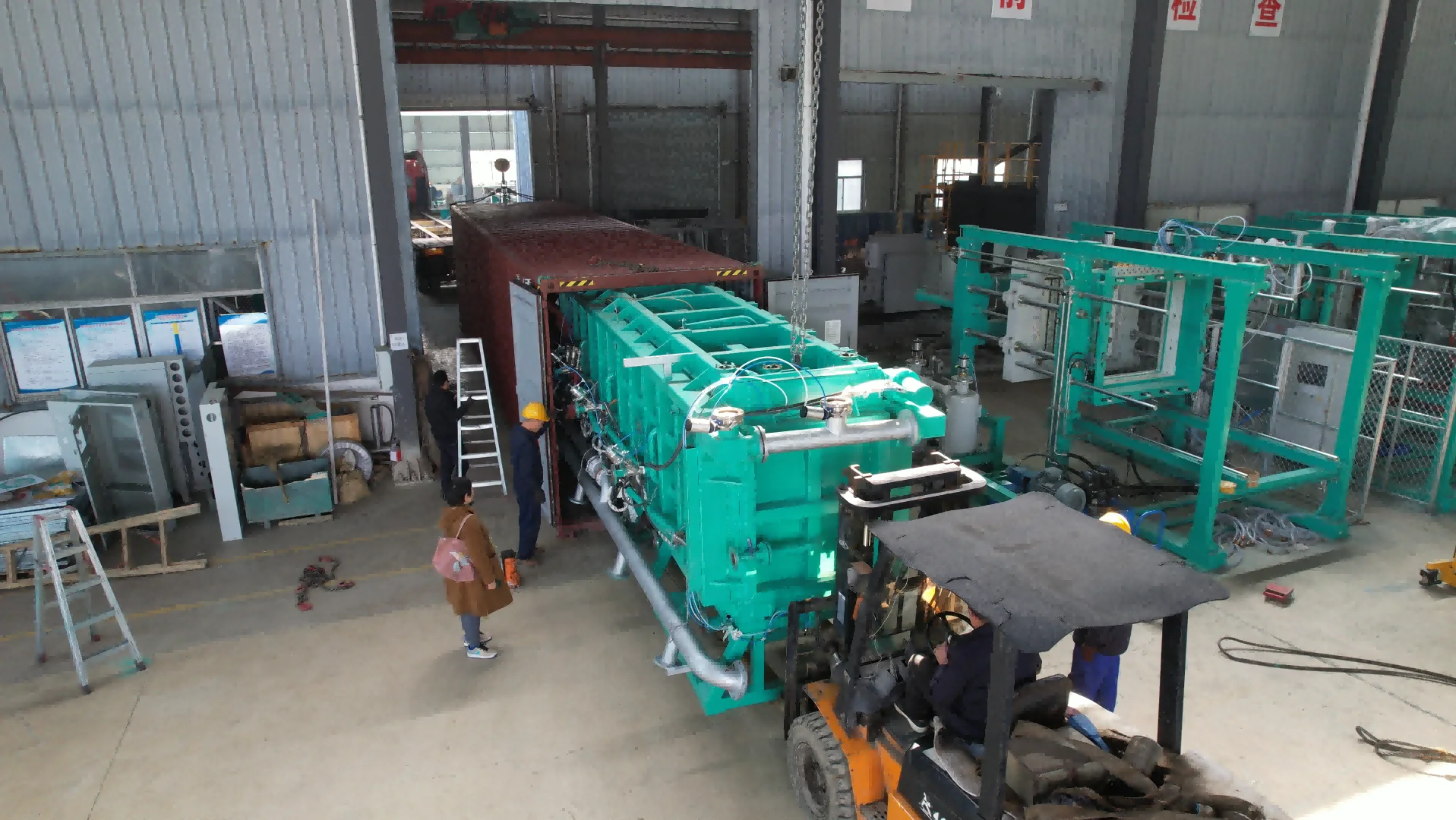

Packing And Shipping
