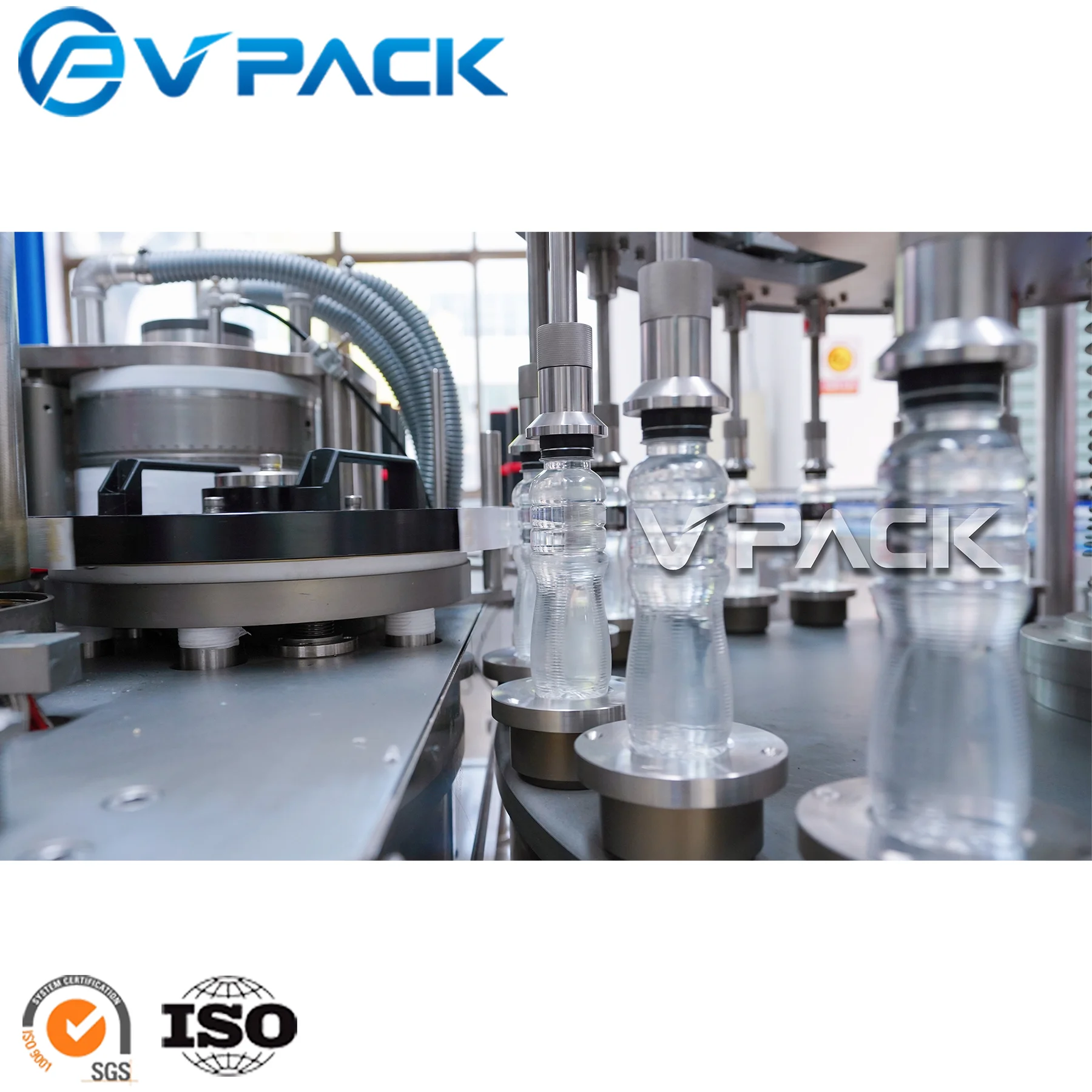

New style PET plastic bottle Labeling machine/BOPP OPP Hot melt glue revolving automatic rotary bottle body labeling plant
- Category: >>>
- Supplier: Zhangjiagang V Pack Machinery Co. Ltd.
Share on (1600463588593):
Product Overview
Description
Our Products
Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant proteindrink, etc.); Barrel filling line(1-5 gallon); Water treatment machines, Labeling & packing machines, Semiautomatic/Full automatic PET Bottle blowing machines, and Injection molding machines. Labeling machine, Bottle shrink packing machine, Carton packing machines ,Conveyor system , Juice processing system , Sterilizer and so on.
Product Description

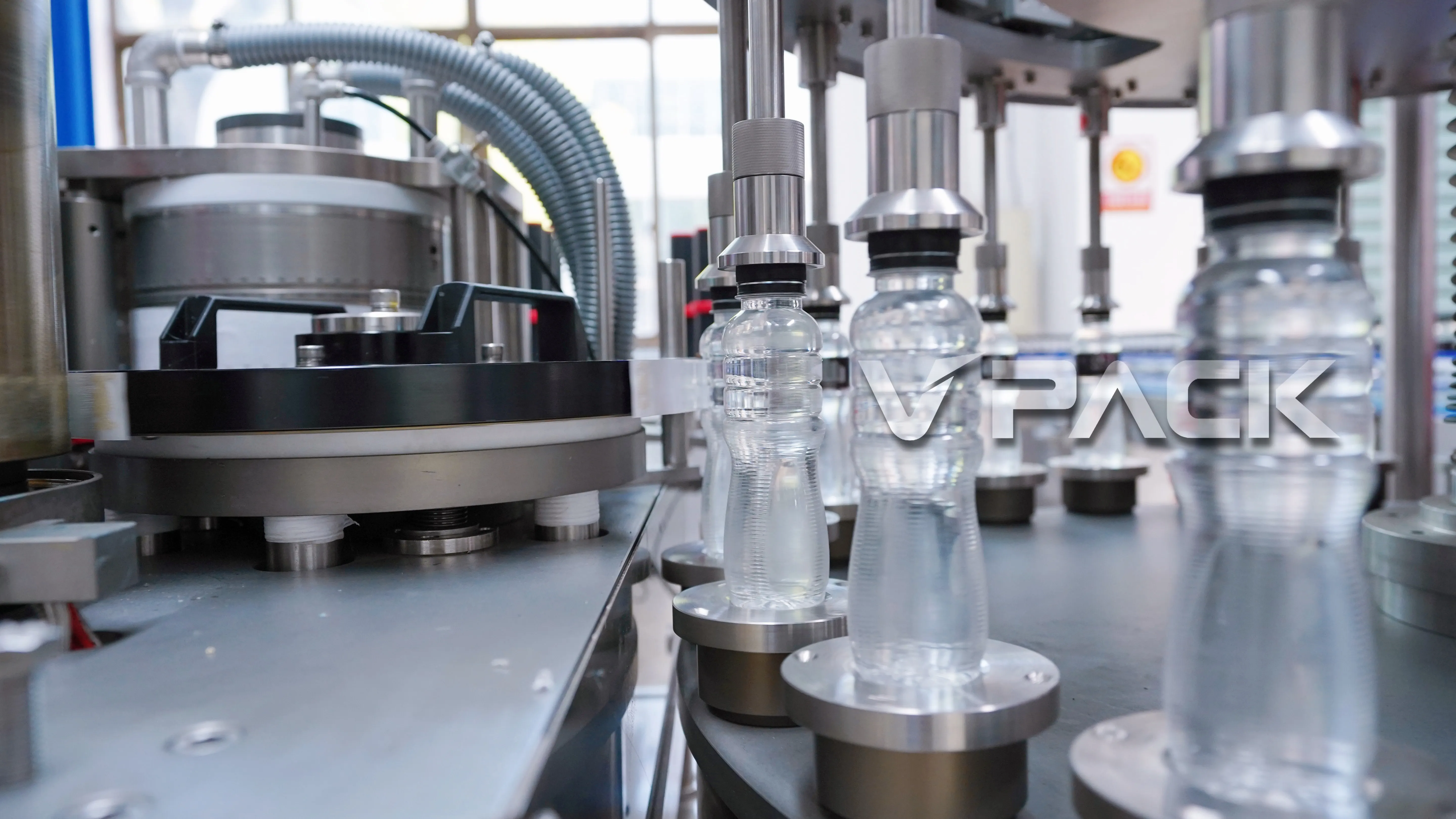

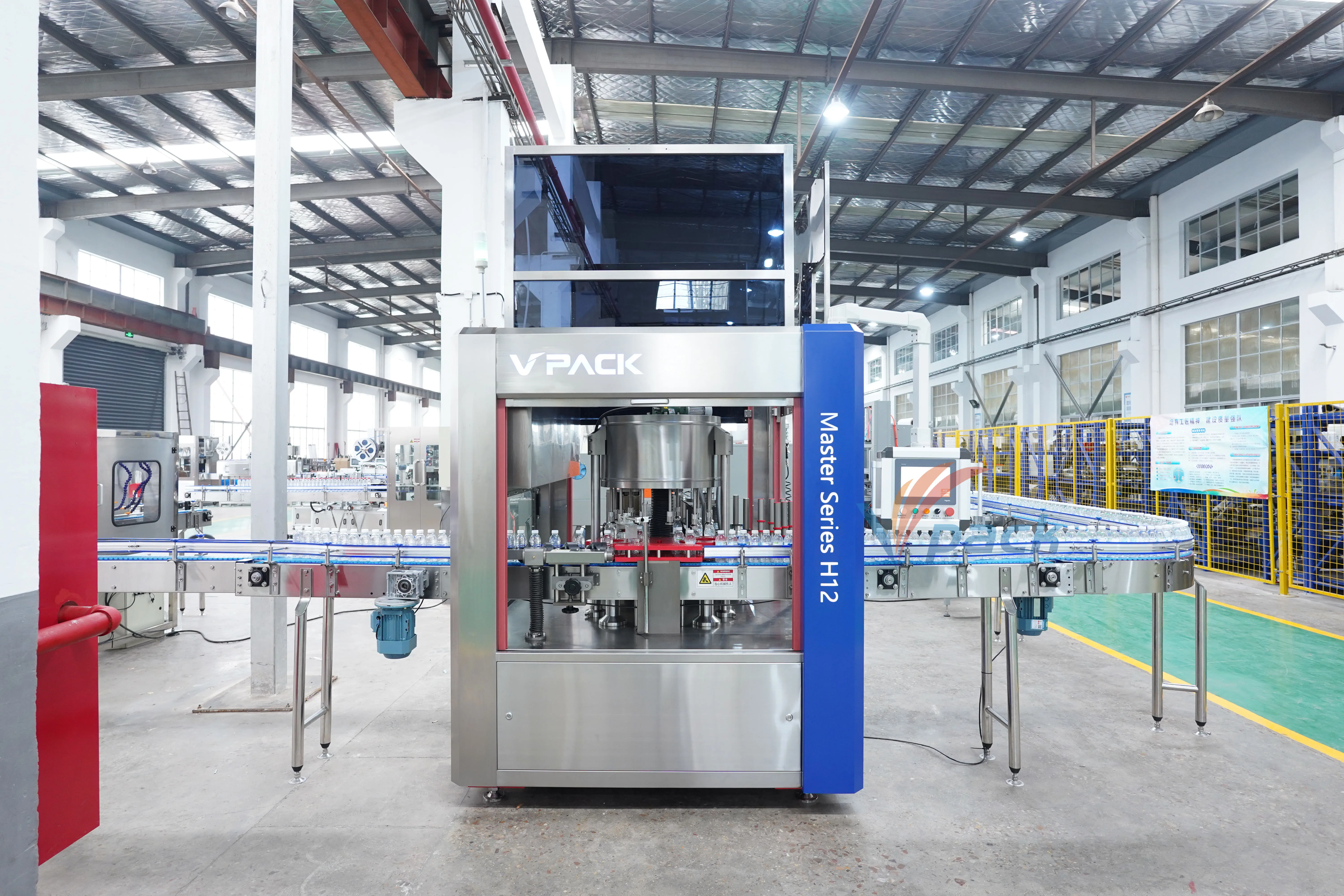

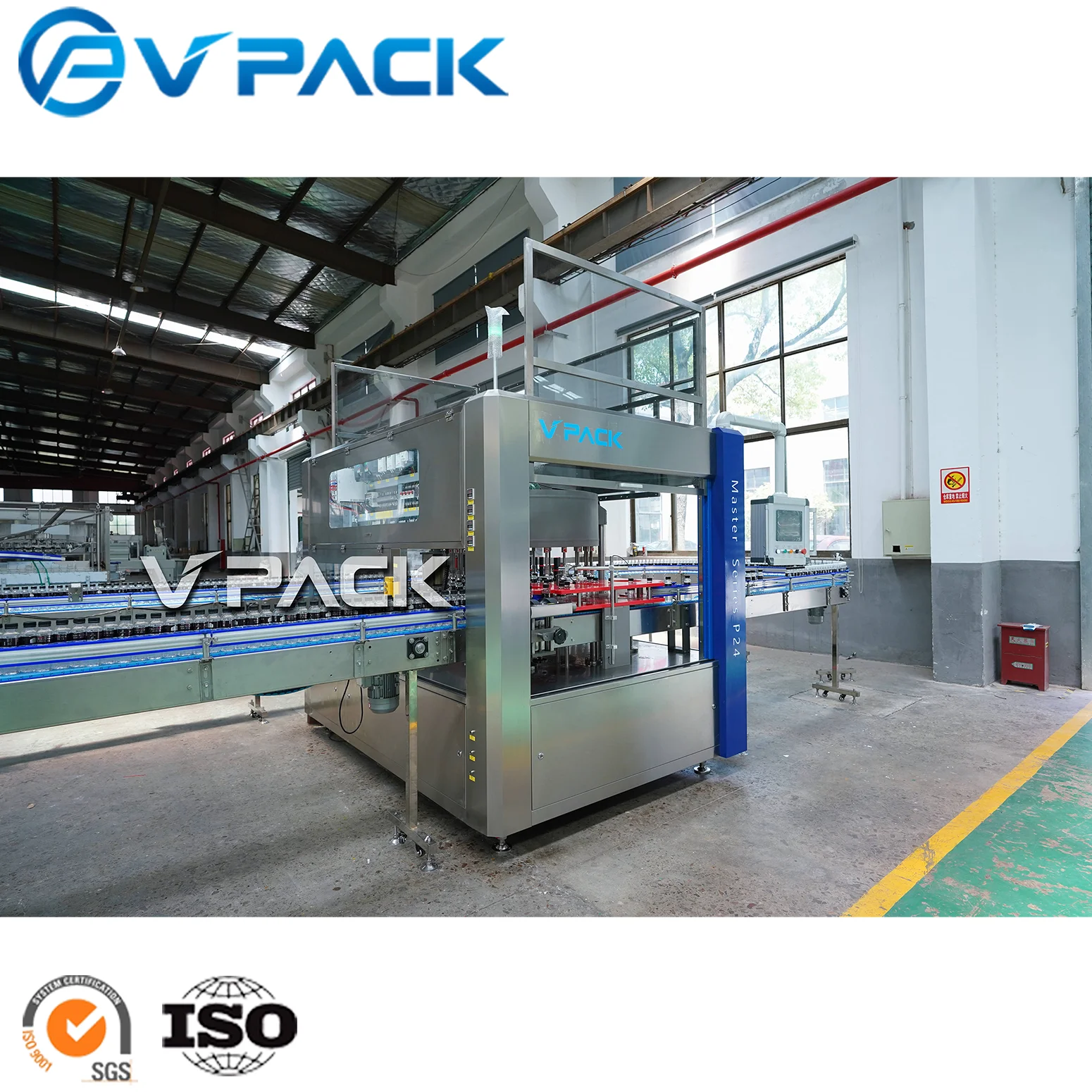

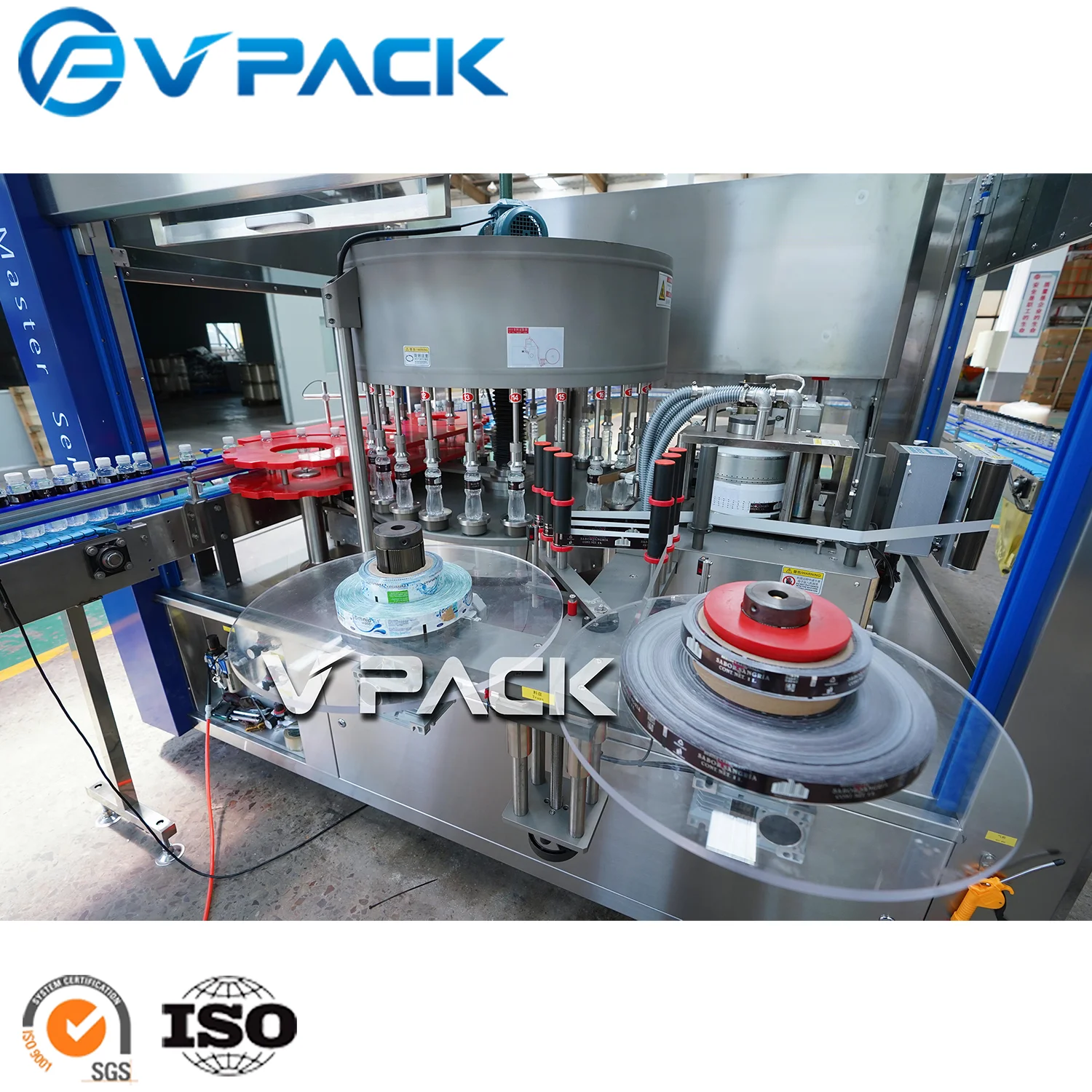

Hot Melt Labeling machine (OPP Label)
This hot melt glue plastic bottle label applicator is widely suitable for different material of container and label. The label
cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, for example changing the label is only needed to change the program, the products concept of that the equipment is designed for users is embodied in everywhere.
Process:Infeed bottle ----- pre-position ----- label cutting ----- gluing -----labeling -----label by press out ---- finish
cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate or manual speed adjustment to automatic speed control, for example changing the label is only needed to change the program, the products concept of that the equipment is designed for users is embodied in everywhere.
Process:Infeed bottle ----- pre-position ----- label cutting ----- gluing -----labeling -----label by press out ---- finish
Model parameters | H12 | H24 | |
Capacity | 12000-15000B/H | 24000B/H | |
Max speed of labels feed | maxinum speed of 100 meter | maxinum speed of 100 meter | |
Labeling precision | ±1mm | +-1mm | |
Maxinum label width | 200mm(standard width,can be adjusted) | 200mm(standard width,can be adjusted) | |
The maxinum outer diameter of label | 600mm | 600mm | |
Paper core hot melt | 152mm | 152mm | |
Gluing temperature | 120 - 160℃ | 120 - 160℃ | |
Labeling type for prducts | Suitable for round or square containers made of plastic,metal,glass | Suitable for round or square containers made of plastic,metal,glass | |
Type of label | Opp label,paper-plastic composite film label,paper label | Opp label,paper-plastic composite film label,paper label | |
Main power | 2.5KW(380V,50HZ) | 2.5KW(380V,50HZ) | |
Diemsion | 2440*1190*2200mm | 2440*1190*2200mm | |
Weight | 2550KG | 2550KG | |

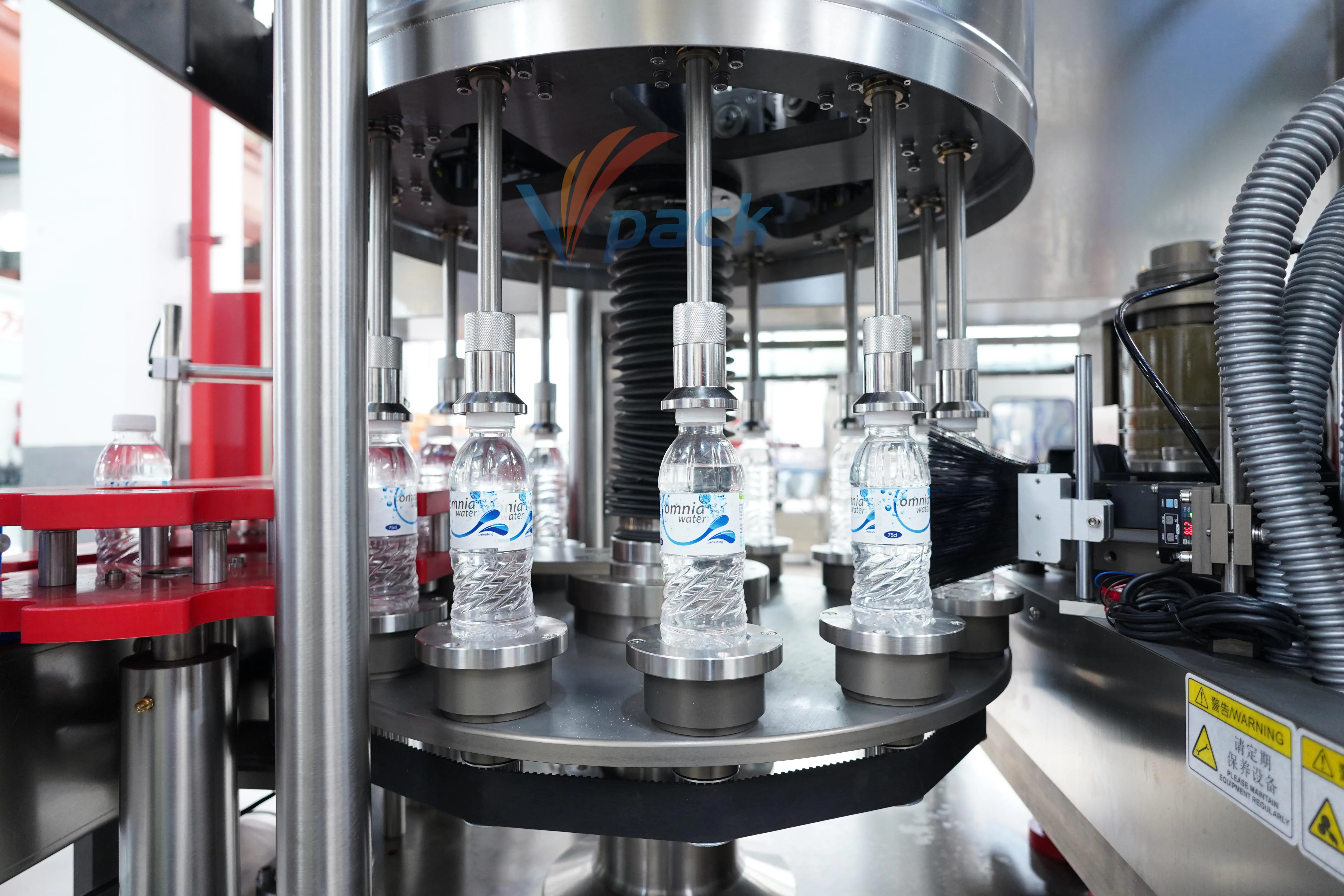

Smoothly paste label
The sponge baffle is used to press label whole wrapping on the bottle.To make label on the bottle beautiful.Bottle pass sponge baffle running smoothly.

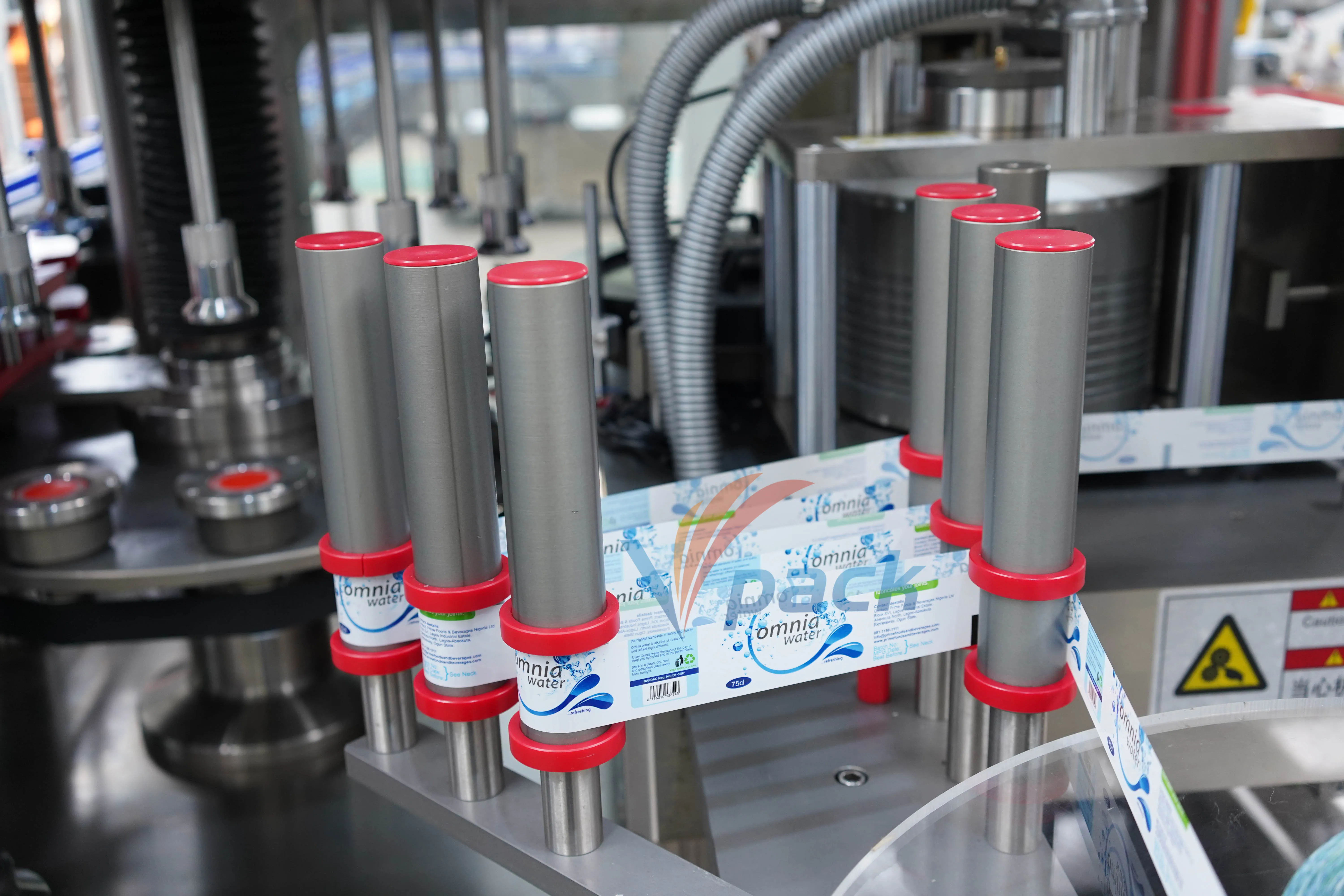

High precision label paste system
No need adjust sensor.Physcial adjustment.Label accuracy is high due to labeling unit process is very precision.
Water proof electric cabinet
Voltage is made for each kind standard.wiring is accurate with ground wire and safety.Electricity box with safety sign.
SIEMENS Touch screen.Any parameter adjust on touch screen.Machine will get alarm if some parts have problem when machine running.It is easy to operate and maintain it.
SIEMENS Touch screen.Any parameter adjust on touch screen.Machine will get alarm if some parts have problem when machine running.It is easy to operate and maintain it.
Safety protection: In order to keep the operator safety ,when the machine is running please close the protective doors.
Lack of label alarm: Set an alarm to remind the operator to change the label when the label will be use out.
Lack of bottle alarm:When lack of the bottle the machine will stop and make an alarm .The machine will restart. automatically as soon as the bottles have been put that will facilitate on-line production.
Lack of label alarm: Set an alarm to remind the operator to change the label when the label will be use out.
Lack of bottle alarm:When lack of the bottle the machine will stop and make an alarm .The machine will restart. automatically as soon as the bottles have been put that will facilitate on-line production.
Leak of labeling alarm: To control the quality of labeling.
Pressure testing : When the pressure can not meet the equipment requirement ,the machine will stop to against bad products produce.
Vacuum testing :When the vacuum can not meet the equipment requirement ,the machine will stop to against bad products produce.
Temperature testing :
When the temperature can not meet the equipment requirement , the machine will stop to against bad products
produce.
Vacuum testing :When the vacuum can not meet the equipment requirement ,the machine will stop to against bad products produce.
Temperature testing :
When the temperature can not meet the equipment requirement , the machine will stop to against bad products
produce.
1.Body is built with stainless steel,aluminum alloy and square steel tubes.
2.Welded tubes ensure stable and smooth operations at high speed performance.
3.Centralized lubricating system for simple and effortless on maintenance,lubrication and cleanness.

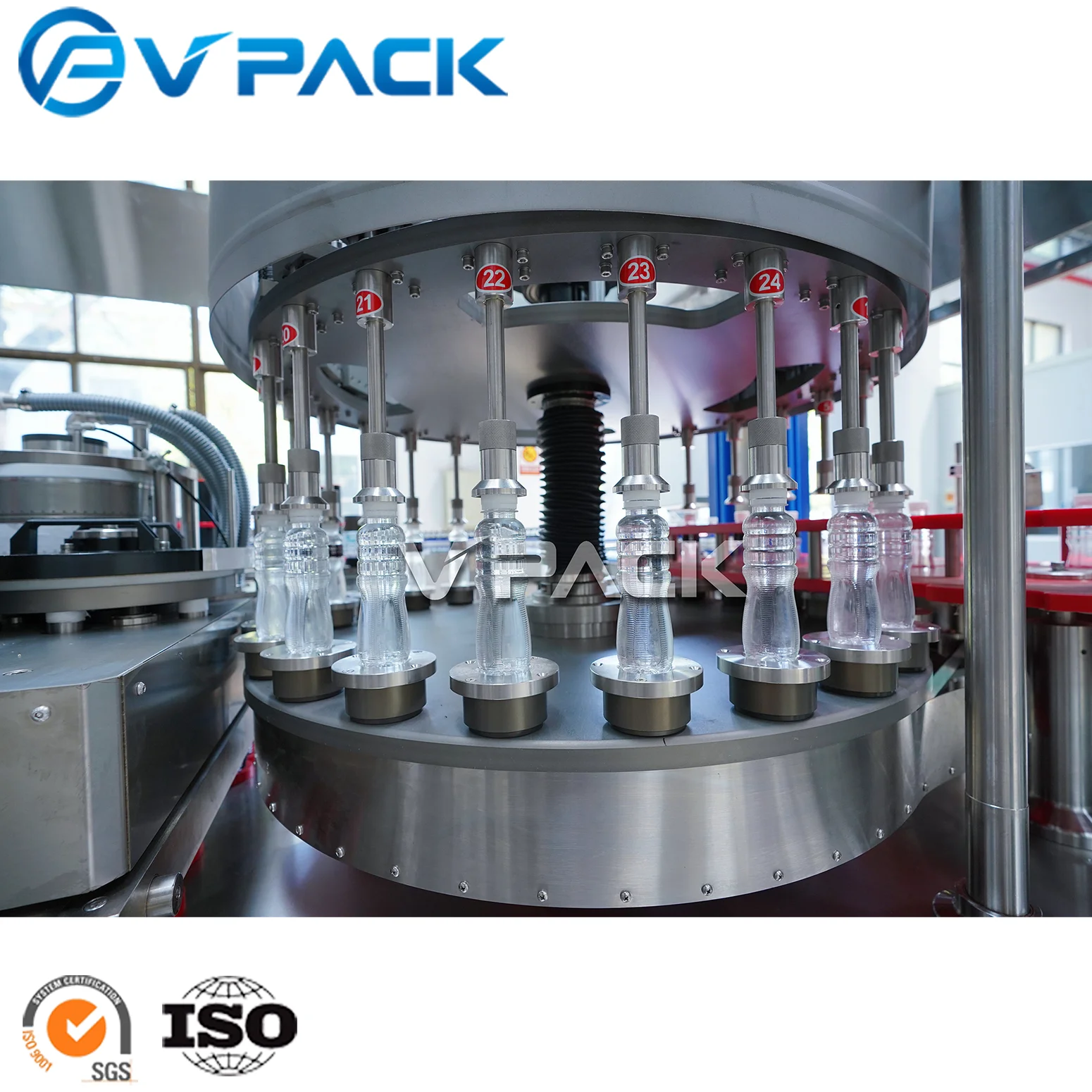

4.Round plate type suction label.
5.Automatically detect and adjust the production speed.
6.Emergency stop safety device disables the machine when senses an abnormality.
7.Automatic tension control.
8.Automated label proofreading and cutting system.
9.Automatic warning system and alarm will be activated when it is out of label.
3.Centralized lubricating system for simple and effortless on maintenance,lubrication and cleanness.
4.Round plate type suction label.
5.Automatically detect and adjust the production speed.
6.Emergency stop safety device disables the machine when senses an abnormality.
7.Automatic tension control.
8.Automated label proofreading and cutting system.
9.Automatic warning system and alarm will be activated when it is out of label.

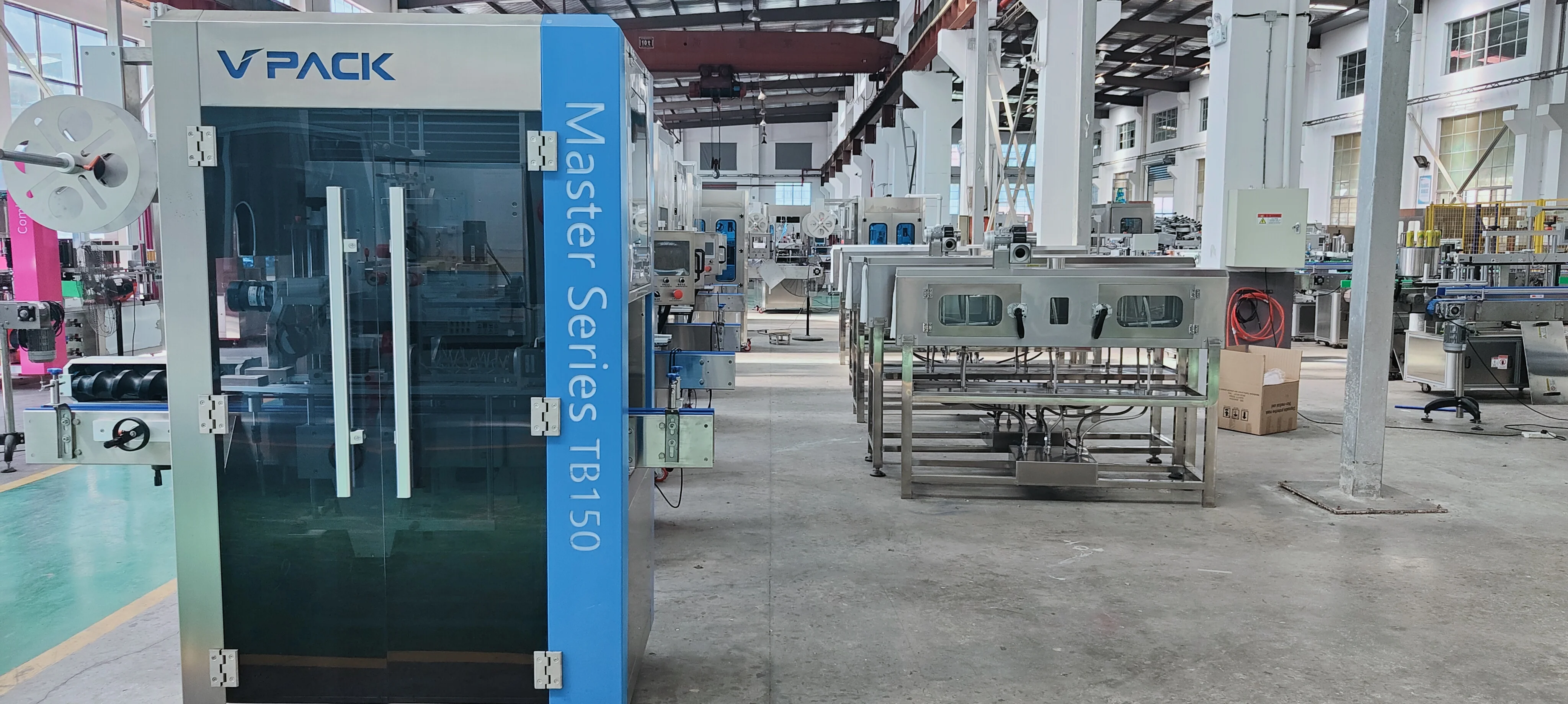

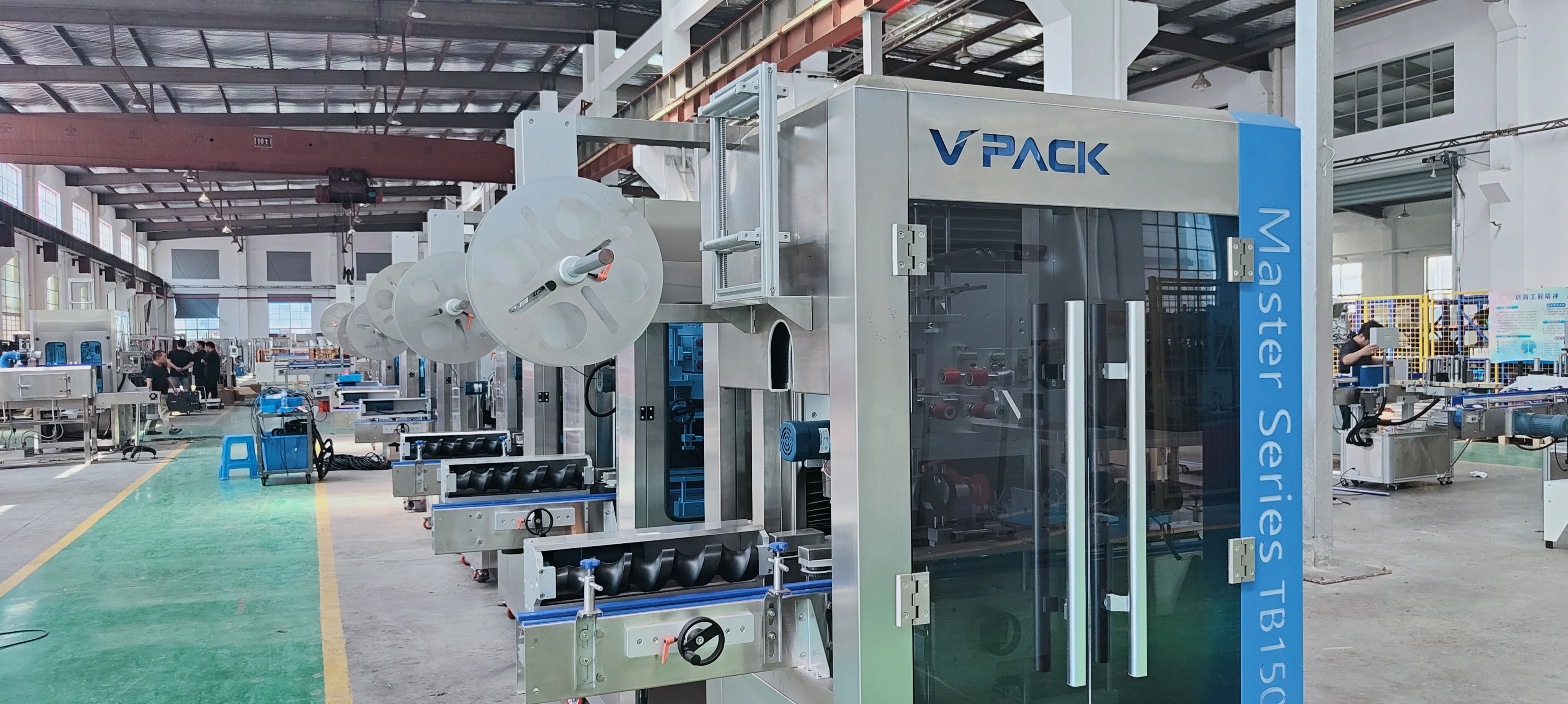

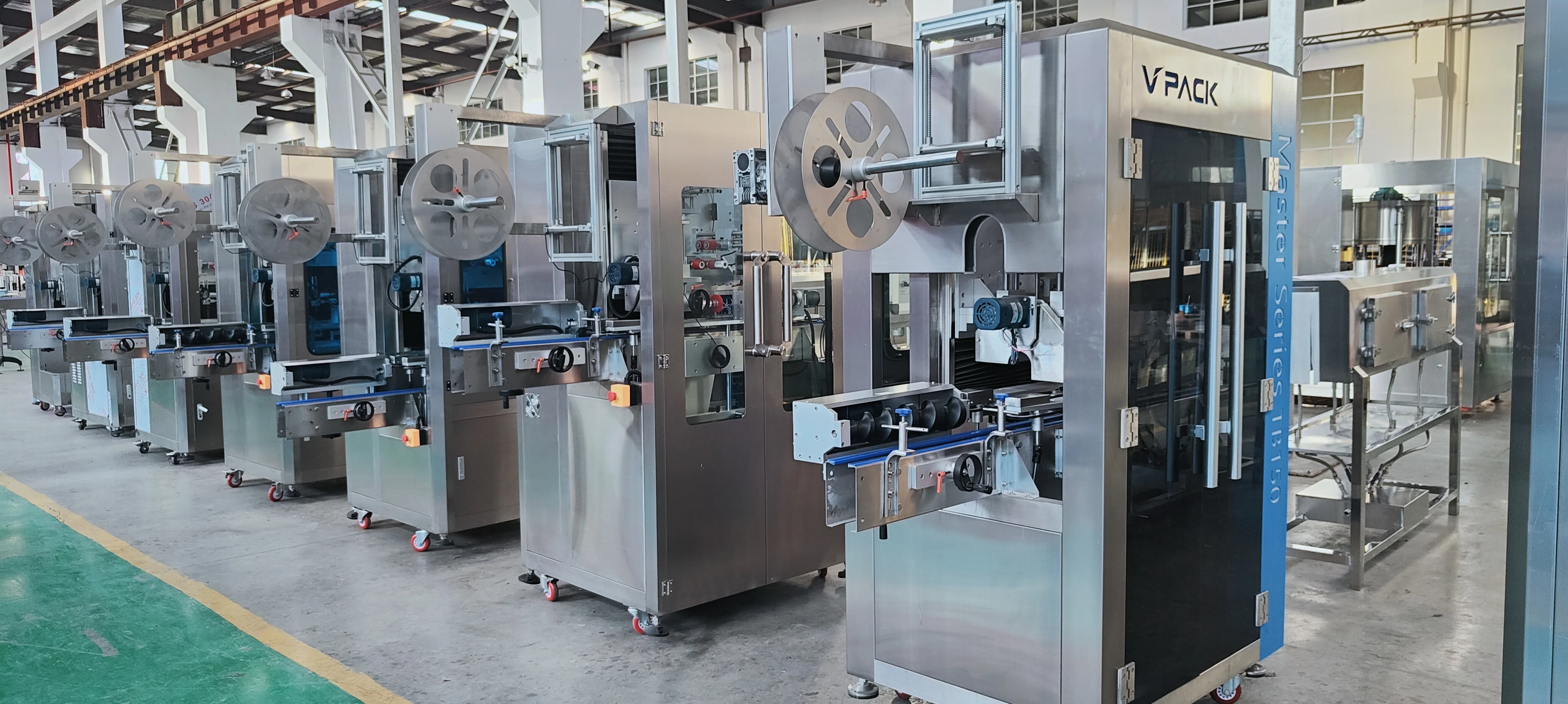

Automatic shrink sleeve labeling machine
This machine adopts international advanced technology;cover the circle label on the pet bottle.And then hot shrinking to fix on the position which bottle body is designed.
This machine's structure is compact,and suitable for the production line of different direction and different height.
The machinery part adopts combination designing of modularization,and makes the machine resonable.The height
adjustment adopts motor fluctuating;it is convenient to replace the material.The special cutter head designing,make the film-rolling cut more correct and reliable.
Model parameters | TB-150 | TB-250 | TB-350 | TB-450 | |||
Capacity | 6000-9000B/H | 12000-15000 B/H | 18000-24000 B/H | 25000-30000 B/H | |||
Label type | φ50-97mm | φ50-97mm | φ50-97mm | φ50-97mm | |||
Bottle diameter | φ50-97mm | φ50-97mm | φ50-97mm | φ50-97mm | |||
Sleeve length | 40-150mm | 40-150mm | 40-150mm | 40-150mm | |||
Label thickness | ≧0.035mm | ≧0.035mm | ≧0.035mm | ≧0.035mm | |||
Label material | PVC/PET | PVC/PET | PVC/PET | PVC/PET | |||
Main power | 2.5KW(380V,50HZ) | 2.5KW(380V,50HZ) | 2.5KW(380V,50HZ) | 2.5KW(380V,50HZ) | |||
Diemsion | 2440*890*2200mm | 2440*890*2200mm | 2440*990*2200mm | 2440*990*2200mm | |||
Weight | 650KG | 750KG | 750KG | 800KG | |||
Cutter head unit
The new style cutting knife drived by servo motor, with high speed, more stable and precise, shrink perfectively. Synchronous locating device enables the tolerable error to ±1mm.Unit cutter head plane design in China which apply to the container of ∮30mm—∮130mm.
You never need to change or debug it. Cutter head original transducer is inside the cutter head and when you take down cutter head, you donot need to correct the synchronous belt. It also has unique light touch human-machine screen, that means, auto search original location as well as safety and convenience which is ahead of other congener products.
The new design of cutter adopt step motor with high speed, stable and exact movement, trim cut place and perfect shrink. Compatible with the label synchronous location structure, the error of cutting place is within 1mm.
Label feeding unit
It adopt double material shelf which enable the change of label more convenient and fast. There is label checking photoelectricity and when there is no material, it will stop automatically and give alarm light and also display on the touch screen.
It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label.

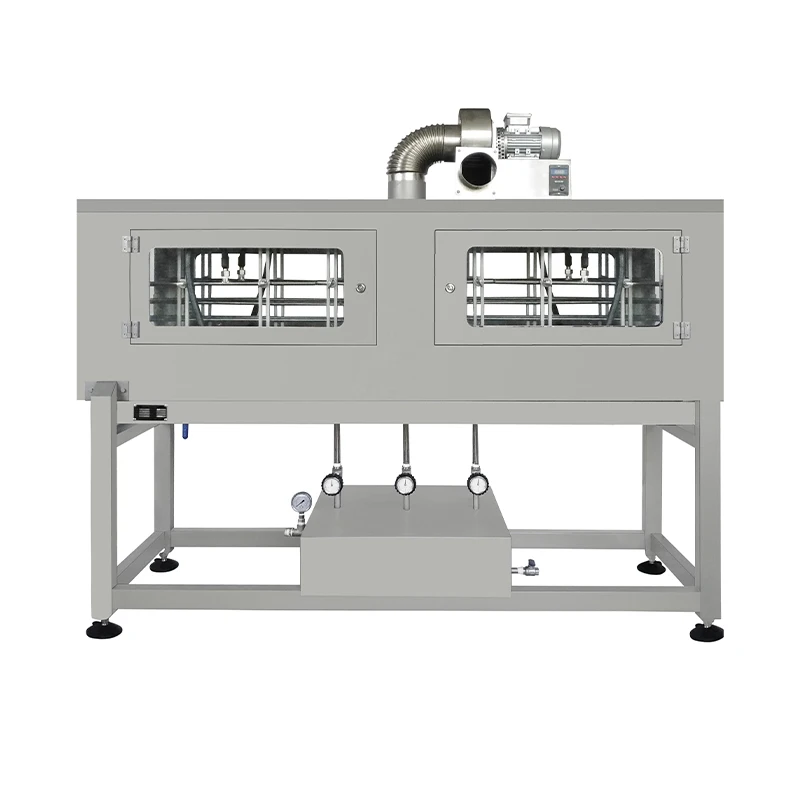

New steam shrinking tunnel
The new style steam shrink tunnel improve the efficiency highly. The adjustment and maintain is convenient, the shrink is in order. The spout of steam use the separation style which make the tunnel smooth. The spout mouth is divided into four parts and the height ,place and quantity of steam of every part can be adjusted in order to make the shrink effect perfect .The low pressure steam bag use the seamless steel tube design and every connect tube use stainless steel soft tube ,so the disassembly and fixing is very convenient.
The new style steam shrink tunnel improve the efficiency highly. The adjustment and maintain is convenient, the shrink is in order. The spout of steam use the separation style which make the tunnel smooth. The spout mouth is divided into four parts and the height ,place and quantity of steam of every part can be adjusted in order to make the shrink effect perfect .The low pressure steam bag use the seamless steel tube design and every connect tube use stainless steel soft tube ,so the disassembly and fixing is very convenient.
The whole machine is made of stainless steel, so it is heat preservation and save energy sources. Besides, it accord with the international safety standard. The stainless steel plane at the bottom can condensate water and drainage them and working environment cannot be influenced.
There are two eye window in front and at the back of the box body. The waterproof design of the whole machine is made of stainless steel which makes the operation and maintain convenient.
Item /Models | VPK-1200M | VPK-2000M |
Blower powder supply | Ø12, 0.75KW | Ø12, 0.75KW |
Powder supply | 380v/220v/50hz | 380v/220v/50hz |
Running pressure | Max 0.6Mpa | Max 0.6Mpa |
Weight | 150kg | 230kg |
Steam consumption | 2418kg/h | 18kg/h |
Conveyor speed | 0~35m/minute | 0~35m/minute |
Outline size | L1200*W400*H1500 mm | L2000*W400*H1500 mm |

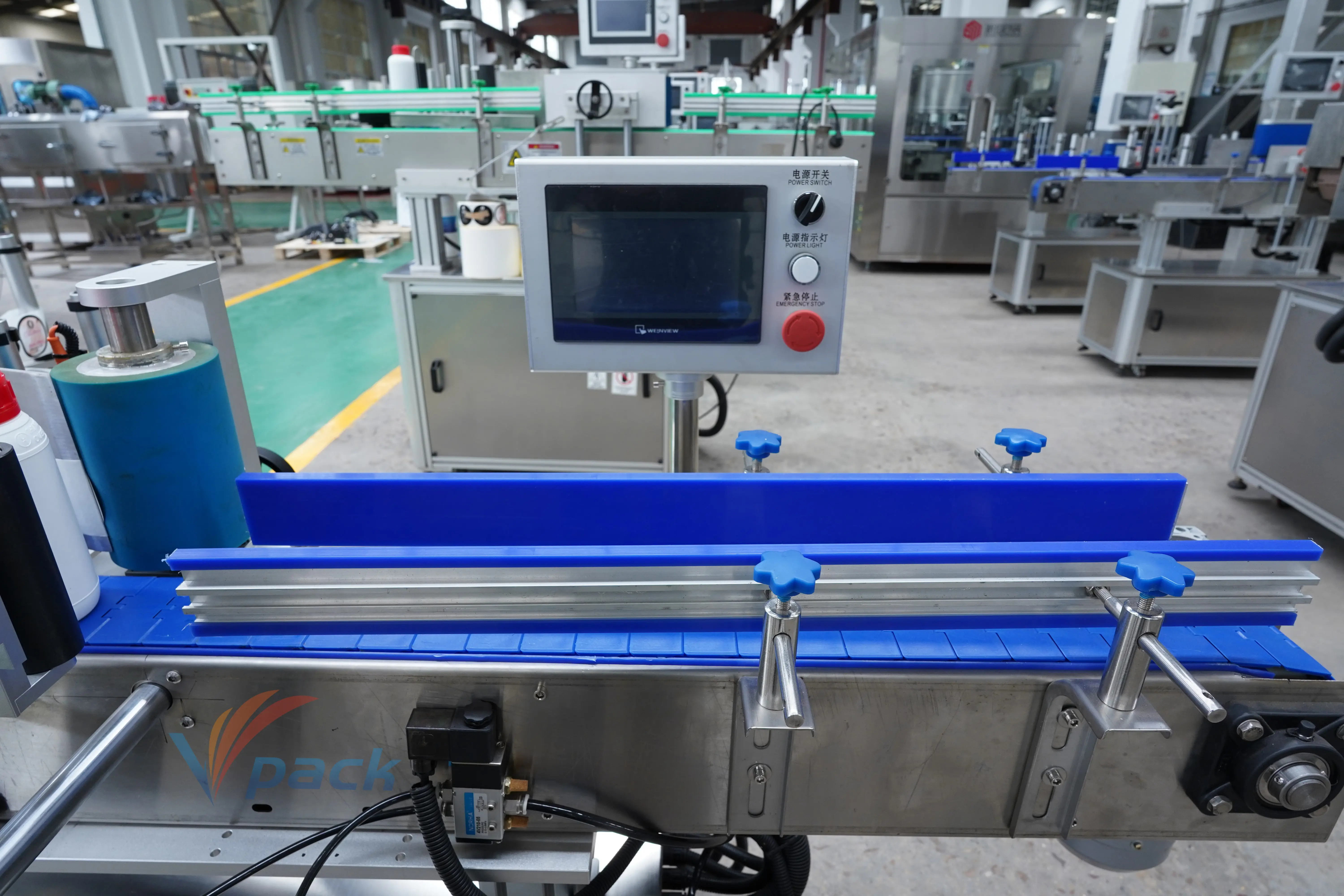

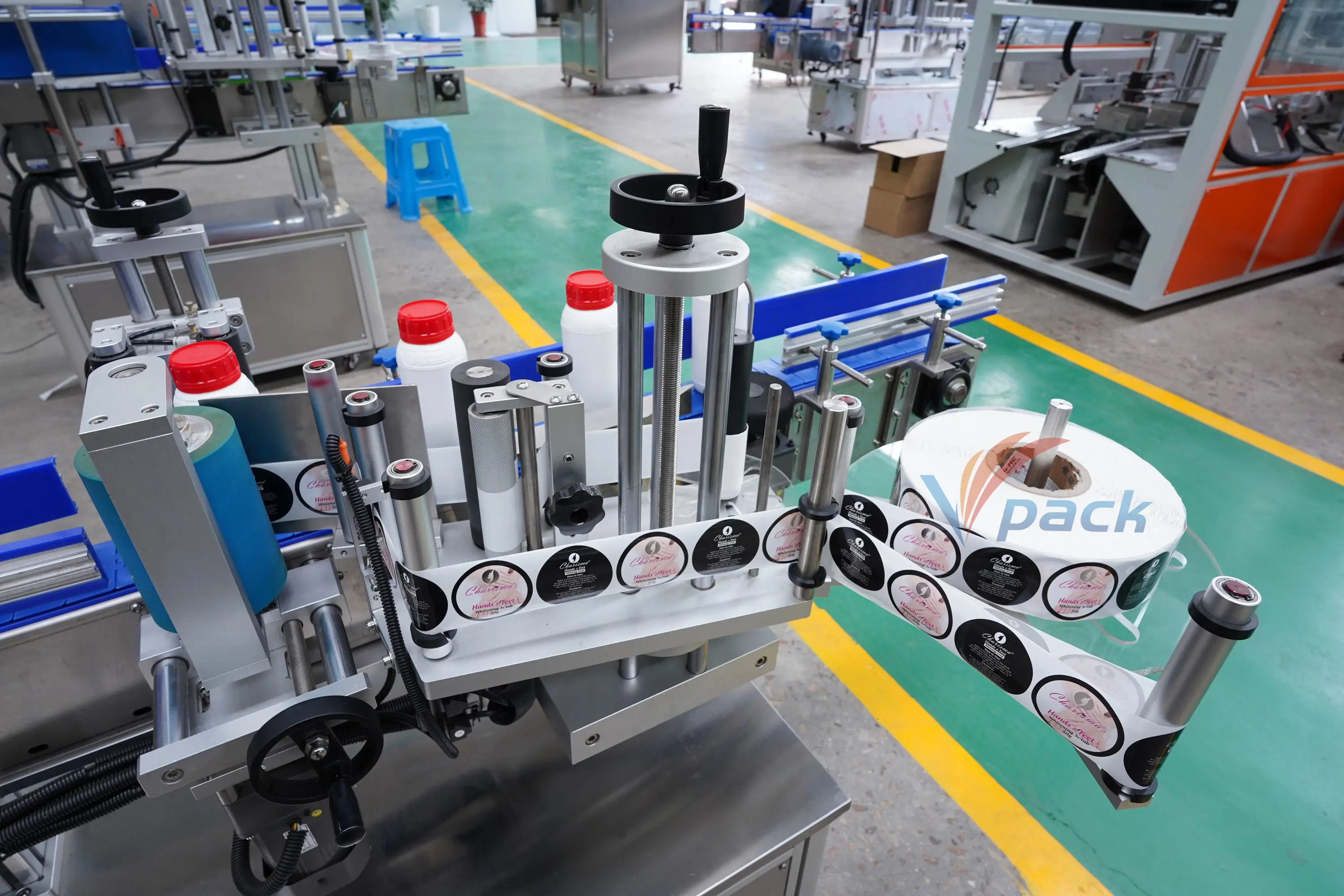

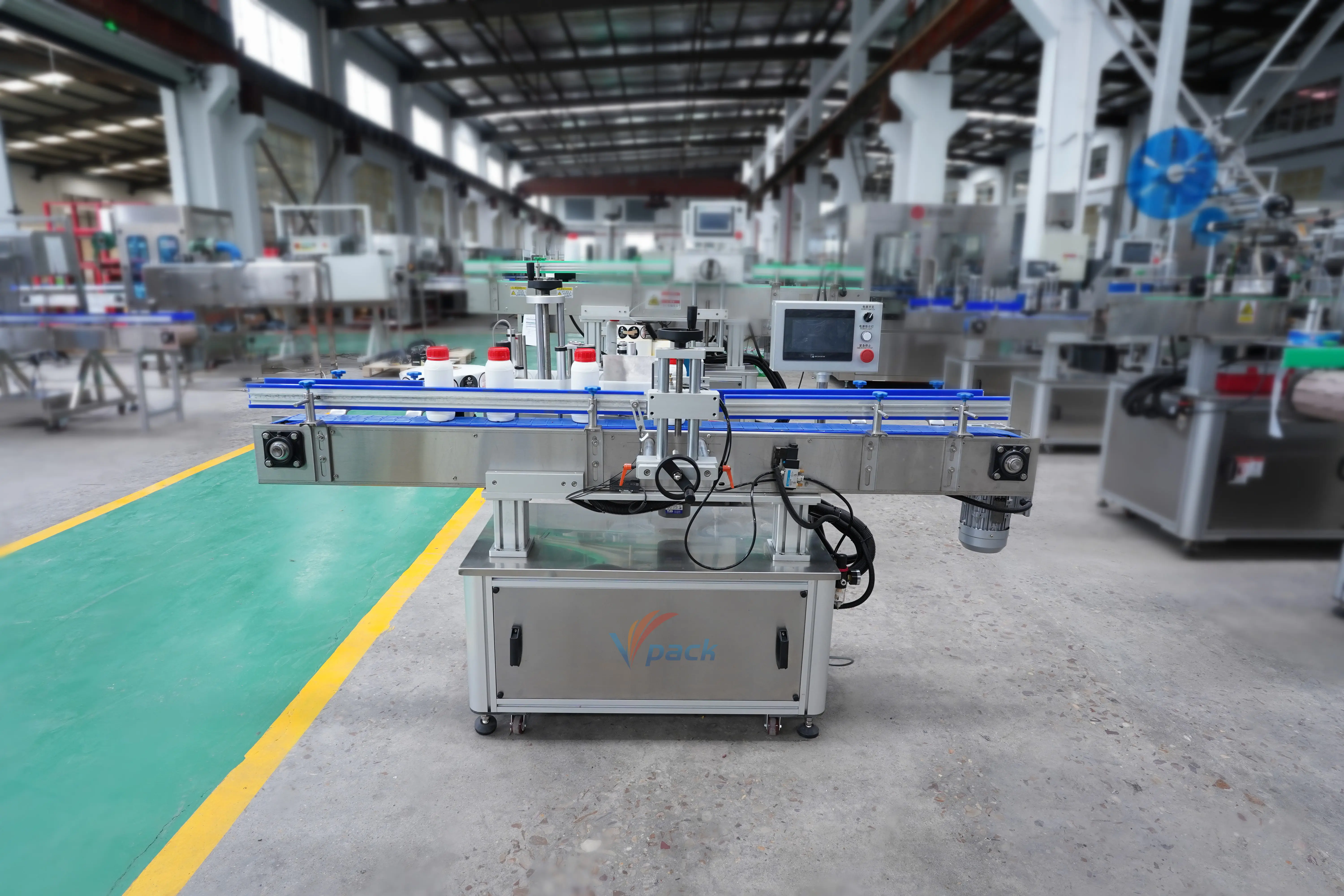

Sticker Labeling Machine
1.For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
2.Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label.
3.Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.
4.Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh wine.
2.Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label.
3.Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.
4.Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh wine.
Model parameters | TB-100 | Suitable label length | 20mm ~ 200mm |
Capacity | 6000B/H | Applicable Label width (backing paper width / mm) | 20mm ~ 180mm |
Label type | φ50-97mm | Width (transport width direction) | 30mm ~ 90mm |
Bottle diameter | φ50-97mm | Applicable Products diameter (for round bottle) | 45mm ~ 100mm |
Label thickness | ≧0.035mm | Labeling accuracy | ± 1mm |
Main power | 1.8KW(380V,50HZ) | The standard speed | Stepping: 5 ~ 19m/min Servo: 5 ~ 40m/min |
Diemsion | 3000 × 1450 × 1600mm | Labeling speed | Stepping: 30 ~ 160pcs/min Servo: 50 ~ 200pcs/min |
Weight | 330KG | Conveyor speed | 18m/min |
Our Machine Running in Client's Factory
Shrink Sleeve Labeling Machine
Double Sides Sticker Labeling Machine
10000BPH Sticker Labeling machine
8000BPH Linear Bopp Labeling Machine
24000BPH Rotary Bopp Labeling Machine
Our Company
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Machine testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Sales Manager : Ruby Xu
Responsible for the project : CO2 & Fiber Laser Printer, Water purificaiton system, water filling machine,Juice hot filling machine ,5 gallon plant etc, Bottle blower...all kind of machine after-service.
Responsible for the market : Jordan, Nigeria, Peru, Dubai, Morocco, Yemen, etc.
