Alumina/Cordierite/Mullite/Corundum Heat Exchanger Honeycomb Ceramic Monolith for Rto or Rco
- Category: >>>
- Supplier: Pingxiang Super Packing Mall Co. Ltd.
Share on (1600463595387):
Product Overview
Description
Products Description

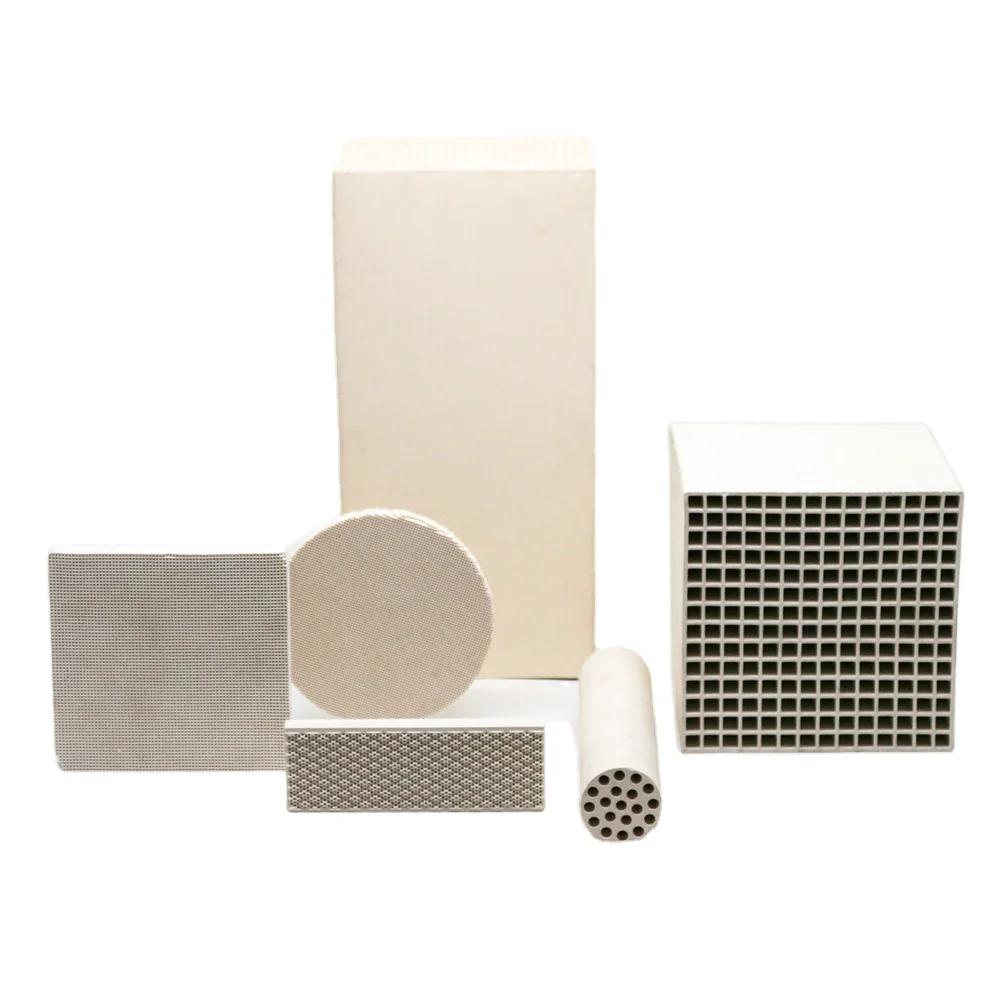

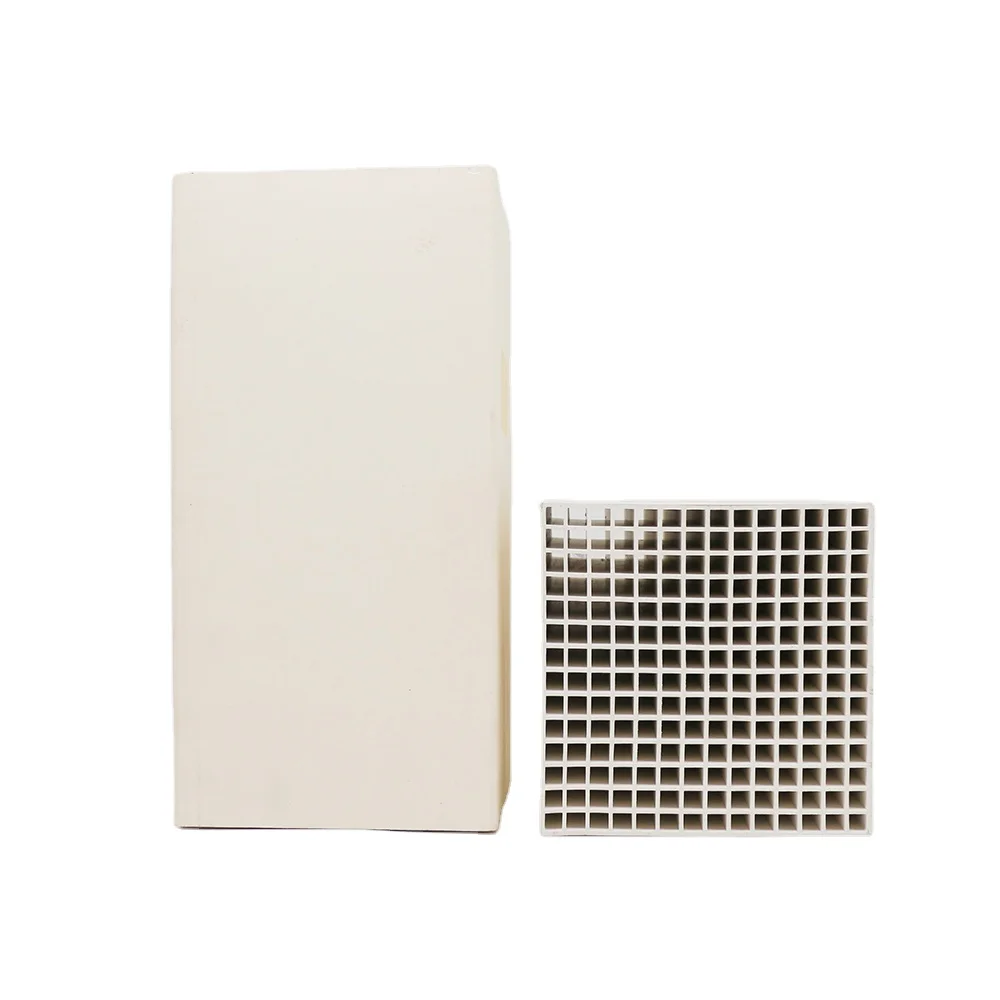

Honeycomb Ceramic
Honeycomb ceramic heat recovery media is a key component of regenerative burner, which is widely used in iron and steel, machinery, building materials, petrochemicals, nonferrous metal smelting and other industries, furnace, hot air furnace, heat treatment furnace, cracking furnace, baking, melting furnace, both in the hot furnace, oil and gas boilers, and furnaces. The technique is to make two ceramic media beds alternating endothermic exothermic by reversing device. Most common applications include: RTO, (RCO), metal casting combustor, metal melting industrial furnace, etc.
Compared with other ceramic media which have conventionally been used in RTOs. The advantages of honeycomb monolith include a greater thermal efficiency and a lower pressure drop across the heat exchanger bed. The increase in thermal efficiency and lower pressure drop generally results in smaller equipment design, lower capital cost and lower operating cost. Honeycomb ceramic serves as a more efficient alternative for the following reasons: cutting fan load for significant energy saving (low pressure drop owing to straight channels), less volume, thin wall thickness, faster in thermal exchange. Lighter weight, so less structural support is required. Above all, High specific surface area means high conversion efficiency in converters occupying small volumes. All these benefit, especially larger specific surface area make honeycomb ceramic the better performance media across industries.
Application

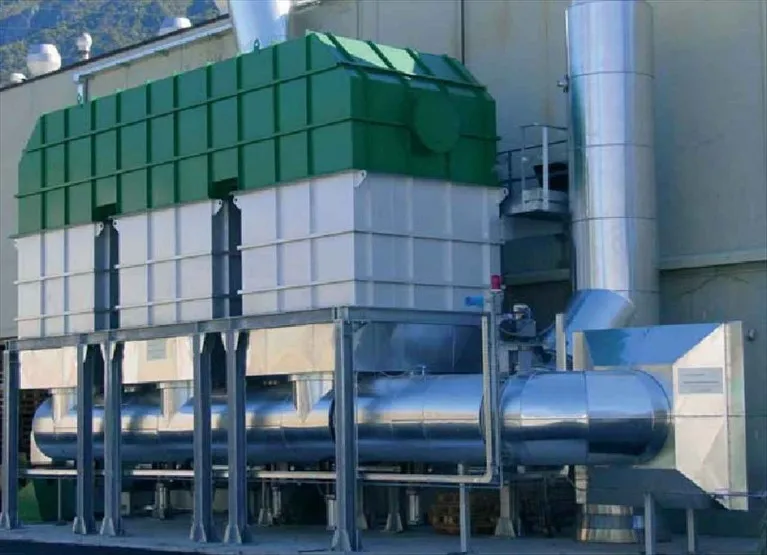

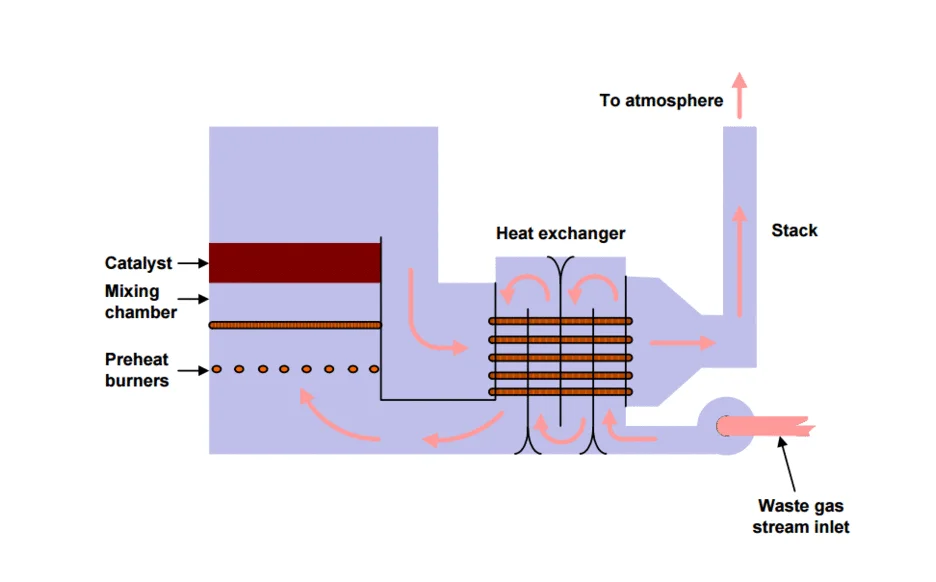

Regenerative Thermal Oxidizer (RTO)
RTO equipment is a type of air pollution control equipment that destroys hazardous air pollutants (HAP), volatile organic
compounds (VOCs) and odorous emissions created during industrial processes. RTOs are the most common air pollution control technology in use today.
RTO technology uses combustion at high temperatures to oxidize air pollutants from industrial exhaust streams, which turns them into CO2 and H2O before they're released into the atmosphere. The term "regenerative" in regenerative thermal oxidizer comes from the Ceramic Honeycomb Heat Exchanger, which retains heat from the prior combustion cycle to preheat (and partially oxidize) the pollutant-filled airstream for the next cycle.
compounds (VOCs) and odorous emissions created during industrial processes. RTOs are the most common air pollution control technology in use today.
RTO technology uses combustion at high temperatures to oxidize air pollutants from industrial exhaust streams, which turns them into CO2 and H2O before they're released into the atmosphere. The term "regenerative" in regenerative thermal oxidizer comes from the Ceramic Honeycomb Heat Exchanger, which retains heat from the prior combustion cycle to preheat (and partially oxidize) the pollutant-filled airstream for the next cycle.
Product packaging

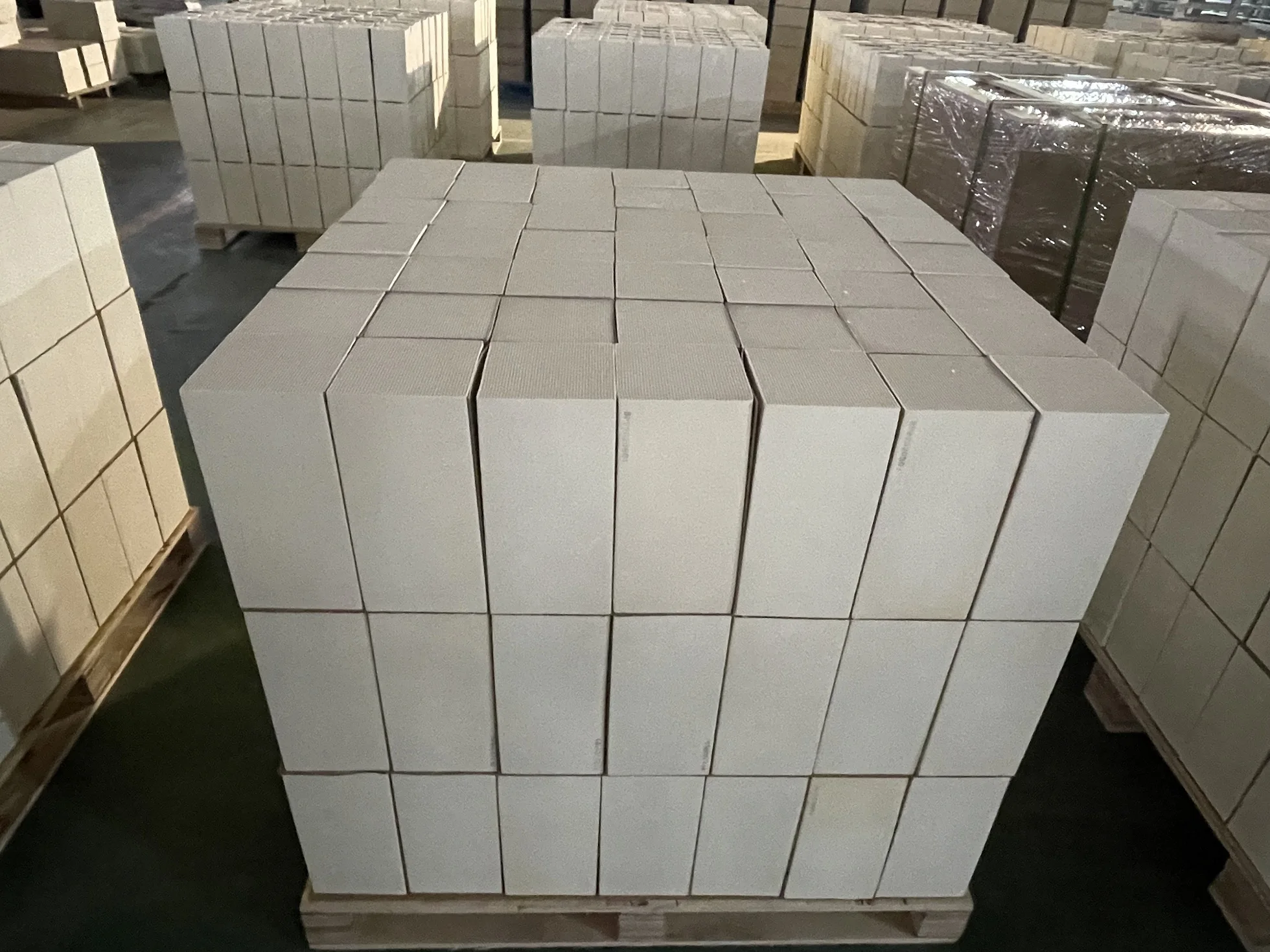

Stacking
Stock

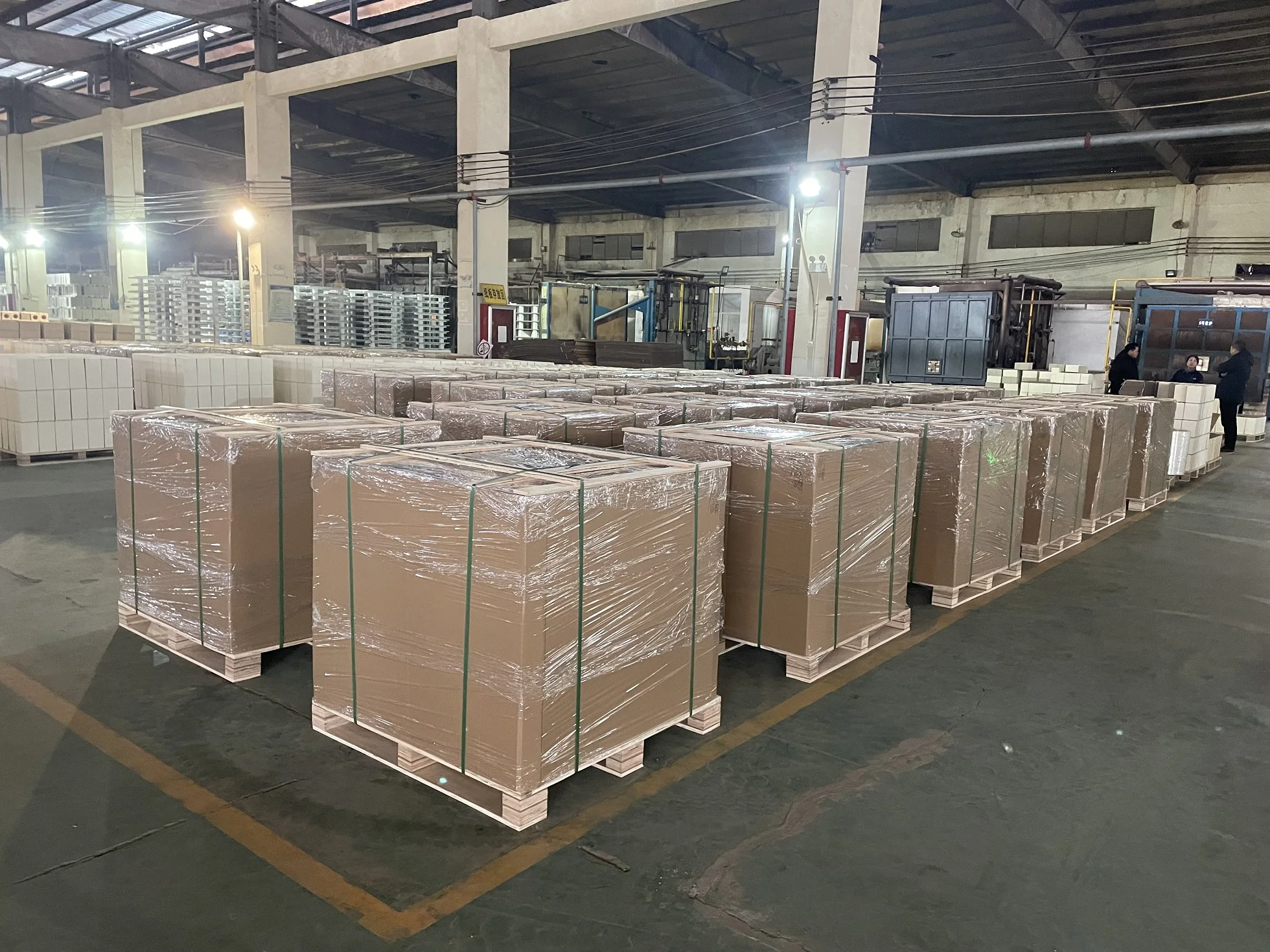

Shipment
Company Profile
Pingxiang Super Packing Mall Co.,Ltd
"Packing mall" is a one-stop chemical packing mall. All kinds of chemical fillers, molecular sieves, active alumina, catalysts and
other products can be purchased online in packing mall. At present, the company is the network resources market supplier of
sinopec, the products have been widely used in the national electric power, petroleum, chemical, metallurgy, environmental
protection, pharmaceutical, aerospace, aviation and other industries, and sold overseas.
other products can be purchased online in packing mall. At present, the company is the network resources market supplier of
sinopec, the products have been widely used in the national electric power, petroleum, chemical, metallurgy, environmental
protection, pharmaceutical, aerospace, aviation and other industries, and sold overseas.
