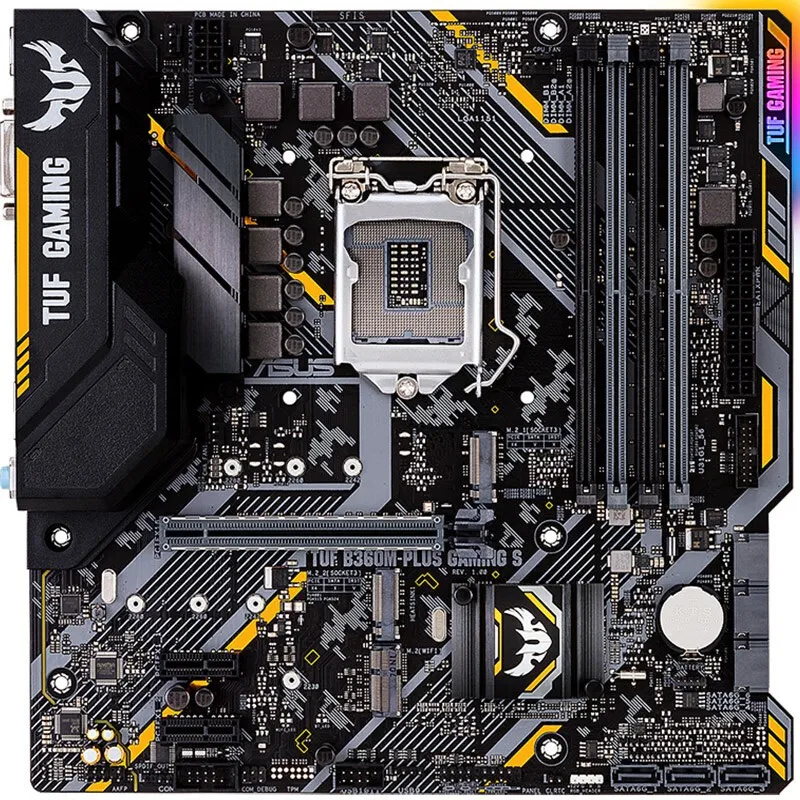

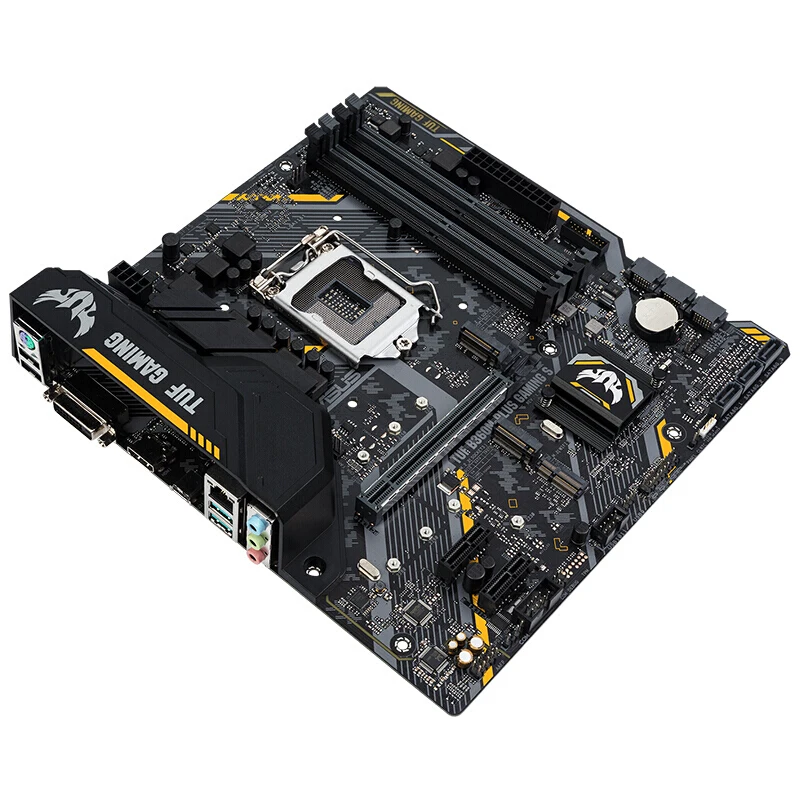

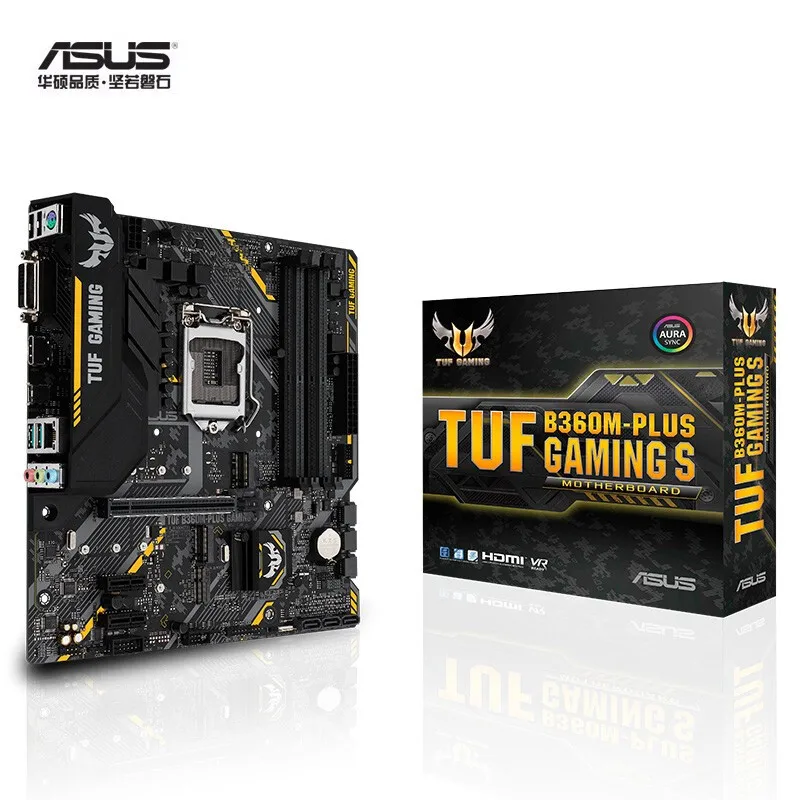

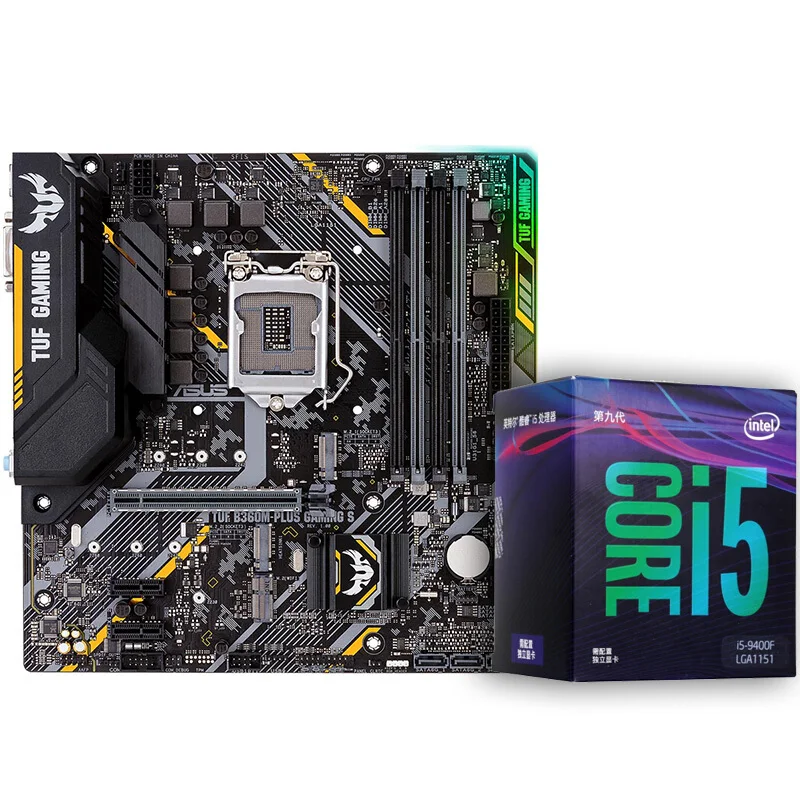

Original New mainboard for ASUS TUF B360M PLUS GAMING S LGA 1151 with Intel Core I5 9400F CPU Processor Combo

Product Overview

Description





Intel LGA 1151 mATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 2666MHz support, 32Gbps M.2, Intel Optane memory ready, and native USB 3.1 Gen 2.

TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability

Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability

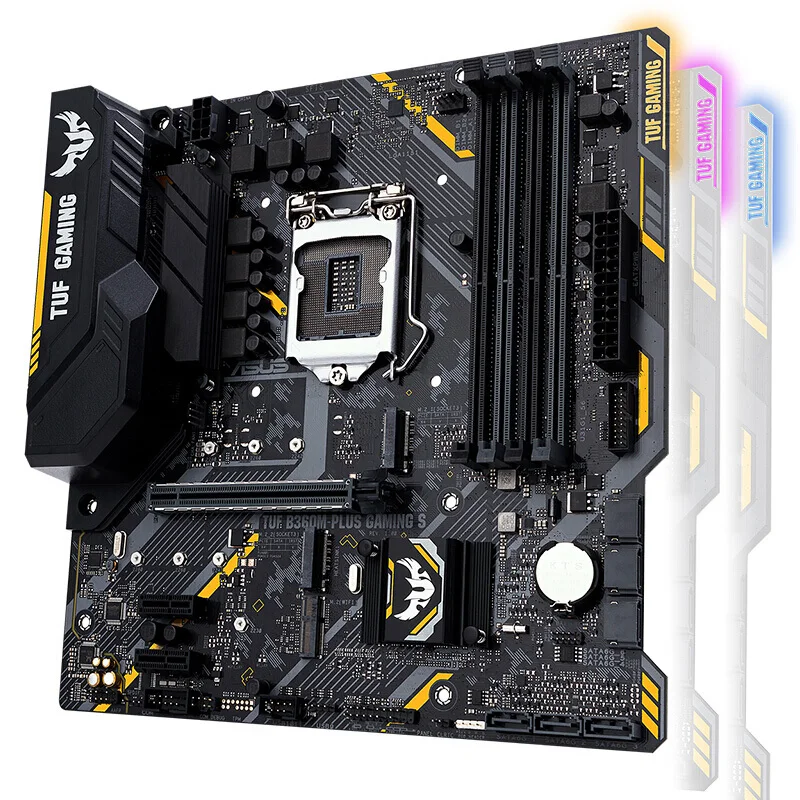

Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear

Intel® Optane™ memory ready: Exploit the latest high-speed storage technology

Native M.2: Lightning-fast storage speeds

CPU

Intel® Socket 1151 for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Chipset

Intel® B360

Memory

Intel® B360 Chipset

4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* The maximum memory frequency supported varies by processor

** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D ports

- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Maximum shared memory of 1024 MB (for iGPU exclusively)

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots

1 x PCIe 3.0 x16 (x16 mode)

2 x PCIe 3.0/2.0 x1

1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT and Intel® CNVi (Integrated Wi-Fi/BT) module*

* The Wi-Fi/BT module is purchased separately

Storage

Intel® B360 Chipset :

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s), gray

LAN

Intel® I219V, 1 x Gigabit LAN

TUF LANGuard

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports

Intel® B360 Chipset :

2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)

Intel® B360 Chipset :

3 x USB 3.1 Gen 1 up to 5Gbps port(s) (1 at back panel, , USB Type-CTM, 2 at mid-board)

Intel® B360 Chipset :

5 x USB 2.0/1.1 port(s)

Special Features

ASUS TUF PROTECTION

- ASUS SafeSlot: Protect your graphics card Investment

- ASUS ESD Guard: Enhanced ESD protection

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM: 5 Phase digital power design

ASUS OptiMem:

- Optimem (Improved DDR4 stability)

ASUS EPU :

- EPU

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

- PC Cleaner

- File Transfer

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution & MOS Heatsink

- ASUS Fan Xpert 2+

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

ASUS Q-Design :

- ASUS Q-Slot

- ASUS Q-DIMM

M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

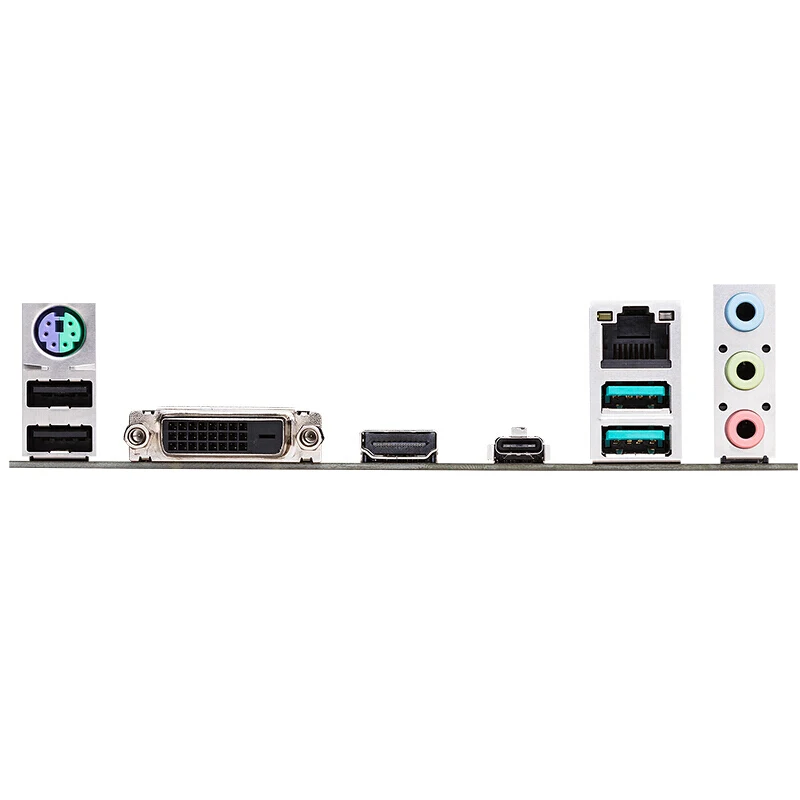

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 2 (teal blue)Type-A, up to 10Gbps

1 x USB 3.1 Gen 1 () USB Type-CTM, up to 5Gbps

2 x USB 2.0

1 x 8-channel Audio I/O

Internal I/O Ports

1 x Aura RGB Strip Header

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, moss green)

2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)

2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s)

2 x Chassis Fan connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin EATX 12V Power connectors

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

Accessories

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

2 x M.2 screws

1 x Supporting DVD

1 x TUF GAMING Sticker

1 x TUF Certification card(s)

BIOS

128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F4 AURA ON/OFF, F6 Qfan Control, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial

Presence Detect) memory information

Operating System

Windows® 10 64-bit

Form Factor

mATX Form Factor
