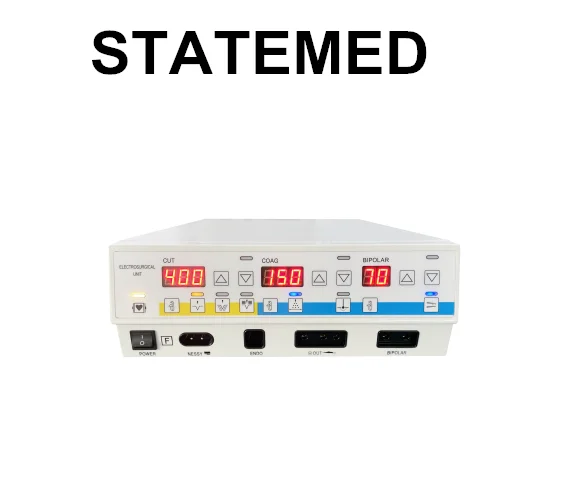

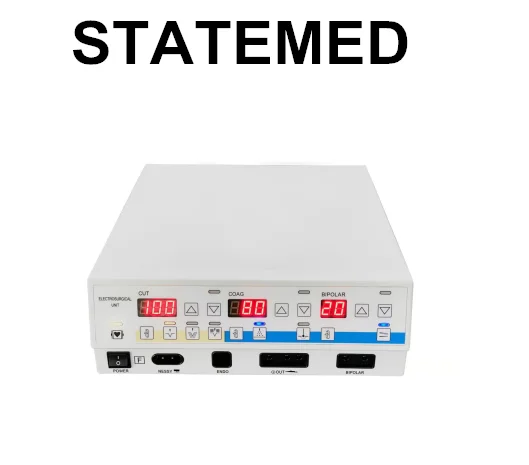

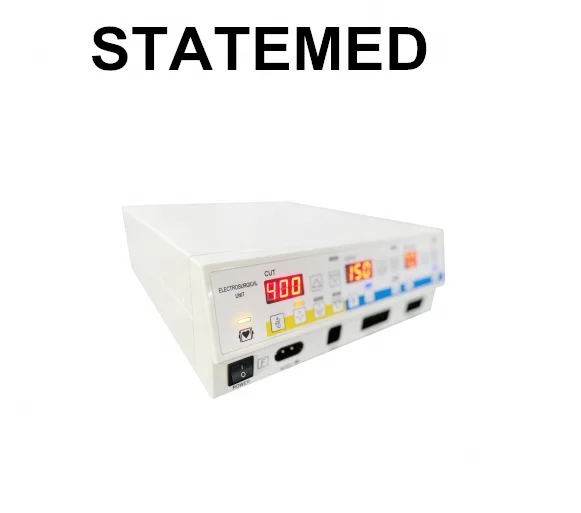

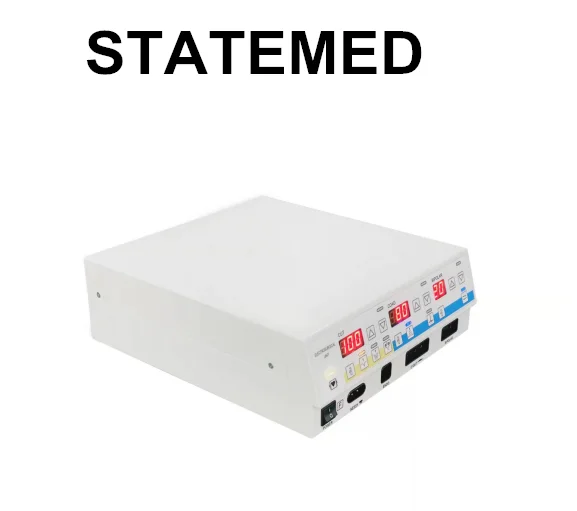

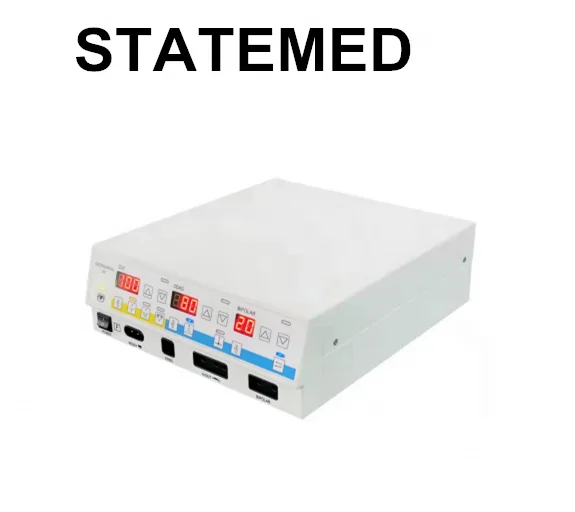

Customized 400W Electrosurgical Unit High Frequency Electrosurgical Cautery Unit

Product Overview

Description

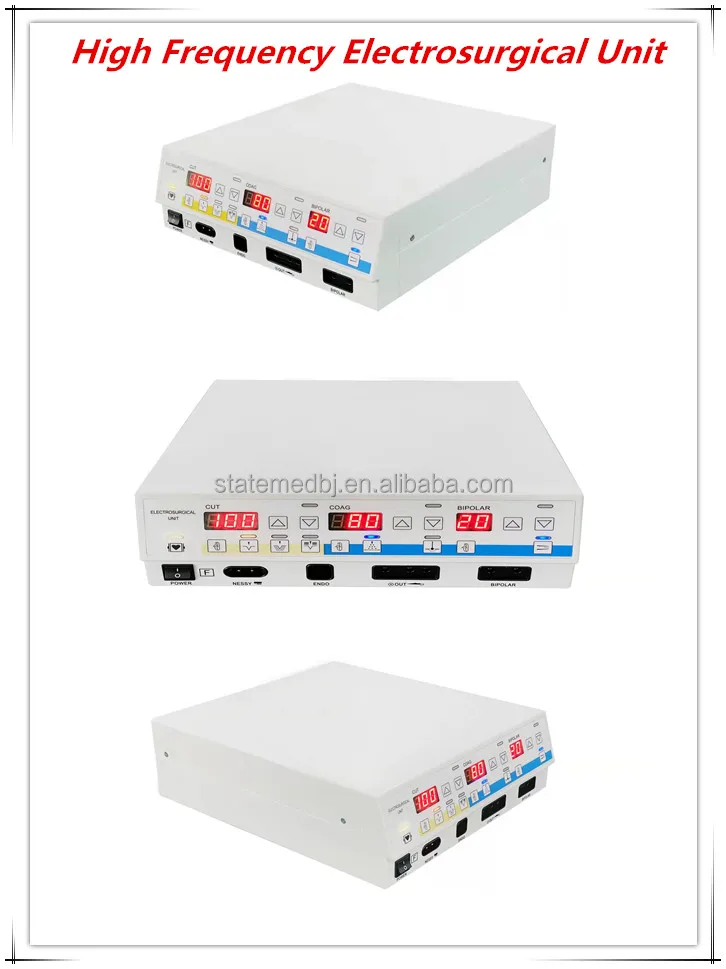

400W High Frequency Electrosurgical Unit

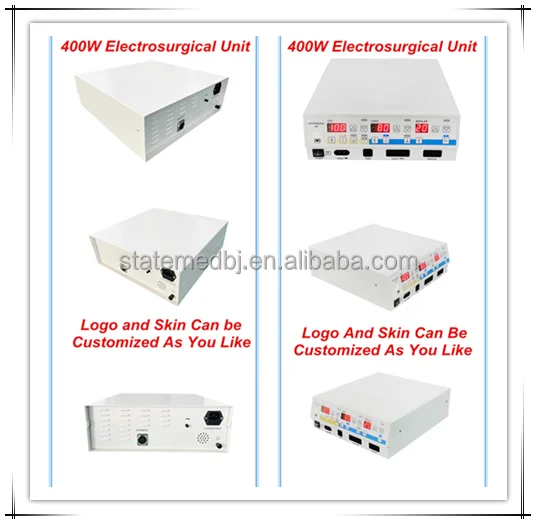

Logo & Skin of Machine Can Be Customized As You Like



Application:

Applicable for general surgery, thoracic surgery,orthopedics,obstetrics and gynecology,urologic surgery,cerebral surgery, microsurgery, ENT surgery and etc.

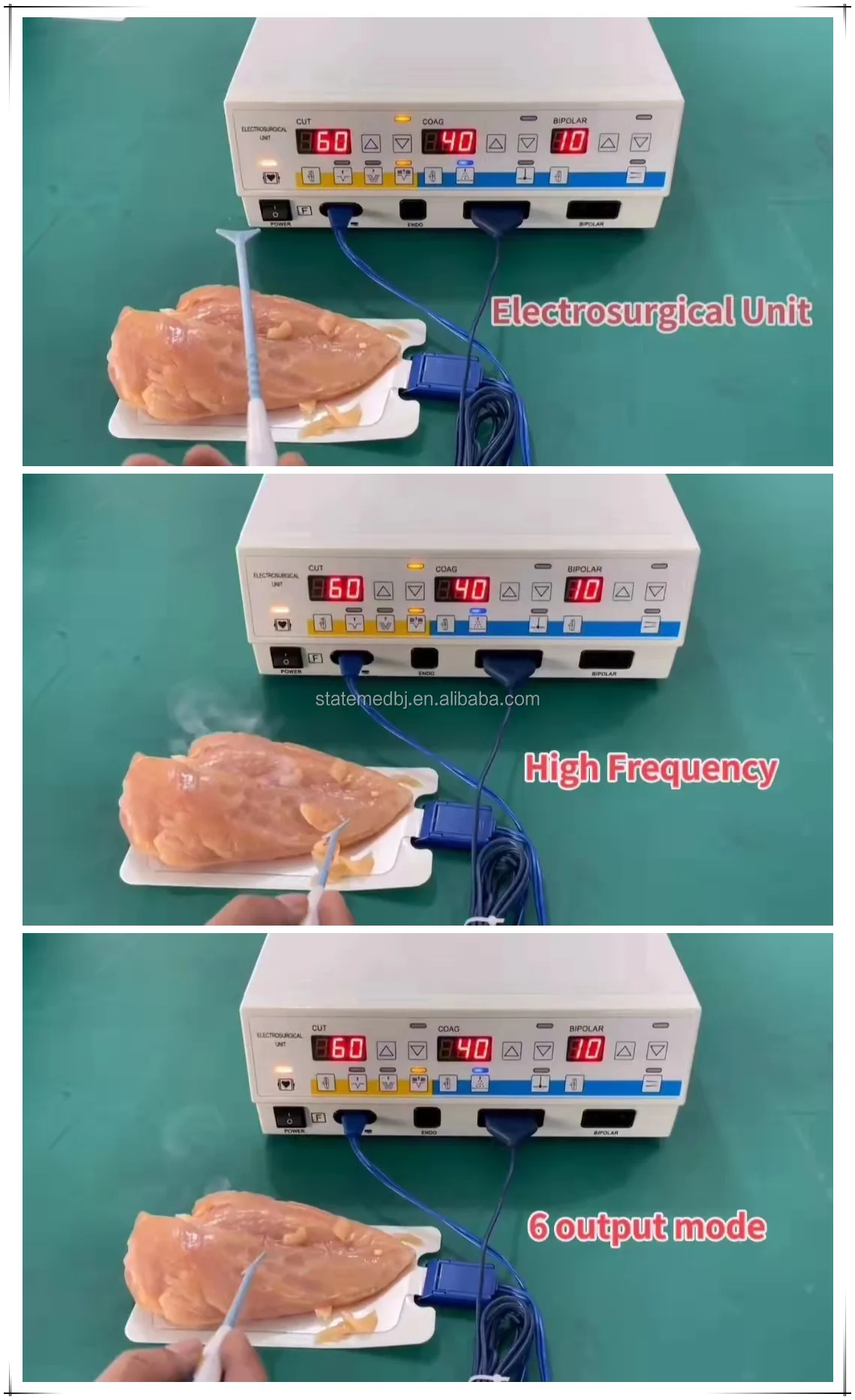

Six Output Mode:

1) Cut: 400W(Load 500Ω)

2) Blend 1:  250W(Load 500Ω)

3) Blend 2: 200W (Load 500Ω)

4) Spray Coag 120W (Load 500Ω)

5)Contact Coag 80W (Load 500Ω)

6) Standard bipolar Coag.70W(Load 100Ω)

Power:110~220V±22V,50Hz/60Hz±1;

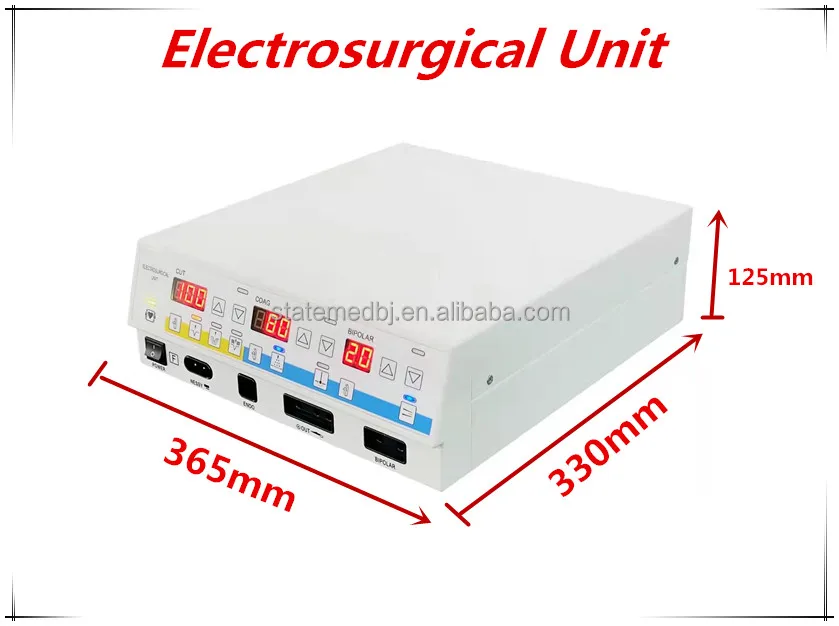

Product Size: 365*330*125mm (LxWxH)

Net Weight: 8 KG,

Gross Weight: 10KG

Packing size: 46*42*30 cm







Technical Parameters:

a) Ambient temp.range: 5°℃~40 ℃;

b) Relative Humidity Range: ≤80;

c) Atmospheric Pressure Range: 86.0~106.0kpa

d)Power:110~220V±22V,50Hz/60Hz±1;

e) Operating Freq:330~600kHz;

f) Rated Power: 1100VA±10%;

g) Type: CF

Power Consumption:≤1100VA(Cut function 400W)



Transportation and Storage:

a) Ambient Temp. Range: -40 ℃ ~ 55 ℃;

b) Relative Humidity: ≤95%;

c) Atmospheric Pressure: 500hpa ~ 1060hpa;



Cut: Pure cut, can make easy operation for any organic,the effect is refine cut,no escharosis on the surface.

Blend 1: The effect is cut with coagulation.

Blend 2: The effect is offering a better coagulation during cut.

Spray Coag.: Called spray electrocoagulation,offers effective non-contact coagulation, Can use this function together with Argon.

Contact Coag.: Called soft electrocoagulation, or called Point coagulation, small effect area,for a deep coagulation layer for organic. Can use this function together with Endoscope;

Standrad Bipolar Coag.: Called rapid Bipolar coagulation, to provide coagulation function rapidly at boot, which can reduce mis-operation rate during operation.









Logo & Skin of Machine Can Be Customized As You Like









Standard Configuration :

a) Main unit : 1 pc

b) Double footswith:  1 pc

c) Hand switch:  2 pC

d) Electrode plate(Disposable): 2pc

e) Electrode plate cable:  1 pc

f) Bipolar frceps:  1 pc

g) Bipolar forceps cable: 1 pc

h) Power cable:  1 pc

i) User's manual: 1 pc

j) Packing List:   1 pc

k)Guarantee card: 1 pc



Advantages of STATEMED Electrosurgical Unit:

1. Fully suspended power supply, broadband voltage input is not affected by unstable power supply.

2. Output power error ± 3%.

3. Full function automatic power compensation.

4. The universal endoscope interface of high-frequency generator is used with gastroscope, enteroscope, laparoscope and other endoscopes.

5. Patient circuit bipolar electrode plate contact quality detection system.

6. Accurate output power and accurate cutting without focus.

7. The machine has a power-off protection circuit, which can remember the output setting value used last time.





Cutting under the auto-control of high-frequency voltage (CUT)

Electrosurgical unit device is equipped with automatic power compensation loop control system to control and adjust cutting, and to ensure that the selected cutting quality and stable. The adjustable power limits under the Cutting mode. Because the the electrosurgical cutting operation mode has adopted high frequency voltage automatic-control function, so you don't have to set the power for the cutting quality. Adjustable power limit is to ensure patient safety, prevent unintended thermal damage to tissue. At the same time, it can prevent the damage of precise cutting devices, such as needle electrodes, because if they are contacted with other metal parts when the device has been initiated and causehigh-frequency current, the devices will be easily broken. This damage may occur in laparoscopic surgery. Don’t mistaken adjustable power limit as the power setting ofconventional high-frequency surgical device. The cutting quality of the conventional device directly depends on the setting of power.

Cutting is particularly suitable for the human tissue for its poor conductivity. However, the high frequency voltage of applied electrode, under the cutting model, can achieve very high value, so cut with good electric insulation instruments, when operate on poor conductive body tissue. We don’t recommend the cutting function for Bipolar or quasi bipolar equipment, for their insulation is weak generally and can not be connected with high voltage. You can adopt the other functions for the bipolar or quasi bipolar devices.
