Handheld Gaussmeter Gauss Meter Surface Magnetic Field Tester Test Range 200 mT 2000 mT GS 100D
- Category: >>>
- Supplier: Guangzhou Landtek Instruments Co. Ltd.
Share on (1600463683129):
Product Overview
Description

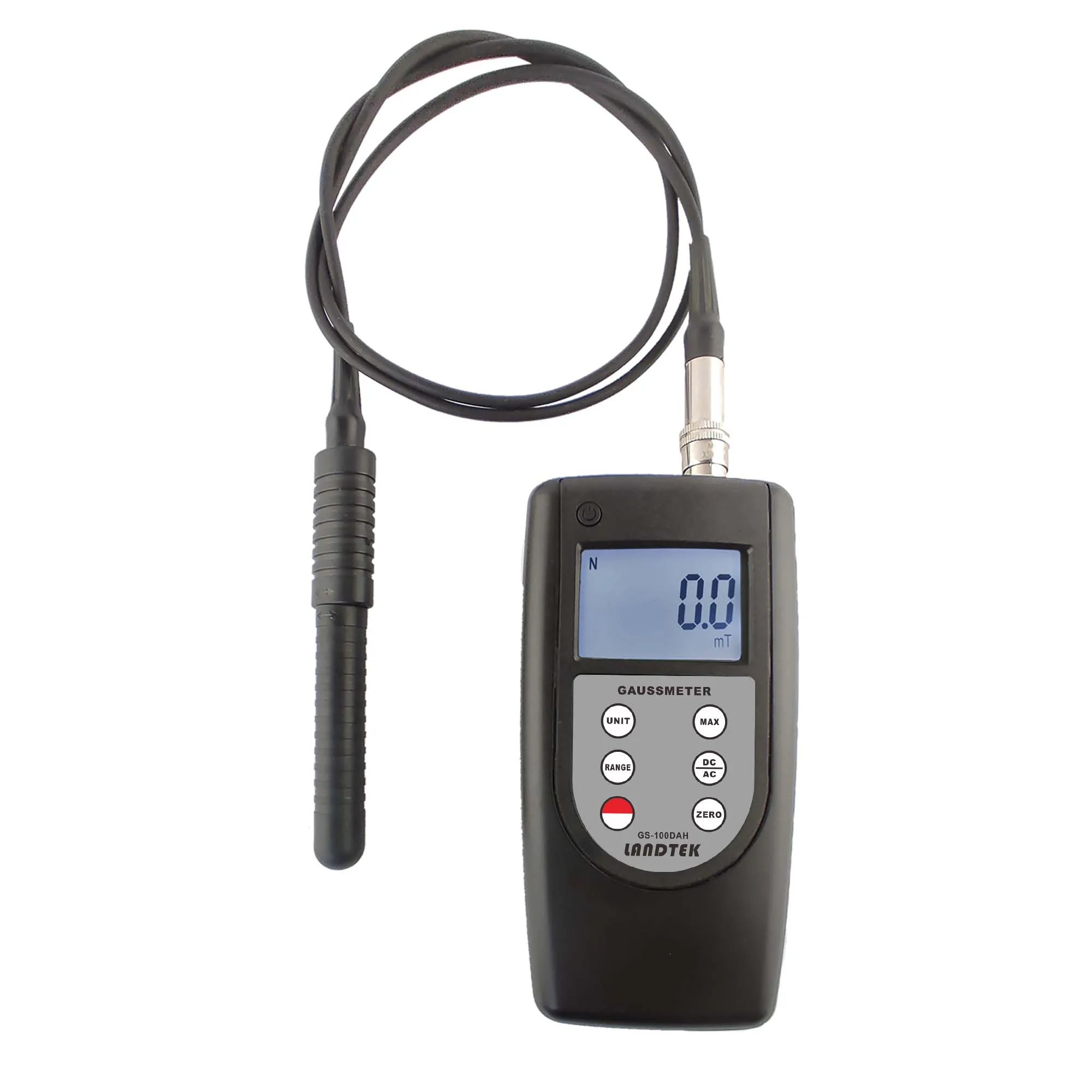

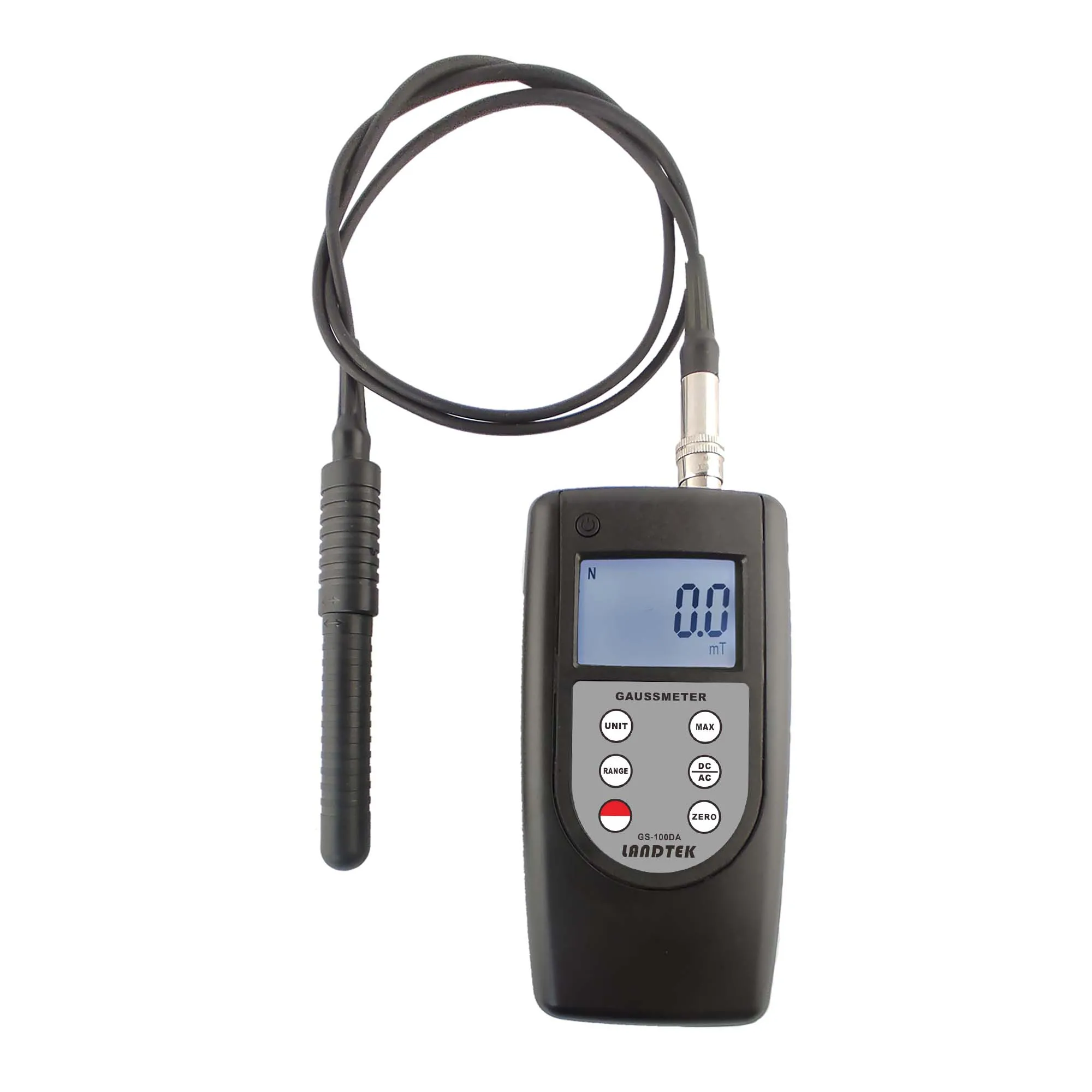

Gaussian Meter GS-100D
Spec:Used for measuring the magnetic induction intensity of DC magnetic field, AC magnetic field, radiation magnetic field, remanence magnetic field, earth magnetic field, and other magnetic fields.
* Portable, wide range.
* Easy to operate, clear LIQUID crystal display.
* There are measurement/peak retention, mT/Gs unit conversion.
* 200mT/2000mT range conversion, etc.
The tension sensor is based on Hall's principle.The circuit uses a low drift amplifier and a high stable power supply, controlled by a single chip microcomputer, and displays the measured values on a 41/2LCD.
Measuring range | 0~200mT~2000mT |
Frequency range | 10Hz~200Hz |
The accuracy of | 0~100mT 2%, above 100mT 5% (measured in a uniform magnetic field) |
Magnetic field under test | Dc magnetic field (static magnetic field) |
Functional specifications | Peak retention Gs(Gauss) /mT (Millitesla) can be switched freely |
Dc polarity of measurement | N for positive, S for negative |
Operating Conditions | 5℃~40℃ |
Relative humidity | 20%~80%(There is no dew) |
Power supply | Four no. 5 batteries can be externally connected to a 5V stabilized voltage supply |
Overall dimensions | 140mm (L) X73mm (W) X 30mm (H) |
Instrument weight | 180g |
Display mode | 41/2LCD |
According to the unit | mT/Gs |
Standard Accessories | Main engine (one) |
| Hall sensor (one) |
| Operating Instructions (one copy) |
