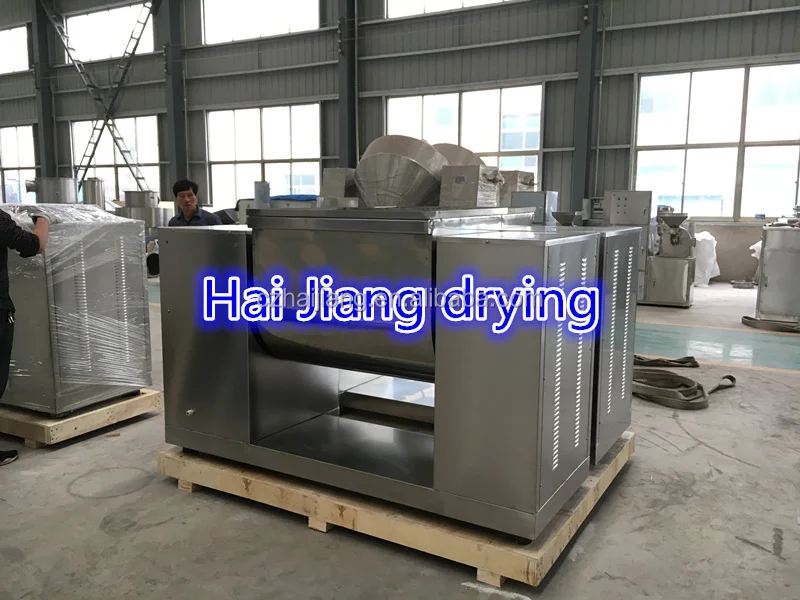

Easy Operation Industrial Trough Shape Slot Type Dry Wet Mixer for Powder Mixing Machine
- Category: >>>
- Supplier: Changzhou Haijiang Drying Equipment Co. Ltd.
Share on (1600463697463):
Product Overview
Description
With Low Price CH series notch shape dough mixer for chemical industry
Product Description
Descriptions

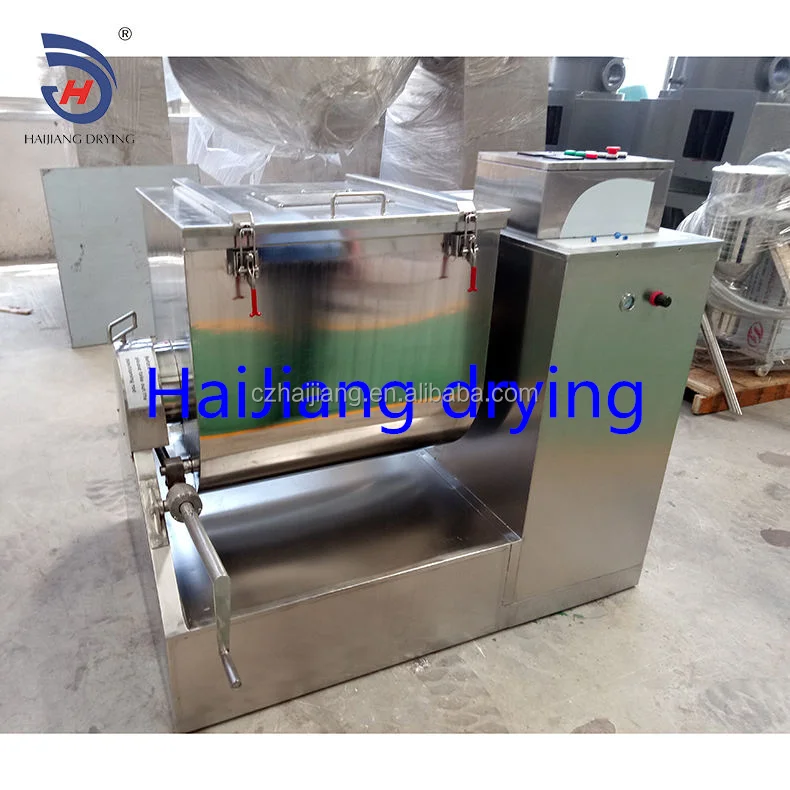

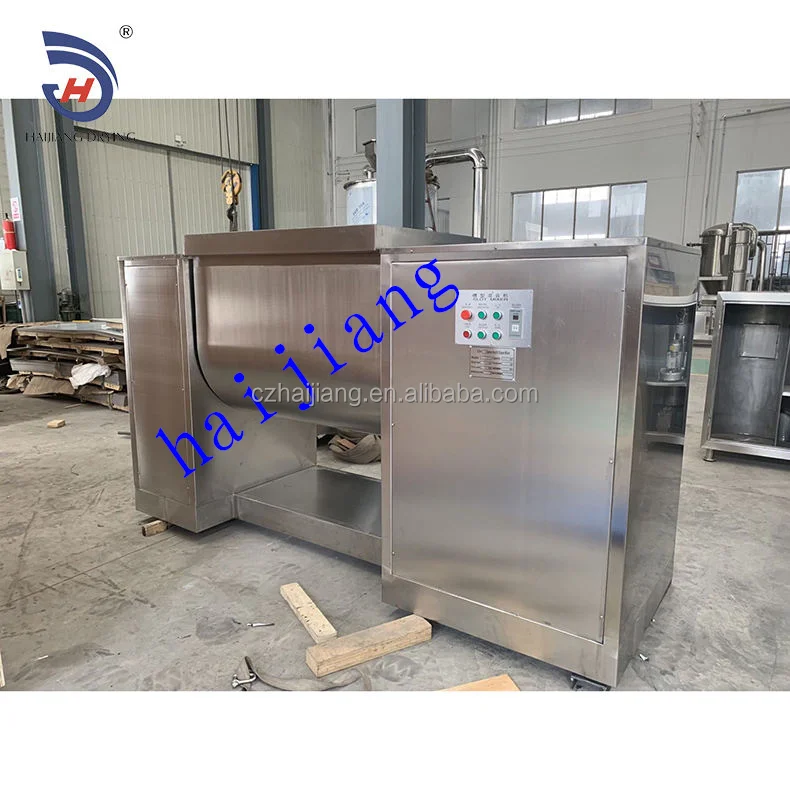

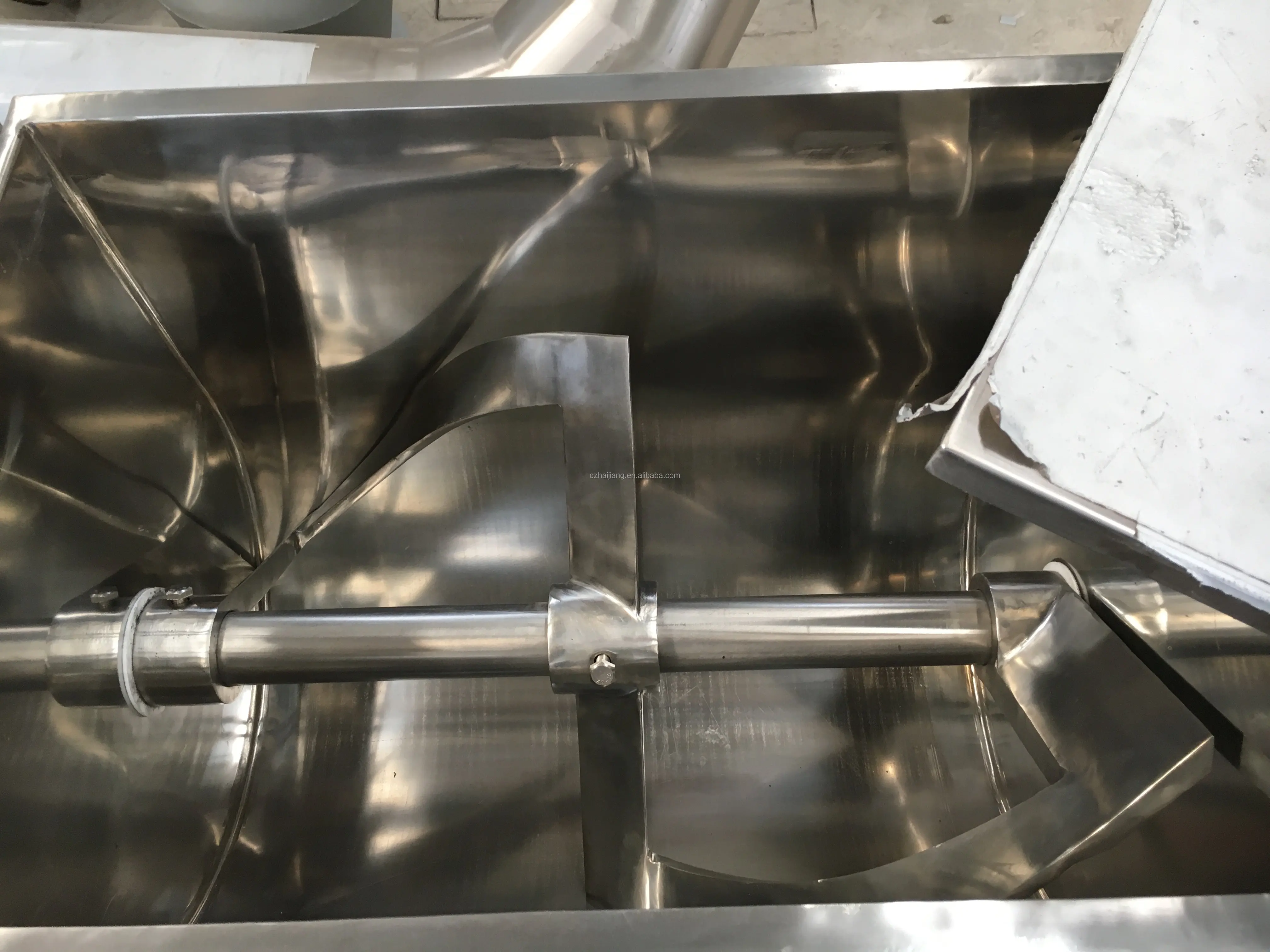

CH type mixer is wide used for mixing powder or wet raw materials and can make the main and auxiliary raw materials with different proportion uniform.The places whwew the raw materials contact are made from stainless steel.The gap betwwen blades is small and there is no dead corner in mixing.At the end of stirring shaft,there are seal devices.It can prevent from the raw materials rushing out.It is wide used for chemical,foodstuff and so on industries.
Applications:
The mixer is used for mixing the dry material grains in the chemical,food,metallurgical and other industries.
Technical Parameter
| type | Total volume (m³) | Feed amount (kg/batch) | Overall dimension (mm) | stirring speed rpm | Power for mixing kw | power for discharge kw |
| 150 | 0.15 | 30 | 1480×1190×600 | 24 | 3 | 0.55 |
| 200 | 0.2 | 40 | 1480×1200×600 | 24 | 4 | 0.55 |
| 300 | 0.3 | 60 | 1820×1240×680 | 24 | 5.5 | 1.5 |
| 500 | 0.5 | 120 | 2000×1240×720 | 20 | 11 | 2.2 |
| 750 | 0.75 | 150 | 2300×1260×800 | 19 | 15 | 2.2 |
| 1000 | 1.0 | 270 | 2500×1300×860 | 19 | 15 | 3 |
| 1500 | 1.5 | 400 | 2600×1400×940 | 14 | 18.5 | 3 |
| 2000 | 2.0 | 550 | 3000×1500×1160 | 12 | 22 | 4 |
| 2500 | 2.5 | 630 | 3500×1620×1250 | 12 | 22 | 5.5 |
| 3000 | 3.0 | 750 | 3800×1780×1500 | 10 | 30 | 5.5 |
More details
Parts
Packaging & Shipping
Our Services
Pre-sales service
1) Professional advice and rich experience help to choose machine.
2) Inquiry and consulting support
3) View our factory
After-sales service
1) Training how to install and use the machine
2) Engineers available to service machinery overseas.
3)one year warranty,whole life service. Within1 year, any problem part can send to us, we can give provide free new part (only damaged by machine itself).
