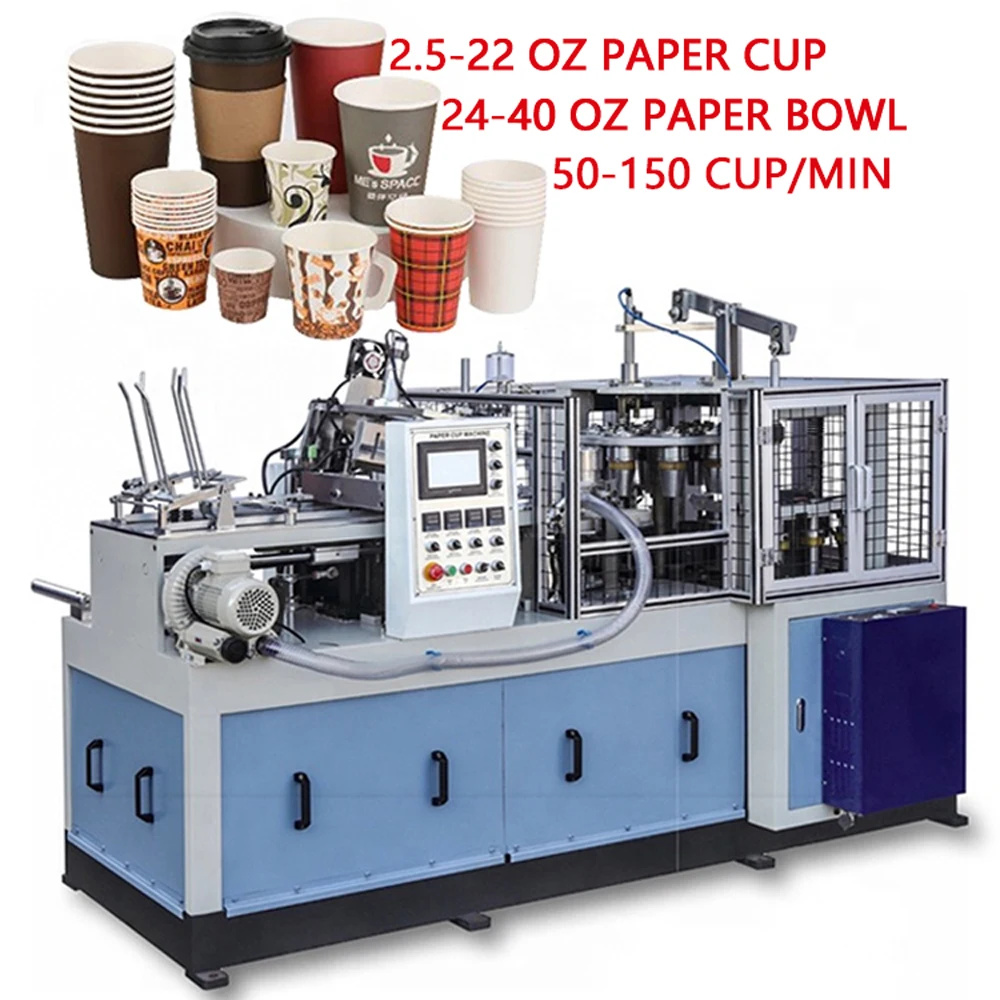

2023 New High Speed Automatic Paper Cup Making Machine
US $5500-$7800
Машина для изготовления бумажных стаканчиков, 3 40 унций
- Category: Paper Product Making Machinery >>>
- Supplier: Zhejiang,Ruida,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
3-40oz Paper Cup Making Machine Customized Automation Paper Product Making Machinery Paper Cup Machine with Printing
Model | RD-LB120-3600A |
Cups Specifications | 2-22OZ |
Weight | 2500kg |
Total Power | 380V/220V 50HZ |
Paper Specifications | 160-380 g/m2 |
Speed | 50-65 pcs/min |
Gas source | 0.4m³/min |
General Power | 8Kw |
Paper cup top diameter | 45mm-85mm,55mm-105mm |
Paper cup bottom diameter | 35mm-62mm,45mm-80mm |
Paper cup height | 35mm-125mm,60mm-120mm |
Packing Dimensions | 2730*1460*1800mm(L*W*H) |
Shipping Details | By sea/air,according to customers' requirements. |
Cup Use | Round paper cups, drinking , noodle and vending cups ice-cream and food containers |
Other Products | Paper cup machinery,die cutting machine,paper cup forming machine,cup top flatten machine and other products. |
Paper cup forming machine is a kind of full automatic forming machine.It has functions of automatic paper feeding row by
row,ultrasonic sealing,paper cylinder transferred by mechanical arm,oiling,bottom punching,bottom folding,preheating,bottom knurling and cup stacking.It is suitable for making all kinds of drinking cups and small ice cream cups.
It has invertor for auto speed adjusting,power supply can be 220V or 380V as optional.It stops automatically if any problem controlled by sensors we installed,so that the machine is well protected and becomes more durable.
We adopt separate cam drivers on the left and right of cup side sealing device,so the working status is quiet and stable,whichis the top technology owned us in China.
row,ultrasonic sealing,paper cylinder transferred by mechanical arm,oiling,bottom punching,bottom folding,preheating,bottom knurling and cup stacking.It is suitable for making all kinds of drinking cups and small ice cream cups.
It has invertor for auto speed adjusting,power supply can be 220V or 380V as optional.It stops automatically if any problem controlled by sensors we installed,so that the machine is well protected and becomes more durable.
We adopt separate cam drivers on the left and right of cup side sealing device,so the working status is quiet and stable,whichis the top technology owned us in China.
Manufacturing Technique
Operation touch pannel and parameters setting
Electrical box for whole machine
Output cup and connect to cup stacker station
Paper fan frame and ultrasonic side sealing
Machine turning plate
Cup mold and bottom heater stations
The characteristics of the machine:
Optimized performance to ensure higher speed:
1. Machine structure:
Two turnplates, open intermittent cam mechanism and gear transmission, longitudinal axis structures.
2. Automatic lubrication system for whole machine, It makes all mechanical parts working much more smoothly.
3. Swiss hot air device
Its bottom sealing is more efficient and better quality.
4. Ultrasonic heater
Compared with traditional copper heater, ultrasonic heater is more stable and faster for sealing cup side.
5. PLC control system
It provides easier operation and accurate adjustment and control of machine.
6. Sensor failure detecting
It can stop working automatically when problem happens to improve operation safety and reduce labor cost.
7. Two-step cup top curling
Rotary curling and heating figuration ensure stable and good-looking edge .(round and smooth).
8. Customized replaceable moulds
It's easy to change the moulds to make cup with different sizes.
9. Automatic cup delivery system and counter
It makes cup cleaner and reduce labor cost.
10.High quality core components
Core components of this machine are made by famous electrical brands and mechanical brands.
Optimized performance to ensure higher speed:
1. Machine structure:
Two turnplates, open intermittent cam mechanism and gear transmission, longitudinal axis structures.
2. Automatic lubrication system for whole machine, It makes all mechanical parts working much more smoothly.
3. Swiss hot air device
Its bottom sealing is more efficient and better quality.
4. Ultrasonic heater
Compared with traditional copper heater, ultrasonic heater is more stable and faster for sealing cup side.
5. PLC control system
It provides easier operation and accurate adjustment and control of machine.
6. Sensor failure detecting
It can stop working automatically when problem happens to improve operation safety and reduce labor cost.
7. Two-step cup top curling
Rotary curling and heating figuration ensure stable and good-looking edge .(round and smooth).
8. Customized replaceable moulds
It's easy to change the moulds to make cup with different sizes.
9. Automatic cup delivery system and counter
It makes cup cleaner and reduce labor cost.
10.High quality core components
Core components of this machine are made by famous electrical brands and mechanical brands.
Better appearance of the machine:
1. More compact and save more space for your factory
The machine dimensions is smaller than previous machines.
1. More compact and save more space for your factory
The machine dimensions is smaller than previous machines.
Company Profile
Established in 1994, our company is a specialized manufacturer of paper cups and label machines. Our product line currently covers paper cup printing, punching and forming machines.
We now have over a decade of industry experience, having developed into a comprehensive joint-stock enterprise with integrated design, manufacturing, and sales departments. Presently we have strong technical force and an efficient production process. Ensuring high-quality products that deliver complete customer satisfaction is our number one priority. In order to accomplish this objective, we focus on coupling advanced technology with superior management.
Our products have been sold well throughout China, the USA, Europe, and Southeast Asia.
Our products have been sold well throughout China, the USA, Europe, and Southeast Asia.
Our hard work and success have been recognized through the receipt of several regional and national awards and accolades.
Packing & Delivery
Seaworthy packing Wooden Case.Well protect machine with best packing
