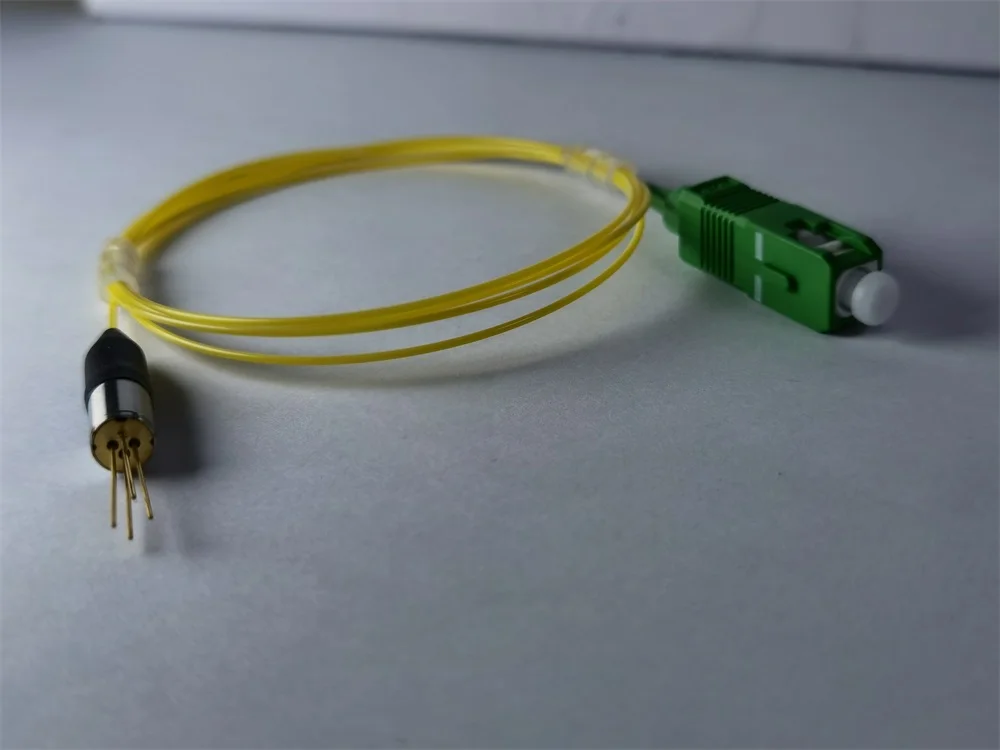

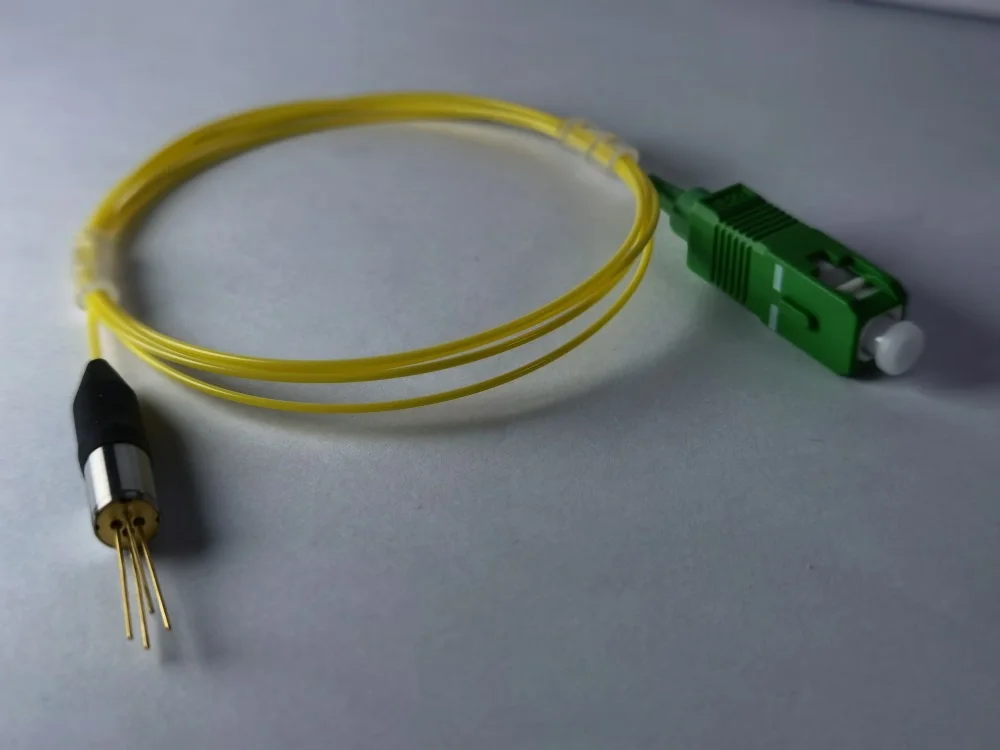

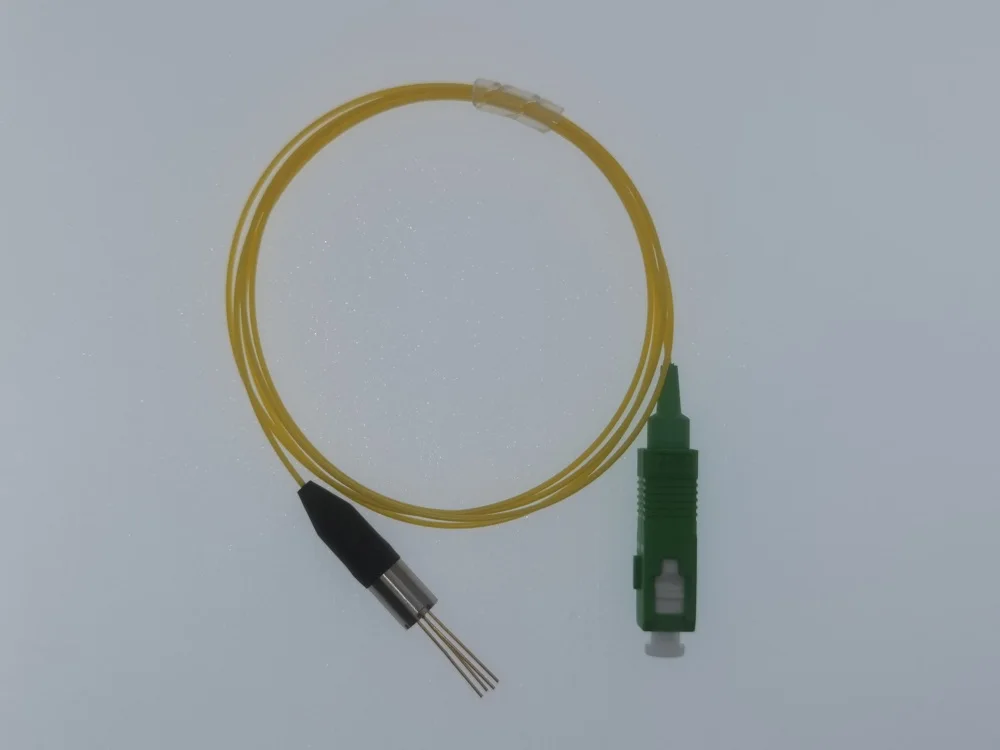

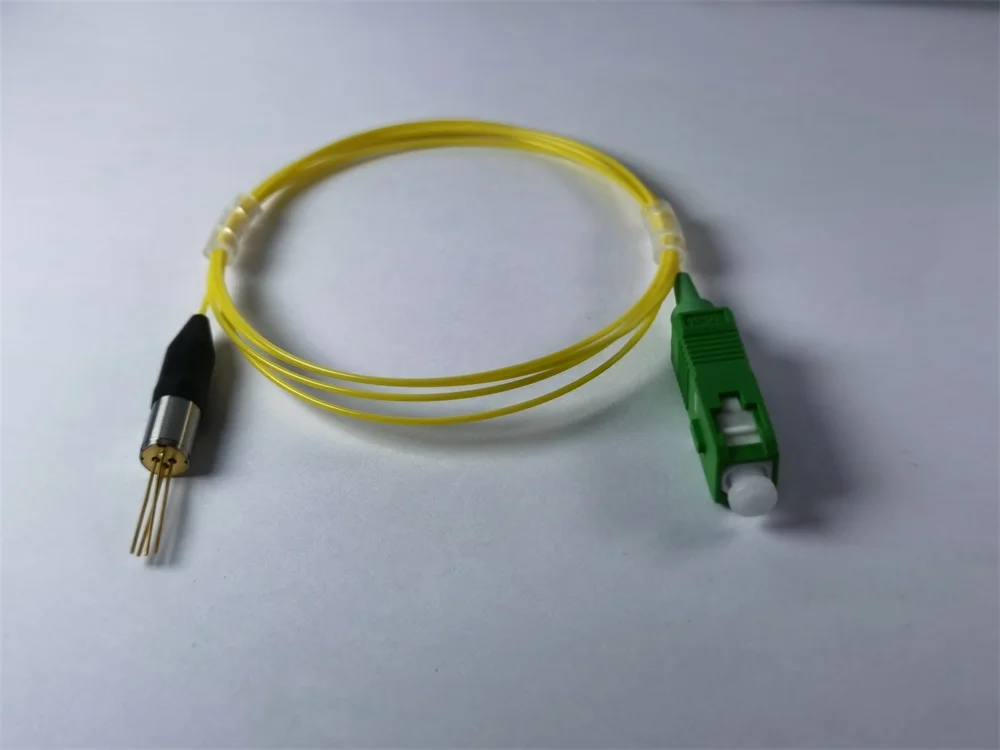

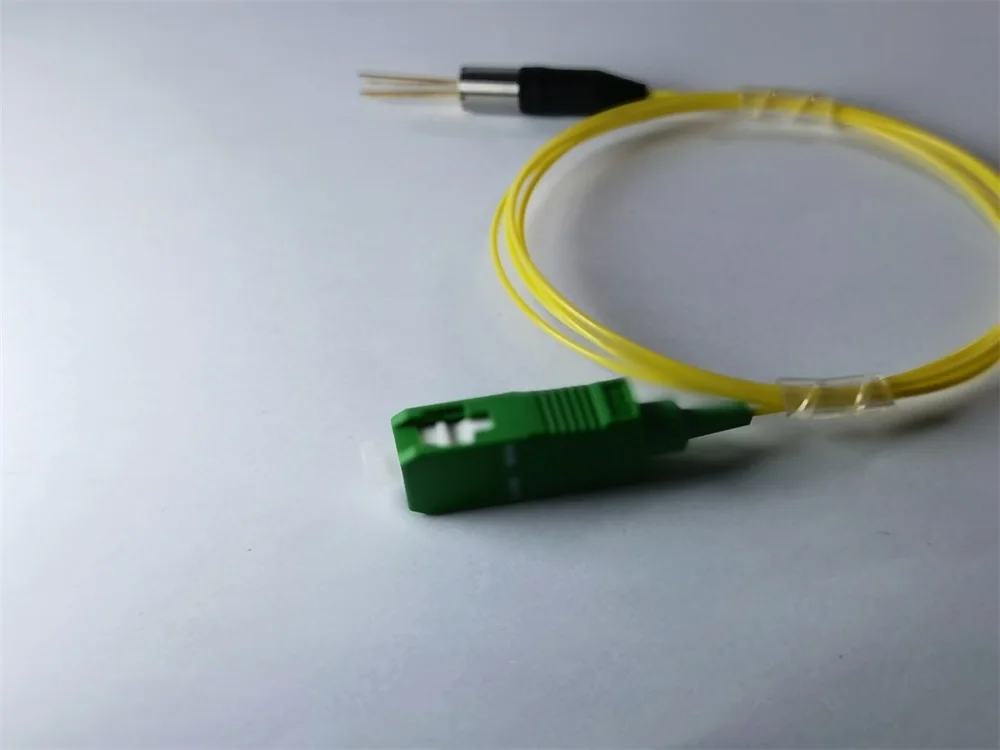

Factory Direct Sale Cheap High Quality Fiber 1310nm DTNT Laser Diode
- Category: >>>
- Supplier: Digital Network Technology Company Limited
Share on (1600463895643):
Product Overview
Description
Specification
1. AbsoluteMaximum Ratings
Item | Unit | Min | Max |
Forward Current for LD | mA | -- | 150 |
Reverse Voltage for LD | V | -- | 2 |
Forward Current for MPD | mA | -- | 1 |
Reverse Voltage for MPD | V | -- | 6 |
Operating Temp | °C | -40 | 85 |
Storage Temperature | °C | -40 | 85 |
Storage Relative Humidity | % | -- | 85 |
Solder Reflow Temperature | °C | -- | 260 |
(*1): For soldering by iron and 10 seconds on leads
2. Electro-Optical Characteristics (TC=25°C)
2. Electro-Optical Characteristics (TC=25°C)
Item | Symbol | Test Condition | Min. |
Threshold Current | Ith | CW | -- |
Optical Output Power (*2) | Pf | CW,If=30mA | 4.25 |
Forward Voltage | Vf | CW,If=30mA | -- |
Central Wavelength | lc | CW,If=30mA | 1290 |
Spectrum Width (RMS) | Dl | CW,If=30mA | -- |
Monitor Current | Im | CW,If=30mA,Vpd= -2V | 100 |
(*2): Launched into 9/125mm SMF, measured with a master plug and an extra receptacle
3.Dimension Outline
3.Dimension Outline
4. Pigtail Fiber Characteristics
Parameter | Symbol | Min. | Typ. |
Mode Field Diameter | 8 | 9 | |
Gladding Diameter | 123 | 125 | |
Fiber BendingRadius | 30 | -- | |
Fiber Diameter | 0.8 | 0.9 | |
Fiber Length | 1350 | 1400 | |
Tension Force on Pigtail Fiber | 5 | -- |
Product Description

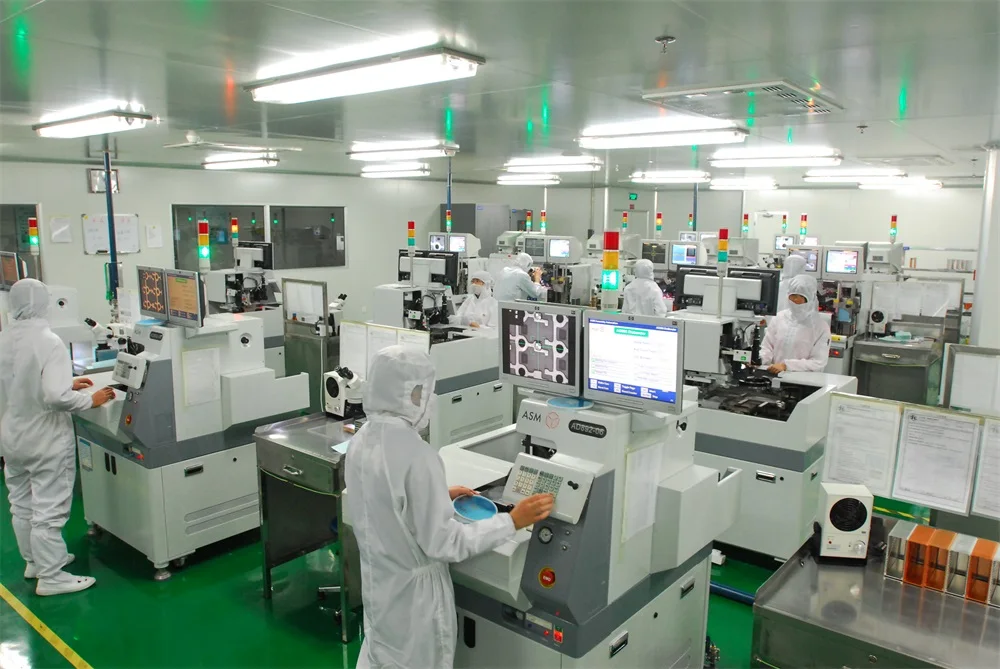

Company Profile
