SeeYA 0.49 inch EVF 3P optic 1920x1080 resolution 1800nits OLED micro display for digital camera
SeeYA 0.49 inch EVF 3P optic 1920x1080 resolution 1800nits OLED micro display for digital camera
SeeYA 0.49 inch EVF 3P optic 1920x1080 resolution 1800nits OLED micro display for digital camera
SeeYA 0.49 inch EVF 3P optic 1920x1080 resolution 1800nits OLED micro display for digital camera
SeeYA 0.49 inch EVF 3P optic 1920x1080 resolution 1800nits OLED micro display for digital camera
SeeYA 0.49 inch EVF 3P optic 1920x1080 resolution 1800nits OLED micro display for digital camera

SeeYA 0.49 inch EVF 3P optic 1920x1080 resolution 1800nits OLED micro display for digital camera

Share on (1600464005556):


Price:

Quantity:


Product Overview

Description



Products Description

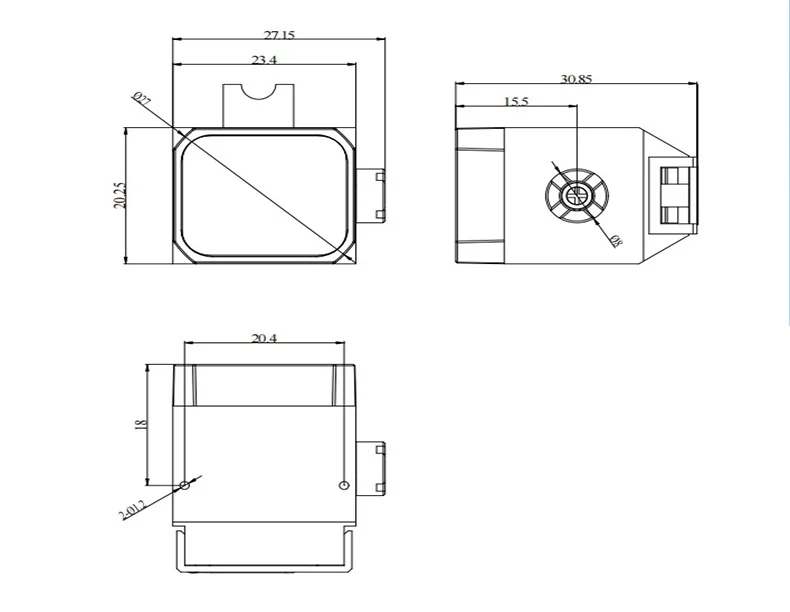

Product Schematic

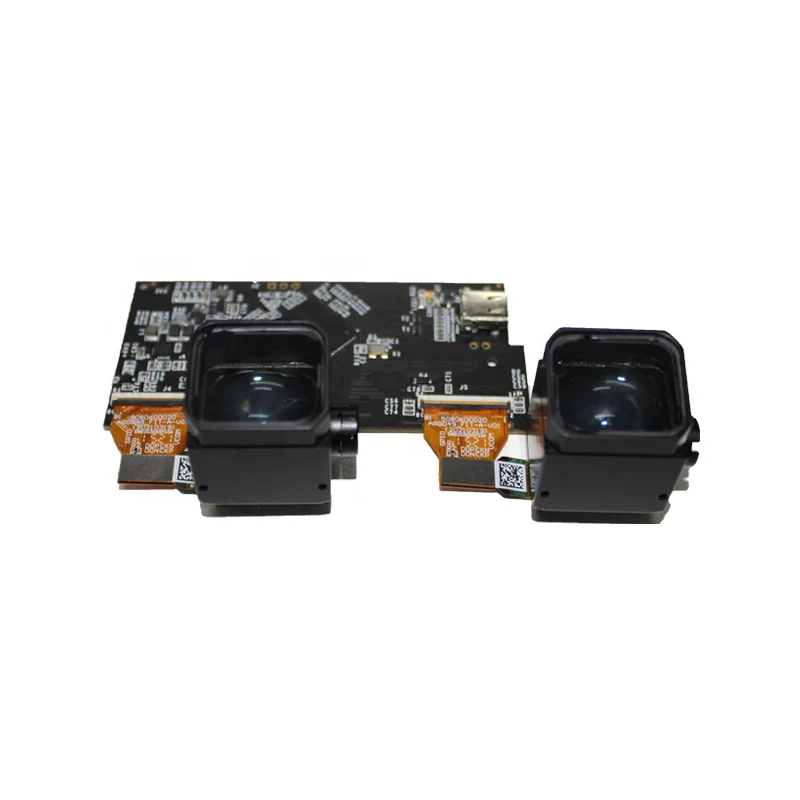

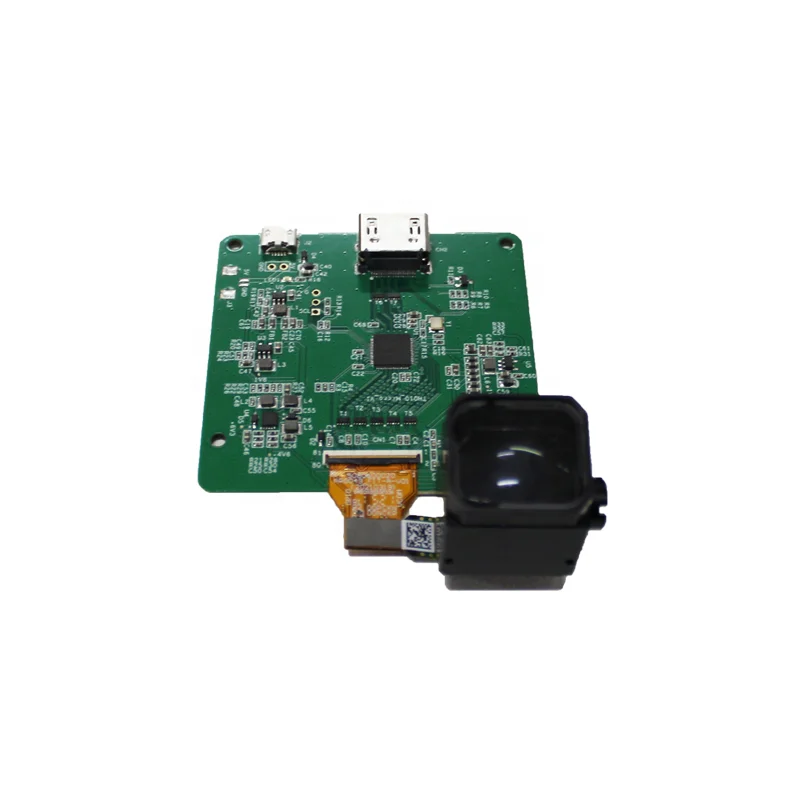

Driver Solution




Product Specification




Optical Data:
Product Name
0.49 inch EVF
Optic structure
3P
FOV
32º
Eyebox
5.2mm
Eye Relief
25mm
Distortion
0.6% Max
Diopter adjustment
+4D~-5D
Light utilization
>80%


0.49 inch micro OLED display data:
Item number
SY049WDM02
Display outline

9.09mm7*15.68mm*1.475mm


Active Area

6.065mm*10.783mm


Resolution

1920*1080


Brightness

1800nits


Contrast ratio

500000:1


Frame rate

60Hz~90Hz


Interface

MIPI


Color

Full RGB


Operating Temperature

-20°C to +70°C


Storage Temperature

-40°C to +80°C




Product List




Company Profile










Packaging And Shipping




FAQ


Q1: How to test the products?
A1: All our products are plug and play. No additional settings are needed.

Q2: Is there any technical support?
A2: Yes. We are not a trading company. So we have a professional R&D team who can solve your technical problems about micro OLED display and driver solution in time. Also full specifications, drawing and schematic are available.

Q3: Is there a MOQ?
A3: No MOQ for standard products.

Q4: How long is the delivery time?
A4: 2 working days for samples. Normally all products are in stock.

Q5. What is the delivery term, payment method and delivery method?
A5: Accepted Delivery Terms: EXW, FOB, CFR, CIF, DAP；
Accepted Delivery Method: DHL, UPS, FedEx, TNT, SF
Accepted Payment Currency: USD, EURO, RMB.
Accepted Payment Type: T/T, Credit Card, PayPal, Apple Pay, Western Union, L/C,D/P D/A.
