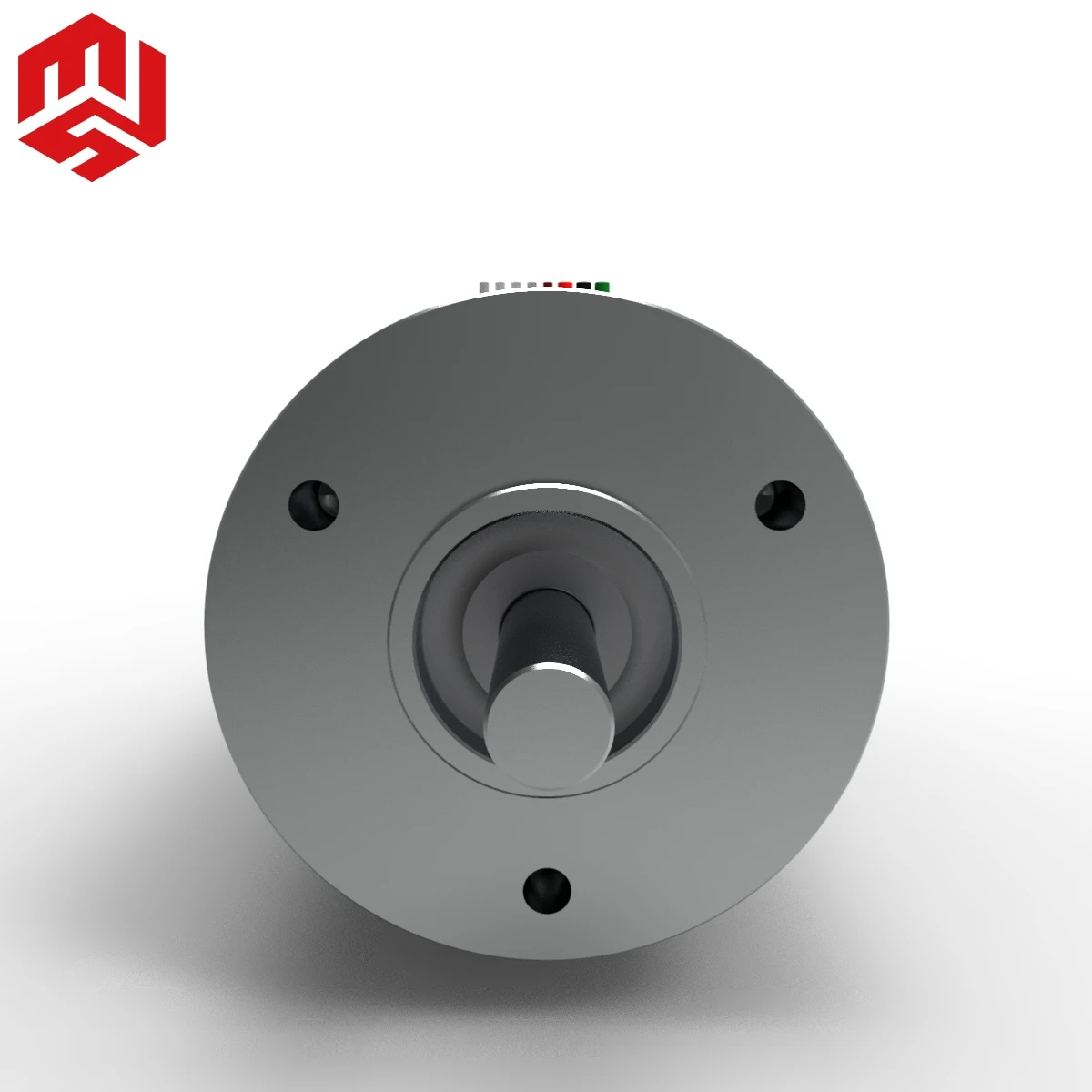

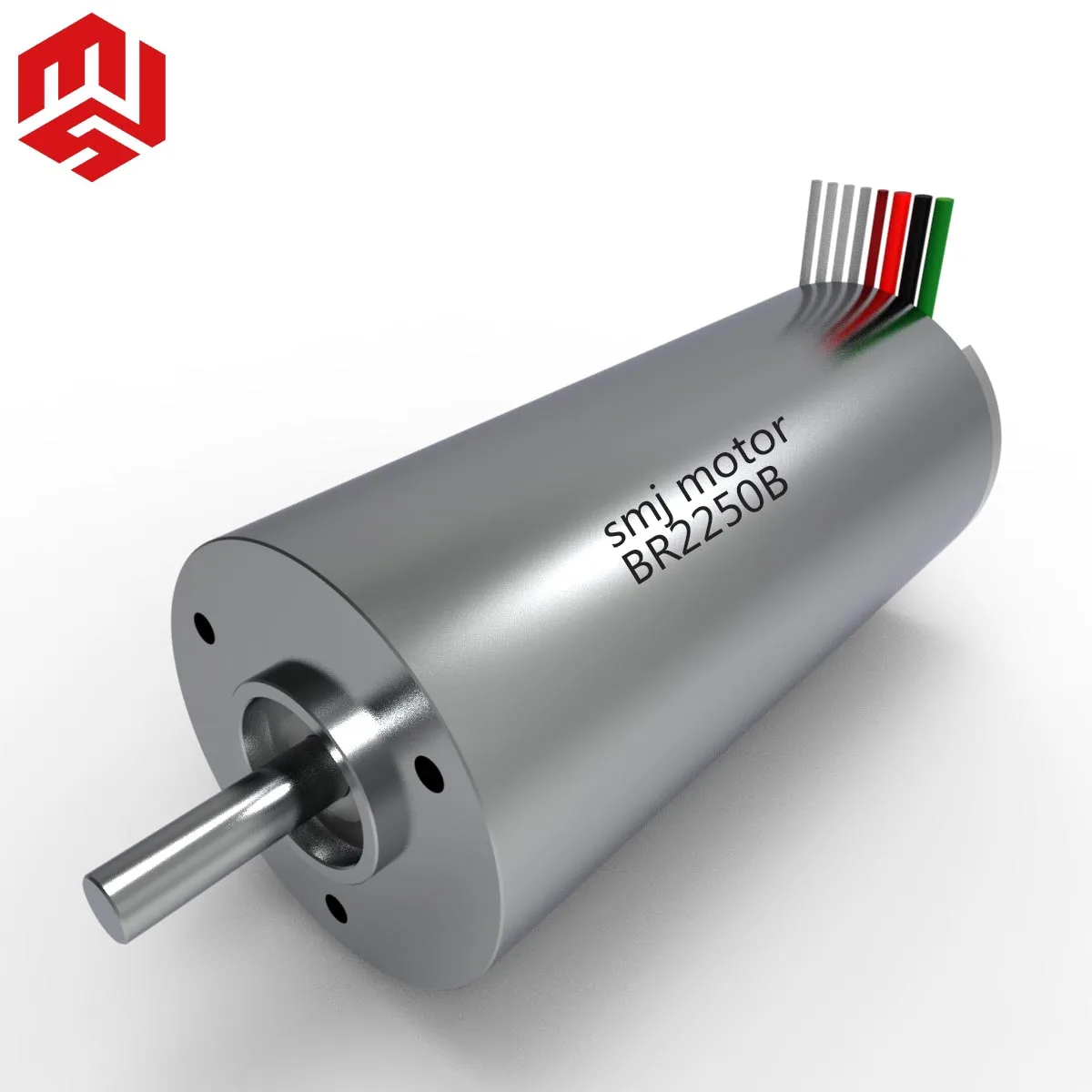

High speed 24v Maxon brushless slotless dc motor
- Category: >>>
- Supplier: Shanghai Mindong Mechanism Electron Co. Ltd.
Share on (1600464012784):
Product Overview
Description
Products Description
Part number BR225024B Ø22 mm, brushless, 20.1-36.1 Watt, with Hall sensors
Motor model | BR225018B | BR225024B | BR225036B | BR225048B | ||
Nominal voltage | V | V | 18 | 24 | 36 | 48 |
No load speed | rpm | Wnl | 11770 | 15700 | 11920 | 15900 |
No load current | mA | InI | 157 | 157 | 84 | 84 |
Nominal speed | rpm | Wc | 9170 | 12900 | 9810 | 13800 |
Nominal torque | mNm | Tc | 20.91 | 22.7 | 26.14 | 25 |
Nominal current | A | Ic | 1.62 | 1.59 | 1.01 | 0.9 |
Output power | W | Pc | 20.1 | 30.7 | 26.9 | 36.1 |
Stall torque | mNm | Tmax | 96.9 | 129.9 | 150 | 200.8 |
Stall current | A | Imax | 6.8 | 9.1 | 5.3 | 7 |
Max. efficiency | % | ηmax | 68.7 | 73.5 | 74.2 | 78.3 |
Terminal resistance | Ω | Rt | 2.65 | 2.65 | 6.81 | 6.81 |
Torque constant | mNm / A | Kt | 14.3 | 14.3 | 28.4 | 28.5 |
Speed constant | rpm / V | Kn | 669.4 | 665.7 | 336.5 | 335.3 |
Speed torque gradient | rpm / mNm | Δn / ΔT | 438.5 | 568.3 | 375.3 | 552.0 |
