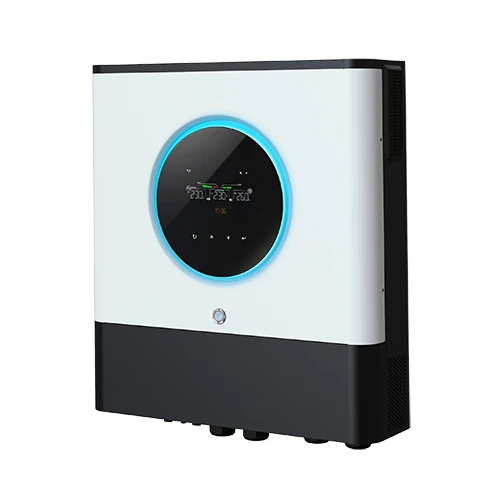

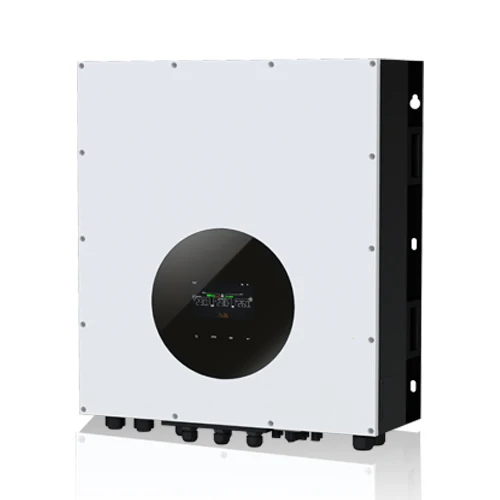

Inifini Solar WP 6kw 10kw Split phase Hybrid Solar Inverter with Energy Storage Selection Guide for home Support lithium battery
- Category: >>>
- Supplier: Ningbo Cinco Solar Co. Ltd.
Share on (1600464013215):
Product Overview
Description
Products Description
* IP65 waterproof and dustproof for various working conditions
* Support multiple input & output- Split Phase 208/240Vac or Single Phase 230Vac
* Built-in WiFi for mobile monitoring (APP is available)
* Dual outputs selected as either programmable output or generator input
* Built-in alternative port for generator and emergent load
* Optional external CT sensor to guarantee 100% self-consumption
* Built-in communication port for BMS (RS485)
* User-adjustable charging current and voltage
* Parallel operation up to 6 units
* Support multiple input & output- Split Phase 208/240Vac or Single Phase 230Vac
* Built-in WiFi for mobile monitoring (APP is available)
* Dual outputs selected as either programmable output or generator input
* Built-in alternative port for generator and emergent load
* Optional external CT sensor to guarantee 100% self-consumption
* Built-in communication port for BMS (RS485)
* User-adjustable charging current and voltage
* Parallel operation up to 6 units
Details Images
Wiring order & Accessories
Depending on different power situations, this hybrid inverter is designed to generate
continuous power from PV solar modules (solar panels), battery, and the utility. When
MPP input voltage of PV modules is within acceptable range (see specification for the
details), this inverter is able to generate power to feed the grid (utility) and charge
battery. This inverter is only compatible with PV module types of single crystalline and
poly crystalline. Do not connect any PV array types other than these two types of PV
modules to the inverter. Do not connect the positive or negative terminal of the solar

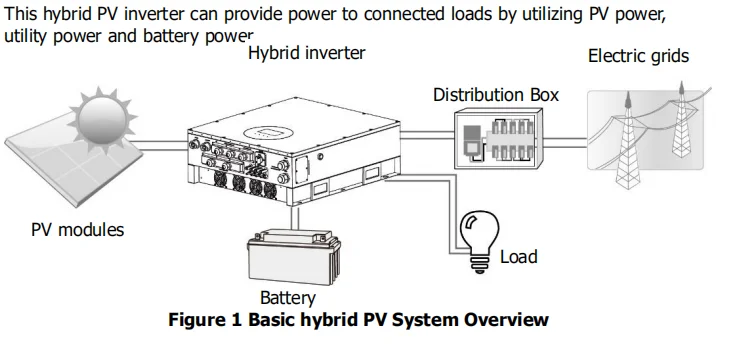

panel to the ground. See Figure 1 for a simple diagram of a typical solar system with this
hybrid inverter.
continuous power from PV solar modules (solar panels), battery, and the utility. When
MPP input voltage of PV modules is within acceptable range (see specification for the
details), this inverter is able to generate power to feed the grid (utility) and charge
battery. This inverter is only compatible with PV module types of single crystalline and
poly crystalline. Do not connect any PV array types other than these two types of PV
modules to the inverter. Do not connect the positive or negative terminal of the solar
panel to the ground. See Figure 1 for a simple diagram of a typical solar system with this
hybrid inverter.

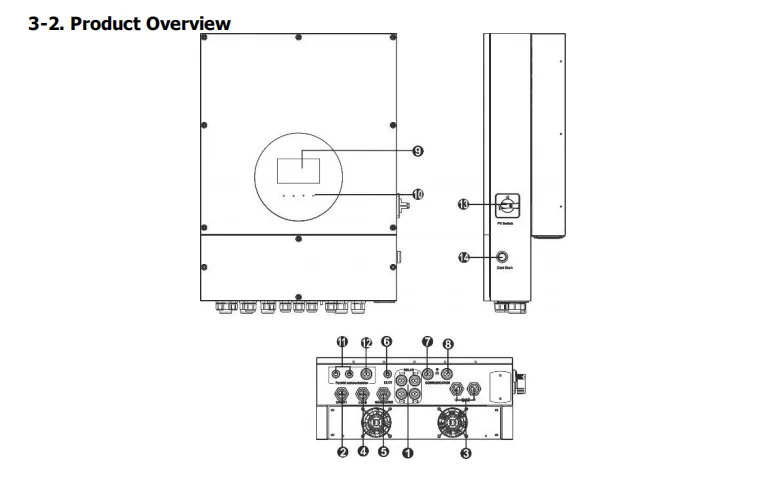

1) PV connectors
2) AC Grid connectors
3) Battery connectors
4) AC output connectors (Load
connection)
5) Generator input / Programmable
load output
6) External sensor port (reserved)
7) Dry contact & USB communication
port
2) AC Grid connectors
3) Battery connectors
4) AC output connectors (Load
connection)
5) Generator input / Programmable
load output
6) External sensor port (reserved)
7) Dry contact & USB communication
port
8) BMS & RS-232 communication port
9) LCD display panel (Please check
section 10 for detailed LCD
operation)
10) Operation buttons
11) Current sharing port
12) Parallel communication port
13) PV switch
14) Cold start button
9) LCD display panel (Please check
section 10 for detailed LCD
operation)
10) Operation buttons
11) Current sharing port
12) Parallel communication port
13) PV switch
14) Cold start button
Installation Instructions
Product Paramenters
MODEL | InfiniSolar WP LV 6KW | InfiniSolar WP LV 10KW | ||
Phase | 120/240V Split phase, 120V/208V Split phase | 120/240V Split phase, 120V/208V Two-thirds phase | ||
Maximum PV Input Power | 7500W | 14500W | ||
Rated Output Power | 6000VA/6000W | 10000VA/10000W | ||
Maximum Charging Power | 6000W | 10000W | ||
GRID-TIE OPERATION | ||||
PV INPUT (DC) | ||||
Maximum DC Voltage | 600 VDC | 600 VDC | ||
Start-up Voltage / Initial Feeding Voltage | 120VDC / 160 VDC | 120VDC / 160 VDC | ||
MPP Voltage Range | 120 VDC ~ 550 VDC | 120 VDC ~ 550 VDC | ||
Number of MPP Trackers / Maximum Input Current | 2 / 15A | 2 / 27A | ||
GRID OUTPUT (AC) | ||||
Nominal Output Voltage | 110 VAC (P-N) / 220 VAC (P-P) | |||
Output Voltage Range | 97-132VAC(P-N) / 194VAC-264VAC(P-P) | |||
Nominal Output Current | 27.3 A per phase | 41.5 A per phase | ||
Power Factor | 0.9 lag to 0.9 lead | |||
EFFICIENCY | ||||
Maximum Conversion Efficiency (DC/AC) | 96% | |||
OFF-GRID OPERATION | ||||
AC INPUT | ||||
AC Start-up Voltage / Auto Restart Voltage | 85VAC(P-N), 170VAC(P-P) / 90VAC(P-N), 180VAC(P-P) | |||
Acceptable Input Voltage Range | 85 - 140 VAC (P-N)/ 170 - 280 VAC (P-P) | |||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
Maximum AC Input Current | 30 A per phase | 50 A per phase | ||
PV INPUT (DC) | ||||
Maximum DC Voltage | 600 VDC | |||
MPP Voltage Range | 120 VDC ~ 550 VDC | |||
Number of MPP Trackers / Maximum Input Current | 2 / 15A | 2 / 27A | ||
BATTERY MODE OUTPUT (AC) | ||||
Nominal Output Voltage | 110 VAC (P-N) / 220 VAC (P-P) | |||
Output Waveform | Pure sine wave | |||
Efficiency (DC to AC) | 91% | 96% | ||
HYBRID OPERATION | ||||
PV INPUT (DC) | ||||
Maximum DC Voltage | 600 VDC | |||
Start-up Voltage / Initial Feeding Voltage | 120VDC / 160 VDC | |||
MPP Voltage Range | 120 VDC ~ 550 VDC | |||
Number of MPP Trackers / Maximum Input Current | 2 / 15A | 2 / 27A | ||
GRID OUTPUT (AC) | ||||
Nominal Output Voltage | 110 VAC (P-N) / 220 VAC (P-P) | |||
Output Voltage Range | 97-132VAC(P-N) / 194VAC-264VAC(P-P) | |||
Nominal Output Current | 27.3 A per phase | 41.5 A per phase | ||
