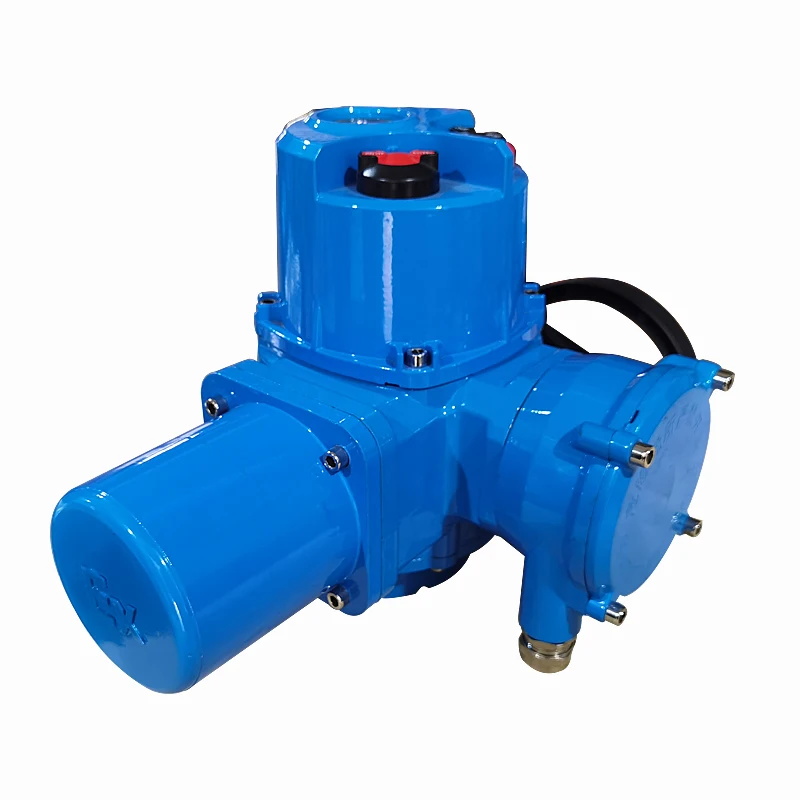

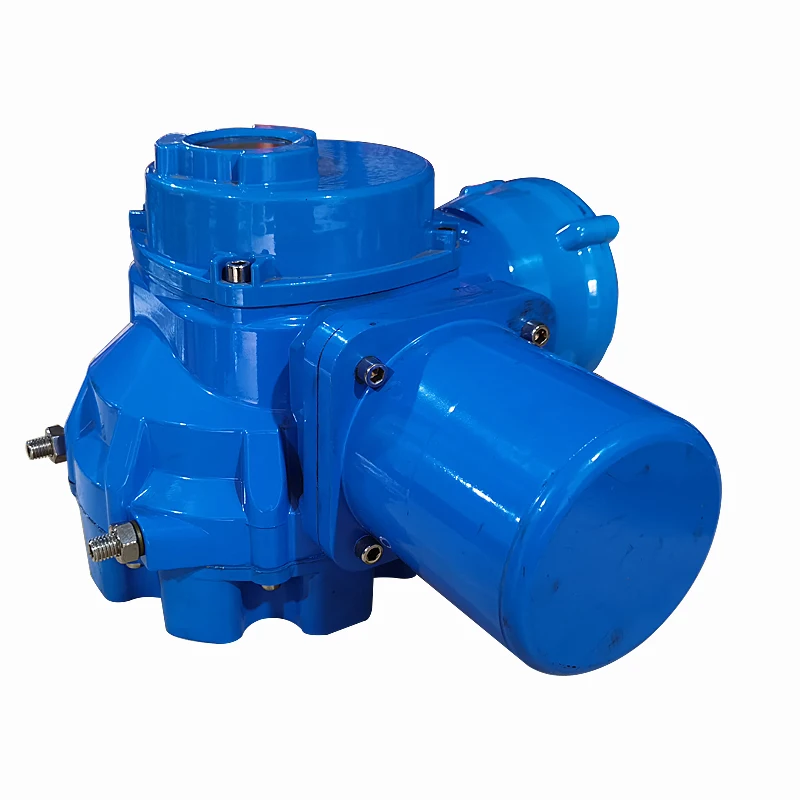

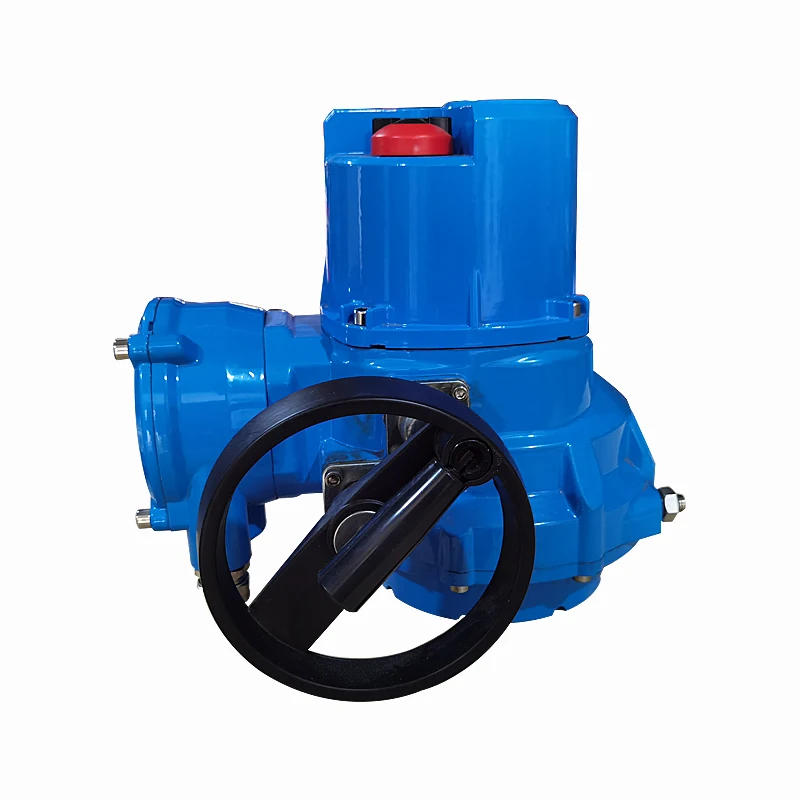

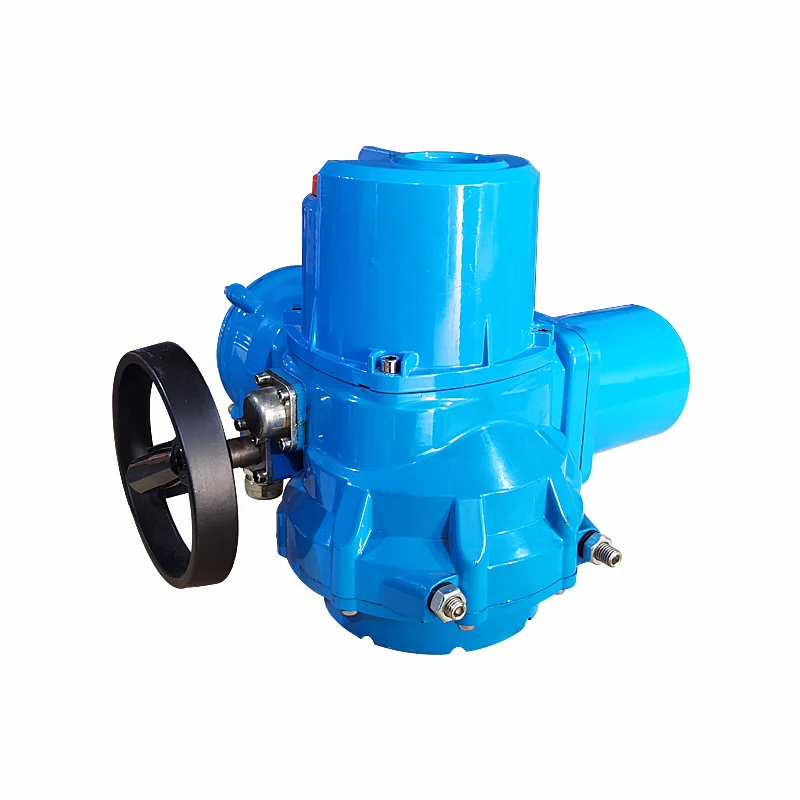

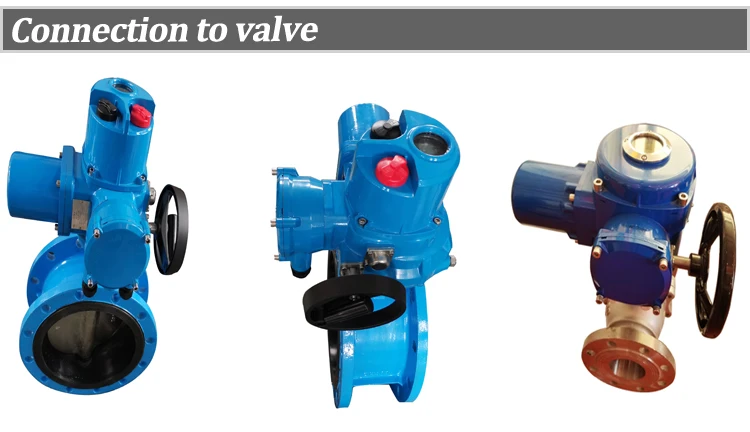

Q50 Q100 Q150 Quarter turn Motorized Electric Butterfly Valve Actuator

Product Overview

Description





Q series electric actuators are derived from non-intrusive intellectualized electric actuators. With the application of the new concept of advanced intellectualized electric actuators, these actuators are small in size, light in weight and with extended range of output torque and high degree of protection.

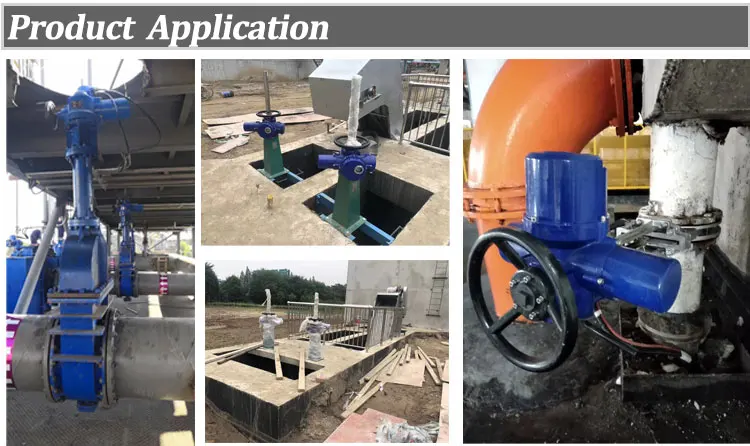

These products are used to control the operation of end control element in open loop system. They can meet the requirements of valve opening and closing. They are divided into two models:

flameproof model and conventional model according to working environments. And both

performances are conformed to Std. GB/T24923-2010 Technical Specifications for Conventional Electric Valve Actuators and Std GB/T24922-2010 Technical Specifications for Flameproof Electric Valve Actuators.

For clear description of product function, function code is adopted after type. Meanings of

various function codes are defined as following (from left to right):

First item is mode of attachment: F represents square attachment and round attachment without any letter representation; second item is the number of control position of travel limit: 4 represents 4 positions and two positions without number representation; third item S represents 4~20mA transmitter of valve position signal.

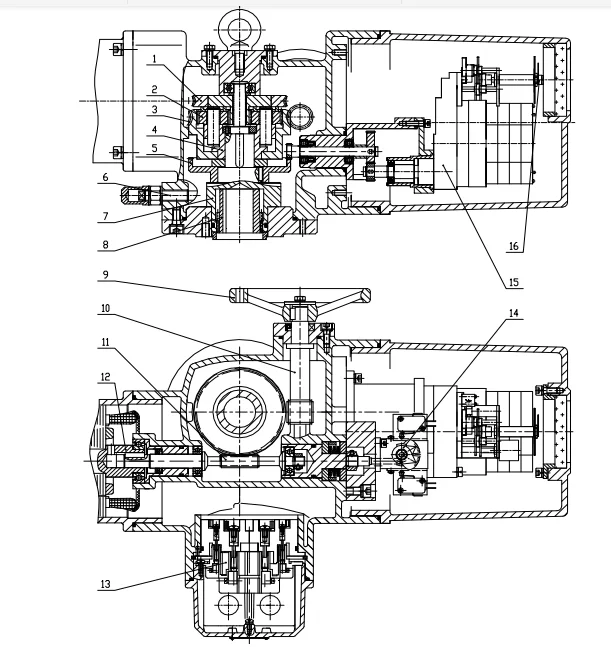

1. Electrical driving worm gear 2.  Planetary gear 3.  Internal gear

4.  H frame 5.  Planetary gear 6.  Mechanical limit

7. Output shaft 8. Spline housing 9. Handwhee

10.  Hand operating worm 11.  Electrical driving worm 12.  Motor

13. Socket connector     14. Torque level mechanism

15.  Travel limit mechanism 16. Valve position indicator

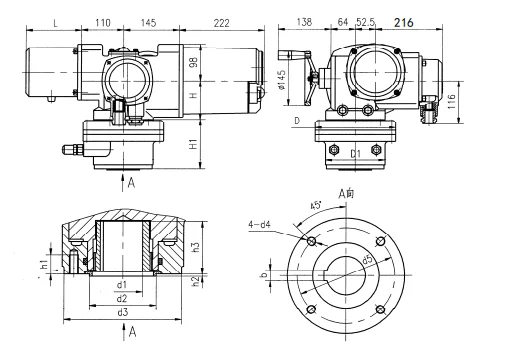

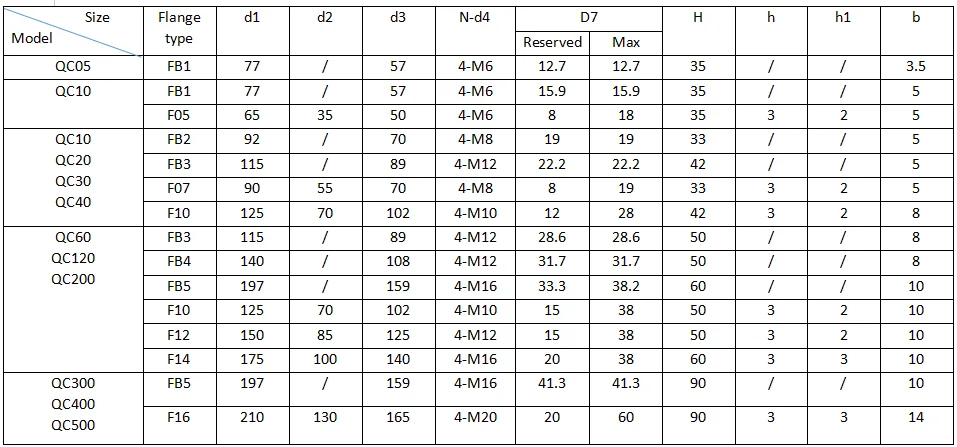

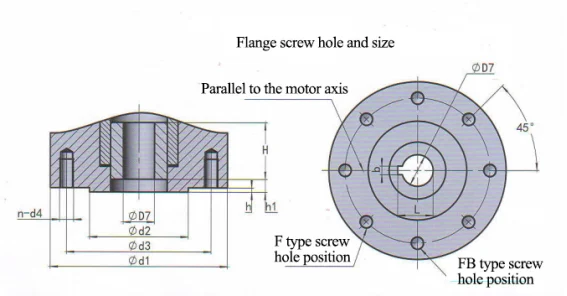

Dimensions
