SZG Series High Quality Food Chemical Industry Rotary Vacuum Double Cone Conical Dryer Drying Machine
- Category: >>>
- Supplier: Changzhou Welldone Machinery Technology Co. Ltd.
Share on (1600464122440):
Product Overview
Description
Product Description
Specification
item | value |
Type | Vacuum Drying Equipment |
500kg | |
Application | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
Condition | New |
Place of Origin | China |
Jiangsu | |
Brand Name | WELLDONE |
Voltage | 220V-480V (TBD) |
Power | 1.5KW-55KW |
Dimension(L*W*H) | 1.8-5.2m |
Key Selling Points | Long Service Life |
Warranty | 2 years |
Weight (KG) | 2500 |
Applicable Industries | Manufacturing Plant, Other |
Showroom Location | None |
Marketing Type | Hot Product 2019 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 2 years |
Core Components | Bearing, Motor, Gearbox |
Evaporation Capacity(kg/h) | 100 |
Heating Method | Steam Heating |
Material | SUS304, SUS316L, Other |
Heating Source | Hot Water/Steam/Thermal Oil |
Capacity | 100L-8000L |
Application material | Powder / Granule |
Vacuum Degree | Max 100Pa |
Mixing Speed | 1-6RPM (VFD) |
Way to Discharge | Manual/ Pneumatic / Electrical |
Drying Efficiency | 90% |
Way to Control | Touch Screen / Remote / Button |
Special Design | Corrosive / Explosive / Heavy Duty |
Weight | 150KGS-10000KGS |
Principle

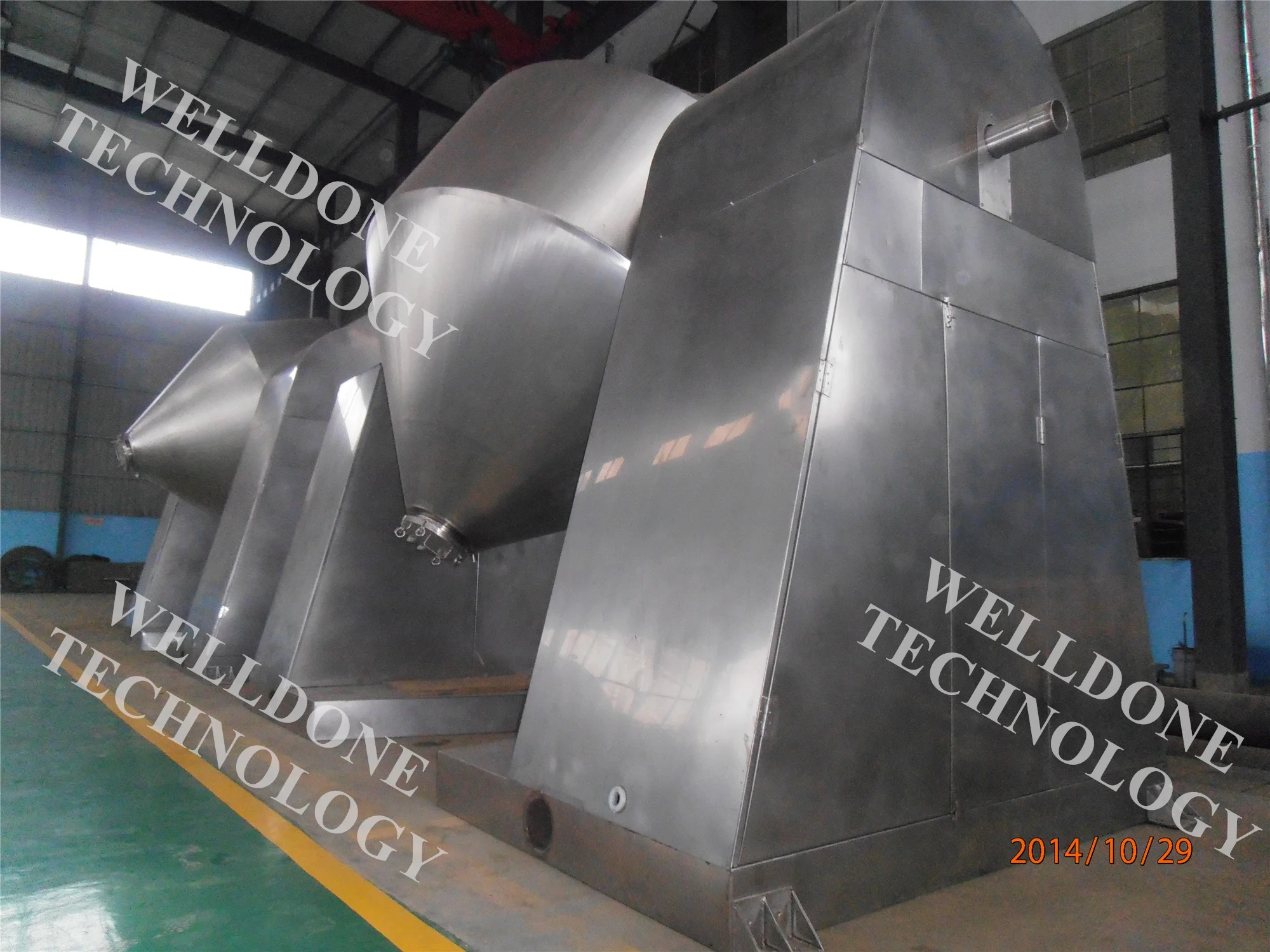

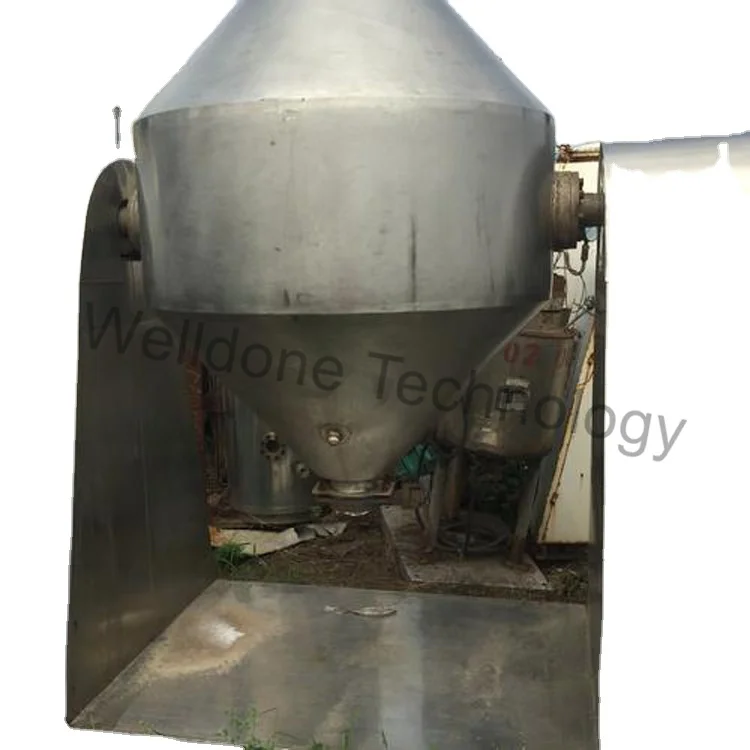

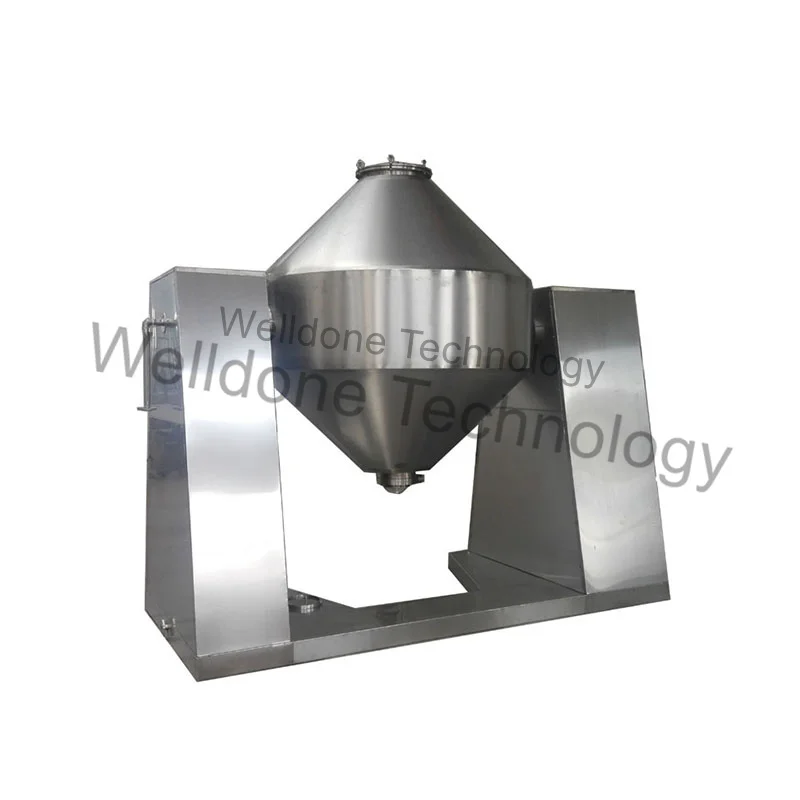

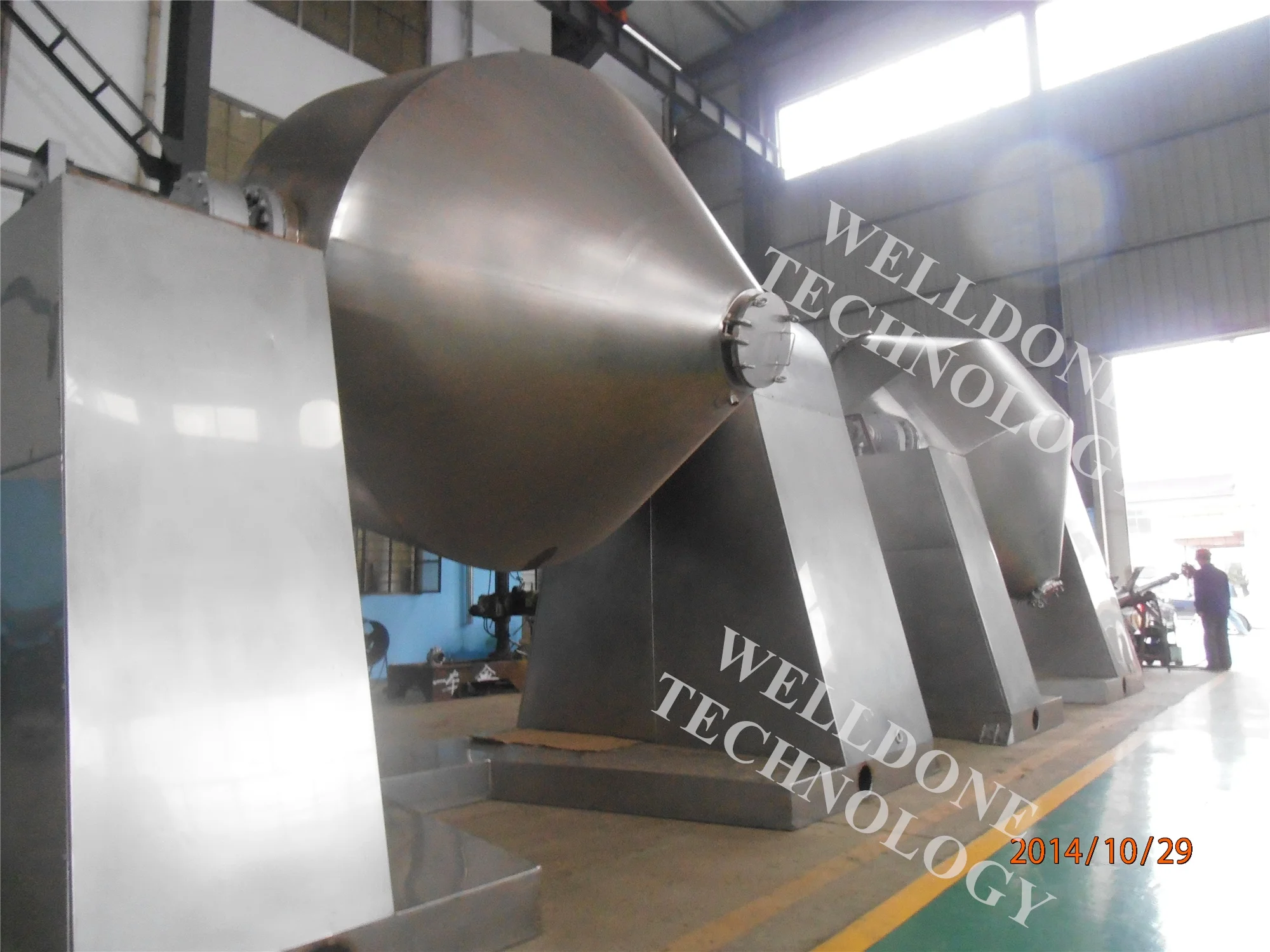

SZG Double Cone Rotary Vacuum Dryer is a kind of double conical vacuum dryer. Under the vacuum condition, filling the heat medium
into dryer jacket, raw material being dried with the contact of dryer chamber. Evaporated moisture is sucked out by vacuum pump.
Due to the rotating of dryer body, raw material is moving inside the chamber, which increase the drying speed and uniformity.
The dryer is suitable for powder and granule form raw material with good fluidity.
into dryer jacket, raw material being dried with the contact of dryer chamber. Evaporated moisture is sucked out by vacuum pump.
Due to the rotating of dryer body, raw material is moving inside the chamber, which increase the drying speed and uniformity.
The dryer is suitable for powder and granule form raw material with good fluidity.
Features
◆ _The dryer is suitable for drying and mixing powder or granule shape raw material of pharmaceutical industry, foodstuff
industry, chemical industry and so on.
◆ _Flammable and explosive material drying should be clamed.
◆ _When use hot water or heat conducting oil as heating resource, should be claimed before the order. Please claimed when order if
need certificate of pressure vessel.
◆ _Please claim it when need GMP standard. (It should use direct gear drive, closed construction, vacuum cover is sintered metal
mesh).
◆ _Material:SS304/SS316L/SS321/ hastelloy etc, inner wall is enamel for your choice.
◆ _We recommend being adopt speed adjustable control and central axis integrated procession when the volume of machine is larger
than 2000L
industry, chemical industry and so on.
◆ _Flammable and explosive material drying should be clamed.
◆ _When use hot water or heat conducting oil as heating resource, should be claimed before the order. Please claimed when order if
need certificate of pressure vessel.
◆ _Please claim it when need GMP standard. (It should use direct gear drive, closed construction, vacuum cover is sintered metal
mesh).
◆ _Material:SS304/SS316L/SS321/ hastelloy etc, inner wall is enamel for your choice.
◆ _We recommend being adopt speed adjustable control and central axis integrated procession when the volume of machine is larger
than 2000L
Company Profile
Changzhou Welldone Machinery Technology Co., Ltd is a high technical research & package solution integration company founded in 2010, our members have over 20 years manufacturing experiences. We are able to provide various kind of dryers, granulators, extractors, evaporators, boilers, grinders, mixers etc. What's more, through the integration of top industrial intelligence, Welldone Technology is able to provide whole package solutions rather than just single equipment.
We have more than 120 users in over 50 countries!
Welldone Technology is your reliable friend in industrial machinery field!
--Company Vision:
The customer would become friend and family to us
--Company Mission:
Providing better quality, service and feeling to our customers, trying to become researcher of new technology; developer & implementer of exporting standard; integrator of top intelligence & technology in machinery industry
--Company Values:
Obligation; Profession; Progressing; Efficiency; Customer Orientation
We have more than 120 users in over 50 countries!
Welldone Technology is your reliable friend in industrial machinery field!
--Company Vision:
The customer would become friend and family to us
--Company Mission:
Providing better quality, service and feeling to our customers, trying to become researcher of new technology; developer & implementer of exporting standard; integrator of top intelligence & technology in machinery industry
--Company Values:
Obligation; Profession; Progressing; Efficiency; Customer Orientation
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2019,sell to Southeast Asia(30.00%),North America(25.00%),South America(20.00%),Eastern Asia(15.00%),Western Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drying Equipment,Granulating Equipment,Coating Equipment,Dry Granulator,Mixing Equipment
4. why should you buy from us not from other suppliers?
Welldone Technology is founded based on two factories and over 20 years manufacturing & technical research experience. We are able to provide package solution for our client.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2019,sell to Southeast Asia(30.00%),North America(25.00%),South America(20.00%),Eastern Asia(15.00%),Western Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drying Equipment,Granulating Equipment,Coating Equipment,Dry Granulator,Mixing Equipment
4. why should you buy from us not from other suppliers?
Welldone Technology is founded based on two factories and over 20 years manufacturing & technical research experience. We are able to provide package solution for our client.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
