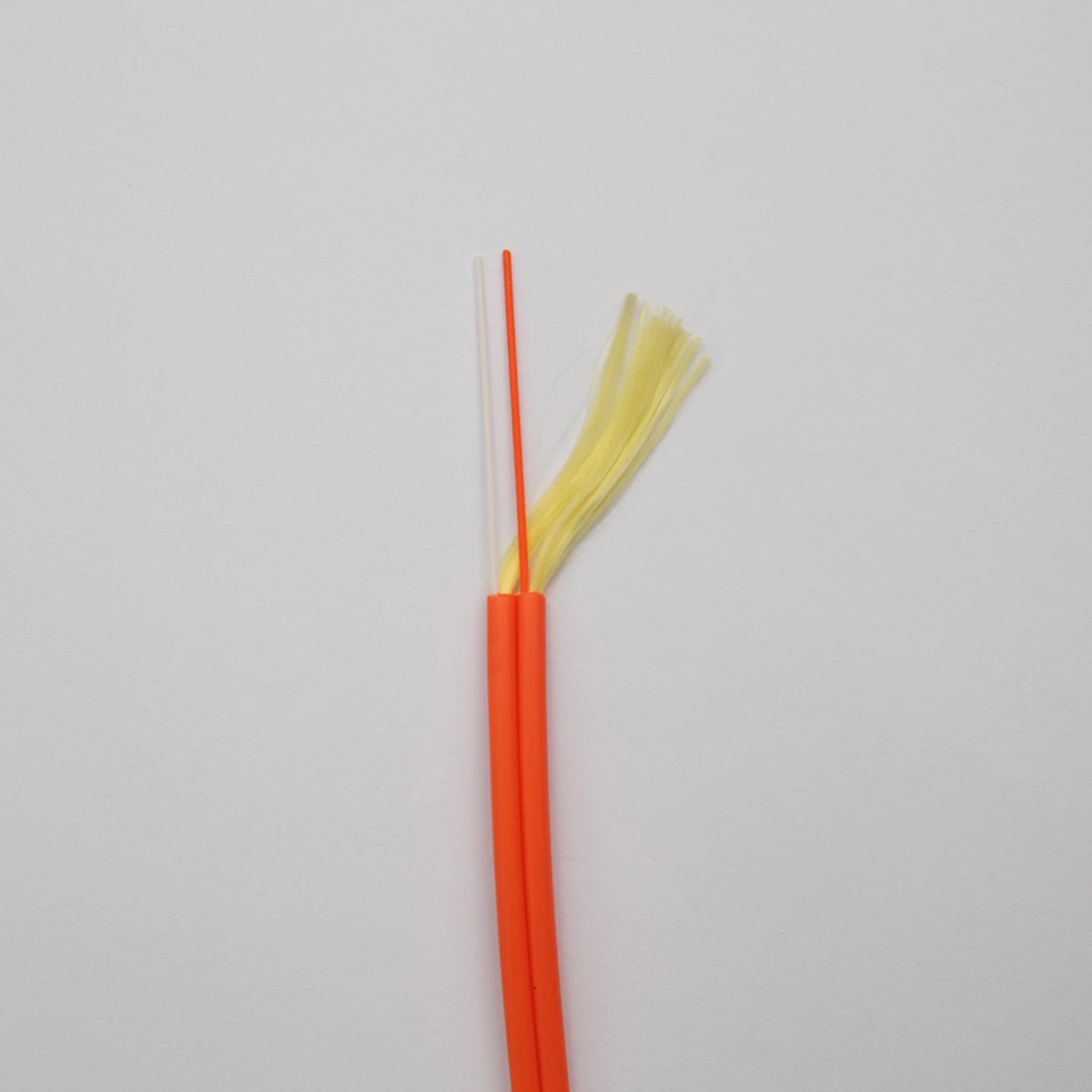

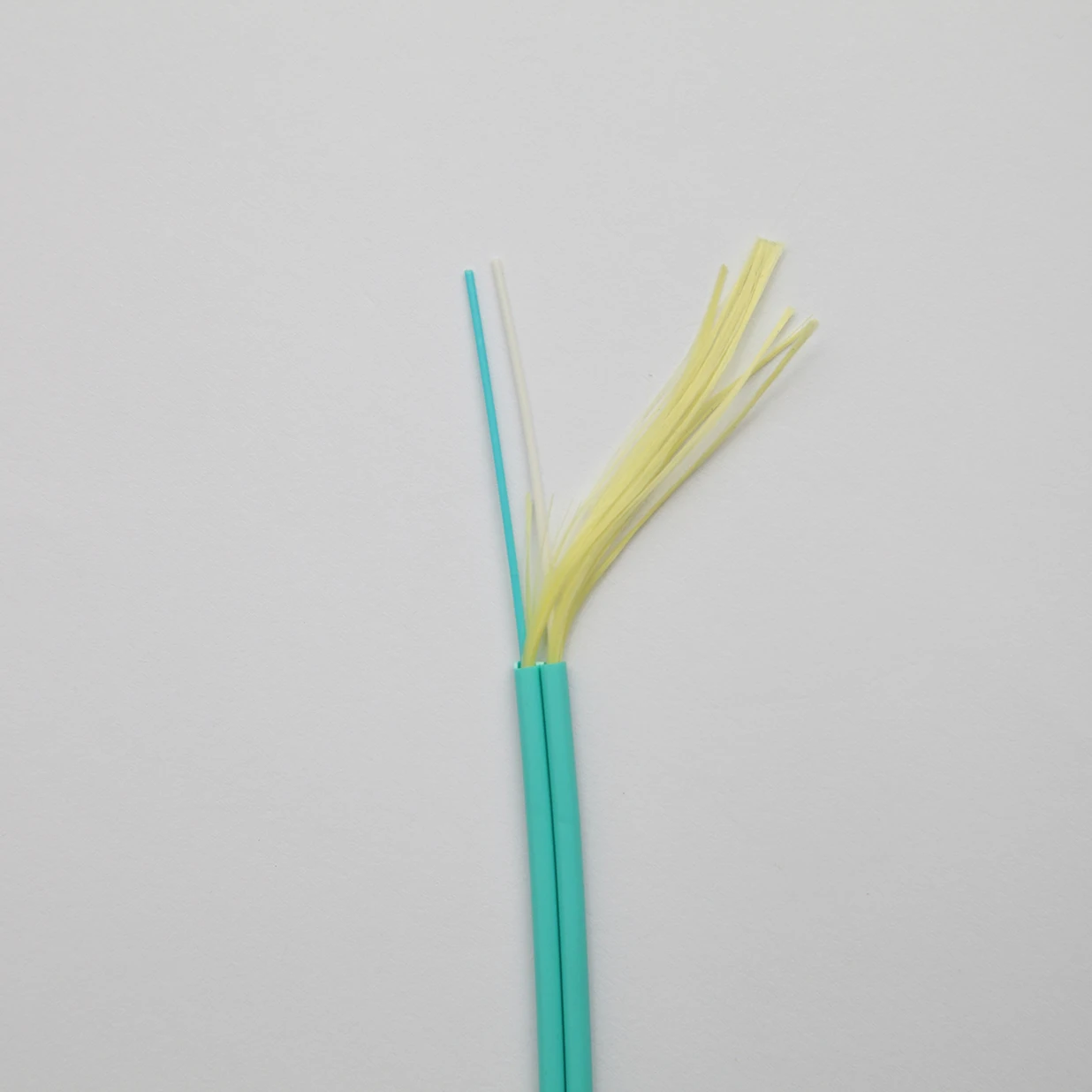

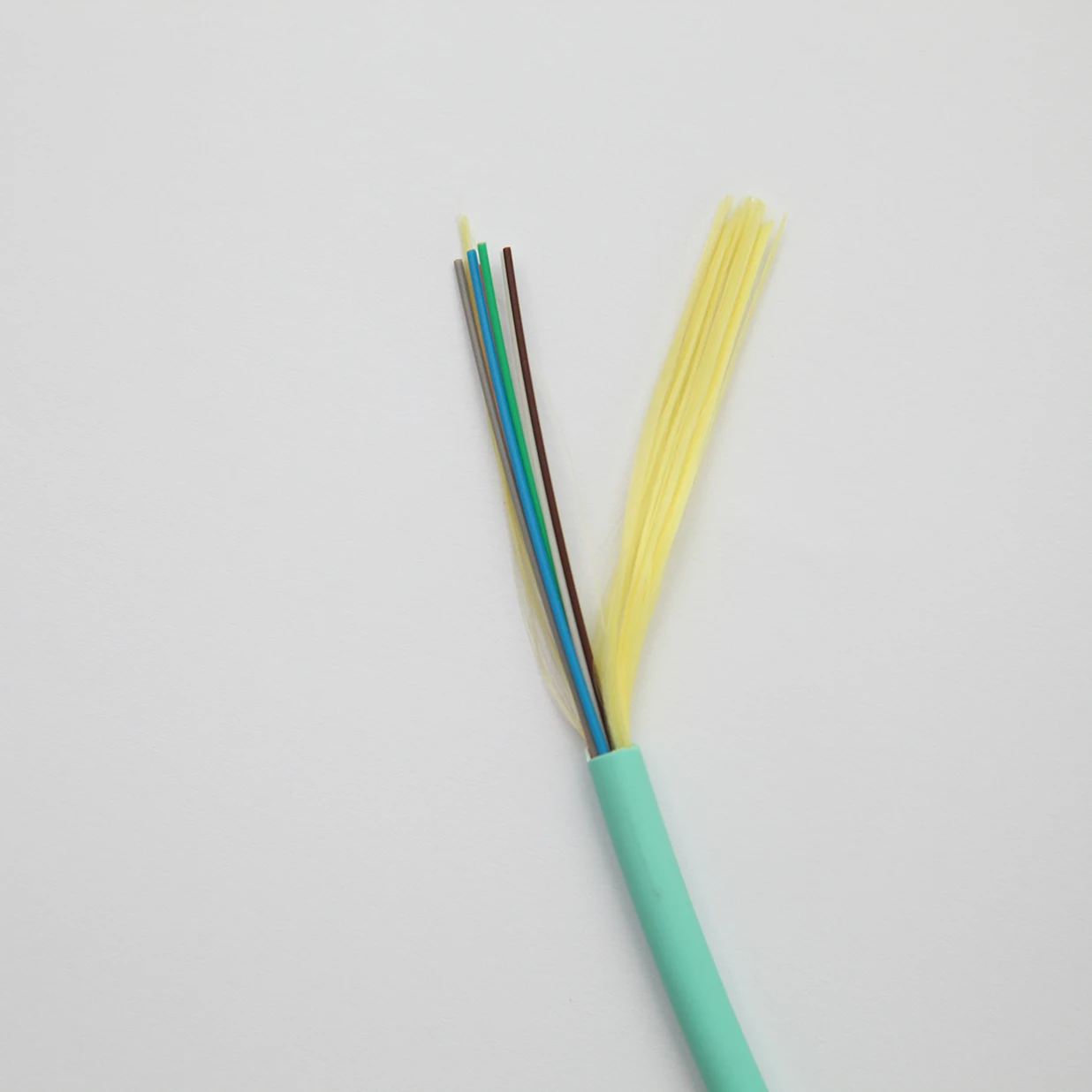

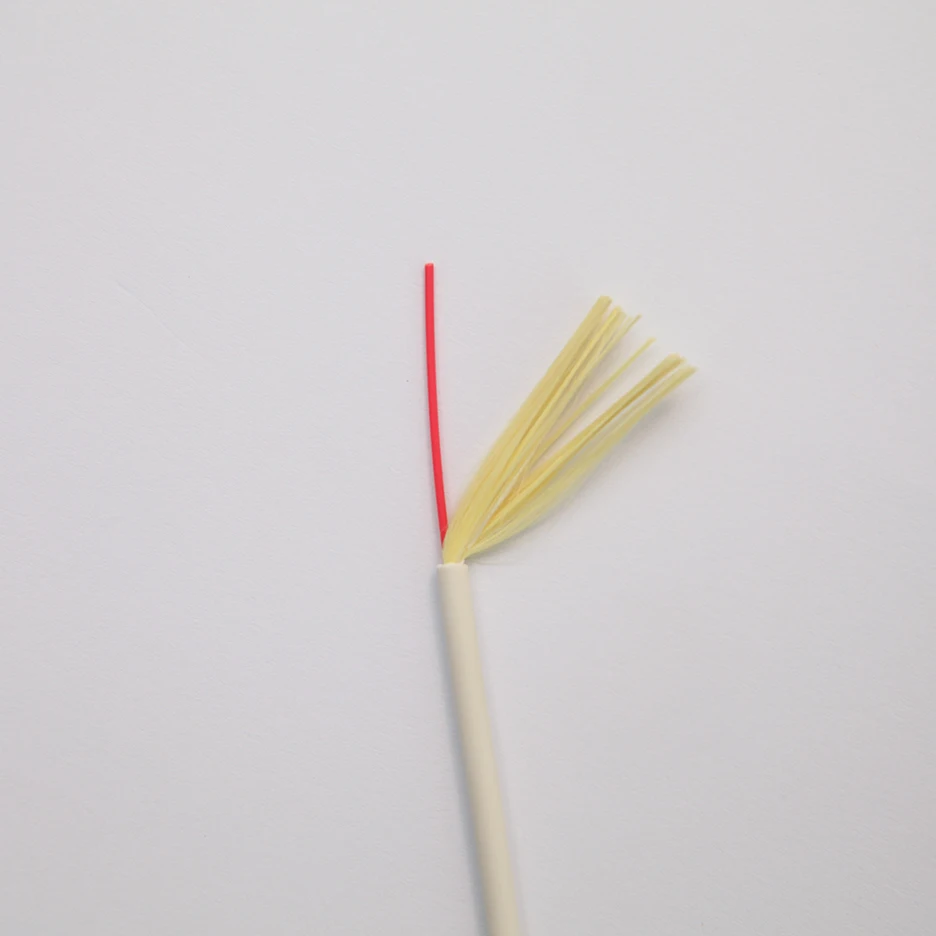

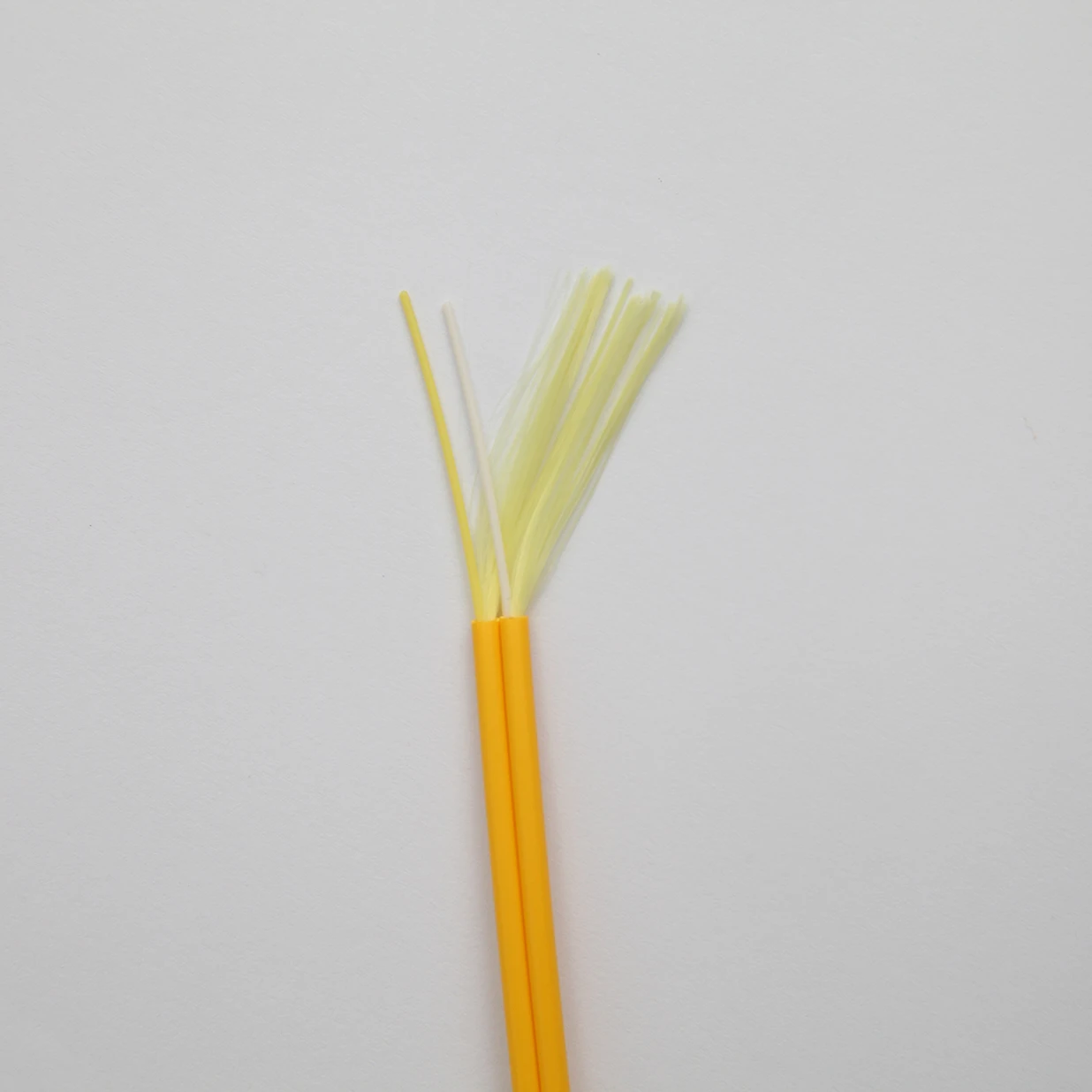

Oem 10 Indoor 1000M 4 Core Multimode Adss Fiber Optic Cable
- Category: >>>
- Supplier: Ningbo Yuxin Optical Fiber Cable Co. Ltd.
Share on (1600464122631):
Product Overview
Description
Products Description
GJFJH 4-12 CORE MM FIBER CABLE
No. | Items | Unit | Specification | ||
G.652D | |||||
1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 | |
1550nm | μm | 10.4±0.5 | |||
2 | Cladding Diameter | μm | 124.8±0.7 | ||
3 | Cladding Non-Circularity | % | ≤0.7 | ||
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | ||
5 | Coating Diameter | μm | 245±5 | ||
Coating Non-Circularity | % | ≤6.0 | |||
6 | Cladding-Coating Concentricity Error | μm | ≤12.0 | ||
7 | Cable Cutoff Wavelength | nm | λcc≤1260 | ||
8 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 | |
1550nm | dB/km | ≤0.3 | |||
Cable Parameters
Items | Specifications | ||
Fiber Count | 1 | ||
Tight-buffered Fiber | Dimension | 850±50μm | |
Material | PVC | ||
Color | White | ||
Outer Jacket | Dimension | (2.9±0.1）mm Or （1.9±0.1）mm | |
Material | PVC | ||
Color | Yellow | ||
Strength Member | Polyester Yarn | ||
Mechanical and Environmental Characteristics
Items | Unite | Specifications |
Tension（Long Term） | N | 40 |
Tension（Short Term） | N | 80 |
Crush（Long Term） | N/10cm | 100 |
Crush（Short Term） | N/10cm | 500 |
Min. Bend Radius（Dynamic） | mm | 20D |
Min. Bend Radius（Static） | mm | 10D |
Installation Temperature | ℃ | -10～+60 |
Operating Temperature | ℃ | -20～+60 |
Storage Temperature | ℃ | -20～+60 |
