Hand operated filling machine A03 5 50ml Glue oil toothpaste potion paste and liquid dual purpose filler
- Category: >>>
- Supplier: Shandong Ecan Machinery Manufacturing Co. Ltd.
Share on (1600464136571):
Product Overview
Description
Product Description
Introduction of Manual Filling Machine
A03 manual filling machine adopts piston structure, which can quantitatively fill 5-50ml of liquid, paste and other materials.
The machine has compact structure, convenient operation and accurate measurement.
The material barrel and piston cylinder are 304 stainless steel structure, which has the characteristics of wear resistance and corrosion resistance.
It is suitable for low-dose filling in small and medium-sized enterprises in the daily chemical industry or hospital preparation rooms, laboratories and other units.
1. It can be filled with paste or liquid.
2. Quantitative filling can be set in the range of 5-50ml.
3. One machine is equipped with two filling nozzles of 4mm and 8mm.
4. Hand pressing operation, hand pressing one times, filling one bottle, simple operation and high speed.
5. It is safer without electricity.
Parameters of Manual Filling Machine
Applicable range | Paste or liquid | |
Model | Hand press type A03 | Pneumatic A02 |
Working model | One hand press, One filling times. | Cylinder pushing piston to fill |
Filling range | 5-50mL | |
Capacity of Hopper | 10L | |
Material contact part | 304 Stainless steel | |
Filling head diameter | 1pc 4mm, 1pc 8mm | |
Filling speed | 20-30times/min | 20-30times/min |
Weight | 12KG | 14KG |
Size | 330×330×790mm | 330×330×790mm |

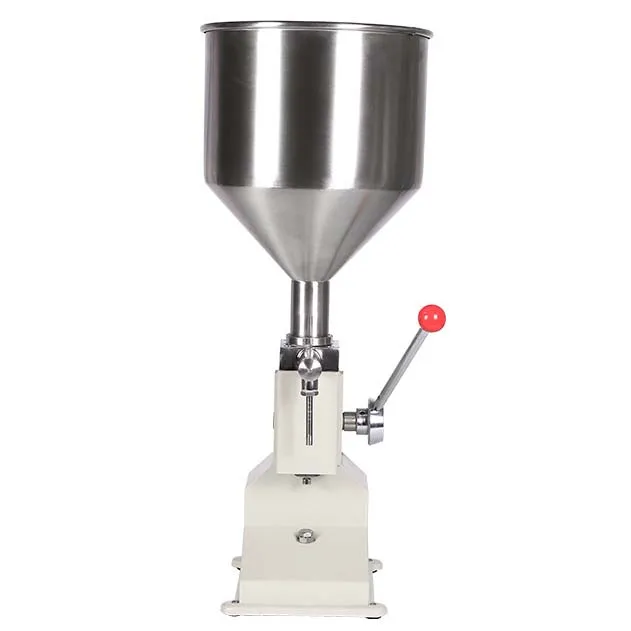

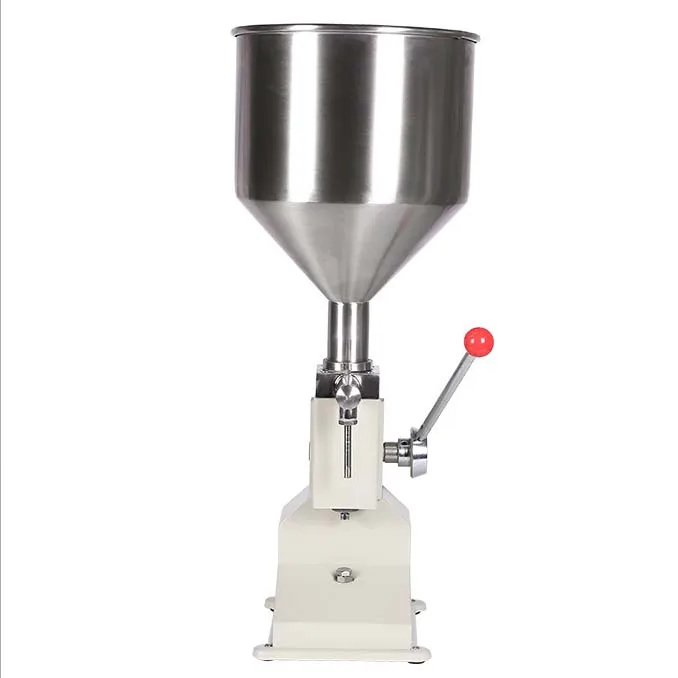

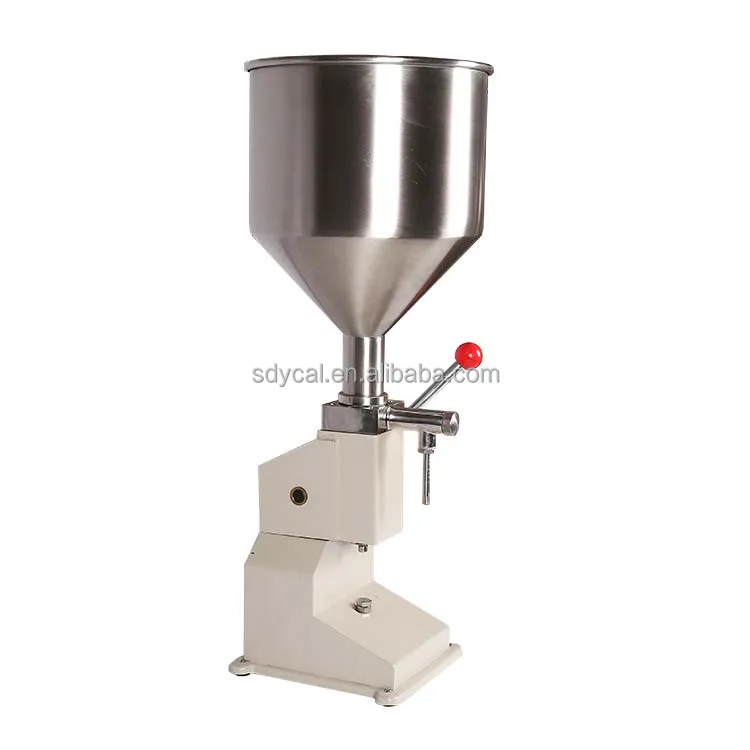

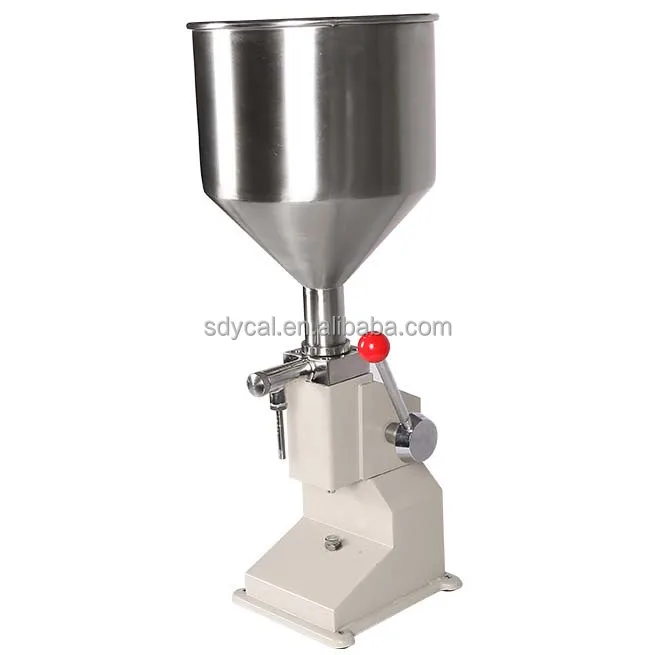

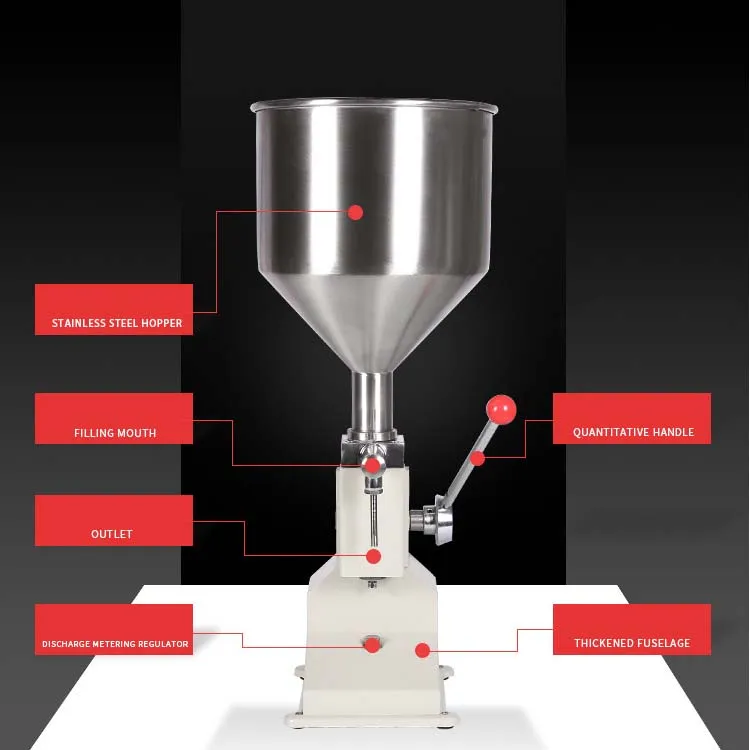

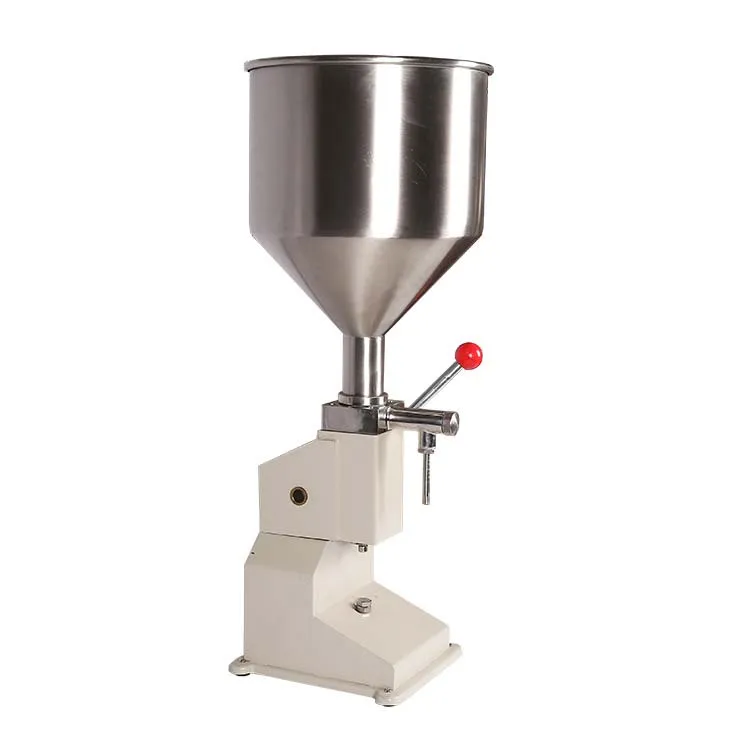

Images of Manual Filling Machine
