Product Overview
Description

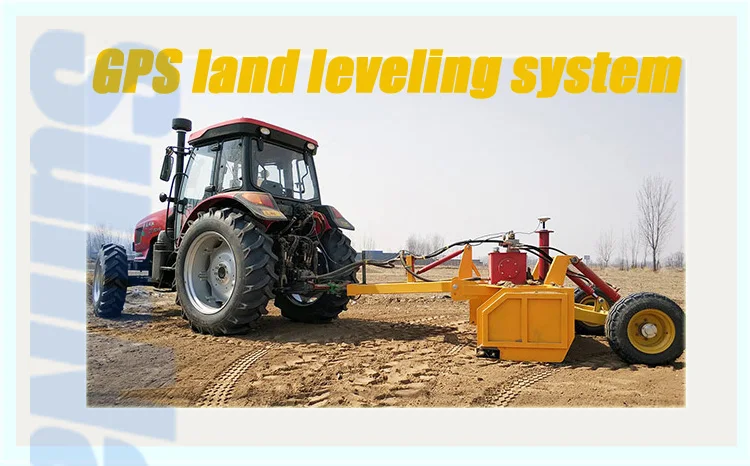

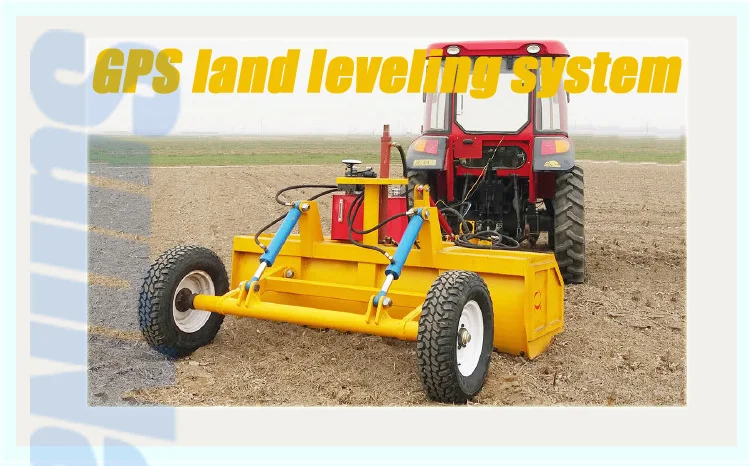

AG1000 GNSS Leveling System
AG1000 is high accuracy and high performance GNSS leveling system developed by SunNav Technology Co., Ltd. It could be widely used for precision agriculture field : waste land reclamation, land leveling, slopping land to terrace, water land leveling , as well as large area hydraulic engineering , air portcon struction and sports ground construction.

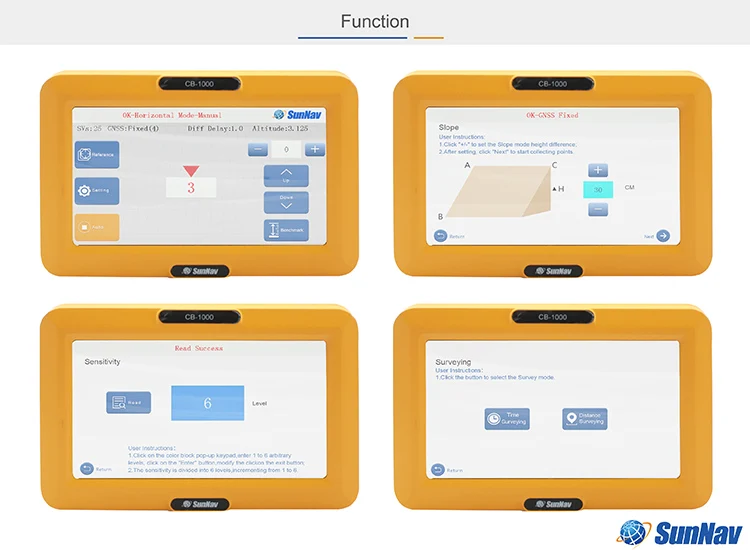

FEATURES

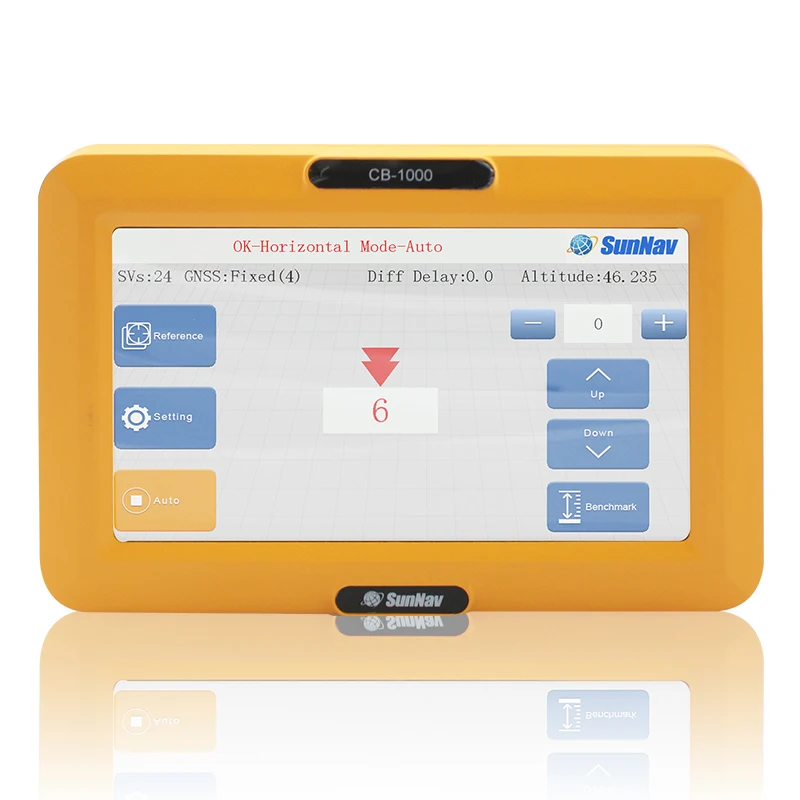

10’’ touch screen display, to show the realtime height difference clearly;
Easy operation, supports both horizontal andslope modes;
Could display real time height difference andequipment status information;
Integrate surveying function;
Could adjust the leveling accuracy;
Adjustable screen backlight;
Adjustable radio frequency, from 410MHZ to 470MHZ, free adjustment for frequency point,toavoid the signal interference;
Adjustable electromagnetic valve reactionsensitivity,9 Support system update
| SINGNAL TRACKING |
| 352Channels |
| -GPS: L1/L2 |
| -BDS: B1/B2 |
| -GLONASS:L1/L2 |
| -SBAS:L1C/A |
| Galileo(upgradable) |
| BDS global signal (upgradable) |
| POSITIONING SPECIFICATIONS |
| PostProcessing Static:Horizontal:2.5mm+1ppm, Vertical:5.0mm+1ppm |
| RealTime Kinematics (RTK):Horizontal:10mm+1ppm, Vertical:20mm+1ppm |
| SBAS:1.0m |
| Initializationtime: < 10s |
| Initializationreliability: > 99.9% |
| Up to 20Hz raw measurement & position outputs |
| Timeto First Fix |
| Cold start <50s |
| Hot start < 15s |
| Signal re-acquisition <3s |
| PHYSICAL AND ELECTRICAL CHARACTERISTICS |
| Size:213mm x 119mm x 73mm |
| Weight:1.2kg |
| Temperature Operating:-40℃~70℃ |
| TemperatureStorage:-45℃~80℃ |
| Humidity:95% condensation |
| Power:12v |

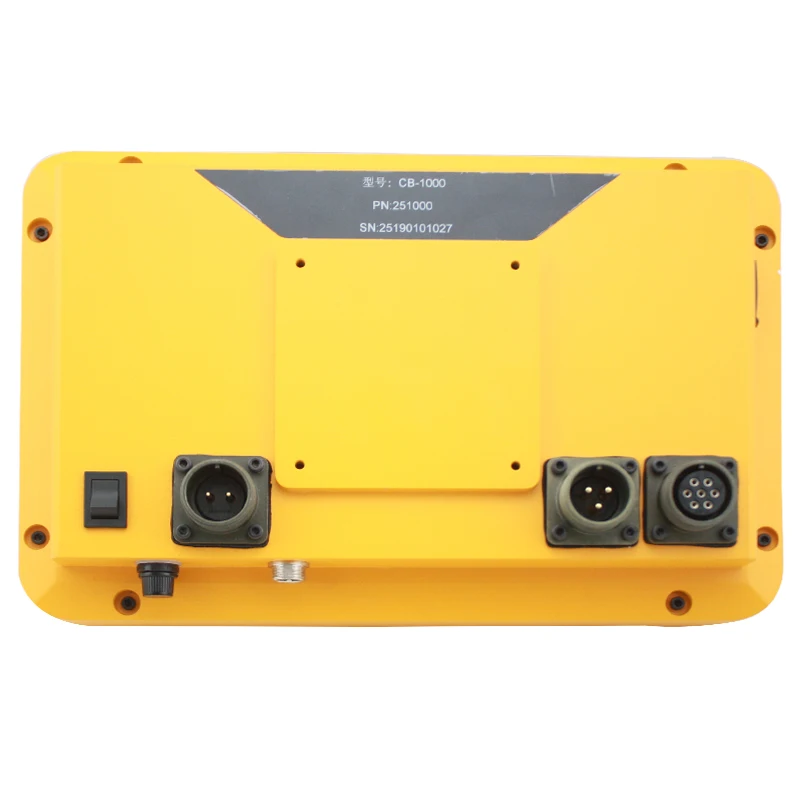

| Communication interface: 2RS232 interfaces /2external power interface (lemo) |
| Radio frequency interface:1 UHF antenna interface / 1 GNSS antennainterface |
| REFEERENCE OUTPUTS/INPUTS |
| RTCM2.X/RTCM3.0/RTCM3.2, MSM4,MSM5 |
| COMMUNICATION PROTOCOL |
| TRANSEOT/TRIMTALK |
| INSTRUCTIONS |
| 3 LED indicator lights (power light/star search light/datatransmission light) |
| High definition LED screen |
| Frequency/protocol/baud rate adjustable |
