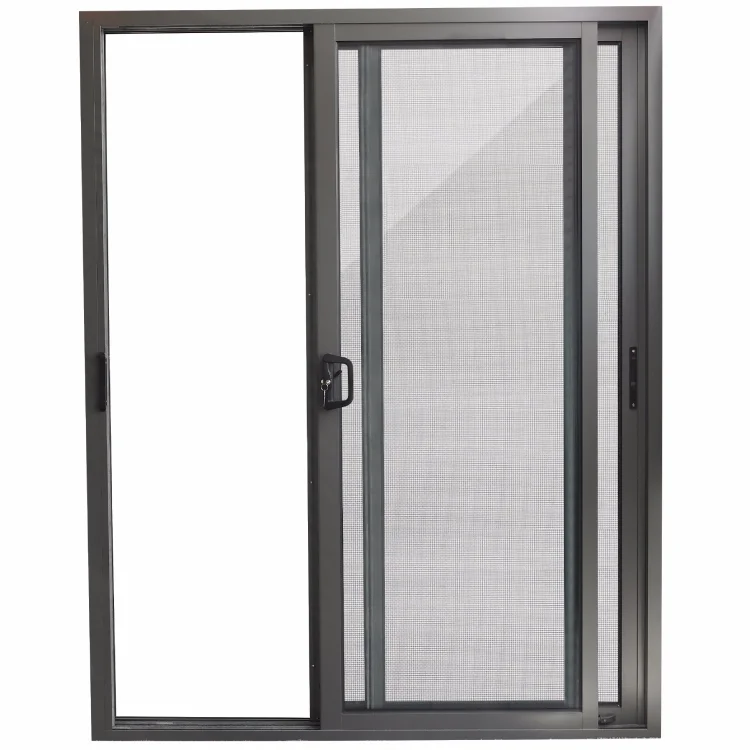

Thermal Break Aluminum Windows Window Aluminium Glass White Thermal Break Triple Glazed Aluminum Round Glass Windows For House A

Parameter

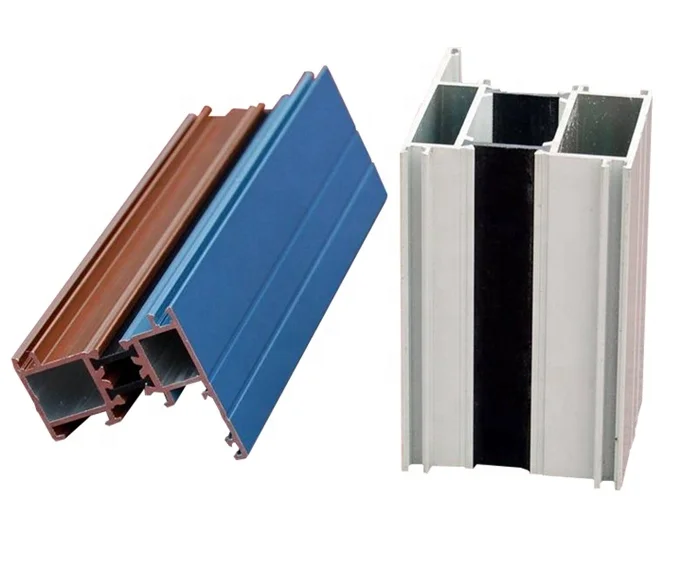

1. Material: aluminum alloy 6063

2: Designs :70/80/90/100 series

3: Surface: Anodized /Powder Coating

4.Quality check: SGS system

Processing Of Manufacturing

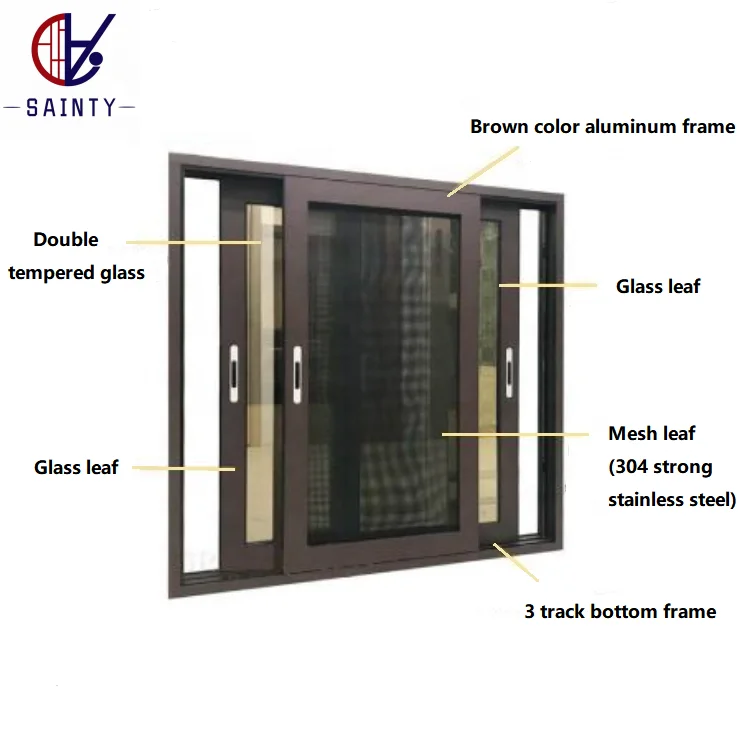

1. ST94 is the highest level thermal break sliding window in our factory. Thickness is 1.8-2.0mm. Double-layer tempered glass can ensure heat insulation and sound insulation. Give you a quiet and warm indoor environment.

According to our customers feedback, surface treatment is our biggest advantage, and size are always can be customized.

2. How we install the horizontal and vertical frame

1)Horizontal and vertical frame assembly

2)Install the connectors for the horizontal and vertical frames (arrows point to the underline)

3)Tighten with an inner hexagonal wrench

4)Install connectors outside of the profile

5)Install water stopper

More Details

How we do Aluminum profile bending

All kinds of profiles can be processed by drawing, bending, rolling, bending, reeling, coiling, etc. at any angle. The profiles that can be processed include: aluminum plate, aluminum profile, aluminum plastic plate, aluminum square tube, aluminum Round tube, aluminum angle iron, aluminum channel steel, aluminum I-beam, flat aluminum bar and other profiles

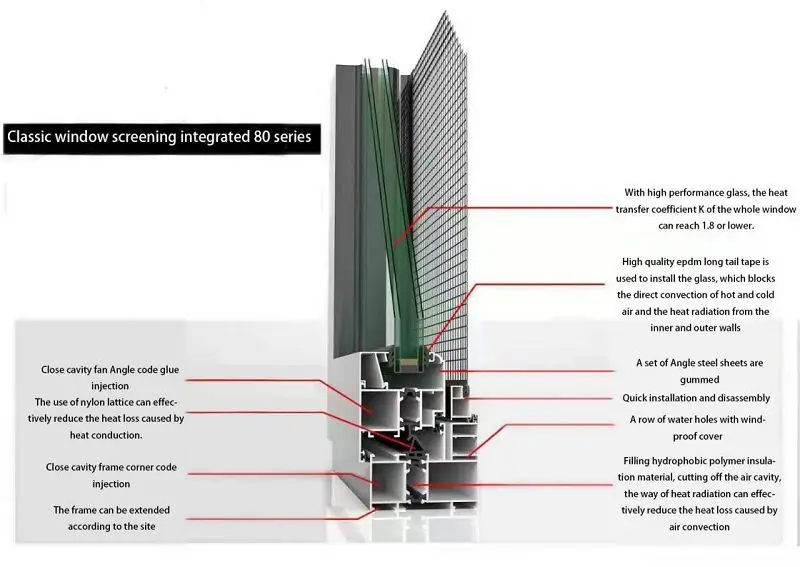

80 series is normal thermal break aluminum window

From the section design, you can see the thermal break plastic is 14.8mm

It can be used 95% project and U-value can be 1.6

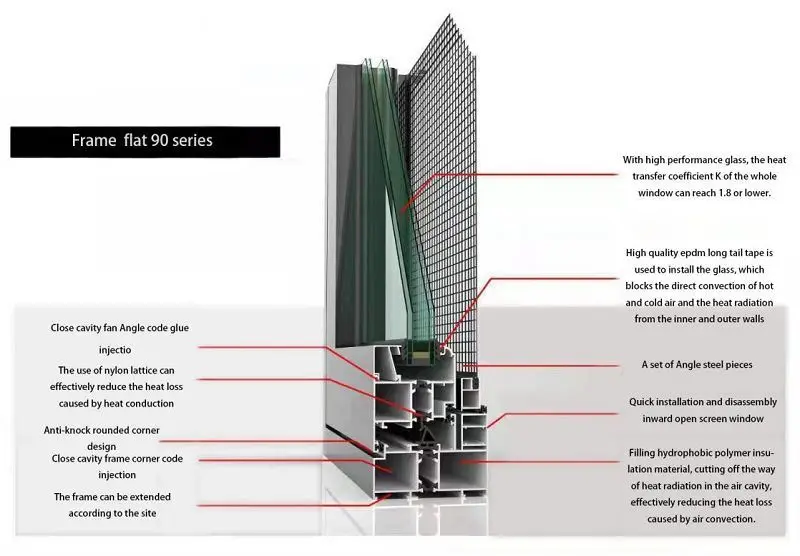

90 series is bigger and stronger compare 80 series.

Can be used for door not only window.

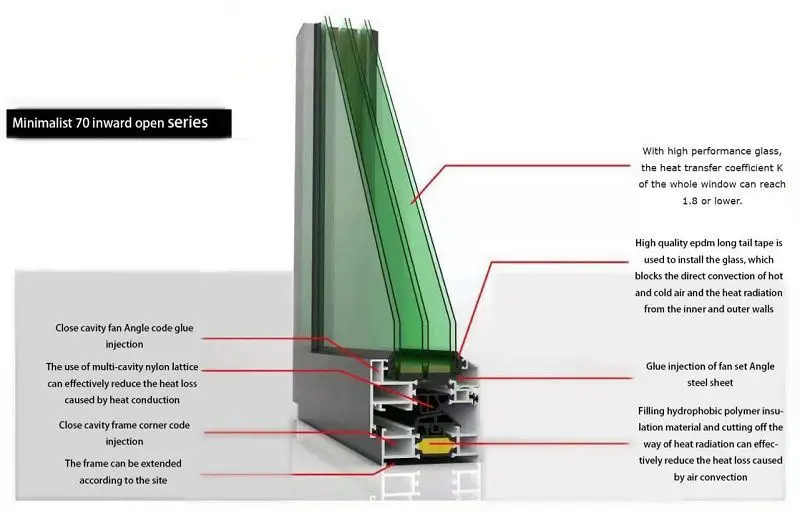

70 series is classic window width, but to increase the U-Value , we put the triple glass at the same time, hydrophobic insulation material was filled in the cavity.

70 series is design for high rising building , the waterproof is very good even in the storm ,also the hydrophobic insulation material was filled in the cavity.

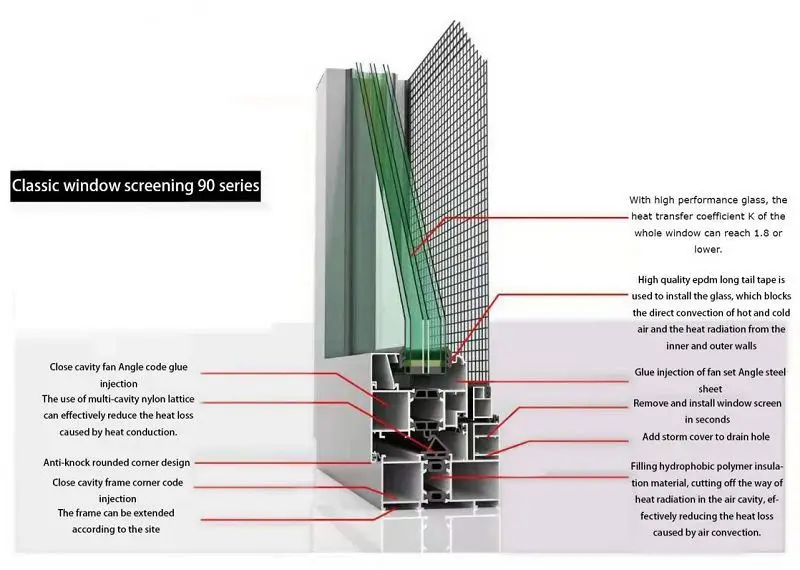

90 series is classic for thermal break door as it is big enough

The flat surface design can keep the surface flat and good looking. Thickness is 2.0 to keep it is very strong.

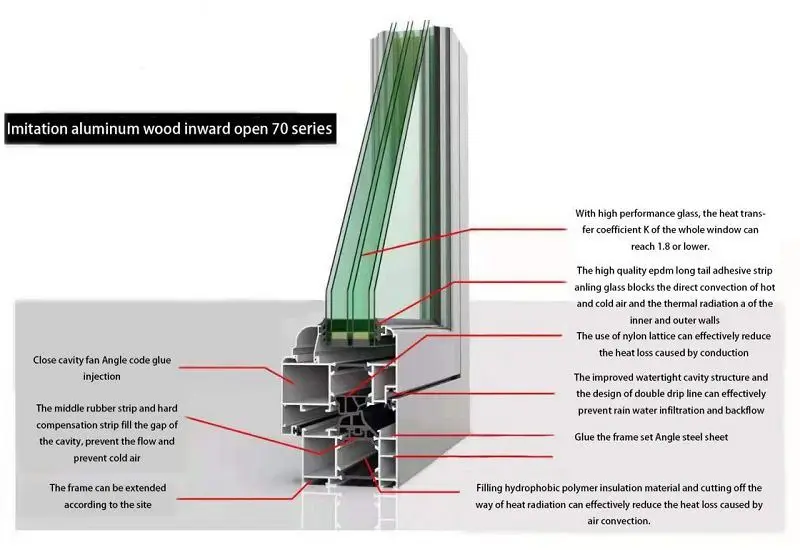

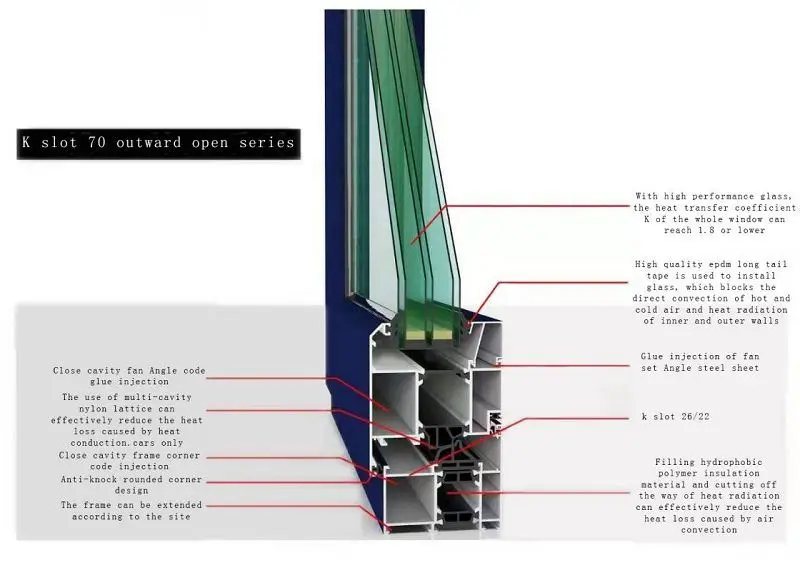

For thermal aluminum thermal break , 70 series is good choice because outside frame can produce wood color and make the whole window like aluminum wood style.

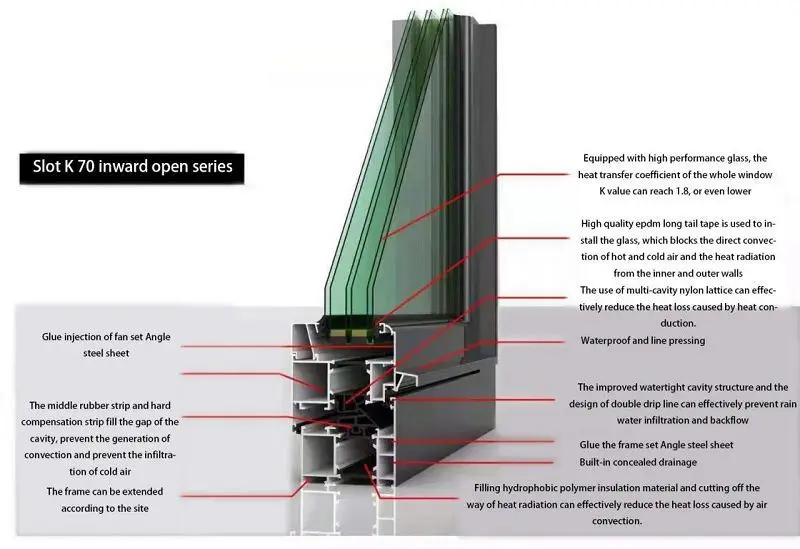

The 70 K Slot is 26/22, easily to make the outside frame attached with inside frame strongly.PLUS the triple glass, U-value to be 1.8 even more lower.

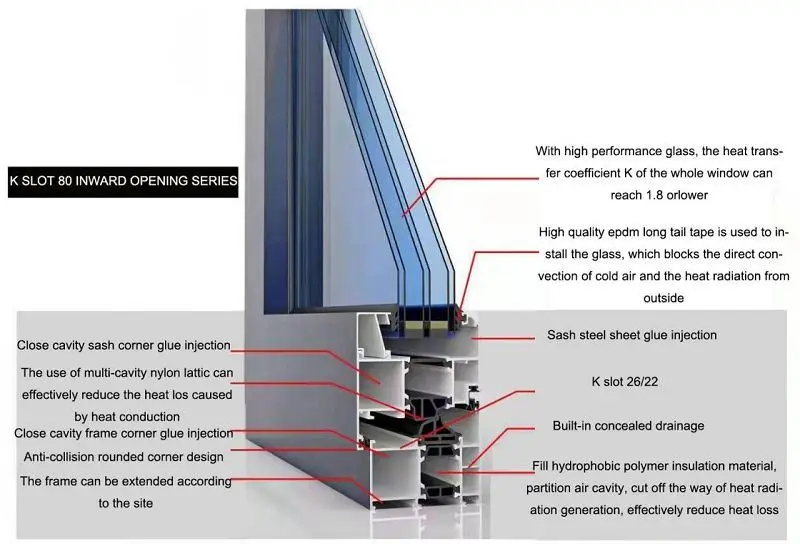

80 series is bigger compare with 70 , and same it is K SLOT design to keep the advantage

For high rise building to keep very steady

Work with quality EPDM gasket, the frame lifetime can kept 25 years.

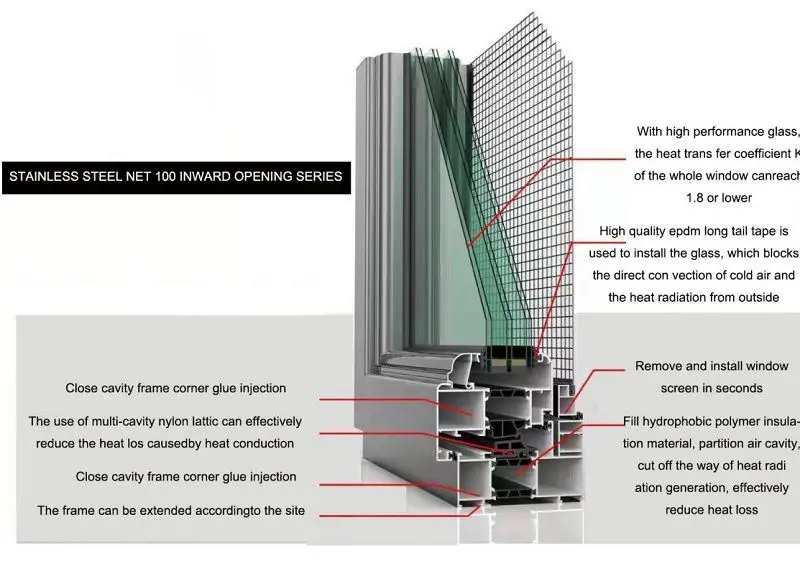

100 series is complete system , included stainless screen,because it is big enough,

This designs is not only for window but for door also and thermal break plastic is 24.8mm

This is top strong design in all the thermal break window

The glass pressing profile easily put the glass , so it is more suitable to produce the door by this designs.

100 series classical design is mainly designed for the thermal window and the flat surface make it very good looking.

100 MM is big enough and top strong all all the series.

For soundproof and waterproof, it is also very good.
