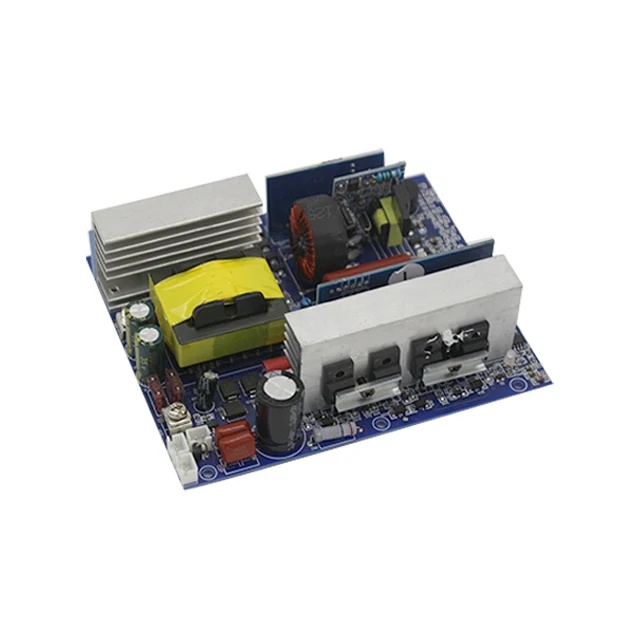

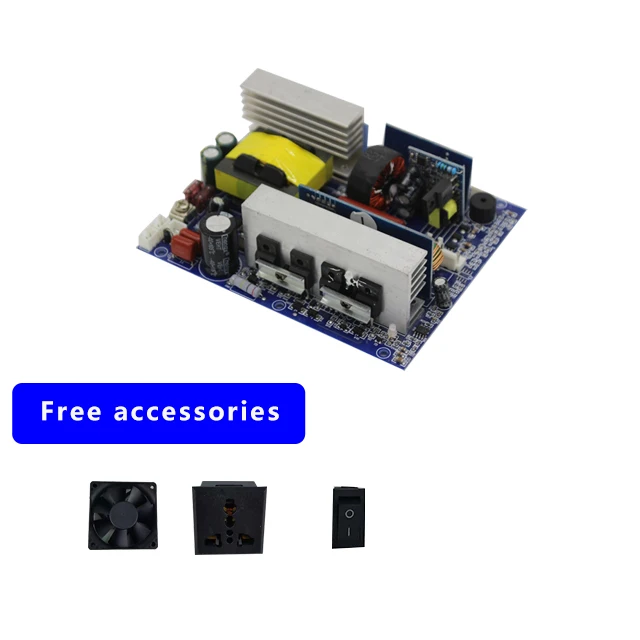

Factory direct 500W DC 24V 48To Ac 12 volt to 220 volt Lithium battery pure sine wave inverter board
- Category: >>>
- Supplier: Huazhou Sine Electronics Technology Co. Ltd.
Share on (1600464247611):
Product Overview
Description

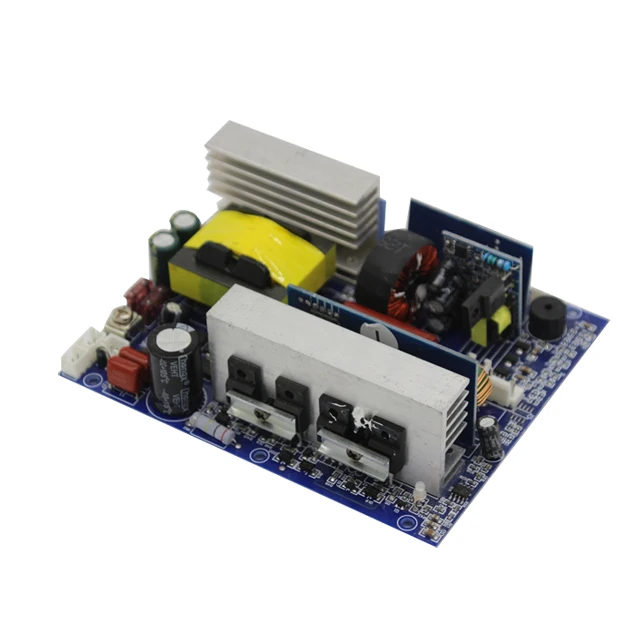

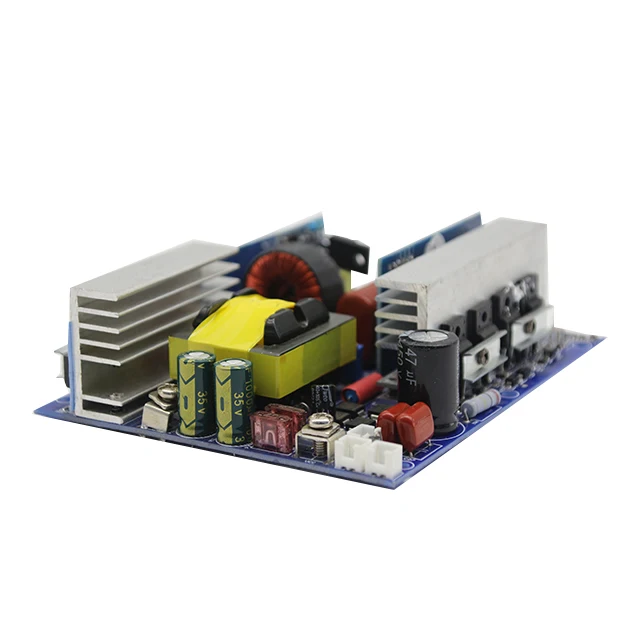

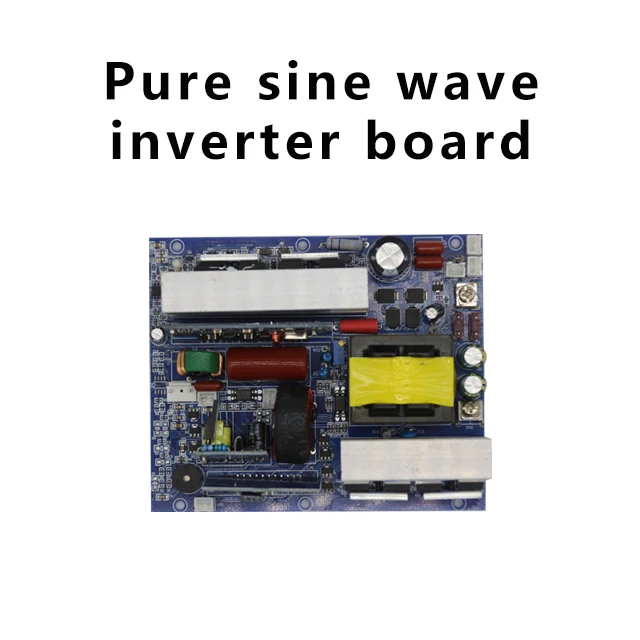

Factory direct 500W DC 24V 48To Ac 12 volt to 220 volt Lithium battery pure sine wave inverter board
| Product parameter | ||||||||
| Model | ZX_A300W | ZX_A500W | ZX_A800W | ZX_A1000W | ZX_A1500W | ZX_A2000W | ZX_A2500W | ZX_A3000W |
| Rate power | 300W | 500W | 800W | 1000W | 1500W | 2000W | 2500W | 3000W |
| Peak power | 600W | 1000W | 1600W | 2000W | 3000W | 4000W | 5000W | 6000W |
Overload protection | 300W±100W | 500W±100W | 800W±100W | 1000W±100W | 1500W±100W | 2000W±100W | 2500W±100W | 3000W±100W |
Input voltage | 12V24V Optional | |||||||
The output voltage | 220V/230V240V Optional | |||||||
Output frequency | 50Hz/60Hz | |||||||
Output waveform | Pure sine wave | |||||||
Waveform distortion | THD<3%(Linear load) | |||||||
Overvoltage protection | 12V(9.5V_15.8V) 24V(19.5V_29.8V) 48V(39V_60V) 60V(53V_72.5V) | |||||||
| Temperature protection | Start up:45℃±5℃ | |||||||
Shut down:38℃±5℃ | ||||||||
Over temperature shut down:75℃±5℃ | ||||||||
Over temperature recovery:55℃±5℃ | ||||||||
| Efficiency | 90% | |||||||
| Output socket | The default is the national standard socket(European standard, British standard, and American standard sockets can be selected) | |||||||
| Size(CM) | 13.1*11.2*4.5 | 13.1*11.2*4.5 | 17.5*11.2*4.5 | 26.2*14.5*3.8 | 28.9*14.2*4.5 | 30*15.6*6.2 | 29.3*19.4*6.2 | 35.7*19.4*6.2 |
| Weight(KG) | 0.4 | 0.4 | 0.55 | 1.2 | 1.3 | 1.9 | 2.5 | 4 |
click here for more information | ||||||||
Product Description
Related Products
Company Information
User Evaluation
Our Services
Packaging & Shipping

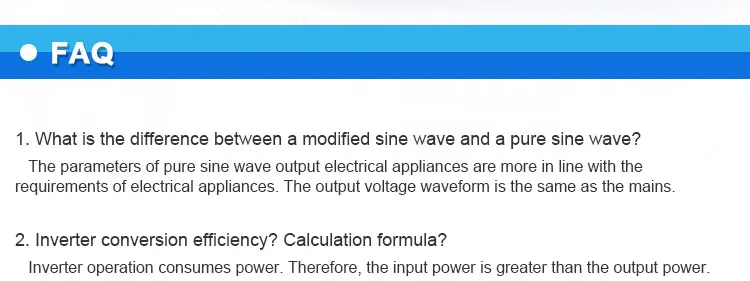

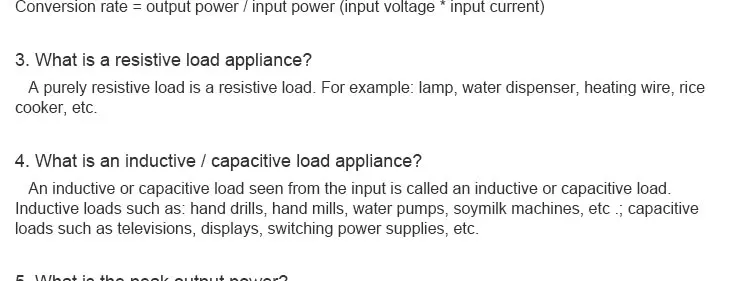

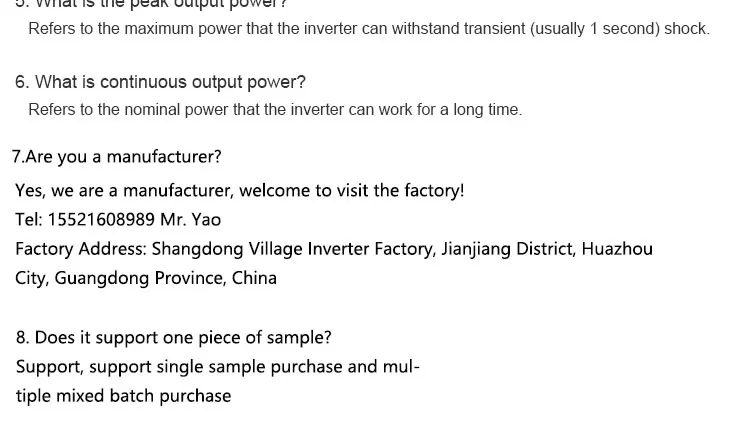

FAQ
