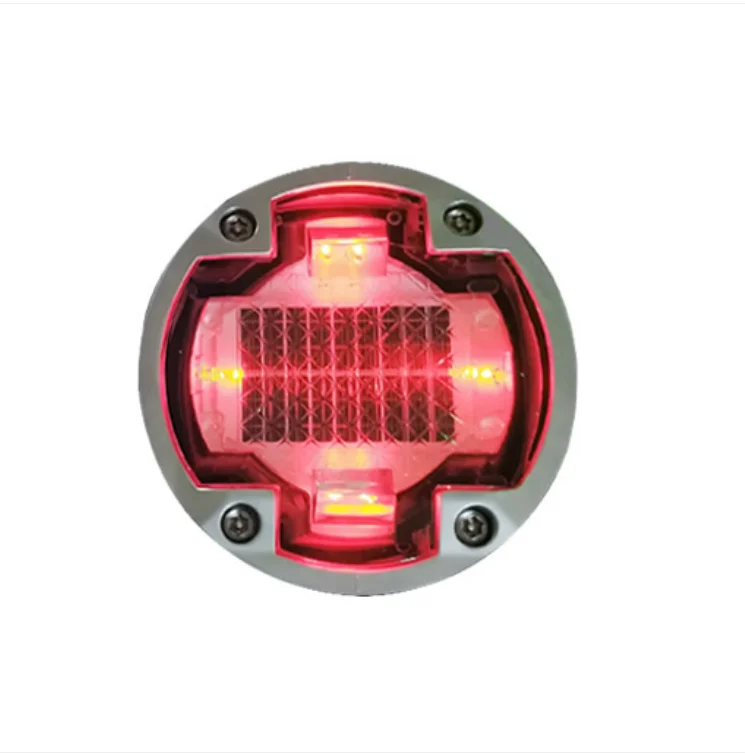

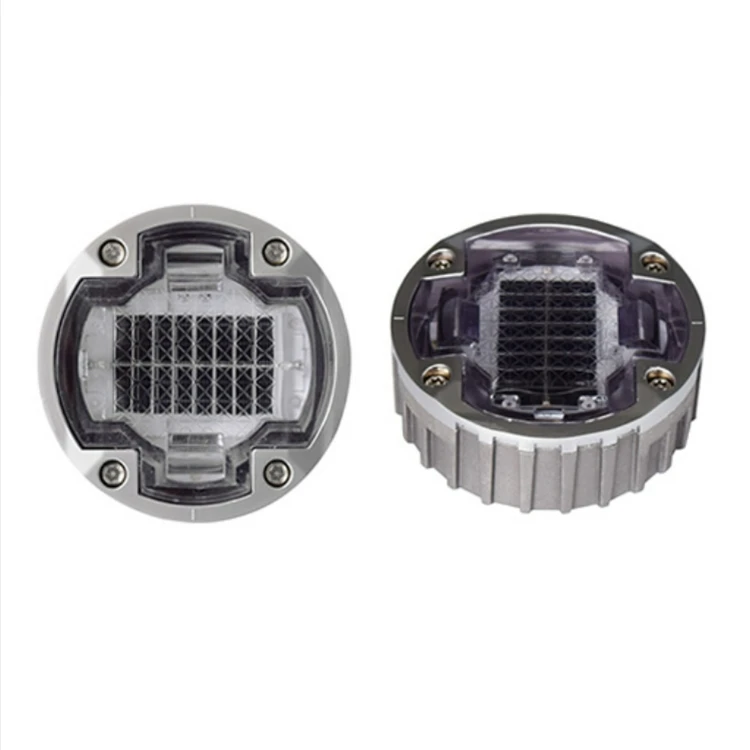

Philippines Red Solar Steady Reflective Road Studs /Cat Eye Road Reflector Price

Embedded solar road stud lights use the photovoltaic effect of solar energy to convert solar energy into electrical energy, store the electrical energy in the battery through the control system, and automatically emit light when the light is insufficient at night and in rainy and foggy weather, which can guide the vehicle in the correct direction. , effectively ensure traffic safety to achieve the role of landscape lighting.

Advantages and Features

Energy saving: convert solar light into electrical energy, and cooperate with high-efficiency LED light source to achieve energy saving. Environmental protection: no pollution, no radiation, no greenhouse gas emissions, achieving energy saving and carbon reduction.

Safety: low voltage, no electric shock, fire and other accidents. Convenient: easy to install, no need to wire, bury and dig the ground for construction.

Less investment: one-time investment, long-term benefits

Occasion: Can be used in the middle of the road, with a pressure resistance of up to 35 tons

1. There are more than four lanes back and forth, but there is no isolation zone in the middle and there is insufficient light at night.

2. At the intersection/zebra crossing (deceleration prompt);

3. Sharp turning road;

4. Foggy areas (seaside, airport roads);

5. Curb stones of highways and roads without street lights;

6. The position of the guide line at the entrance and exit of the elevated and tunnel;

7. Road island, vehicle diversion point (around the horizontal line of the triangle);

8. Railway ramp entrance;

9. Toll station lane line

10. Accident-prone areas;

11. Urban sidewalks, park paths, etc. need to beautify the night scene and other areas and roads.

Product parameters
1. Power supply mode: solar panel (monocrystalline silicon): maximum power 0.45W

2. Energy storage device: lithium iron phosphate battery 3.2V1500mAh

3. Working time: standard light intensity charging can work continuously for about 16 hours a day, and can work for about 90 hours when fully charged

4. Display mode: flashing or constant light for selection.

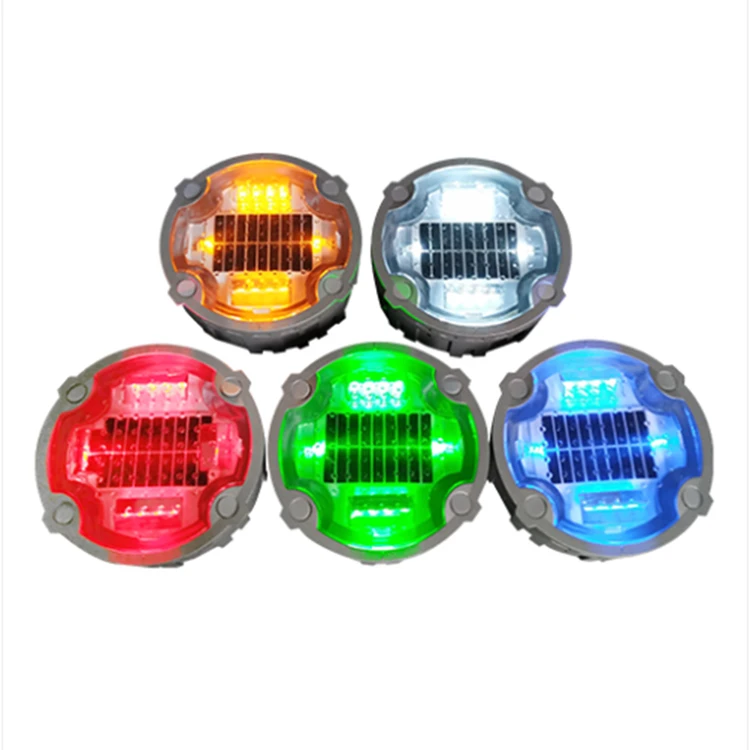

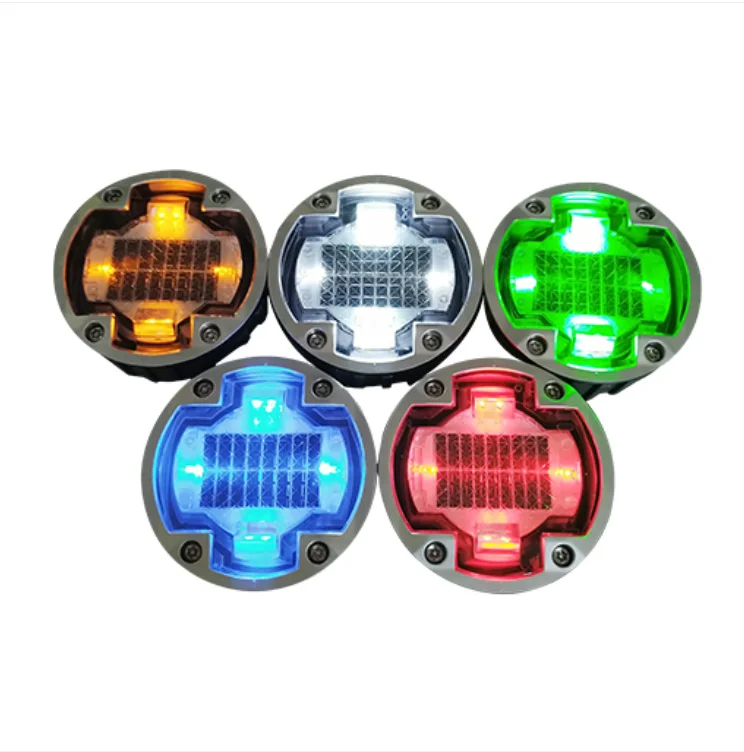

5. Display color: white, yellow, red, green, blue five colors optional.

6. Display device: super bright LED 6PCS

7. Visible distance: > 500 meters

8. Service life: 5-7 years for iron-lithium battery type

9. Working environment: -25℃~+70℃

10. Shell material: die-cast aluminum + polycarbonate

11. Dimensions: diameter 123*H48mm, opening size 127MM, weight 0.78KG

12. Compressive capacity: static compression about 35 tons, waterproof grade: IP68

13. Packing size: 41*28*19CM, 18PCS/carton

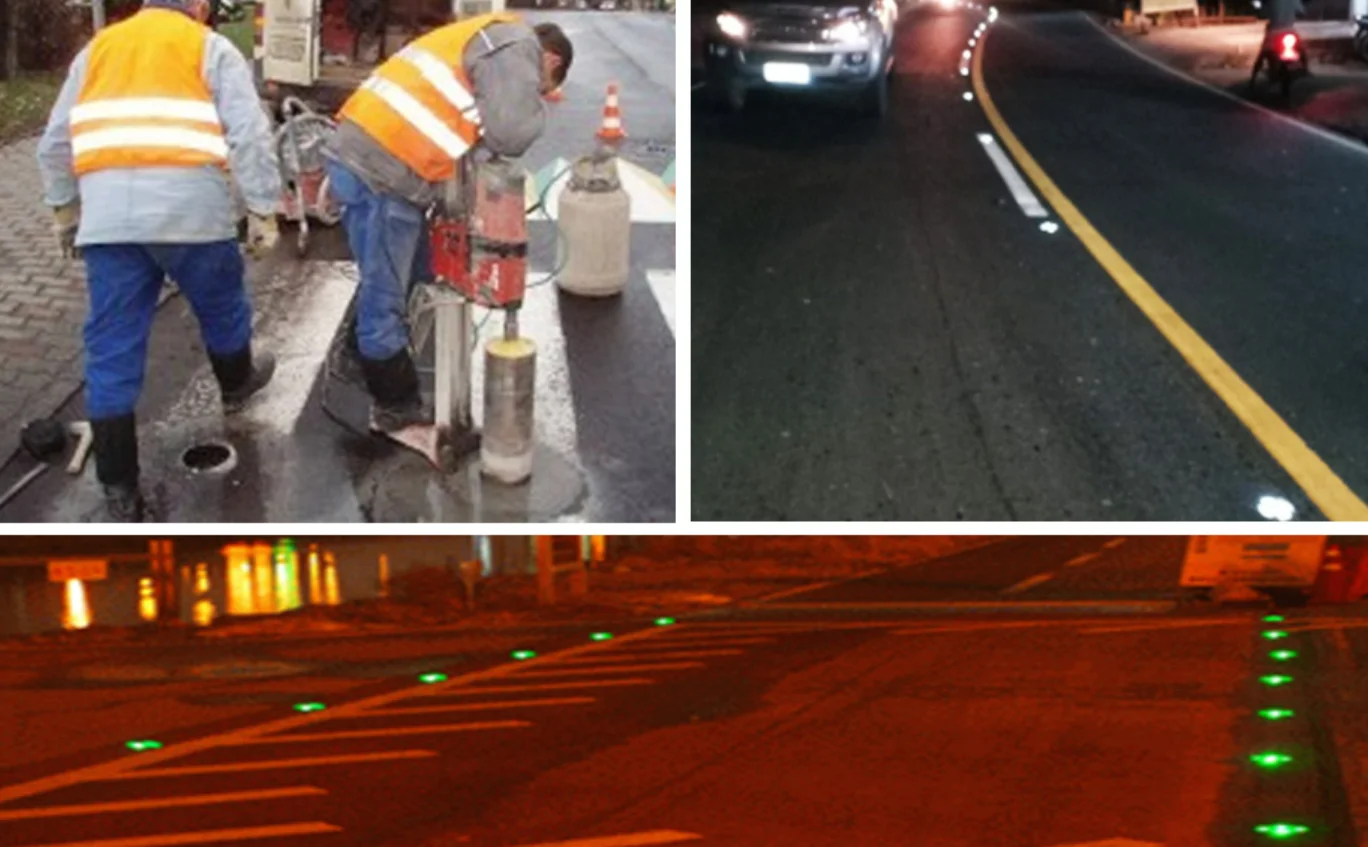

installation method
1. Make safety warning facilities.

2. Use a drilling machine to drill a circular hole with a diameter of 127mm and a depth of about 45mm. (Mark on the drilling machine, or add a ring to the drill bit to ensure that the drilled round hole has a certain depth)

3. Use a socket tool to dig out the asphalt in the middle of the round hole. (If it is a cement road, crush the cement with an electric crusher)

4. Blow out the sand and water in the hole with high pressure air. (Or use a sponge to absorb the water, the water must be dry, otherwise it will not stick firmly)

5. Use a mold with a fixed height to test whether the depth of the hole is appropriate. (otherwise need to be trimmed)

6. Put bitumen glue or epoxy resin into the hole, you can add a proper amount of small stones and make it smooth. (Asphalt glue hardens quickly, construction is fast, less traffic is affected, and the cost is low, it is suitable for highways, traffic flow is large or the number of continuous installations is large. For sporadic projects with a small number, epoxy resin is used.)

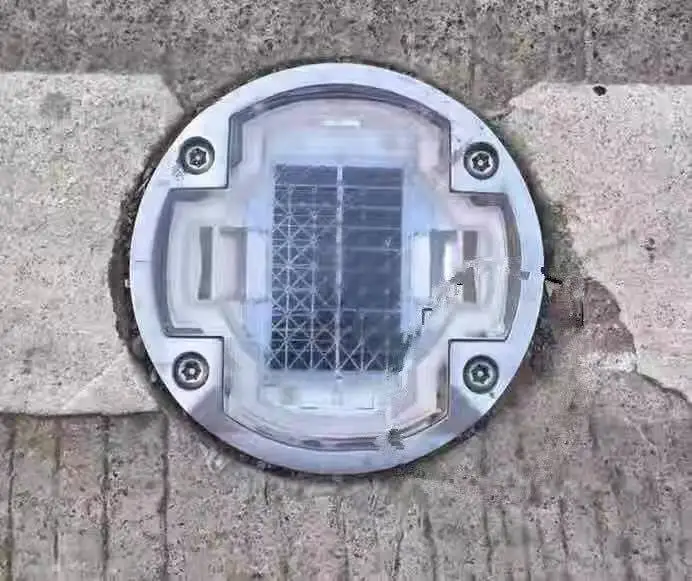

7. Put the solar road stud light into the hole, and rotate the LED lamp bead to the same direction as the incoming vehicle. Finally, lightly hammer the top of the road stud with a rubber mallet to make it flat and completely fixed.
