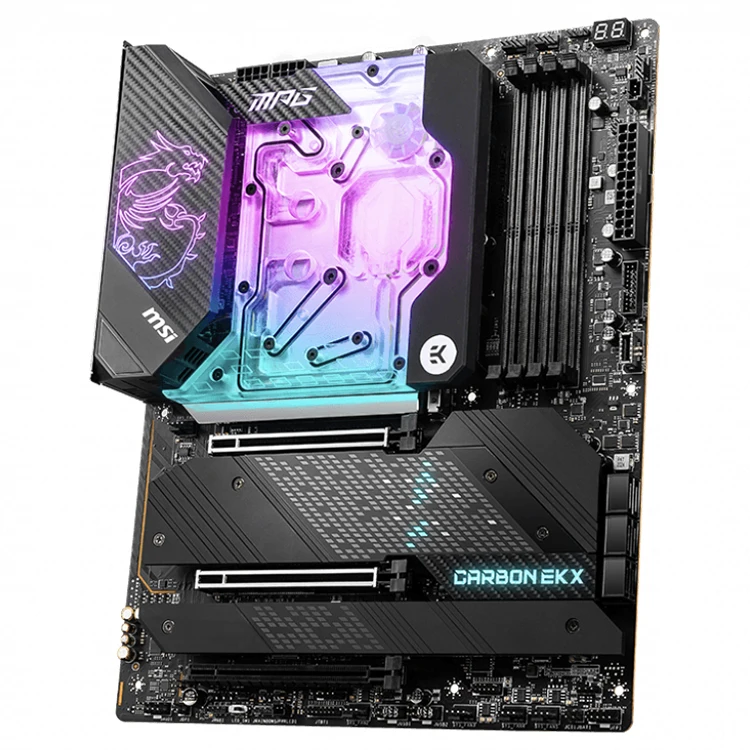

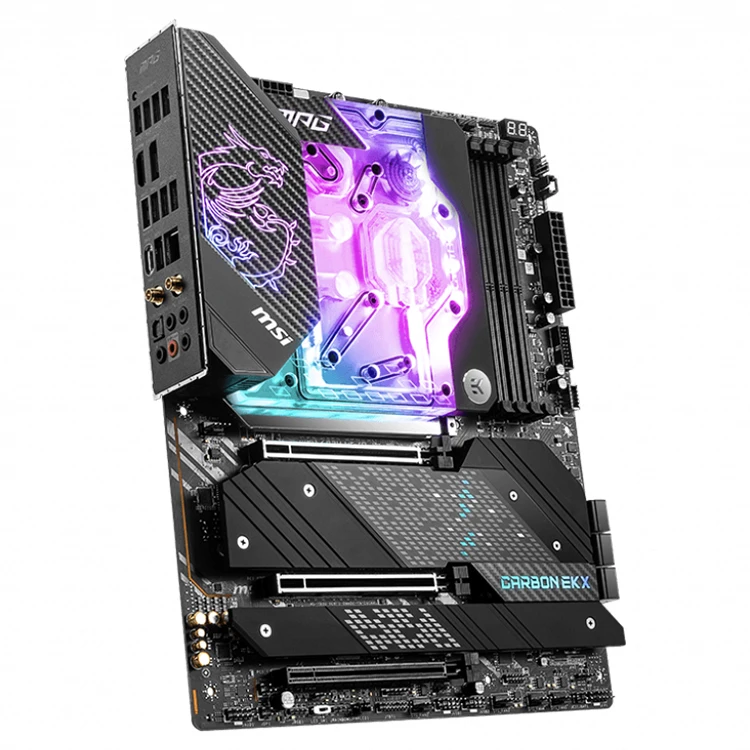

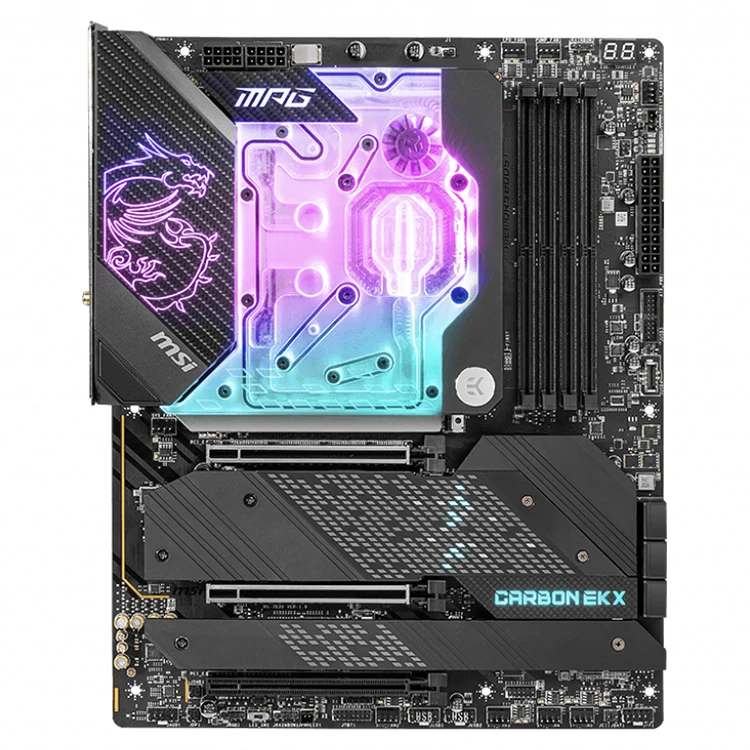

New board for MSI MPG Z690 CARBON EK X Motherboard with WIFI and DDR5 Memory .s 12th Gen Intel Core / Pentium Celeron CPU
- Category: >>>
- Supplier: Shenzhen Huixin Tengda Trading Co. Ltd.
Share on (1600464297415):
Product Overview
Description
- Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6666+(OC) MHz
- CPU + VRM + M.2 Water Cooling: A custom-designed EK monoblock with build-in inflow indicator that offers pristine cooling for both the CPU, VRM and primary M.2 section
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Enhanced Power Design: Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- M.2 Shield Frozr: All M.2 slots covered with Shield Frozr to built for high performance system and non-stop gaming experience
- MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips and Ambient devices.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
PROCESSOR
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors 1
- Processor socket LGA1700
\t
\t
- Please go to intel.com for compatibility information.
\t
CHIPSET
Intel® Z690 Chipset
MEMORY
- 4x DDR5 memory slots, support up to 128GB1
- Supports 1R 4800 MHz (by JEDEC & POR)
- Max. overclocking frequency:
\t- 1DPC 1R Max speed up to 6666+ MHz
- 1DPC 2R Max speed up to 5600+ MHz
- 2DPC 1R Max speed up to 4000+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
\t\t
\t\t
\t\t
\t\t
\t
\t - Supports Intel® XMP 3.0 OC
- Supports Dual Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory
\t
\t
\t
\t
\t
\t
- Please refer to www.msi.com for more information on compatible memory
\t
EXPANSION SLOTS
- 3x PCIe x16 slots
\t- PCI_E1 & PCI_E2 slots (From CPU)
\t\t- Support PCIe 5.0
- Support x16/ x0, x8/ x8
\t\t\t
\t\t\t
\t\t
\t\t - PCI_E3 slot (From Z690 Chipset)
\t\t- Supports PCIe 3.0 x4
\t\t\t
\t\t
\t\t
\t\t
\t\t
\t
\t - PCI_E1 & PCI_E2 slots (From CPU)
\t
ONBOARD GRAPHICS
- 1x HD.MI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1/ 2
- 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1/ 2
\t
\t
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
\t
\t
MULTI-GPU
Supports AMD® CrossFire™ Technology
STORAGE
- 4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset)1
- 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061)
- 5x M.2 slots (Key M)
\t- M2_1 slot (From CPU)
\t\t- Supports PCIe 4.0 x4
- Supports 2260/ 2280/ 22110 storage devices
\t\t\t
\t\t\t
\t\t
\t\t - M2_2 slot (From Z690 Chipset)
\t\t- Supports PCIe 4.0 x4
- Supports 2260/ 2280 storage devices
\t\t\t
\t\t\t
\t\t
\t\t - M2_3 slot (From Z690 Chipset)
\t\t- Supports PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
\t\t\t
\t\t\t
\t\t
\t\t - M2_4 slot (From Z690 Chipset)1
\t\t- Supports PCIe 3.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t - M2_5 slot (From Z690 Chipset)
\t\t- Supports PCIe 4.0 x4
- Supports SATA 6Gb/s
- Supports 2260/ 2280 storage devices
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t - M2_2~5 support Intel® Optane™ Memory
\t\t
\t\t
\t\t
\t\t
\t\t
\t\t
\t
\t - M2_1 slot (From CPU)
- Supports Intel® Smart Response Technology for Intel Core™ processors
\t
\t
\t
\t
- SATA7 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.
\t
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
\t
\t
USB
Intel® Z690 Chipset
- 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
- 6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector)
- 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
- 4 USB 2.0 ports on the back panel
\t
\t
\t
\t
USB Hub-GL850G
- 4x USB 2.0 ports available through internal connectors
\t
AUDIO
Realtek® ALC4080 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
\t
\t
LAN
1x Intel® I225V 2.5Gbps LAN controller
WIFI & BLUE.TOOTH
Intel® Wi-Fi 6E module
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz 1(160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Blue.tooth 5.22, FIPS, FISMA
\t
\t
\t
\t
- Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11.
- Blue.tooth 5.2 will be ready in WIN10 21H1 and Windows11.
\t
\t
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 6x SATA 6Gb/s connectors
- 5x M.2 slots (M-Key)
- 1x USB 3.2 Gen 2 10Gbps Type-C connector
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- 1x TPM module connector
- 1x TBT connector (supports RTD3)
- 1x Tuning Controller connector
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
LED FEATURE
- 1x EZ LED Control switch
- 4x EZ Debug LED
- 1x 2-Digit Debug Code LED
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1x 3-pin CORSAIR LED connector
\t
\t
\t
\t
\t
\t

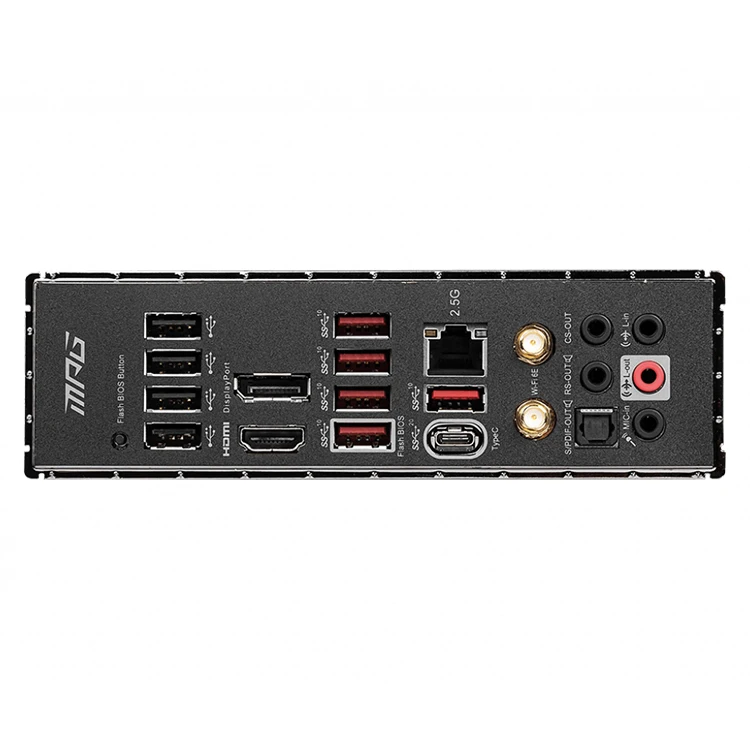

BACK PANEL PORTS
- USB 2.0
- DisplayPort
- 2.5G LAN
- Wi-Fi/Blue.tooth
- Audio Connectors
- Flash BIOS Button
- HD.MI
- USB 3.2 Gen 2 10Gbps Type-A
- USB 3.2 Gen 2x2 20Gbps Type-C
- Optical S/PDIF Out
\t
\t
\t
\t
\t
\t
\t
\t
\t
\t
DIMENSIONS
- ATX Form Factor
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
\t
\t
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
