XCG557 0.3MP SC031GS Omnivision sensor fixed focus dual camera module compatible MIPI interface ccd camera module pcb bourd
- Category: >>>
- Supplier: Yizhang Xinchenguang Electronics Limited
Share on (1600464370992):
Product Overview
Description
Product Description

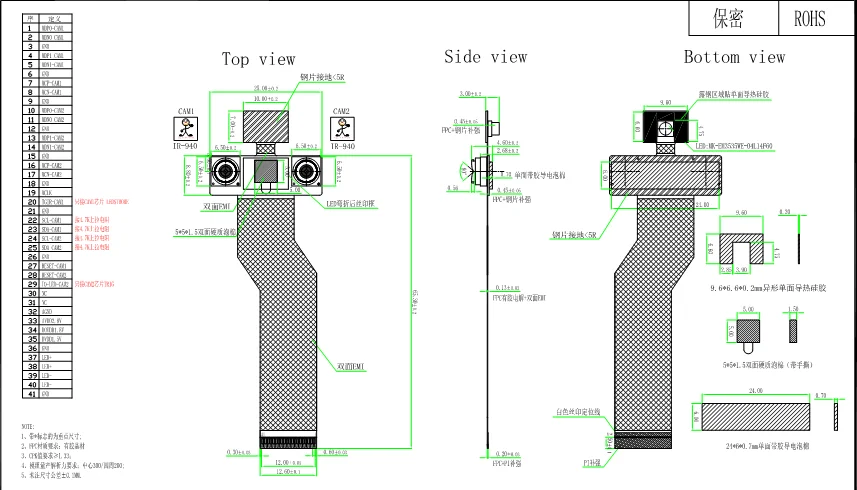

COMS Sensor | SC031GS+SC031GS |
Size | 6.5*6.5*4MM |
Circuit Board | FPC |
Pixel Array | 640 x 480 |
Output Format | RGB |
Iterface Support | MIPI |
Focus | FF |
View Angle | 76° |
CMOS image sensor
lens size: 1/6"
input clock frequency: 6~27 MHz
lens chief ray angle: 29° non-linear
max S/N ratio: 38 dB dynamic range: 69.6 dB @ 8x gain maximum image transfer rate: 640 x 480: 120 fps (see table2-1)
sensitivity: 10,800mV/(µW.cm-2.sec) @ 850nm
scan mode: progressive
maximum exposure interval: 502 x tROW
pixel size: 3.744 µm x 3.744 µm
image area: 1968 µm x 1488 µm
package dimensions: 3910 µm x 3410 µm
3 µm x 3 µm pixel with OmniPixel3-GS™ technology
automatic black level calibration (ABLC)
programmable controls for frame rate, mirror and flip, cropping and windowing
support output formats: 8/10-bit RAW
support for image sizes: 640x480, 320x240, 160x120
fast mode switching
supports horizontal and vertical 2:1 and 4:1 monochrome subsampling
supports 2x2 monochrome binning
one-lane MIPI serial output interface
one-lane LVDS serial output interface
embedded 256 bits of one-time programmable (OTP) memory for part identification
two on-chip phase lock loops (PLLs)
built-in 1.5V regulator for core
PWM
built-in strobe control
lens size: 1/6"
input clock frequency: 6~27 MHz
lens chief ray angle: 29° non-linear
max S/N ratio: 38 dB dynamic range: 69.6 dB @ 8x gain maximum image transfer rate: 640 x 480: 120 fps (see table2-1)
sensitivity: 10,800mV/(µW.cm-2.sec) @ 850nm
scan mode: progressive
maximum exposure interval: 502 x tROW
pixel size: 3.744 µm x 3.744 µm
image area: 1968 µm x 1488 µm
package dimensions: 3910 µm x 3410 µm
3 µm x 3 µm pixel with OmniPixel3-GS™ technology
automatic black level calibration (ABLC)
programmable controls for frame rate, mirror and flip, cropping and windowing
support output formats: 8/10-bit RAW
support for image sizes: 640x480, 320x240, 160x120
fast mode switching
supports horizontal and vertical 2:1 and 4:1 monochrome subsampling
supports 2x2 monochrome binning
one-lane MIPI serial output interface
one-lane LVDS serial output interface
embedded 256 bits of one-time programmable (OTP) memory for part identification
two on-chip phase lock loops (PLLs)
built-in 1.5V regulator for core
PWM
built-in strobe control
ODM/OEM CUSTOMIZED DESIGN IS WELCOME!
Our Factory is a good and professional manufacturer of CMOS Camera Module products. We provide high quality and compatible CMOS Camera Module products for different requests and wishes from clients. We Professional produce CIF, VGA, 2M,3M, 5M, 8M, 12M, 16M pixel camera module. We also could do according to customer's specific requirements.
Camera Customization
According to the actual application scene and functional target, the camera module needs to comprehensively consider the connector, the PIN arrangement, PFC construction to adapt your platform. Therefore it need to be customized, we can do ODM/OEM camera module based on your requirements. Including sensor, lens fov. FPC shape, different FPC length, lens FOV, total height, imaging orientation, pins/connector....
Please contact our customer service to inform you which product you want the camera to be used on? What functions are implemented? Any special requirements? According to the cost target and other comprehensive factors, we help to choose and design the product according to your requirements.
Please contact our customer service to inform you which product you want the camera to be used on? What functions are implemented? Any special requirements? According to the cost target and other comprehensive factors, we help to choose and design the product according to your requirements.
Application Field
Related Products

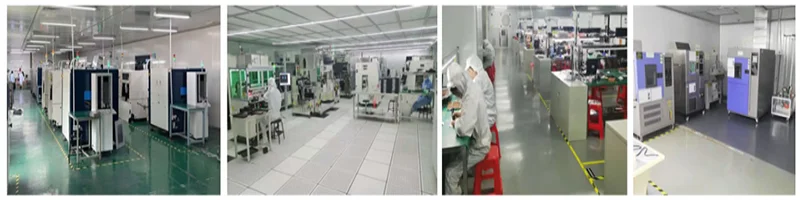

Company Profile
We focus on the design,produce and sale of camera module more than 11 years.The company mainly engages in the development, manufacture and sales of the plan of the CMOS camera, and has relatively strong technology and R & D services to meet the needs of different products of customers, providing customers with low-cost and high-quality camera module products! Our products are mainly the MOS camera module, 1 million cameras, 2 million cameras, 3 million cameras, 500 cameras, 8 million cameras, widely used laptops, all-in-one computers, advertising machines, high-speed cameras, face recognition teaching equipment, monitoring equipment. To satisfy our customers is our unremitting pursuit; honesty is our eternal business purpose; high quality is our constant principle. Welcome customers to discuss cooperation and create a win-win situation.
1.R&D team: we have 10 senior engineer,we can provide good support at hardware and software.
2.Quality: we have ISO9001 certification,we also have complete quality system, organization chart and complete reliability testing equipment.we have ability to supply first class goods to customer.
3.Production capacity: we have 45 work lines,can produce 500000 pcs per day,make sure finish client PO punctual.
1.R&D team: we have 10 senior engineer,we can provide good support at hardware and software.
2.Quality: we have ISO9001 certification,we also have complete quality system, organization chart and complete reliability testing equipment.we have ability to supply first class goods to customer.
3.Production capacity: we have 45 work lines,can produce 500000 pcs per day,make sure finish client PO punctual.
Product packaging
FAQ
Q1: Can I take some samples? Are they free?
A1: Of course, you can get samples for testing before bulk order, but the samples are not free.
Q2: What is the delivery time?
A2: Depends on the product and quantity of the order. Usually, the sample can be sent to you within 15 working days after payment.
Q3: How is the payment method?
A3: payment method: online payment, T/T, Western Union, etc.
Q4: Can you list the products of your company?
A4: USB camera, mini camera module, etc.
Q5: Warranty period?
A5: 1 year.
Q6: Can ODM products be accepted?
A6: Yes, ODM is our main business. We will design according to your requirements.
Q7: product OEM?
A7: Yes, you need your Gerber documents, engineering drawings and material lists.
Q8: Customer service?
A8: If you have any questions after receiving the product, please contact us and we will reply you within 24 hours.
Q9: What kind of delivery method do you have?
A9: Because our products are small and expensive, the common mode of transportation is mail or express delivery.
A1: Of course, you can get samples for testing before bulk order, but the samples are not free.
Q2: What is the delivery time?
A2: Depends on the product and quantity of the order. Usually, the sample can be sent to you within 15 working days after payment.
Q3: How is the payment method?
A3: payment method: online payment, T/T, Western Union, etc.
Q4: Can you list the products of your company?
A4: USB camera, mini camera module, etc.
Q5: Warranty period?
A5: 1 year.
Q6: Can ODM products be accepted?
A6: Yes, ODM is our main business. We will design according to your requirements.
Q7: product OEM?
A7: Yes, you need your Gerber documents, engineering drawings and material lists.
Q8: Customer service?
A8: If you have any questions after receiving the product, please contact us and we will reply you within 24 hours.
Q9: What kind of delivery method do you have?
A9: Because our products are small and expensive, the common mode of transportation is mail or express delivery.
