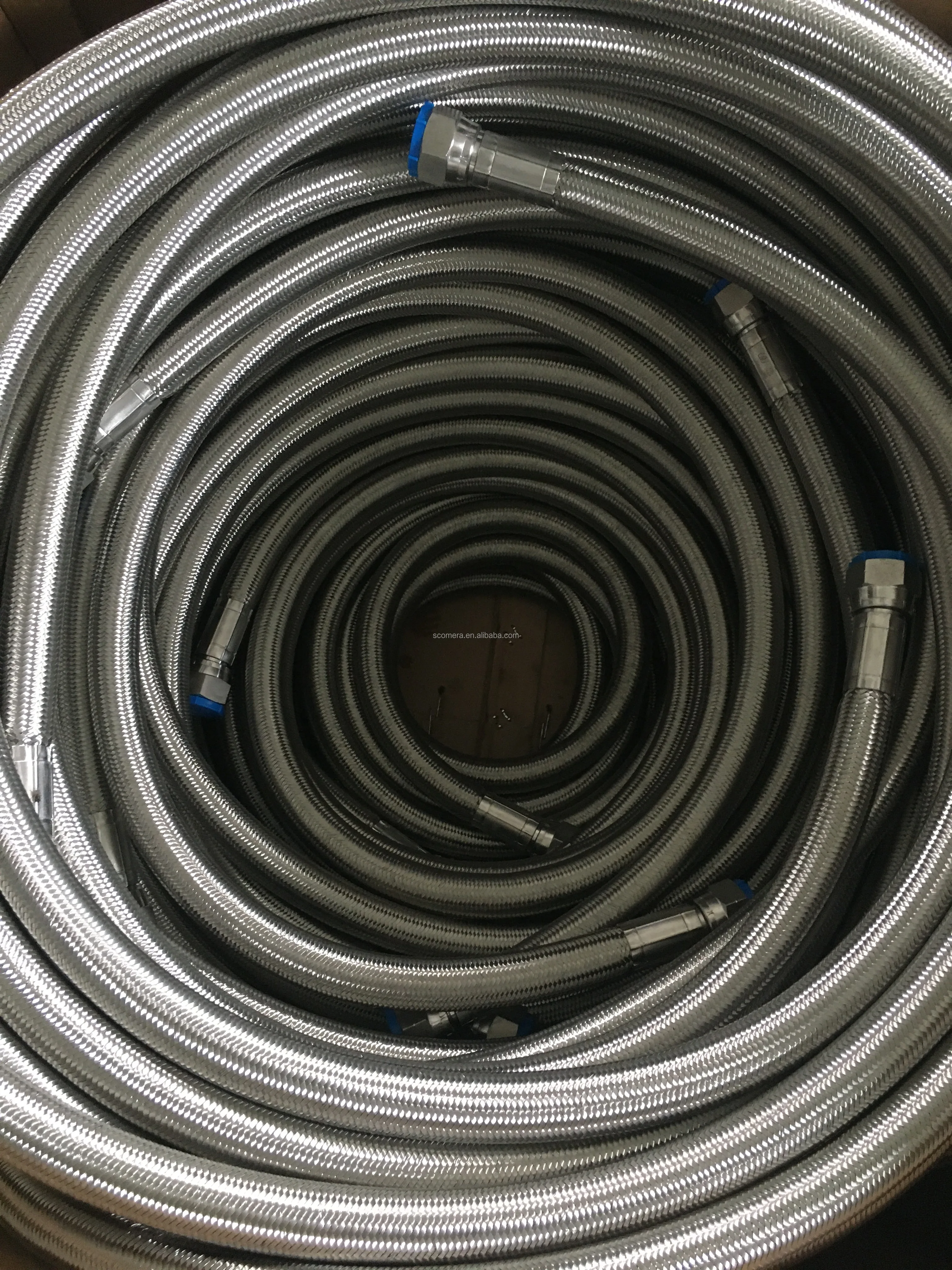

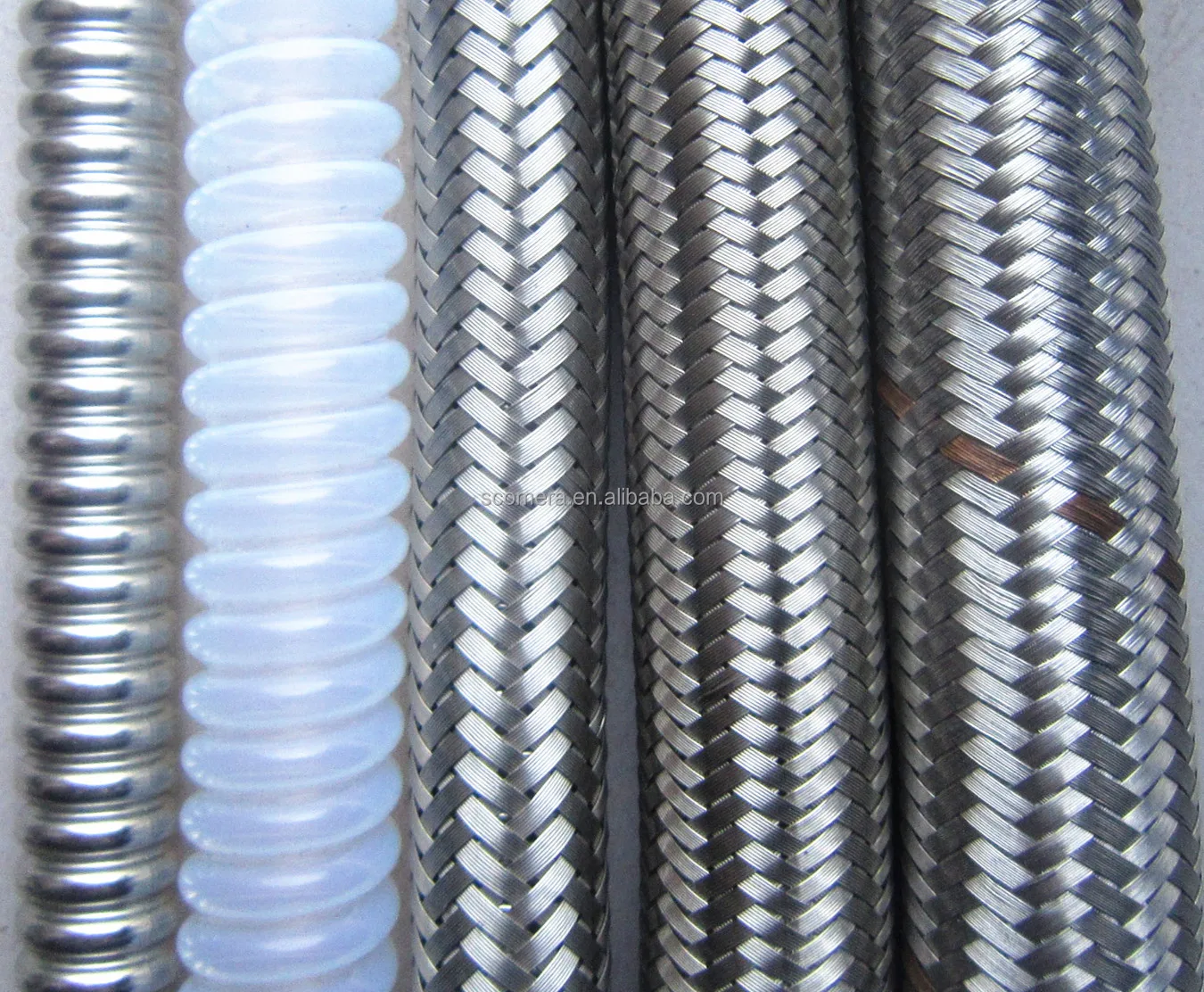

ptfe tube plastic ptfe tubing 9.5mm
- Category: >>>
- Supplier: Scomera Mechanical Equipment(Beijing) Limited Company
Share on (1600464390657):
Product Overview
Description
Company Profile
Scomera Mechanical Equipment (Beijing) Limited Company is located in Beijing, China. Our hose and pipe products have been sold all over the world. Our product line includes various kinds of hose, pipes and relevant supporting services like assembly, safety clamps, hose protections, quick couplings, Hose fittings and adapters, etc. Scomera company can customize hose and pipe products according to the actual needs of customers in different industries. We always provide customers in various fields with safe, high-quality products and considerate services through advanced technology and innovative spirit.Now, Scomera is not only a supplier of high-end hose and pipe products, but also a trusted industry expert and partner for customers. In the future, we will continue to provide products of higher quality and service of higher efficiency to hose and pipe users around the world.

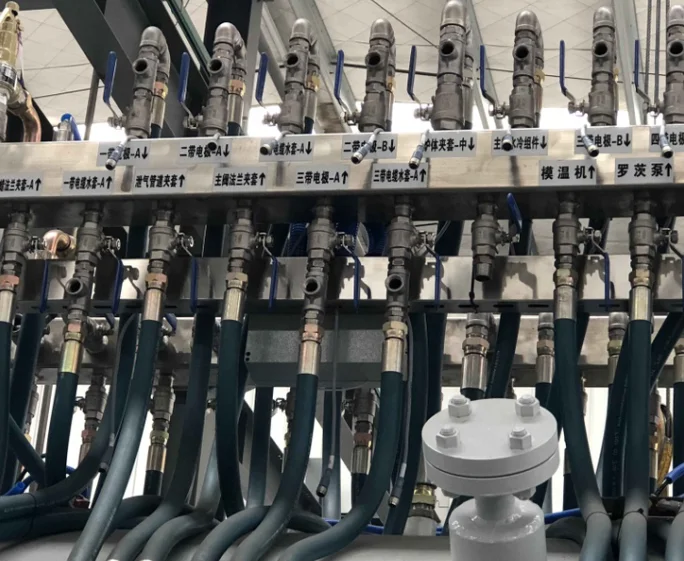

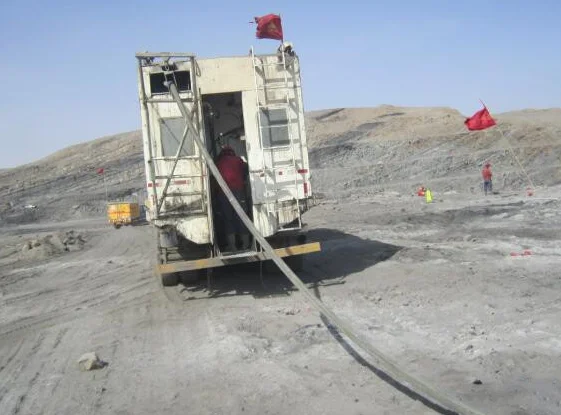

Application

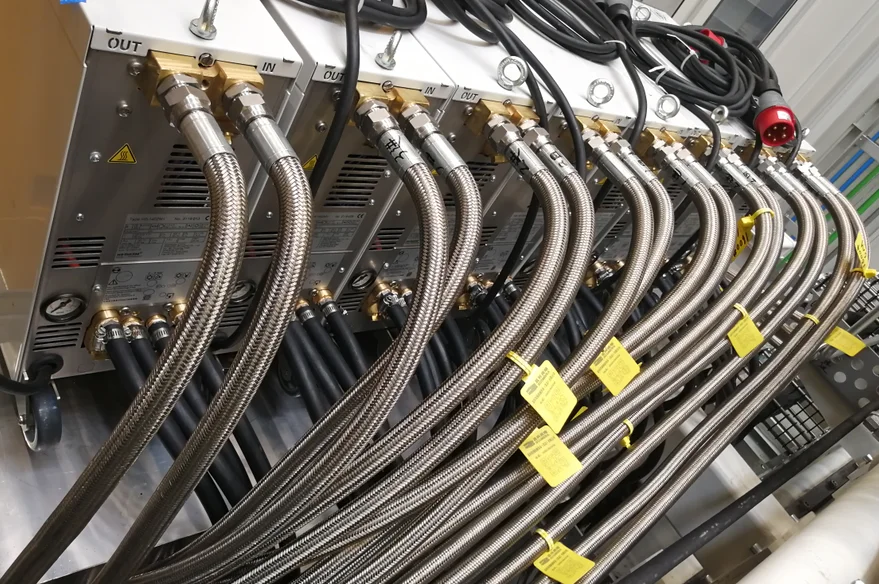

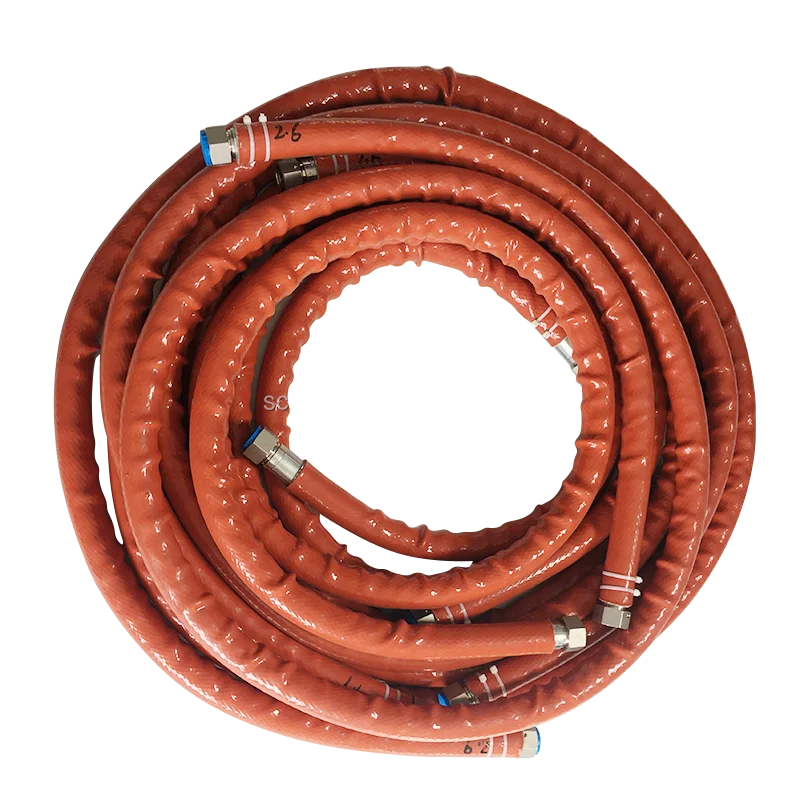

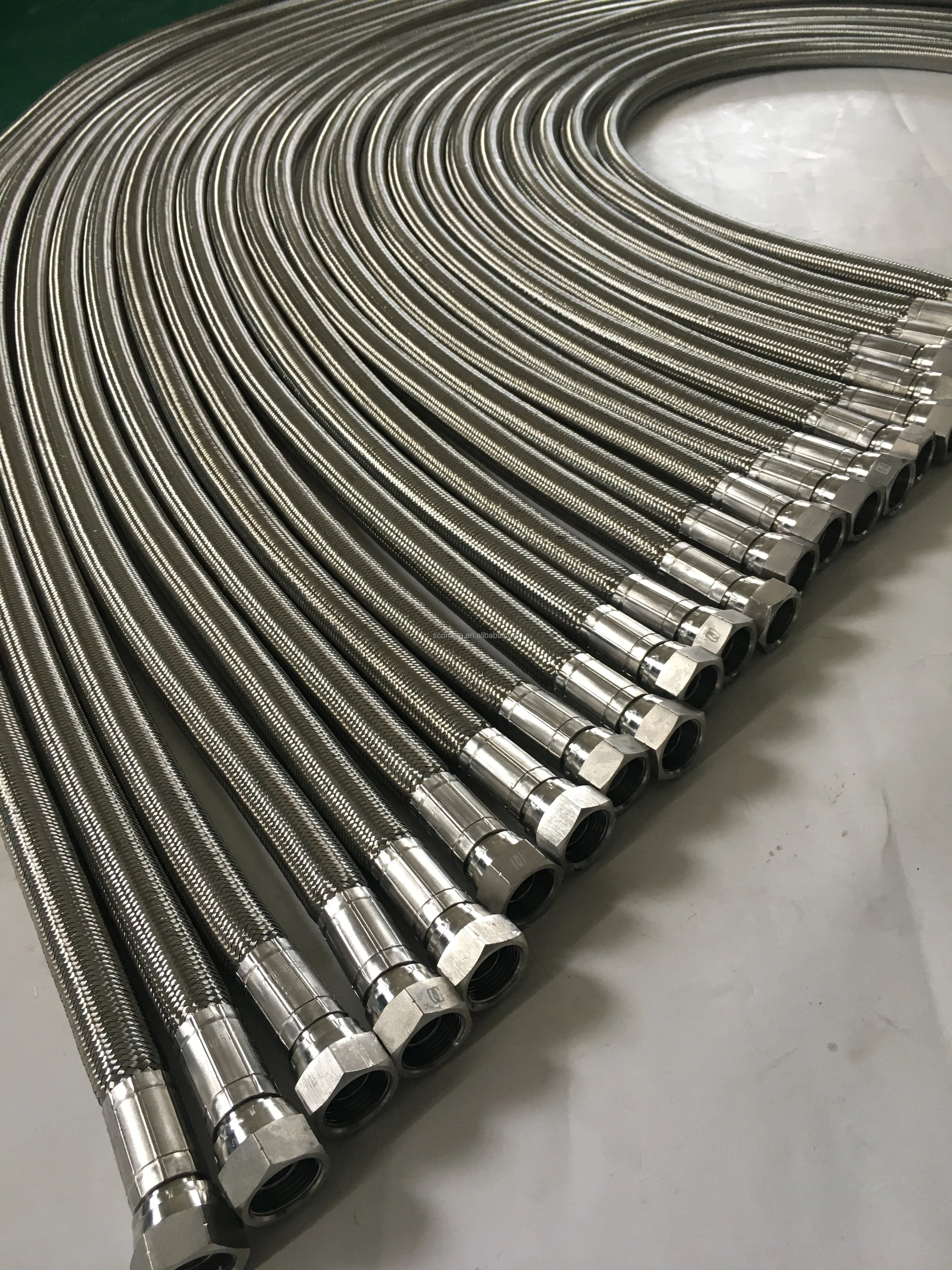

PTFE Hose
PTFE HOSE can be used to transfer chemicals, hot water, coolant, high temperature air, Thermal conductive oil, etc. The specially designed structure makes it have very good flexibility. PTFE HOSE can be widely used in aerospace, transportation, new energy and other industries as well as basic industrial equipment.
Water Hose
Water hose can be divided into suction hose, delivery hose, and cooling water hose. Many fields need to use this kind of general purpose hose, such as industry, agriculture, construction industry, mining, industrial furnace, intermediate frequency furnace,
medical equipment, mechanical equipment, water-cooled cable system, industrial cooling system, etc.

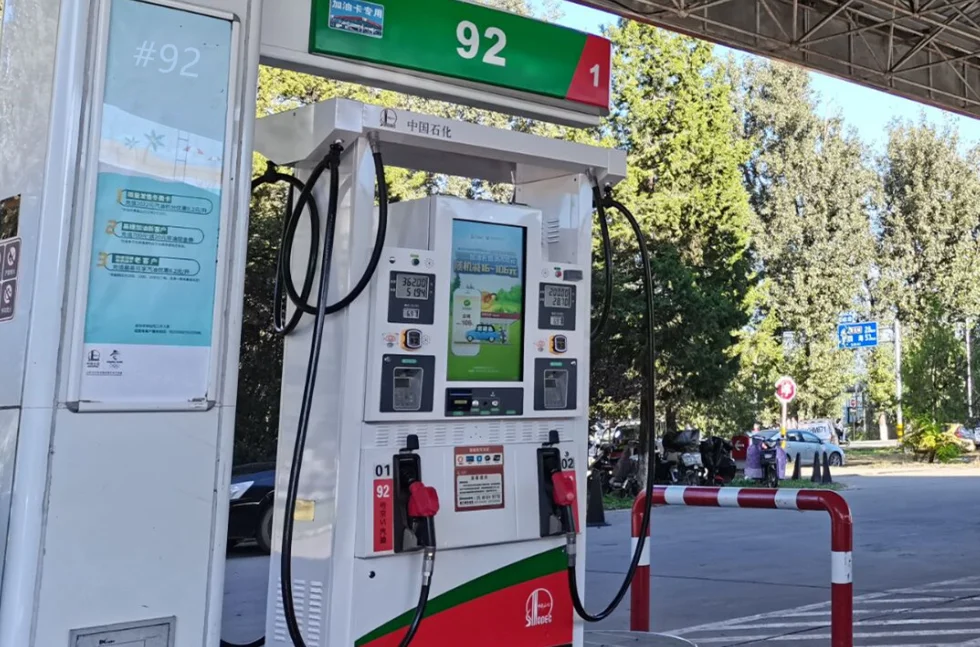

Oil Hose
It is the high-quality general rubber pipe with good oil resistance. It is used to transfer lubricating oil, crude oil, diesel oil, fuel oil, gasoline, kerosene, coolant, etc. Oil hose can be widely used in the industry of offshore drilling, fracturing, natural gas, aircraft refueling, automobile refueling, etc.
Abrasive Material Handling Hose
The hose is mainly used to transfer the materials that are likely to cause pipe wall wear, such as cement and concrete, abrasives materials, bulk transfer, sand blasting, slurry, fly ash, glass, etc. Abrasive material handling hose can be widely used in the field of dry bulk cement transportation, tunnel engineering, docks, and Manufacture of explosives for civilian use.

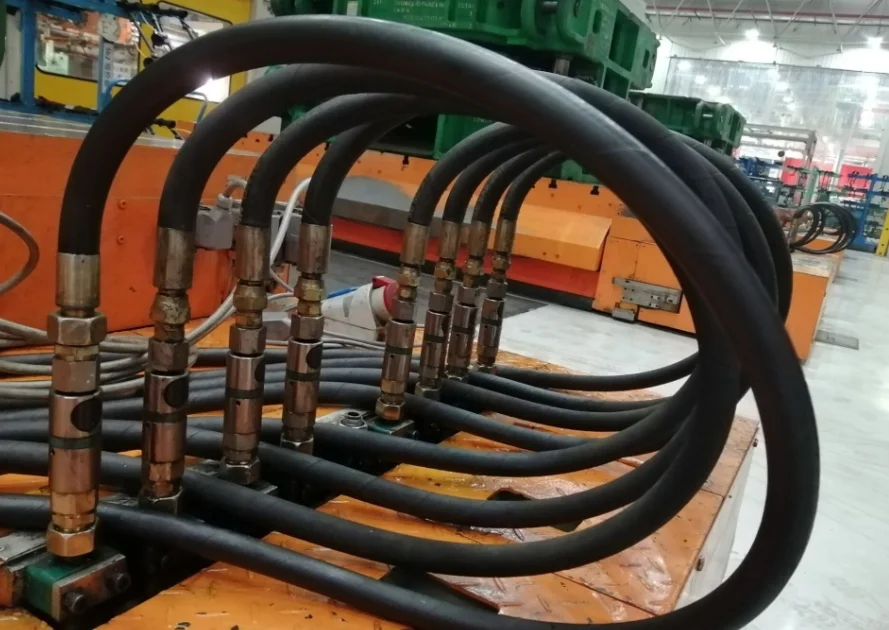

Hydraulic Hose
Hydraulic hose has high impulse performance. We have hydraulic hose with smaller bend radius and ultra-high abrasion-resistant skin to choose from. Our products can meet or even exceed SAE/EN/DIN standards. Our hydraulic hoses can be used in high-pressure hydraulic control systems in construction machinery, mobile machinery, machine tools, oil drilling machinery and other fields.

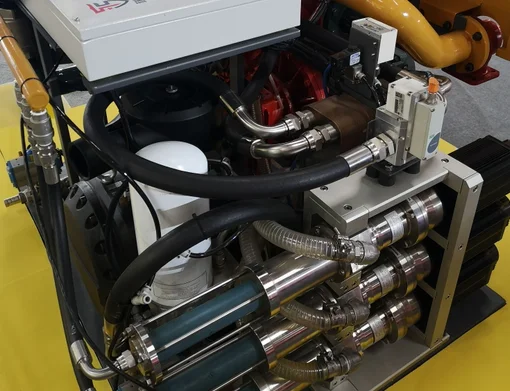

Air and Multi-purpose Hose
It is used to transfer water, air, coolant, oil, low corrosive chemicals, etc. It is non-conductive and has high temperature resistance. It is specially designed for industrial automation system, like tank chain applications, robot arms, automobile production lines, machine tool cooling systems, low-pressure hydraulic systems, welding industry, pharmacy, materials and other industrial applications as well as air compressor, draught Fan and pneumatic production line.
Air Breathing Hose
Air breathing hose is specially designed for marine, fire protection, chemical industry and other fields. It is non-poisonous and has a smooth inner wall and good impermeability as well as flame resistance, and has no pungent smell. It can be used to transport oxygen, clean air etc. the softness and elasticity of rubber make it convenient and flexible to use on long-tube respirators with no kink. Air breathing hose is a great innovation and has guaranteed the breathing and life safety of customers in many fields.

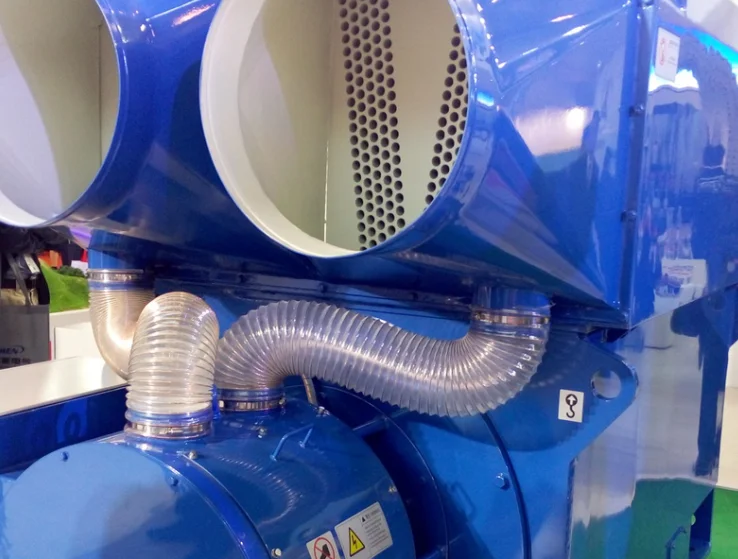

PU hose
Compared with traditional materials, PU hose has the characteristics of light weight, no pollution, softness and non-flammability, and has good abrasion and heat resistance, elasticity and chemical resistance. It is compressible and transparent and has smaller bend radius. It can be widely used in mechanical equipment, aerospace, rail transit, special vehicles, wind power photovoltaic, microelectronics, etc.
Hose Customization
Hose wall material options:
Material | Features |
Ethylene Propylene Diene Monomer (EPDM) | * Abrasion resistance and Heat resistance * Resistant to a small amount of chemicals |
Natural Rubber (NR) | * Abrasion resistance * Good resilience and tensile strength * Softness at low temperature of 0°F (-18°C) * Good physical properties |
Nitrile or Buna-N (NBR) | * Oil，solvent and aromatic hydrocarbon resistance * Good physical properties |
Styrene Butadiene Rubber (SBR) | * Abrasion resistance |
Neoprene (CR) | * Oil resistance and heat resistance * Chemical and ozone resistance * Good physical properties * Fire and weather resistance |
Hypalon (CSP、CSPE、CSM) | * Oil resistance * Chemical resistance * Weather resistance |
Hydrogenated Nitrile (HNBR) | * Oil resistance * Abrasion resistance * Chemical resistance |
Chlorinated Polyethylene (CPE/CM) | * Chemical resistance |
Modified Cross-Link Polyethylene (XLPE) | * Heat resistance * Chemical resistance |
Ultra High Molecular Weight Polyethylene (UHMWPE) | * Chemical resistance * Flexibility |
Viton (FKM) | * Oil resistance, chemical resistance and heat resistance （especially the high temperature in air and petroleum） |
Polytetrafluoroethylene/TEFLON (PTFE/PFA/FEP) | * Chemical, oil and solvent resistance * Smooth and non-sticky * Easy to clean |
Nylon (PA(PA6,PA11，PA12,PA12GF30)) | * Resistant to paint spraying and coatings * Resistant to chemicals containing a few thinner * Low permeability |
Polyurethane (PU/TPU) | * Polyether type: Abrasion resistance * Polyester type: Hydrolysis resistance |
Polyvinyl Chloride (PVC) | * Light, soft and economical |
Thermoplastic Elastomer (TPE/TPR) | * Heat and cold resistance * Good softness * Resistance to solvent |
Customizable parameter range:
Temperature | * Rubber hose: -60℃～260℃ * PTFE: -70℃～260℃ * Flexible metal hose: -190℃～400℃ * Silicone/Glass fiber: -70℃～1500℃ |
Size | * Industrial rubber hose: 1/4’’(6.34mm)～18’’(457.2mm) * Hydraulic hose: 1/4’’(6.34mm)～3’’(76.2mm) * Ultra high pressure hose: DN2(2mm)～DN20(19.05mm) * PTFE hose: DN3(3mm)～DN80(76.2mm) * PU hose: DN4(4mm)～DN1000(1000mm) * PVC hose: DN5(5mm)～DN80(76.2mm) * PE hose: DN5(5mm)～DN25(25mm) * PA hose: DN5(5mm)～DN50(50mm) |
Working Pressure | * Industrial rubber hose: 1kg～50kg * hydraulic hose: 25kg～700kg * Ultra High Pressure Hoses: 700kg～3500kg * PTFE hose: 10kg～420kg * PA hose: 2kg～20kg * PU hose: 0.1kg～10kg * PVC hose: 5kg～20kg |
Mini Bend Radius | * Conventional bend * Half of the conventional bend * Bend radius equals inner diameter |
Length | * 3/16～1 inch: 100m/reel * 1-1/4～2 inch: 60m/50m/40m/reel * PU hose: 10m/15m/pc * >2 inch: 40m/20m/10m/reel (Length can be customized as per needs) |
Services | * Assembly * Safety clamps * Hose protections * Quick coupling * Hose fittings and adapter |

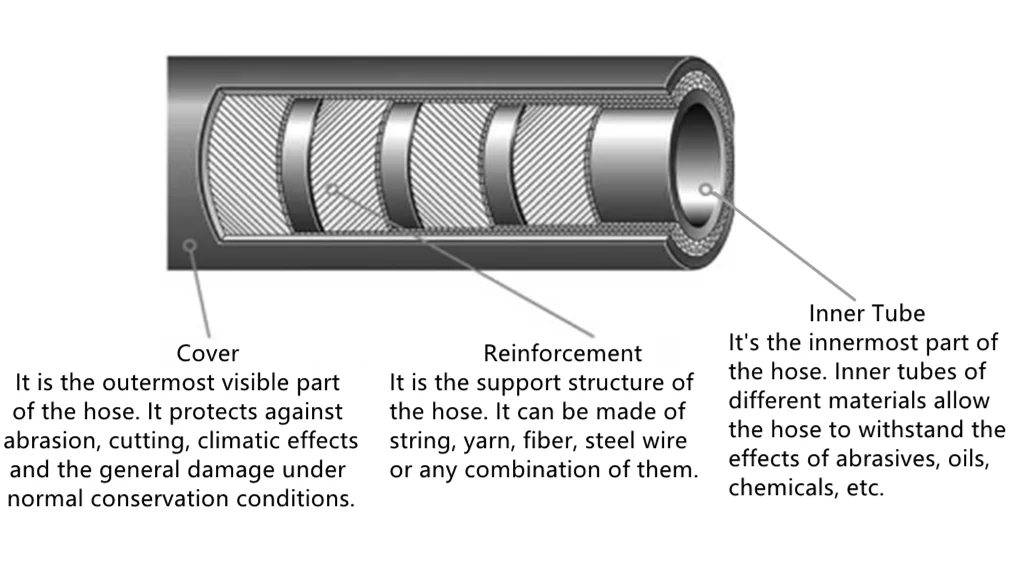

Hose Structure
