high quality aluminum honeycomb mesh for sandwich panel

Product Overview

Description



Product description







high quality aluminum honeycomb mesh for sandwich panel











Speciafication

Super micro-aperture honeycomb

Micro-aperture honeycomb

reguar honeycomb

cell size avallable

1/30* 0.87mm

1/25* 1.04mm

1/15* 1.73mm

1/8* 3.17mm

1/6* 3.47mm

1/5* 5.2mm

1/4* 6.35 mm

1/3* 8.47 mm

3/8* 9.53 mm

1/2* 12.7 mm

3/4* 19.05 mm

4/5* 20.32 mm

1* 25.9 mm

Alu foil alloy& thk(mm)

3003H18 0.025 0.03

3003H18 0.025 0.03

3003H18 0.04

3003H18:0.04, 0.05,0.06 5052H18:0.04, 0.05,0.06

3003H18:0.04, 0.05,0.06,0.08,0.1 5052H18:0.04, 0.05,0.06

3003H18:0.04,0.05,0.06,0.08,0.1 5052H18:0.04,0.05,0.06

Max expanded

300*300

300*300

1000* 1000

1500* 1500

2000* 1600

2000* 1700

8000*1700

Quality Standard

Product name

Aluminum honeycomb core

Meterial

Aluminum 3003H18 /5052H18

Standard

HB5443-90

Temperature range applied

-55℃~175℃ in long term

Thickness tolerance

±0.1

Cellsize tolerance

within ±10%

Density tolerance

within ±10%

Certificate

ISO9001,ROHS,SGS

Application

Cleaning room;Furniture;Ship;Train;Marine;Aircraft;Partition

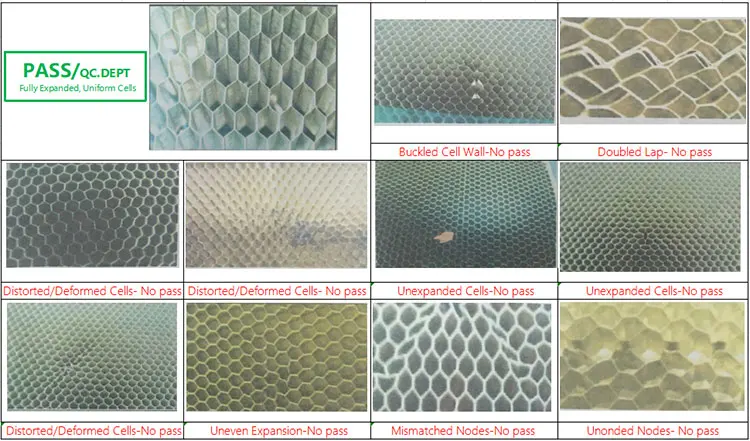

Visual check point

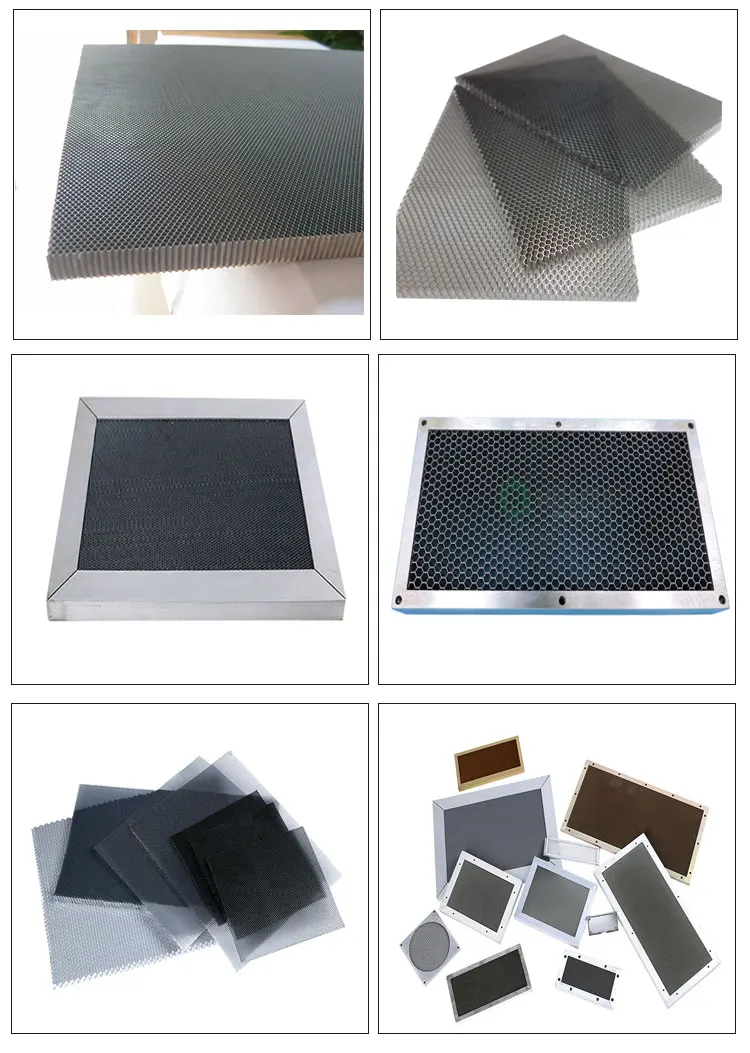

Recommend Products

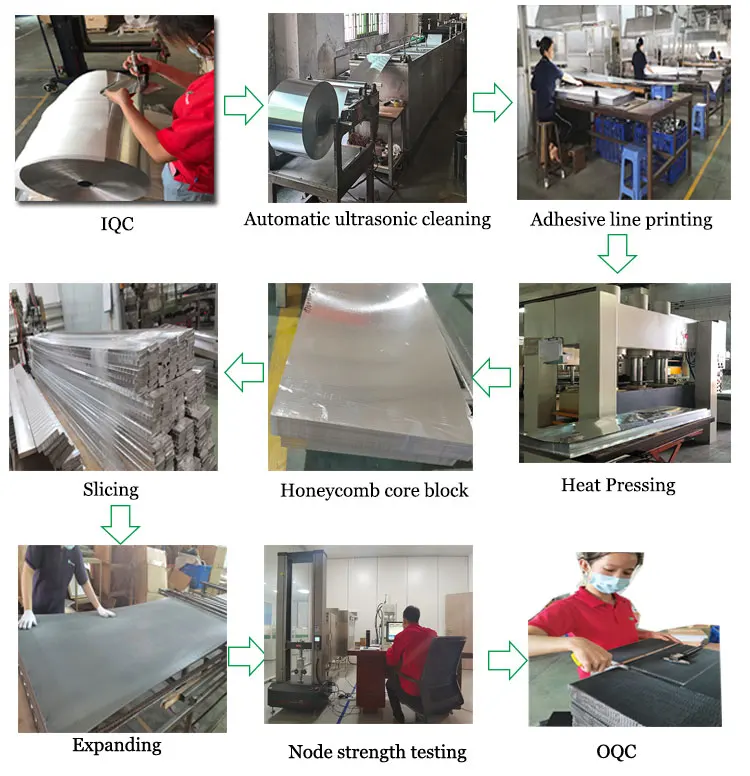

Production process&QC control





Packaging&Shipping





Packing detail:plywood cases delivery

Shipment days:7-30 days after order confirmation
