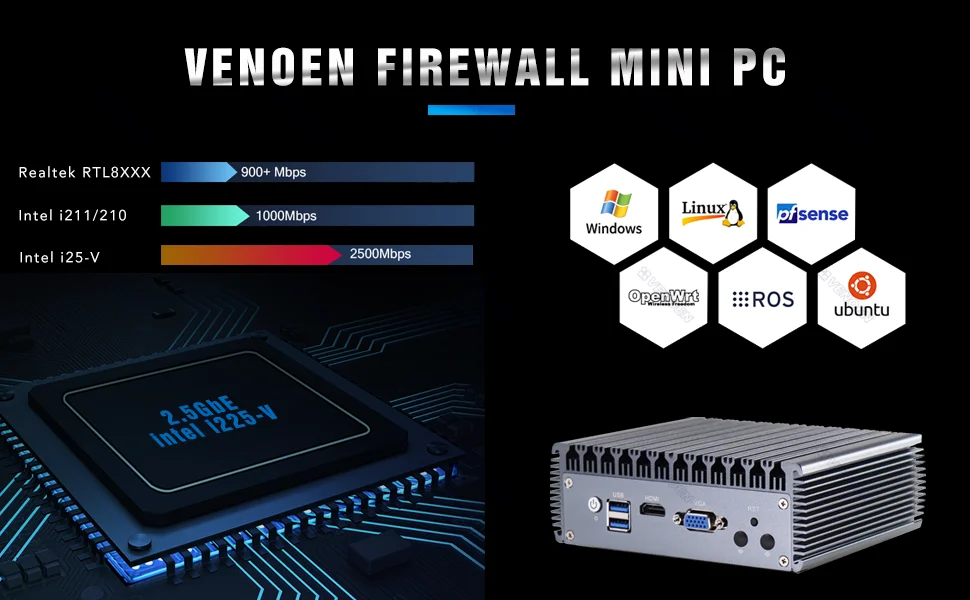

Fanless Industrial Mini PC J4125 Dual display 4 In tel i225 2.5G RJ45 LAN Firewall PFsense Computer Project Desktop Computer
- Category: >>>
- Supplier: Xuzhou Venoen Technology Co. Ltd.
Share on (1600464434524):
Product Overview
Description
Product Description
Processor parameter
CPU Celeron J4125 4 cores 4 threads 2.0GHz up to 2.7GHz 4MB cache TDP 10W Intel UHD Graphics 600, AES-NI supported.
CPU Celeron N5105 4 cores 4 threads 2.0GHz up to 2.9GHz 4 MB L3 Cache TDP 10W Intel UHD Graphics, AES-NI supported.
Features
1. Support 1 x HD-MI+1 x VGA dual display output syn and asy.
2. 1 x SIM slot(optional), 1 x Mini PCIE port (only support USB protocol), support WiFi/3G/4G(3 choose 1) connection.
3. Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
Features
1. Support 1 x HD-MI+1 x VGA dual display output syn and asy.
2. 1 x SIM slot(optional), 1 x Mini PCIE port (only support USB protocol), support WiFi/3G/4G(3 choose 1) connection.
3. Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
Basic Information: | ||
CPU | In-tel Ce-leron Processor J4125 Quad Core | |
TDP | 10W | |
Memory | Support 1 x DDR4 SO-DIMM memory slot up to 16GB | |

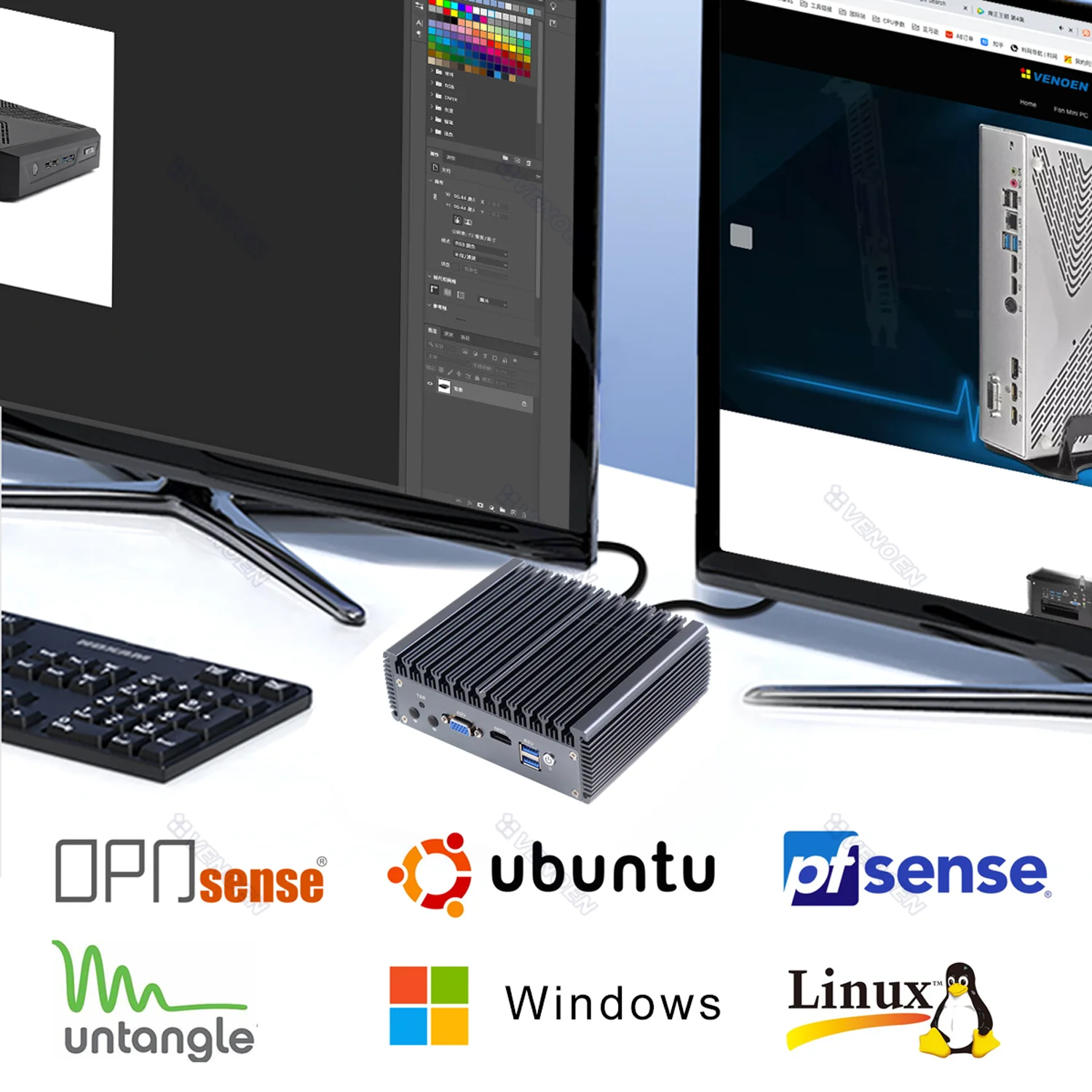

OS | Win-dows 8,10 Linux, ubuntu, OPNsense, pfSense | |
PXE | YES | |
Audio | Realtek High Definition Audio | |

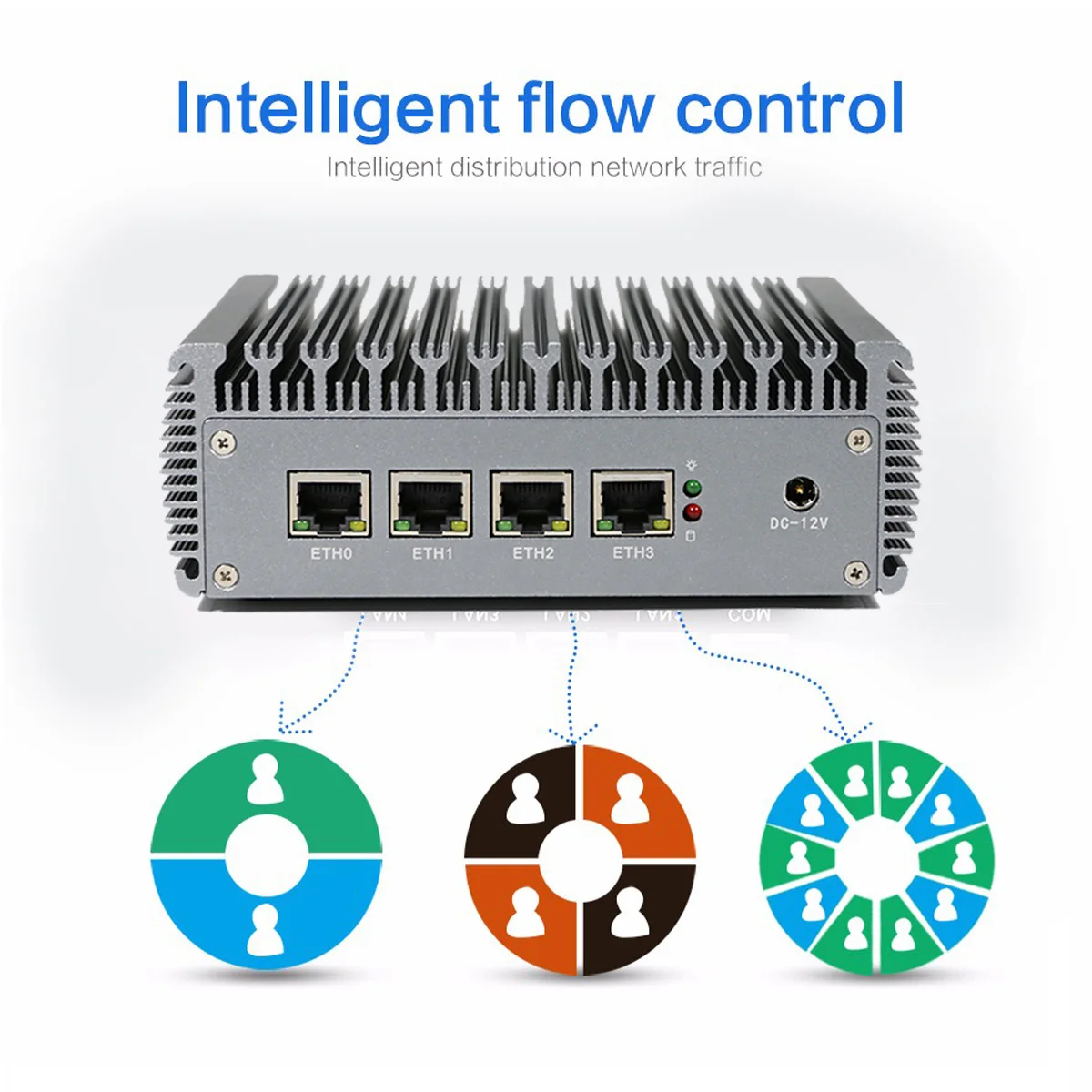

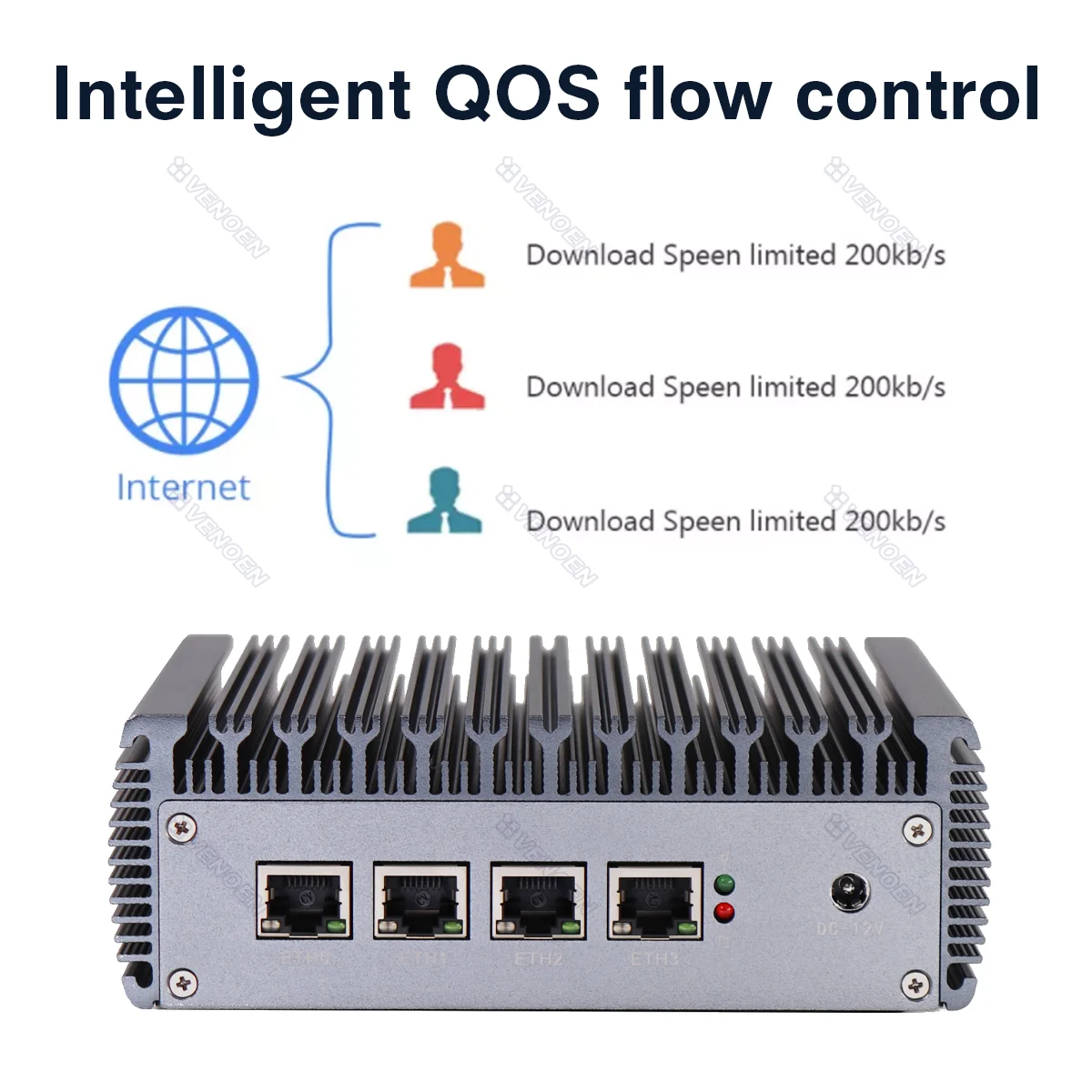

Network | 4 x GbE RJ45 Intel I225 Support PXE booting and remote wake-up | |
Video | In-tel HD Graphics 600 | |

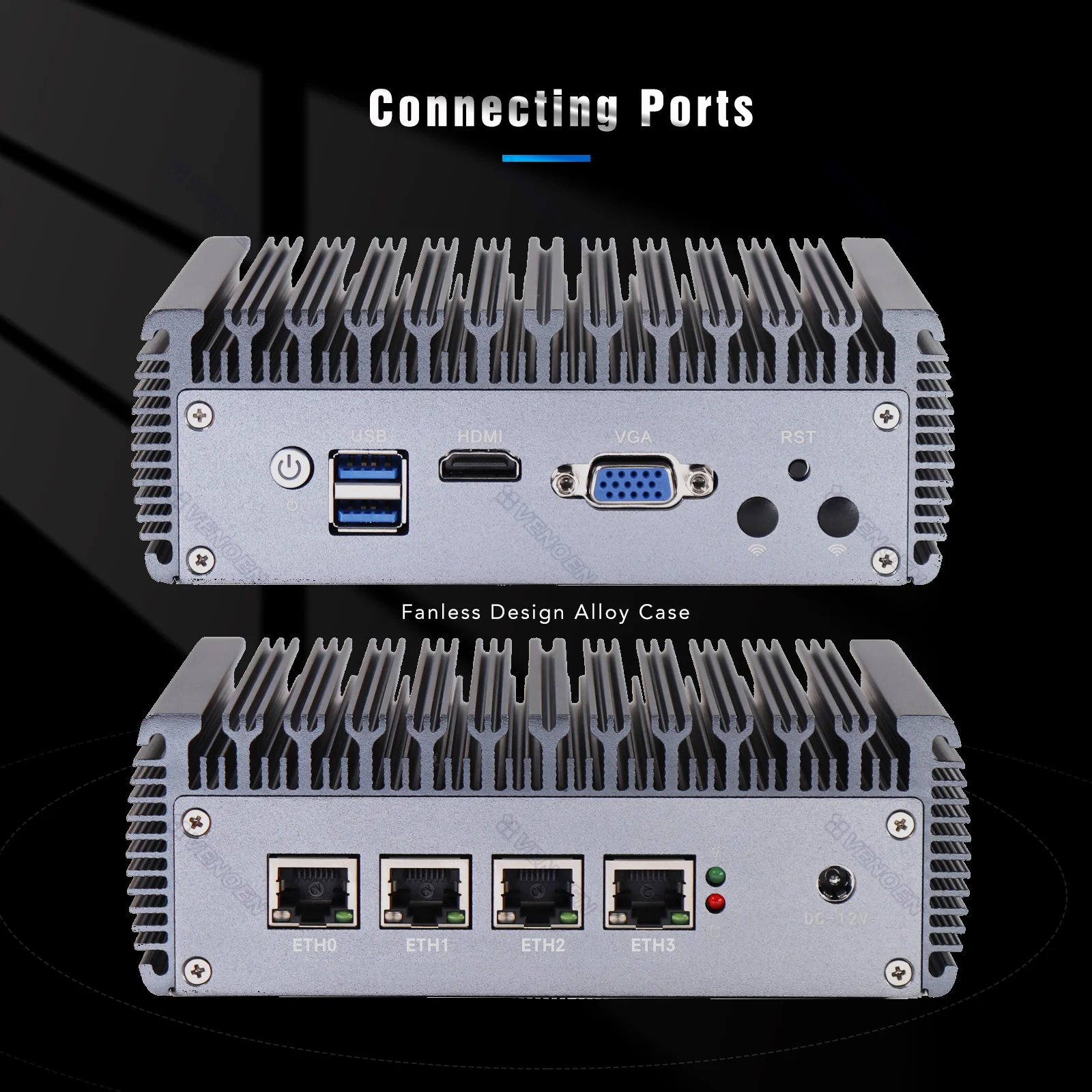

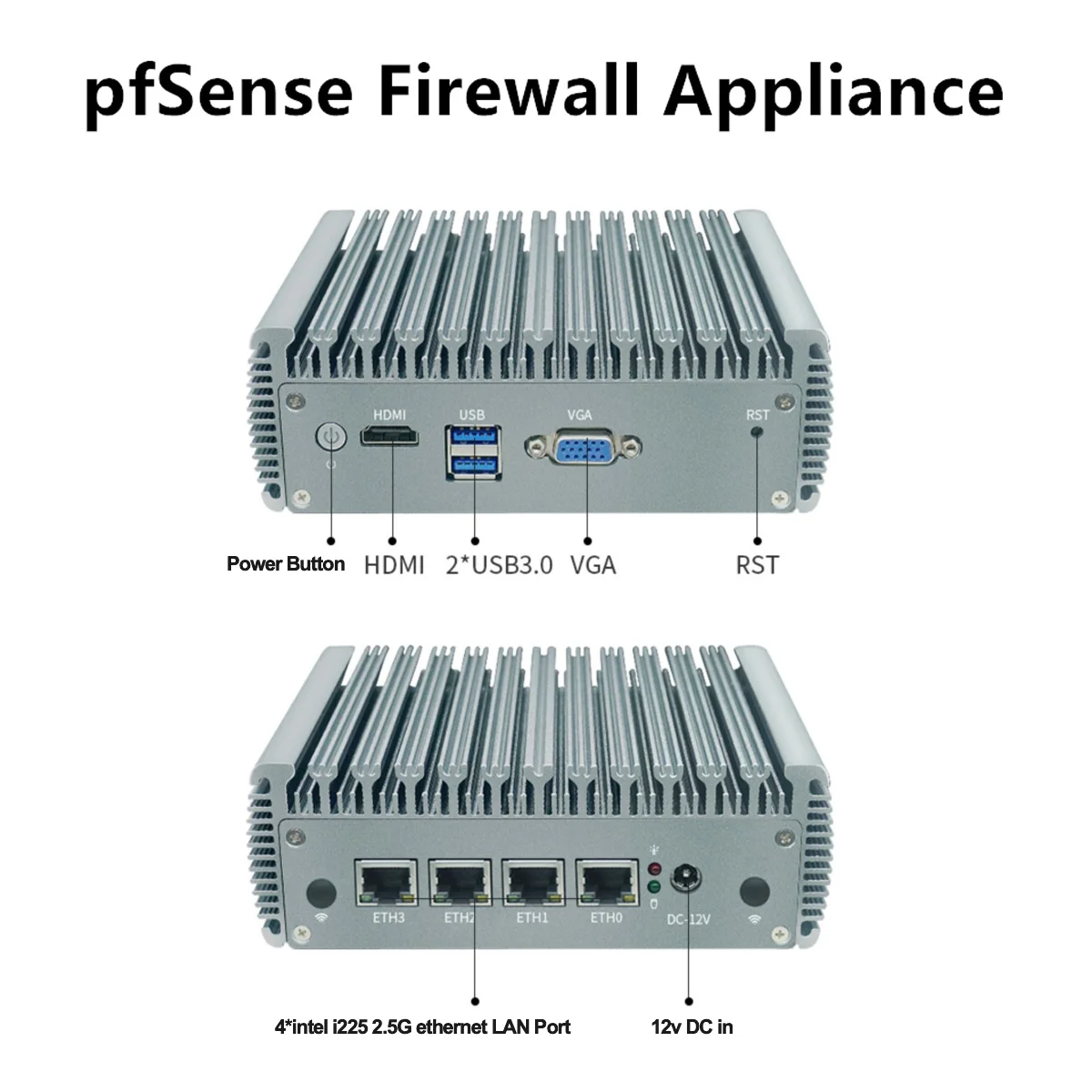

External I/O | ||
Switch | 1 x Power Button, 1 x Reset Button | |
USB | 2 x USB 3.0 | |
Display | 1 x HD-MI , 1 x VGA | |
LAN | 4 x RJ 45 Intel i2225 | |

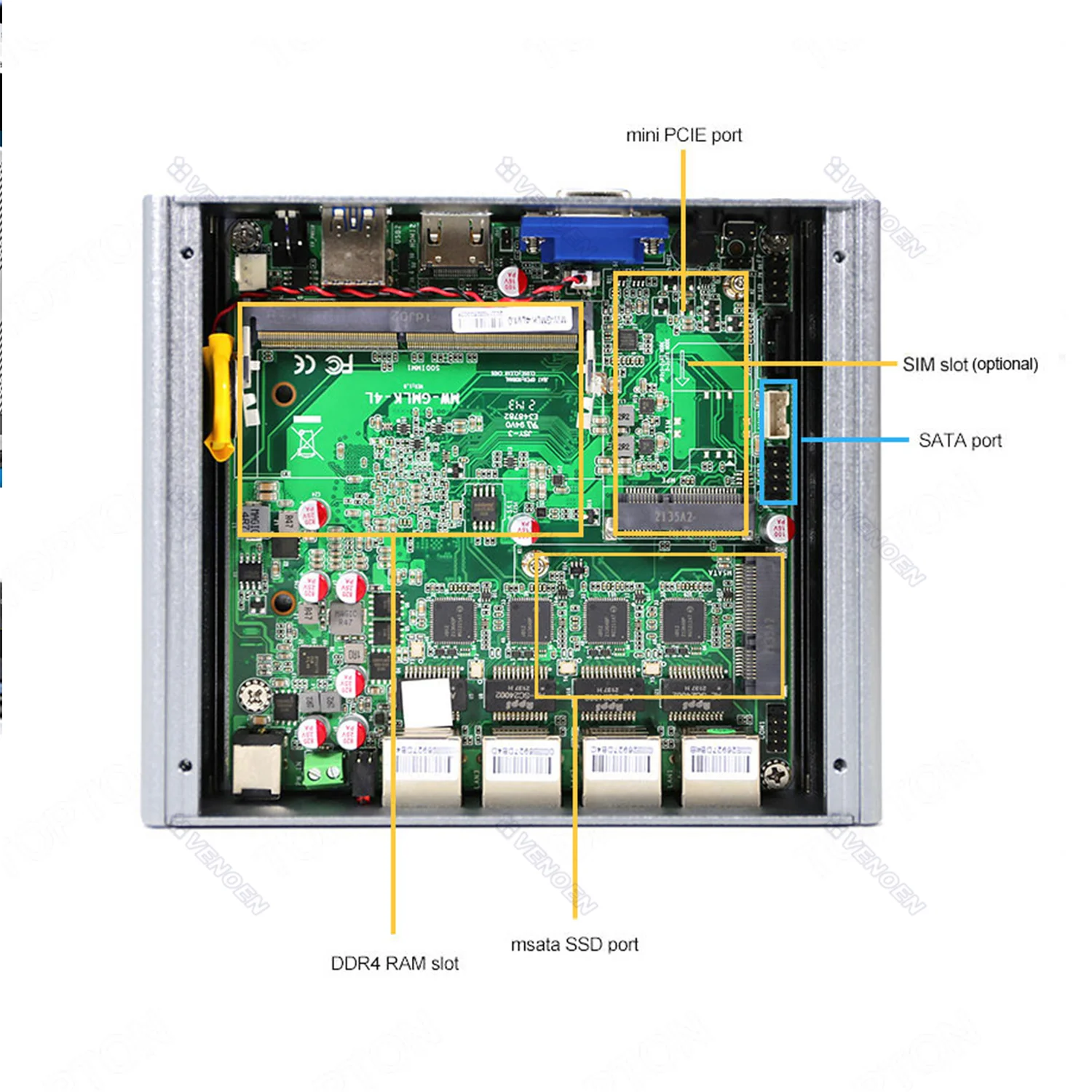

Internal I/O | 1 x SIM slot(optional), 1 x Mini PCIE port (only support USB protocol), support WiFi/3G/4G(3 choose 1) connection | |
Storage | ||
mSATA | 1 x mSATA3.0 SSD for mSATA SSD | |

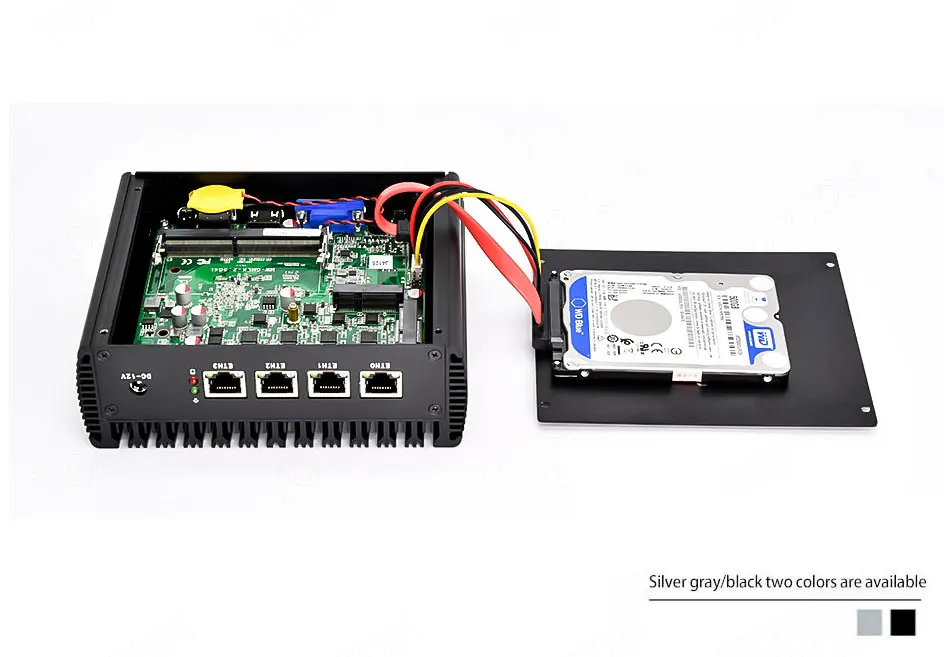

SATA | 1 x SATA3.0 slot for 2.5 inch SATA HDD/SSD | |
Wi-Fi | ||
Module | 1 x half height Mini PCI-E Wi-Fi Module (only support USB protocol) | |
Antenna | 2 x inner antennas and 2 x outer antenn | |
Power and Working Environment | ||
Input | 12-19V | |
Output | 12V 5A External Power Adapter | |
Operating Temperature | -10/70 Centigrade | |
Relative Humidity | 0℃~90% (non-condensing) | |
Product Dimension & Details | ||
Size | 125*53*155mm | |
Weight | Net 1.6kg, Gross 1.8kg | |
Cooling Mode | Fanless | |

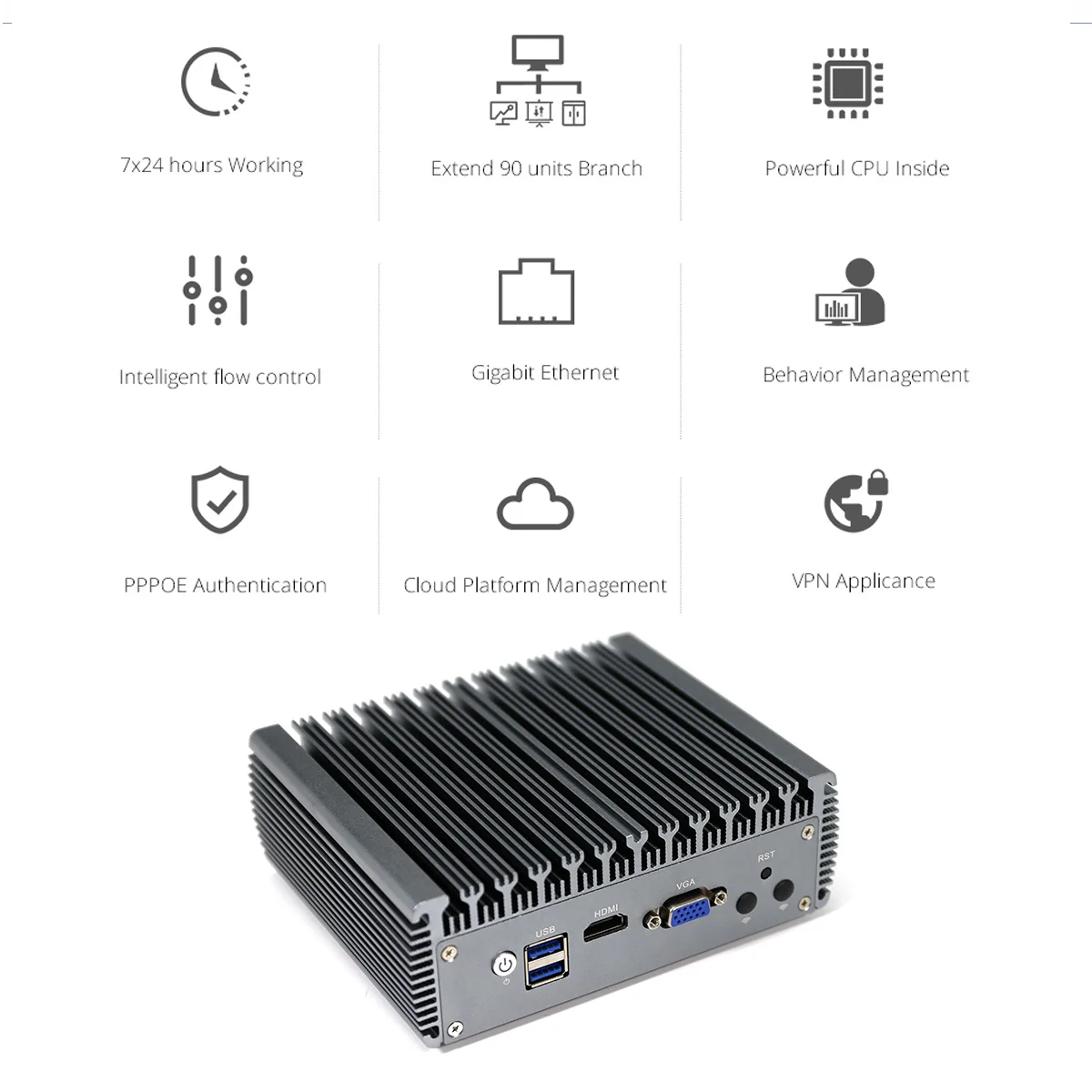

Functions | AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN | |
Package Content | ||
Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 4xMount Screws, 1xHD-MI cable, 1xSATA cable | |
Packing&Shipping
Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Related Products
OEM&ODM Service
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ And so on...
☑ Data Protection
Company Introduction
VENOEN Technology Co., Limited was founded in 2013 in XuZhou as a mini computer developer and wholesaler, our factory is located in Shenzhen, producing and supplying thin client and mini PC since 2006. There are 10 professional international sales person in VENOEN overseas sales offices, most of them has 3 to 8 years international sales experience; 5 technical support team has 10 years computer support experience and also support technical guidance in our factory since 2006.
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
We support retail, wholesale or agency of mini PC, OEM and ODM service and Drop Shipping services to all over the world.
As Quality is our culture, we fully believe quality is the soul of an enterprise, all our products are high quality finishes with
CE, RoHS, FCC, SGS, certifications, with 3 years warranty and competitive price, our products will give you an edge over your competitors;
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q5.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
