Product Overview
Description
Model | OK-GF 4/1 | OK-XGF6/1 | OK-XGF8/3 | OK-GF12/4 | OK-GF 18/6 | OK-GF24/6 |
Filling Heads | 4 | 6 | 8 | 12 | 18 | 24 |
Capping Heads | 1 | 1 | 3 | 4 | 6 | 6 |
Capacity(BPH) | 300-500 | 600-800 | 1000-1200 | 1800-2000 | 2500-3000 | 4000-6000 |
Weight | 800KG | 1200KG | 2000KG | 2500KG | 3200KG | 4200KG |
Motor Power | 2.2KW | 3.7KW | 5.5KW | 7.5KW | 11KW | 15KW |
Washing part
Function : washing bottle inside and outside dust . <1>All 304/316stainless steel rinse heads, water spray style inject design,
more save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during
washing <3> 304/316 stainless steel washing pump
more save water consumption and more clean <2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during
washing <3> 304/316 stainless steel washing pump
No Dead Corner top tank
1.The top tank is with round or semi round design no dead corner, more easy Cleaning
2.Double jacket hopper optional
3.Mixing system optional
4.CIP system optional
5. 304SS constuction material, 316SS for option
2.Double jacket hopper optional
3.Mixing system optional
4.CIP system optional
5. 304SS constuction material, 316SS for option
Washing part
Function : washing bottle inside and outside dust .
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump
1)This machine has compact structure, flawless control system, and is convenient To operate with high grade automatism
2)All the parts contacting the media are made of high quality stainless steel, Able to bear corrosion and easily rinsed
3)Adopts high precision and high speed ration filling valve so that the oil level is exact with loss, ensuring high quality filling level

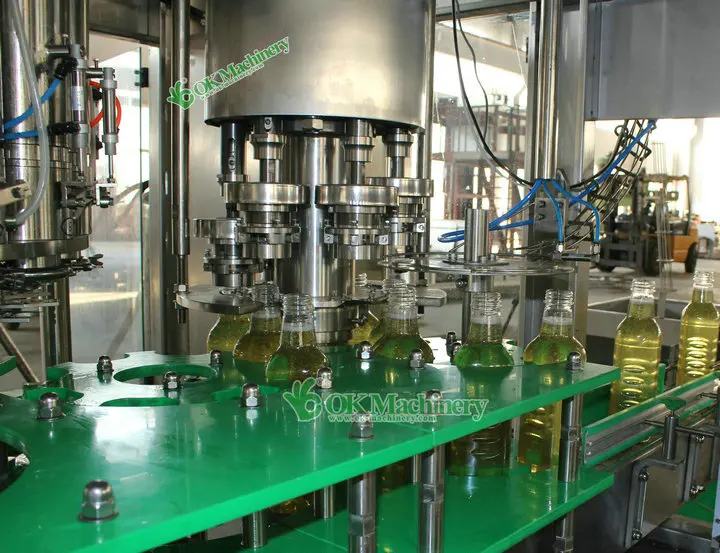

4)The capping head has constant twisting movement, which ensures capping Quality, without damaging caps
5)Adopts high efficiency cap tidying system, with flawless equipment for feeding caps and protecting
6)Needs only to change the pinwheel, bottle entering screw and arched board when changing bottle models, with simple and convenient operation
7)There is flawless equipment for overload protecting, which can protect effectively machine and operator safety

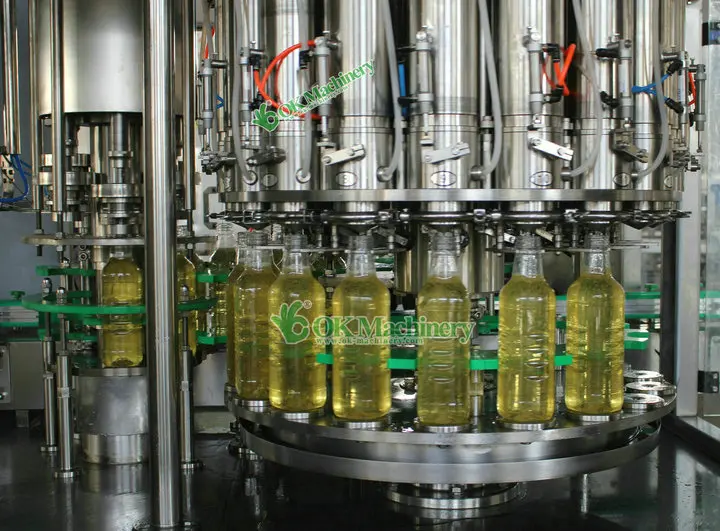

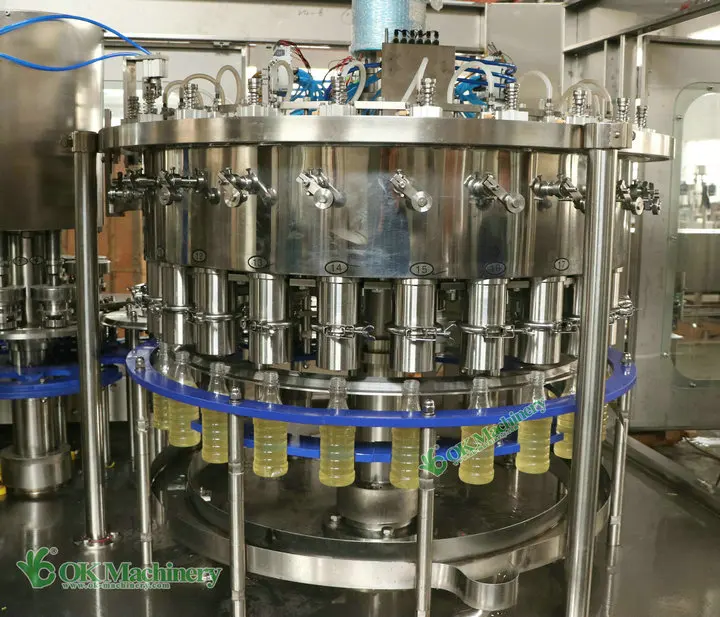

The operational process of filling machine is as below: bottles separated by bottle – in screw are transferred to filling units by star wheel. Bottles are stablized by the bottle – neck supporting gripper. The weighing type filling principle is adopted that the filling amount is reached when the accumulated amount reaches certain preset number. The filled bottle will be conveyed to the capping unit by transition star – wheel. Bottles under the capper are fixed by anti – rotation knife (bottle neck) so as to ensure the bottle is up – right and prevent bottle rotation. Capper in the capping machine keeps revolution while rotation at the same time, movements of cap seizing, cap covering, cap screwing and cap releasing are all done in the function of cam mechanism. Finished product will be transferred to bottle – out conveyor from the capping unit, and conveyed out of the 2 in 1 filling machine.
Production Line Related Machines
oil Bottle blowing machine
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels.
oil bottle Film wrap packing machine
In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine, sometimes called the winding machine and the wrapping machine.
oil bottle Flat Conveyor
- Energy saving. High efficient. Adapt to customer factory layout - Special lubrication system, keep products clean, health, safety .
- Electric eyes design keep whole line running safety and quickly .
- Overload protection mechanism to effectively ensure the safety of the machine.
1. All Stainless Steel
1. Filling machine air conveyor SUS304
2. Washing part SUS304
3. Filling tank and nozzle SUS316
4. Capping heads SUS304
5. Machine frame SUS304
6. Filling machine flat conveyor SUS304
2. Washing part SUS304
3. Filling tank and nozzle SUS316
4. Capping heads SUS304
5. Machine frame SUS304
6. Filling machine flat conveyor SUS304
2. NSK Gear (Janpan)
Nsk Gear use in ok filling machine model list
1. NSK Gear Model 6006
2. NSK Gear Model 6203
3. NSK Gear Model 6805
4. NSK Gear Model 6002 6204 ......
1. NSK Gear Model 6006
2. NSK Gear Model 6203
3. NSK Gear Model 6805
4. NSK Gear Model 6002 6204 ......
3. Festo (Germany)
OK machine control SystemTouch screen SIEMENS
PLC SIEMENS
Inverter SIEMENS
Air action control Festo Germany
AC contactor SIEMENS
PLC SIEMENS
Inverter SIEMENS
Air action control Festo Germany
AC contactor SIEMENS
Packing & Delivery
Company Profile
Shanghai OK Machinery Co., Ltd. is a group company located in Shanghai Pudong Qing Hong Kong Road 1500, we have more than 15 years experiences on beverage machinery and plastic machines. We devote ourselves to the development, research and production of plastic machine and liquid food and beverage packing and filling industry and automatic blow molding machine in China.For beverage machine, our Main products including: The capacity of 5000-- 40000 BPH for hot filling, MID-temp filling, aseptic cold filling lines. The capacity of 5000-- 40000 BPH for mineral water and purified water producing line. The capacity of 5000 --36000 BPH for carbonated beverage producing line. The capacity of 300 -- 2000 TBH, for 3 gallon, 5 gallon. The capacity of 8000 BPH for the volume of 200ml to 500ml in milk packaging. All kinds of water treatment equipment. PET perform inject and blowing-stretching machine. Mould plastics machine Turn-key projects Flat and tube UHT device, and CIP system. All the productsmare sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service. Welcome to visit our company. Thank you!
Installation Instructions
1.Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
2. Installation&Testing
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
3. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
4. After sales
We offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
2. Installation&Testing
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
3. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
4. After sales
We offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
