Integrated Flow highly skilled elevated insulated vessel skid mounted with pipeline loading arm folding stair
- Category: >>>
- Supplier: Shenzhen Autoware Science & Technology Co. Ltd.
Share on (1600464437440):
Product Overview
Description
Product Description

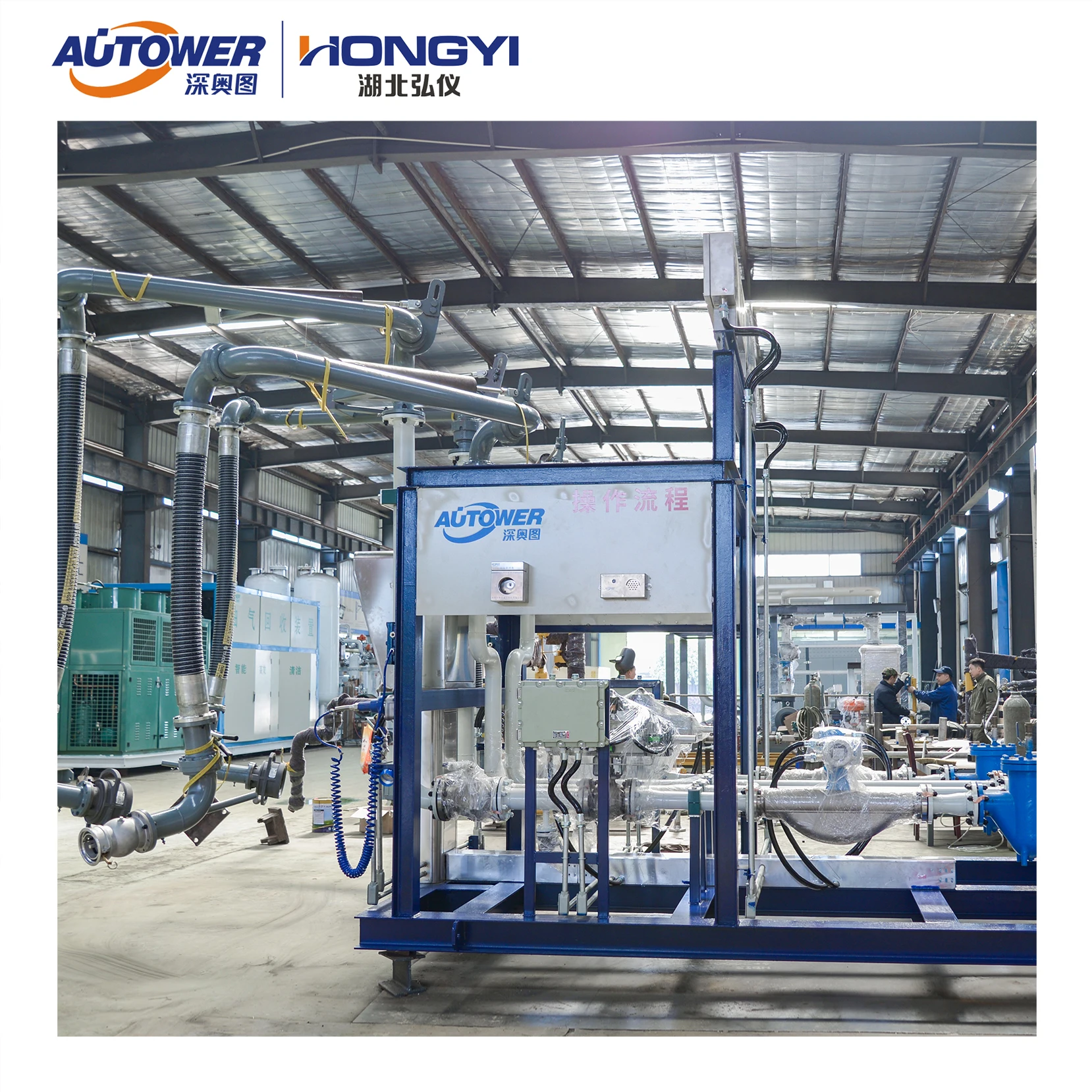

The integration of batch controller, flowmeter, control valves, pipelines, loading arm, cables, grounding and overfill protector etc. on an integrated steel structure platform. The skid will prepare process connections and control power, communication interface for user.
Conventional oil and chemical skid By type of use

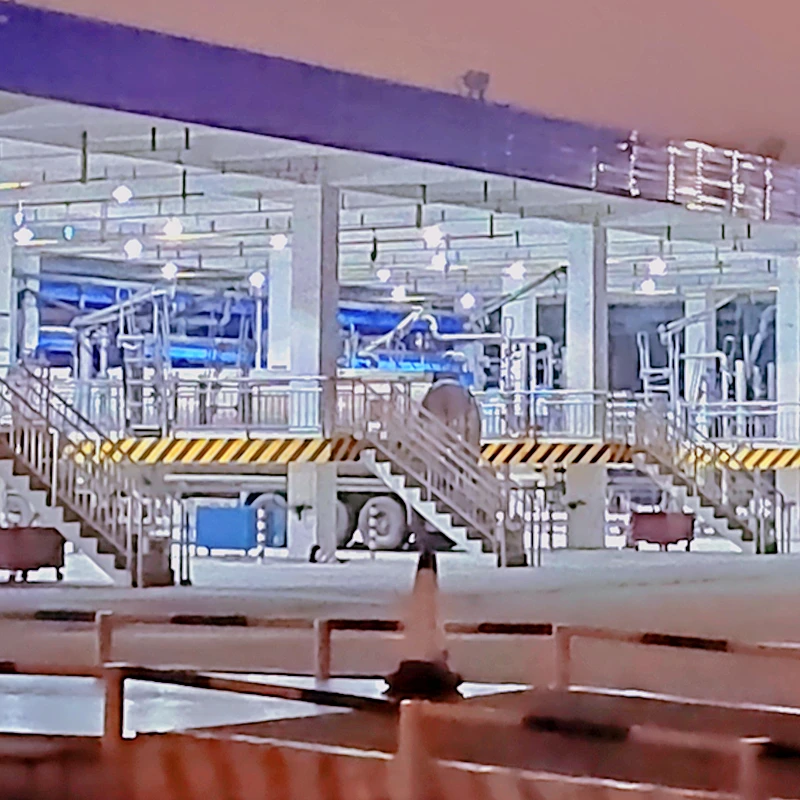

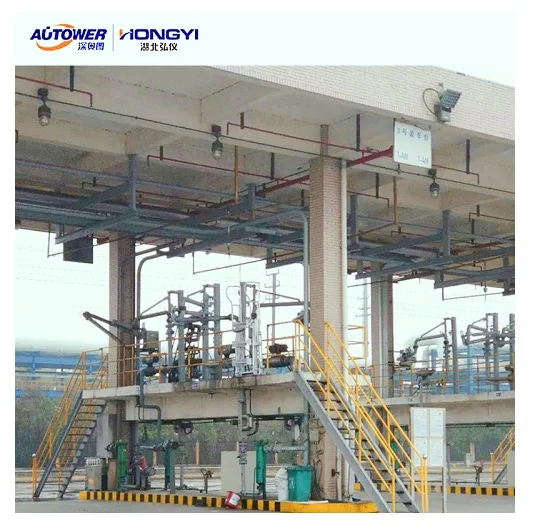

(1)Top loading skid mounted
The top skid-mounted means skid-mounted platform which is used as a skid-mounted assembly provided by the entire skid-mounted frame, and its entire skid level is divided into the following structural parts:
Top loading skid mounted configure 1.Steel skid frame 2.Internal process pipeline3.Skid mounted platform 4.Bobbin platform fence 5.Skid ladder 6.All equipment in the skid: batch controller\\flow meter\\control valve\\overfill grounding protector\\loading arm\\folding stairs. 7.Other accessories. | ||

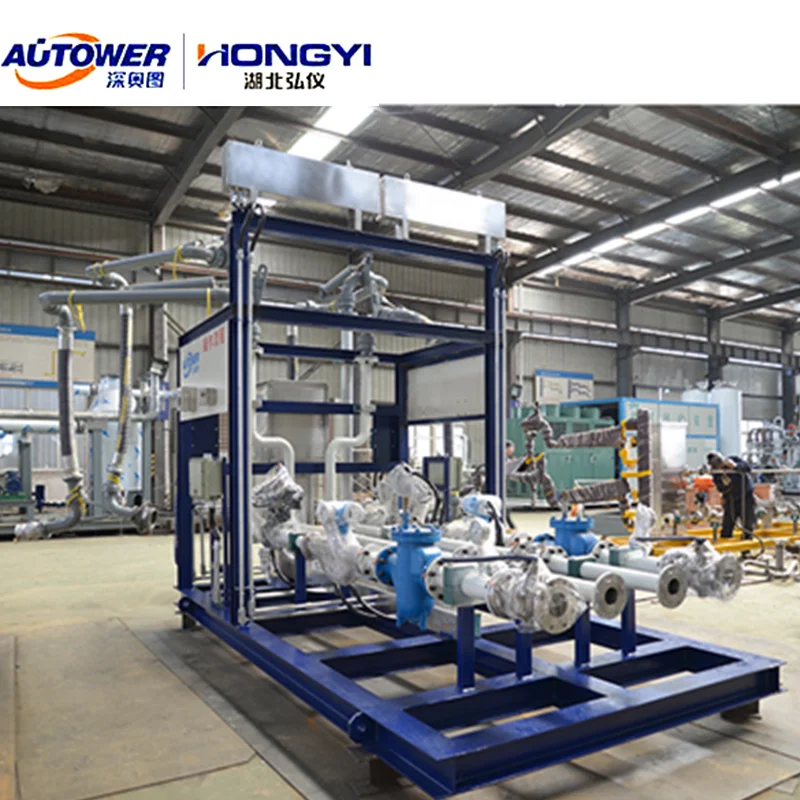

(2)Bottom loading skid
The bottom loading skid is provided by the entire armored frame, suitable for the bottom loading vehicle medium,generally the gas-liquid two-phase medium and other required bottom loading and unloading vehicle media; the wholemodule is divided into the following Several parts.
Bottom loading skid configure 1.steel skid frame 2.inner pipe line and cable3.skid frame 4.All instruments and equipment in the skid such as: batch controller\\flow meter/ control valve\\static grounding and overfill protector\\loading arm. 5.Other accessories | ||

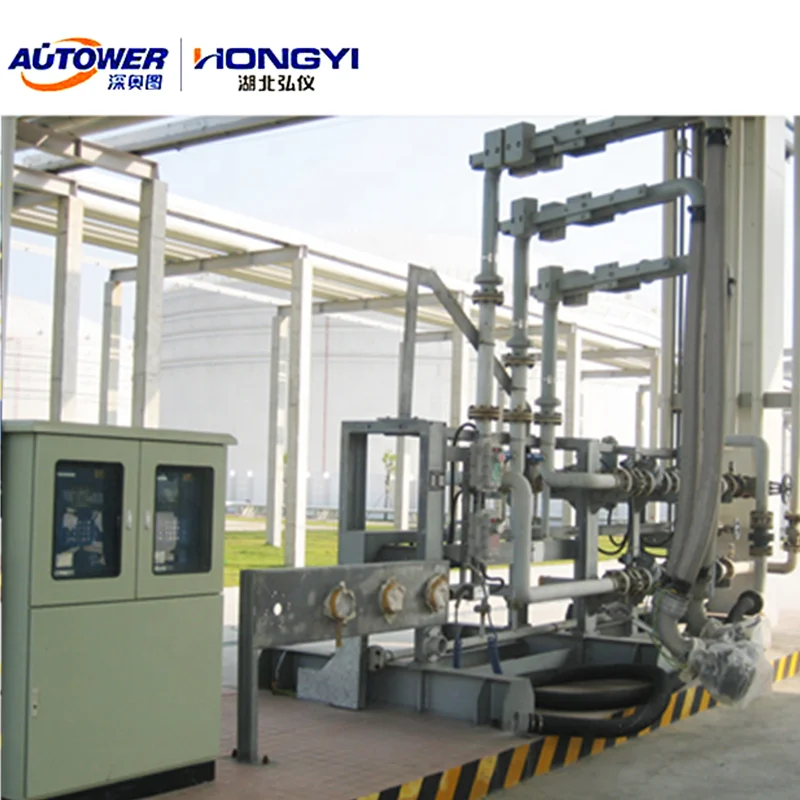

(3)Simple skid
The simple loading skid is suitable for the existing loading platform and frame on site. It only needs to integrate some parts of the automated loading equipment into a small skid group. The whole skid is divided into the following parts:
Simple skid configure 1.steel skid frame 2.inner pipe line and cable3.All instruments and equipment in the skid such as: batch controller\\ control valve\\flow meter/static grounding and overfill protector\\loading arm. 4.Other accessories | ||
(4)Movable loading skid
The movable loading skid is suitable for the loading platform which is not fixed on site. The Skid-mounted system group is made into a movable skid, and the skid has a movable structural device, and the whole skid is divided into the following parts:
Movable loading skid configure 2.inner pipe line and cable 3.All instruments and equipment in the skid such as: batch controller\\ control valve\\flow meter/static grounding and overfill protector\\loading arm. 4.Other accessories | ||
