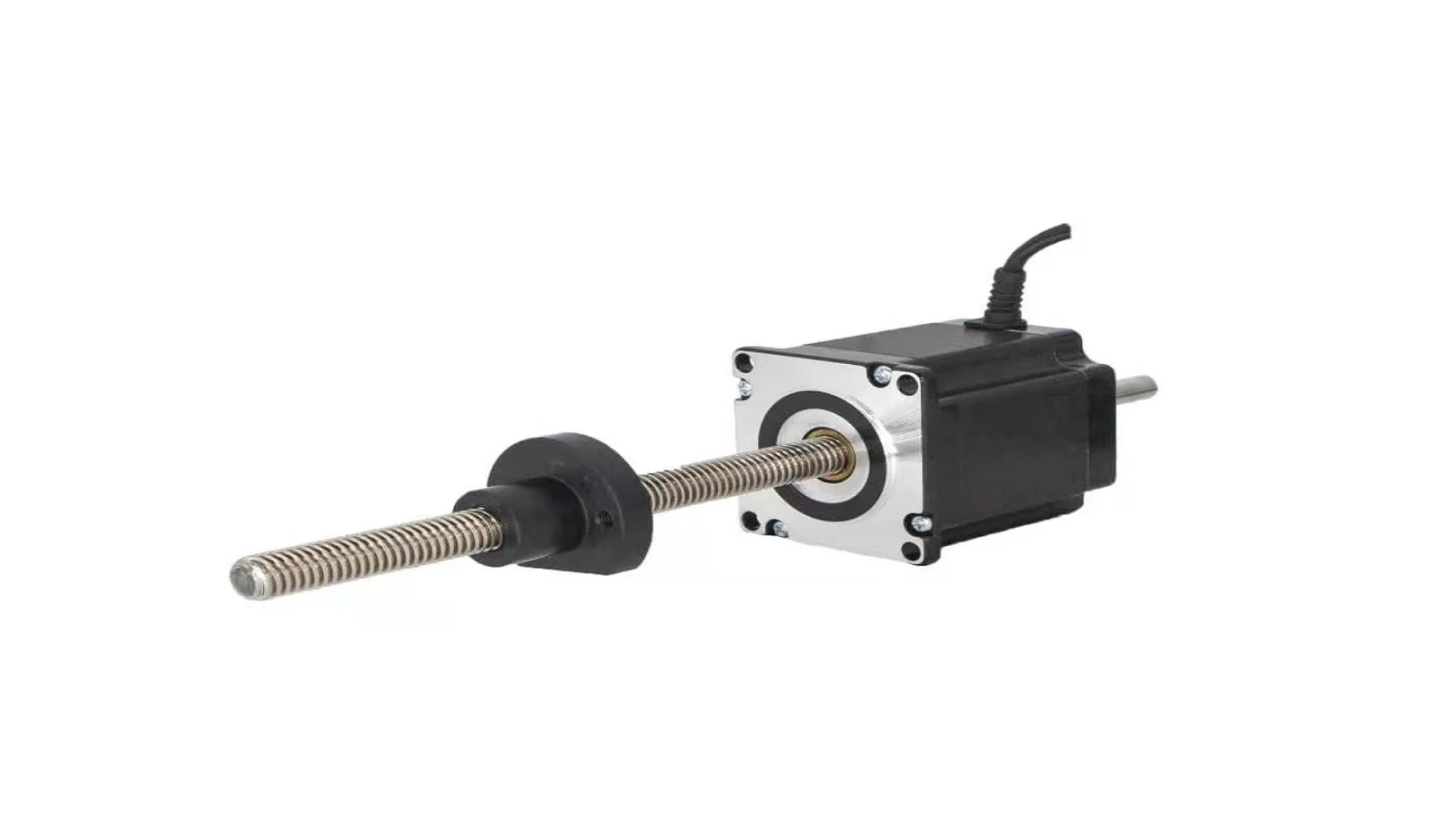

4.76mm diameter Smooth Lead Screw small size leadshine 1mm 2mm 4mm 8mm for CNC 3D Printer High efficiency Trapezoidal lead screw
- Category: >>>
- Supplier: Ningbo Smooth Electric Manufacture Co. Ltd.
Share on (1600464442597):
Product Overview
Description
Product Description
* Smooth screw thread mainly has 30° trapezoidal standard thread and 29° ACME thread, and also provides left-threaded guide screw and customized non-standard thread.
* The diameter of the screw rod can be processed from φ3.2 to φ30, and the lead ranges from 0.5m to 25.4m. The accuracy of the screw rod and various styles of ordinary nuts can reach 0.05m/ 30m.
* The accuracy of the anti-backlash nut of different styles can reach 0.02m/ 30m when used in combination, and the precise and repeatable positioning accuracy of the position is less than 0.01m.
* The accuracy of the anti-backlash nut of different styles can reach 0.02m/ 30m when used in combination, and the precise and repeatable positioning accuracy of the position is less than 0.01m.
Screw parameters
Dia. mm | Lead in mm | Pitch mm | Num. of threads | Dia. mm | Max.curvature (mm) | Transmission EFF(mm/300mm) | Nut options | ||
3/16 (4.76mm) | 0.02 | 0.508 | 0.508 | 1 | 4.75 | 0.2 | 30 | SM(C/D) series LCC series | |
0.024 | 0.6096 | 0.6096 | 1 | 4.75 | 0.2 | 31 | |||
0.025 | 0.635 | 0.635 | 1 | 4.75 | 0.2 | 32 | |||
0.048 | 1.2192 | 1.2192 | 1 | 4.75 | 0.2 | 50 | |||
0.05 | 1.27 | 1.27 | 1 | 4.76 | 0.2 | 52 | |||
0.096 | 2.4384 | 1.2192 | 2 | 4.75 | 0.2 | 66 | |||
0.1 | 2.54 | 1.27 | 2 | 4.75 | 0.2 | 67 | |||
0.1875 | 4.7625 | 1.19 | 4 | 4.75 | 0.2 | 78 | |||
0.192 | 4.8768 | 1.2192 | 4 | 4.75 | 0.2 | 79 | |||
0.2 | 5.08 | 1.27 | 4 | 4.75 | 0.2 | 84 | |||
0.375 | 9.525 | 1.19 | 8 | 4.78 | 0.2 | 84 | |||
0.427 | 10.85 | 1.206 | 9 | 4.78 | 0.2 | 85 | |||
screw nuts
Engineering Plastic Nut | Metal Nut | Anti-backlash Nut | Customized Nut |
*pls contact us for more options

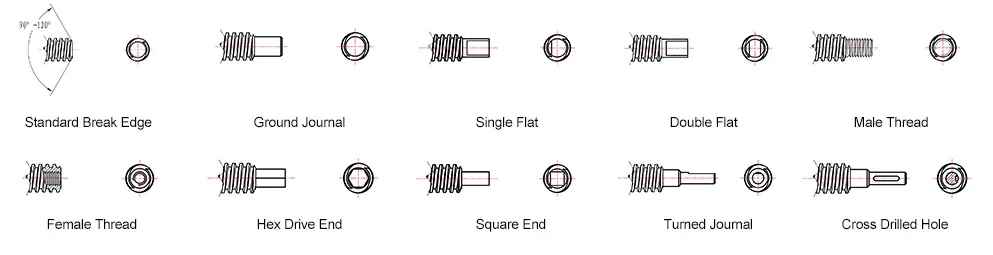

Screw end machning

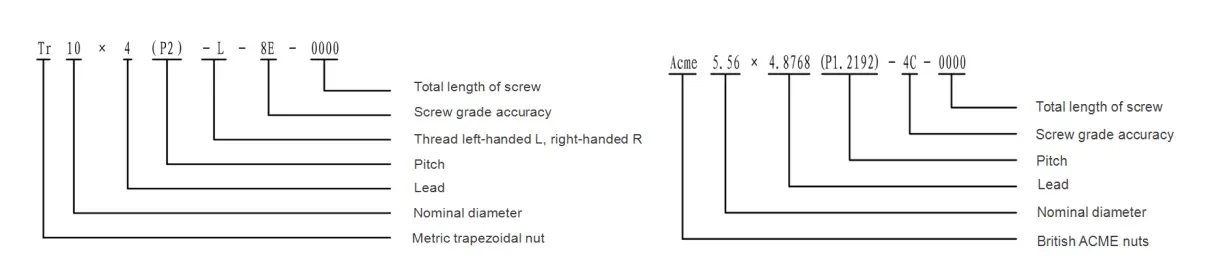

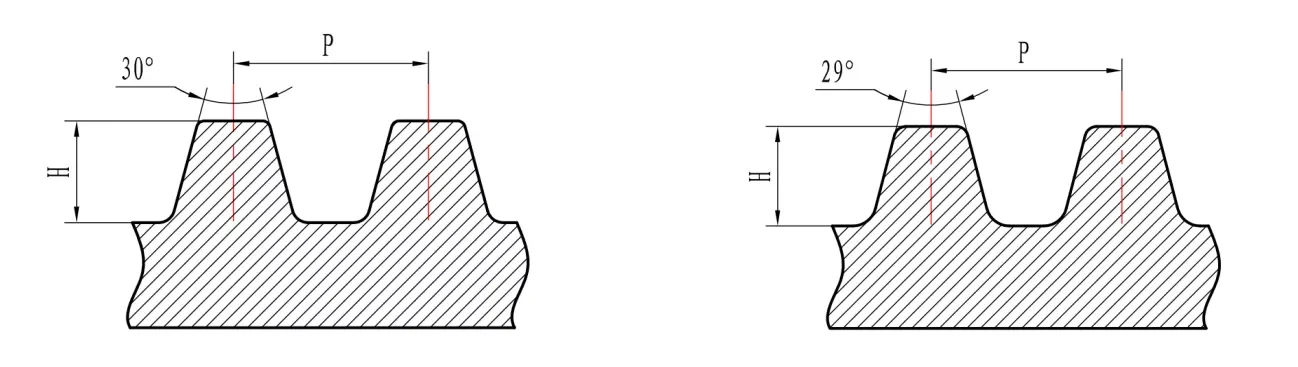

Thread Introduction
Standard trapezoidal thread | Standard ACME thread |
Metric | Imperial |
Packaging & Shipping
1. Each one with a pipe sleeve, well fixed in a strengthen carton box.
2. Express: TNT, Fedex, DHL or other service is available.
3. Shipment: Speficied vendor is also accepted.
4. By air is a good option also.
2. Express: TNT, Fedex, DHL or other service is available.
3. Shipment: Speficied vendor is also accepted.
4. By air is a good option also.
Our Services
1. 20 years experience in motion solutions of various industrial applications;
2. With the engineering, manufacturing and support teams across the globe;
3. Providing the trusted linear actuators, stepper motors and customized motion assemblies;
2. With the engineering, manufacturing and support teams across the globe;
3. Providing the trusted linear actuators, stepper motors and customized motion assemblies;
Company Information
From medical devices to various industrial applications, Smooth motor provide the trusted linear actuators, stepper motors and
custom engineered linear motion assemblies, in every phase of the product development, from selecting an optimal motion solution
to customizing products, to solve the motion needs of a spectrum of end markets.
custom engineered linear motion assemblies, in every phase of the product development, from selecting an optimal motion solution
to customizing products, to solve the motion needs of a spectrum of end markets.
FAQ
1. What's the warranty:
1 year or custom, depends on the application.
2. It is the custom product available?
Smooth motor is flexible to provide customizing products, we are happy and always ready to assist to built the prototype and bring
it into production.
3. It is easy to have the support from Smoothmotor?
Because of the well structured management team and growing dealer system, Smooth motor can respond quickly to customer needs and
even provide local support and collaboration to win the market.
4. Sample for testing is available?
Yes, we recommend samples for testing before order, standard or custom ones is accepted.
1 year or custom, depends on the application.
2. It is the custom product available?
Smooth motor is flexible to provide customizing products, we are happy and always ready to assist to built the prototype and bring
it into production.
3. It is easy to have the support from Smoothmotor?
Because of the well structured management team and growing dealer system, Smooth motor can respond quickly to customer needs and
even provide local support and collaboration to win the market.
4. Sample for testing is available?
Yes, we recommend samples for testing before order, standard or custom ones is accepted.
Specification
item | value |
Condition | New |
Warranty | 6 months |
Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Farms, Construction works |
Weight (KG) | 0.3 |
Showroom Location | Germany, South Korea |
Video outgoing-inspection | Not Available |
Machinery Test Report | Not Available |
Marketing Type | New Product 2022 |
Warranty of core components | 1 Year |
Core Components | Bearing, Motor |
Manufacturing Process | Rolled Thread |
Material | SUS304 |
Length | custom |
Place of Origin | Zhejiang,China |
Brand Name | smooth |
Lead pitch | |
lead | |
Nut type | Engineering, Metal, Anti-backlash and Customized Nut |
Packing & Delivery
carton

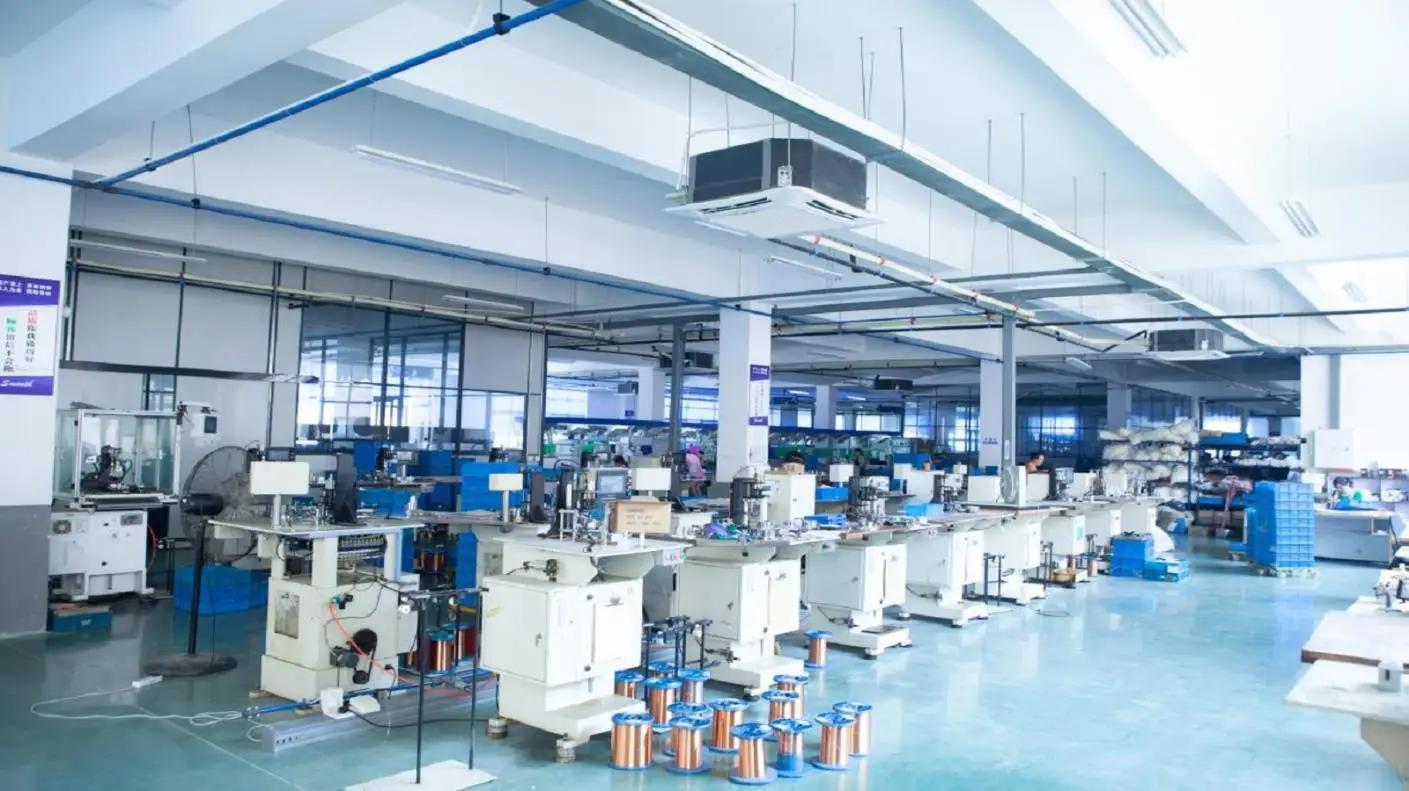

Company Profile
