SBC linear guideway Linear Slider SBI20FLL SBI20FLL K1 SBI20FLL K2 SBI20FLL C K1 SBI20FLL C K2
- Category: >>>
- Supplier: Jinan RHD Bearing Co. Ltd
Share on (1600464454999):
Product Overview
Description
Product Description
SBC LINEAR BEARING SBI20FLL SBI20FLL-K1 SBI20FLL-K2 SBI20FLL-C-K1 SBI20FLL-C-K2

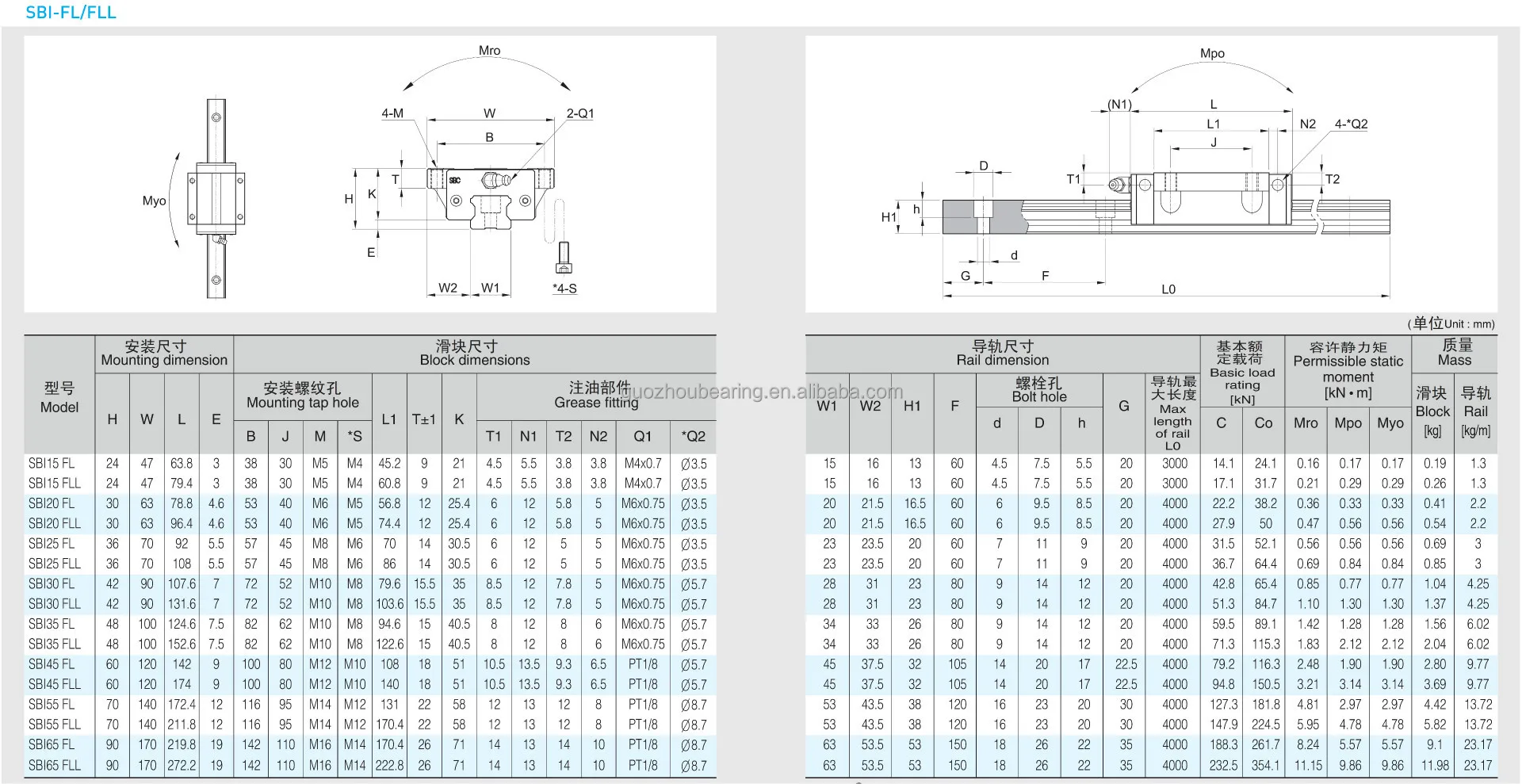

| Model | Mounting dimension | Block dimensions | |||||||||
| H | W | L | E | Mounting tap hole | L1 | T±1 | K | ||||
| B | J | M | *S | ||||||||
| SBI15 FLS | 24 | 47 | 56.8 | 3 | 38 | 30 | M5 | M4 | 38.2 | 11 | 21 |
| SBI15 FL | 24 | 47 | 63.8 | 3 | 38 | 30 | M5 | M4 | 45.2 | 9 | 21 |
| SBI15 FLL | 24 | 47 | 79.4 | 3 | 38 | 30 | M5 | M4 | 60.8 | 9 | 21 |
| SBI20 FLS | 30 | 63 | 73.8 | 4.6 | 53 | 40 | M6 | M5 | 51.8 | 12 | 25.4 |
| SBI20 FL | 30 | 63 | 78.8 | 4.6 | 53 | 40 | M6 | M5 | 56.8 | 12 | 25.4 |
| SBI20 FLL | 30 | 63 | 96.4 | 4.6 | 53 | 40 | M6 | M5 | 74.4 | 12 | 25.4 |
| SBI25 FLS | 36 | 70 | 83 | 5.5 | 57 | 45 | M8 | M6 | 61 | 13 | 30.5 |
| SBI25 FL | 36 | 70 | 92 | 5.5 | 57 | 45 | M8 | M6 | 70 | 13 | 30.5 |
| SBI25 FLL | 36 | 70 | 108 | 5.5 | 57 | 45 | M8 | M6 | 86 | 13 | 30.5 |
| SBI30 FLS | 42 | 90 | 96.8 | 7 | 72 | 52 | M10 | M8 | 68.8 | 15.5 | 35 |
| SBI30 FL | 42 | 90 | 107.6 | 7 | 72 | 52 | M10 | M8 | 79.6 | 15.5 | 35 |
| SBI30 FLL | 42 | 90 | 131.6 | 7 | 72 | 52 | M10 | M8 | 103.6 | 15.5 | 35 |
| SBI35 FLS | 48 | 100 | 108.2 | 8 | 82 | 62 | M10 | M8 | 78.2 | 15 | 40.5 |
| SBI35 FL | 48 | 100 | 124.6 | 7.5 | 82 | 62 | M10 | M8 | 94.6 | 15 | 40.5 |
| SBI35 FLL | 48 | 100 | 152.6 | 7.5 | 82 | 62 | M10 | M8 | 122.6 | 15 | 40.5 |
| SBI45 FL | 60 | 120 | 142 | 9 | 100 | 80 | M12 | M10 | 108 | 18 | 51 |
| SBI45 FLL | 60 | 120 | 174 | 9 | 100 | 80 | M12 | M10 | 140 | 18 | 51 |
| SBI55 FL | 70 | 140 | 172.4 | 12 | 116 | 95 | M14 | M12 | 131 | 22 | 58 |
| SBI55 FLL | 70 | 140 | 211.8 | 12 | 116 | 95 | M14 | M12 | 170.4 | 22 | 58 |
| SBI65 FL | 90 | 170 | 219.8 | 19 | 142 | 110 | M16 | M14 | 170.4 | 26 | 71 |
| SBI65 FLL | 90 | 170 | 272.2 | 19 | 142 | 110 | M16 | M14 | 222.8 | 26 | 71 |
Company Information
Guozhou bearing Co., Ltd. is a professional bearing manufacturer. We are engaged in producing high quality bearings. We can supply various kinds of bearings according to customers' requirements. Our products enjoy great popularity in the worldwide markets Asia, Europe and USA and so on.
Our products includ Deep groove ball bearings, Angular contact ball bearing, Thrust ball bearing, Taper roller bearings, Cylindrical roller bearings, Spherical roller bearings, Thrust roller bearings. We also supply special linear bearing, ceramic bearing, plastic bbearings, textile bearing rotor bearing complete, excavator bearing and so on.
Products are extensively used in machinery, excavator, hydropower, engineering, railways, automobiles, electric power, textiles, metallurgy, mine, papermaking, sports equipment and precision instruments.
