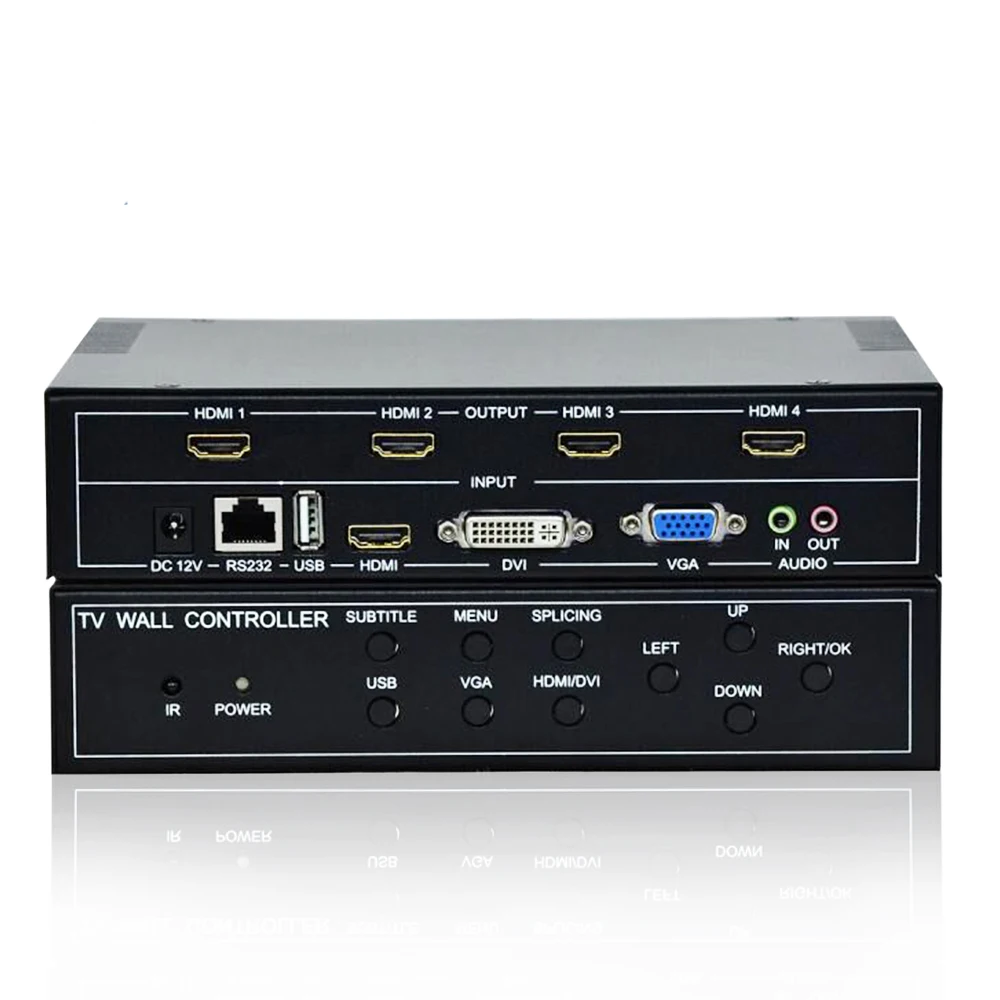

video wall controller 1X2 1x3 1x4 2x2 2x3 3x3 USB VGA HDM I DVI TV video wall controller

Name

Specification

Input signal

VGA Signal

HD15 interface，Binding 1way 3.5 audio port；support 640x480/85Hz to 1920x1200/60Hz；

HDMI Signal

HDMI1.3(HDCP1.3) DVI1.0，HDMI embedded audio,support max resolution support is 1920x1080/60Hz；

DVI Signal

DVI，support maximum resolution support is 1920x1080/60Hz；

USB

standard USB2.0 port，can connect U-disk and other storage devices; comes with video, audio and picture decoding playing, support
for TXT file playing; support for round-robin playing, pause, fast forward, program list and other functions;

Output signal

video wall controller

HDMI output interface

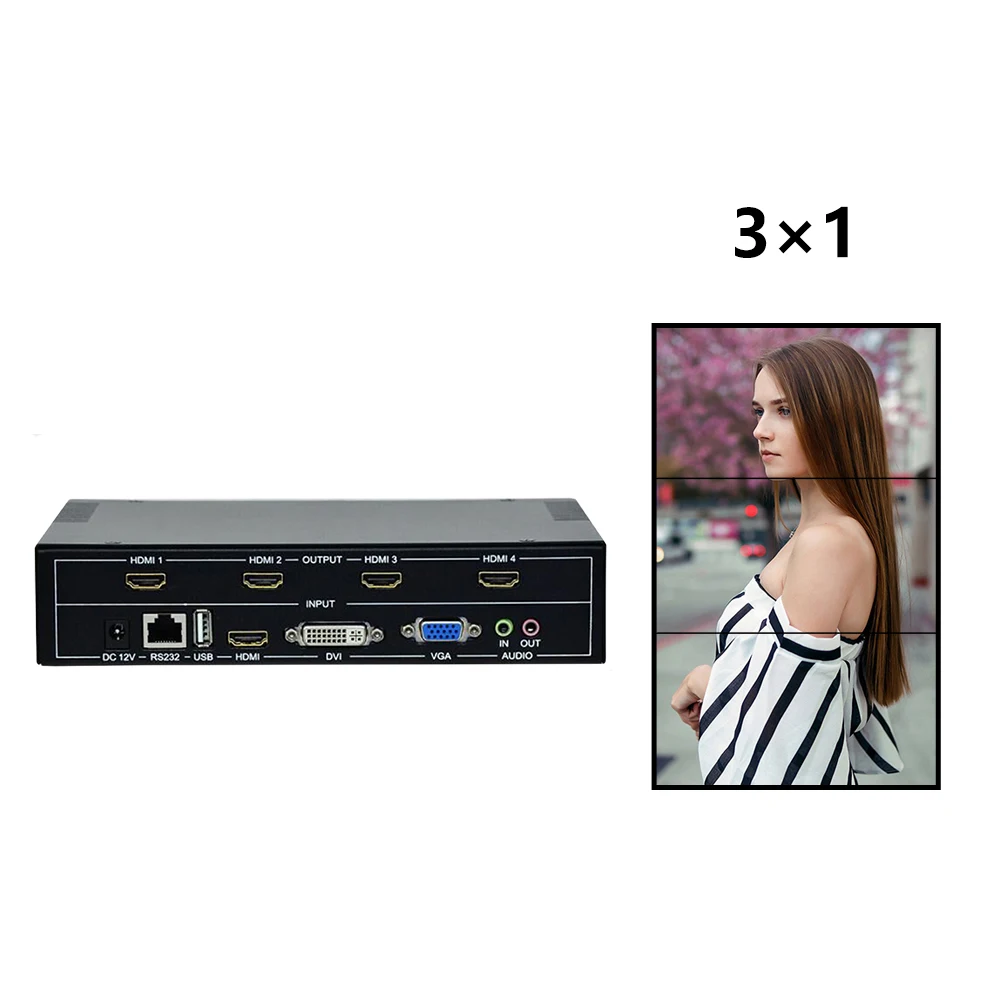

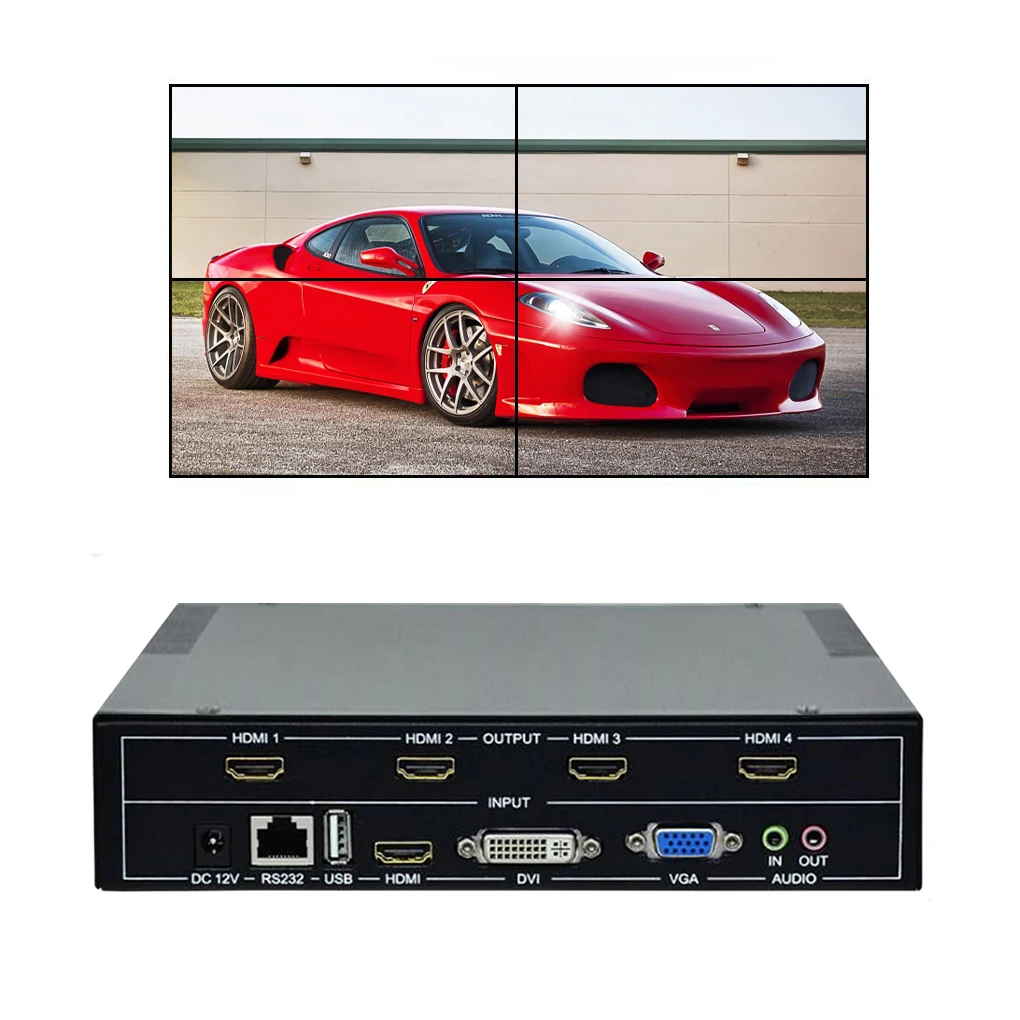

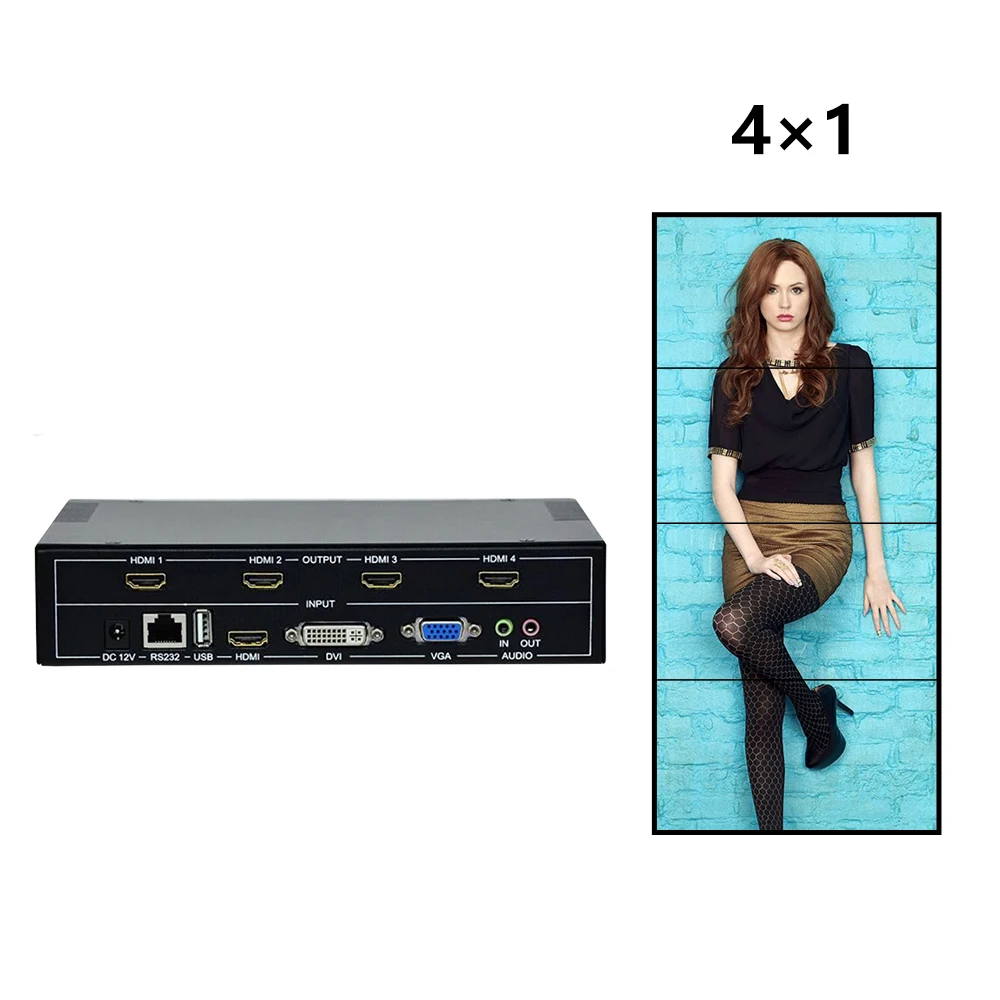

4 way HDMI output，support 2*2，2unit 1*2， 1*3 1*4，4*1 splcing mode；Single unit supports up to 4 HDMI signal outputs; the maximum
resolution is 1920x1080/60Hz

Audio output

3.5 audio interface, support stereophonic sound channels, audio and video signal synchronization switch;

Other

control method

Infrared remote control, front panel keys, RS-232 serial port

Power supply

DC 12V - 3A

Splicing scale

Simple 4 screen spcling

Power

12w

Recommended maximum input distance

When Less than 30 meters, at 1920x1080@60hz,recommend to use certified hdmi special wire

Recommended maximum outnput distance

When Less than 20 meters, at 1920x1080@60hz,recommend to use certified hdmi special wire

Type of control

Serial control, button, remote control

Baud rate and protocol

Baud rate：9600，Data bits：8，Stop bit：1，No parity

Temperature

:-20°c - 70°c

humidity

：10% - 90%

Case Size

210mm*160mm*45mm

Weight

1.2kg

Average time between failures

30000H
