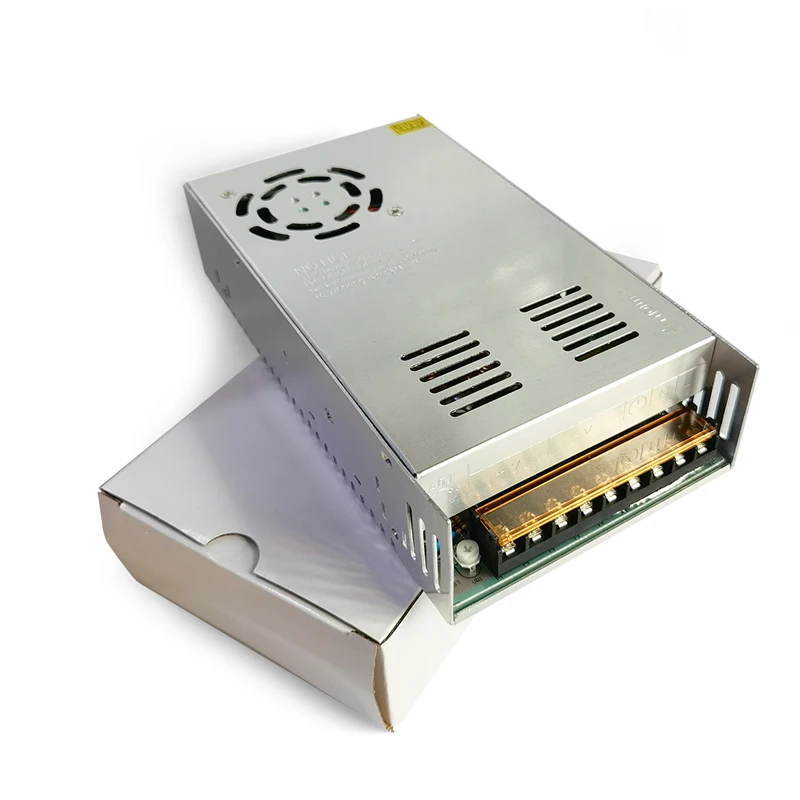

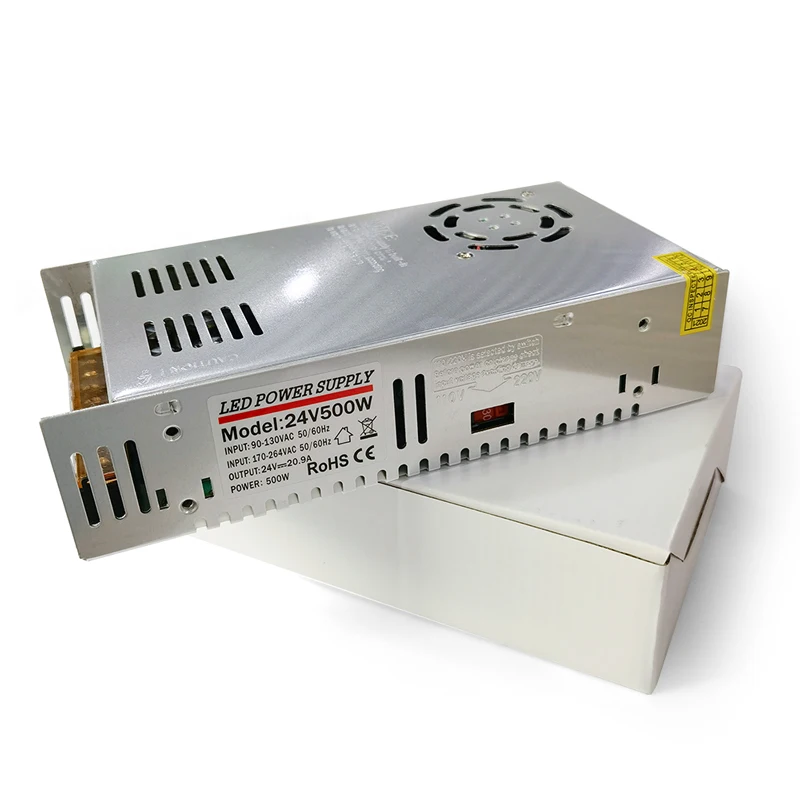

110vac 220vac 500w 600w 700w 800w 1000w 8a 15a 40a 50a 60a 24vdc 12vc 36vdc 48vdc High Power Switching Power Supply
- Category: >>>
- Supplier: Huizhou City Kechuangli Electronics Co. Ltd.
Share on (1600464479221):
Product Overview
Description
110vac 220vac 500w 600w 700w 800w 1000w 8a 15a 40a 50a 60a 24vdc 12vc 36vdc 48vdc High Power Switching Power Supply
Features:
* AC input range selectable by switch
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* Withstand 300vac surge input for 5 second
* Built-in constant current limiting circuit
* Low cost, high reliability
* Fixed switching frequency at 90KHz
* 2 years warranty
* AC input range selectable by switch
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Cooling by free air convection
* LED indicator for power on
* 100% full load burn-in test
* Withstand 300vac surge input for 5 second
* Built-in constant current limiting circuit
* Low cost, high reliability
* Fixed switching frequency at 90KHz
* 2 years warranty

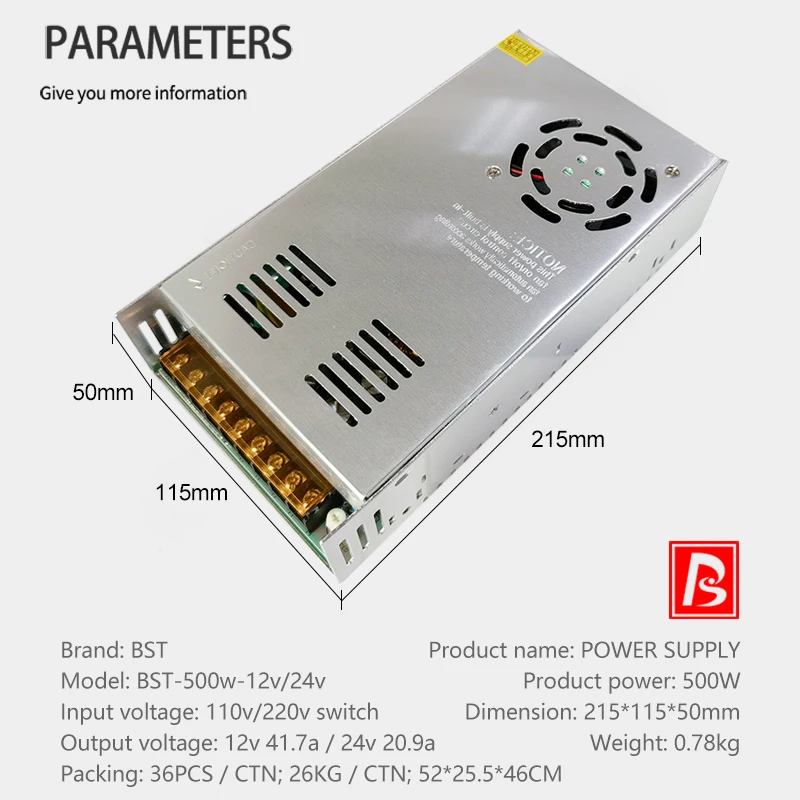

500w Power Supply | ||||||||
Output Power | 500w | OVER VOLTAGE Protection | Yes | |||||
Output Voltage | DC 12V/24V/36V/48V | OVER LOAD Protection | Yes | |||||
Input Voltage | AC 220V±5% | OVER TEMP. Protection | Yes | |||||
Frequency | 47-60Hz | WITHSTAND Voltage | 2KVAC/Min | |||||
Efficiency | ≥80% | ISOLATION RESISTANCE | ≥100m | |||||
RIPPLE&NOISE | ≤1% | Cooling | By Fan | |||||
HOLD UP TIME | 20ms(220VAC) | Working Temp. | -30~50℃ | |||||
SETUP, RISE TIME | 50ms(220VAC) | Warranty | 2 Years | |||||
Providing customers best service and high quality is always our goal!!!
