Aluminum Composite Material(ACM) Panels Grooving Cutter
ACP V Grooving Bit is specially designed for grooving Aluminum Composite Materials (ACM) with 90° 108° 115° 135° angle. Shank diameter 6mm, 8mm, 12mm, 6.35mm, 12.7mm are available for option. V Grooving Bit can be used at 15,000 to 20,000 RPM and feed speed 400-600 mm/min. Mainly for v grooving machine ACP sheet metal.

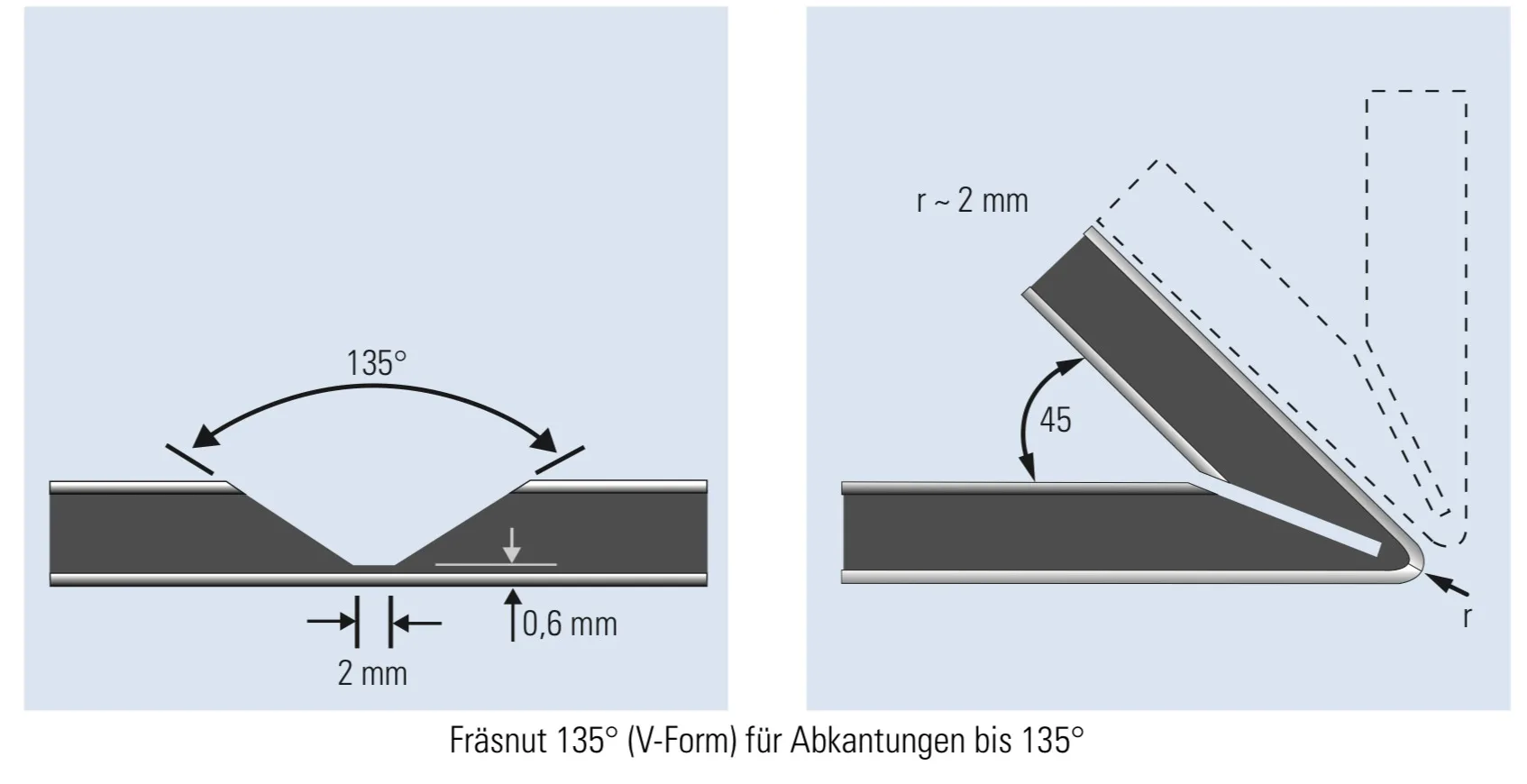

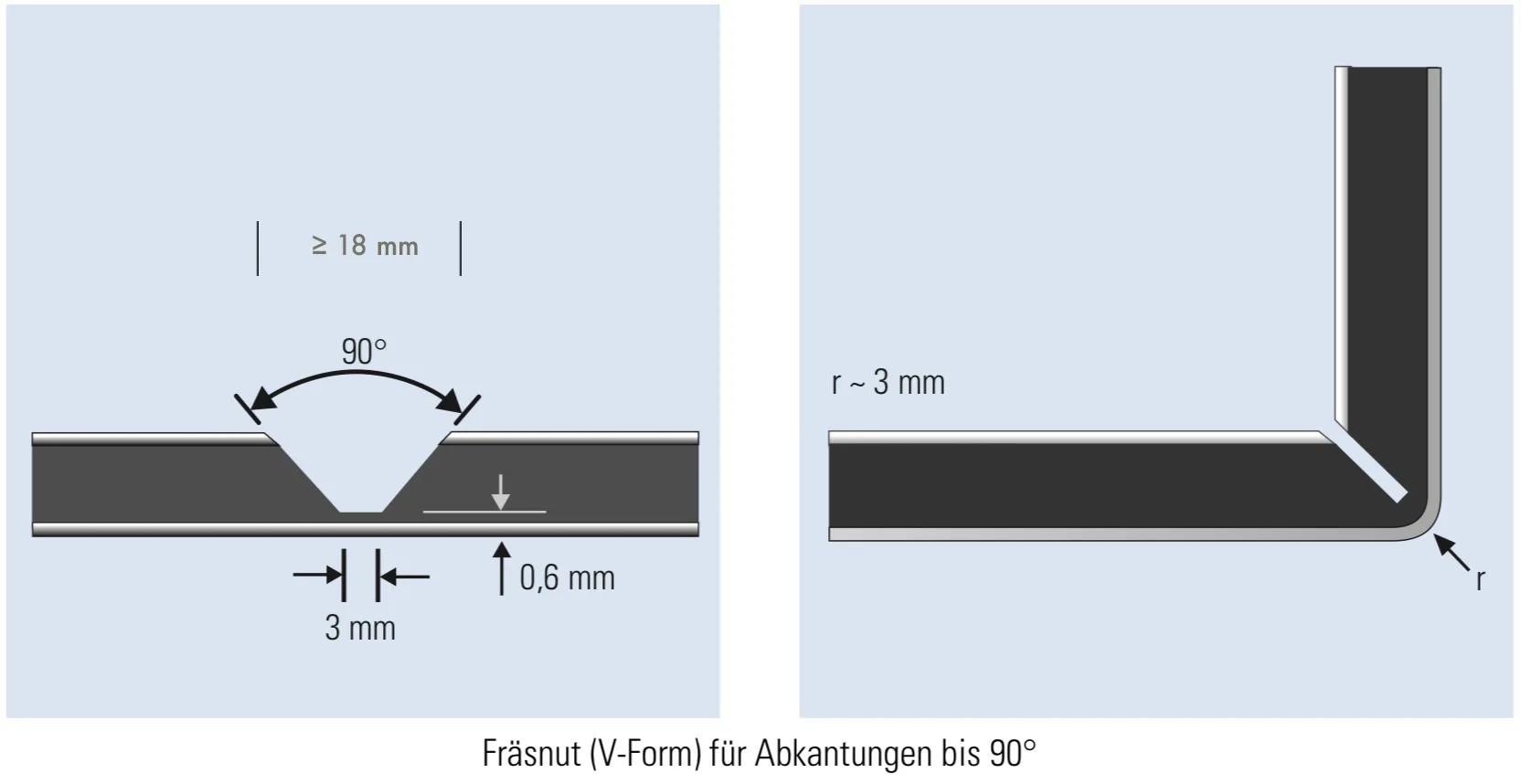

With the unique technique by grooving bit, ACM panels can be shaped by a very simple process, the technique refer to as the “routing and folding” method, it means ACM panel can be manipulated in variety of shapes and sizes. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding or creasing the remaining material by hand.

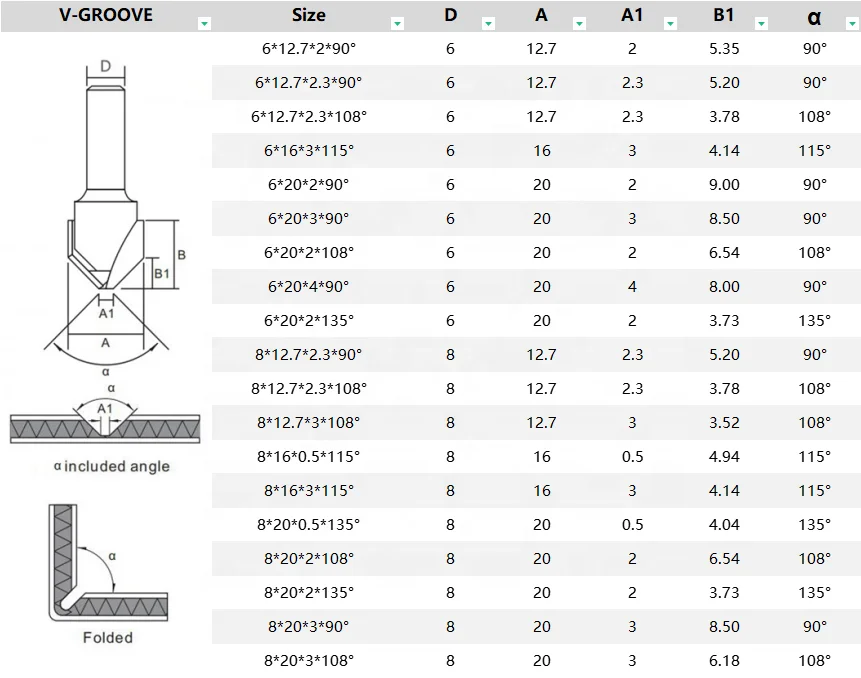

Name
Aluminium Composite V-Groove Router Bit
Type
ACM ACP V Grooving Router Bits
Material
Carbide for cutting edge
Angle of cutter
90°, 108°, 115°, 135°
Shank diameter
6mm, 8mm, 12mm, 12.7mm
Workpiece
Aluminum Composite Material Panel, Aluminum Composite Material, Aluminum, Copper
Cutting way
Cutting And Grooving ACP
Application
Carbide Tipped V Groove 90, 108 and 135 Degree Angles for Double Edge Folding Aluminum Composite Material (ACM) Panels




6mm Shank 90 Degree
8mm Shank 90 Degree


6mm Shank 108 Degree
8mm Shank 108 Degree


6mm Shank 135 Degree
8mm Shank 135 Degree
