CE OEM Laboratory Small Scale Chemical Industrial Milk Nozzle Mini Lab Spray Dryer Price
- Category: >>>
- Supplier: Shanghai Leewen Scientific Instrument Co. Ltd.
Share on (1600464492784):
Product Overview
Description
Products Description
1. High efficient jet imported, two-flow spray atomizing structure, 316 stainless steel.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment.
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won’t be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving bottle are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Use PID controller, the accuracy of heating temperature is around±1°C.
10. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid pollution. To make sure the process conducted steady and smoothly.
11. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
12. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
13. Innovative tower wall purging device, improves the material recycling rate.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Auto controlling: one touch on/off, once processing parameters are set, peristaltic pump will be auto started; screen displays animation of the whole process of experiment.
4. Manual controlling is available, be able to adjust technical parameters during the process of experiment.
5. With jet cleaner (stylet), its frequency can be automatically adjusted.
6. Power off thermal-protection, push off button and the equipment will stop at once, except draught fan, make sure equipment won’t be burned out by incorrect operation (Forcibly shut fan).
7. Spray chamber, cyclone separator, and receiving bottle are all made of transparent heat-resistant high-borosilicate glass; it creates a no-pollution environment for the drying process. All the spare parts are easy to install and wash.
8. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
9. Use PID controller, the accuracy of heating temperature is around±1°C.
10. The self-priming peristaltic pump delivers the sample liquid from a container through a small diameter jet into the main chamber to avoid pollution. To make sure the process conducted steady and smoothly.
11. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
12. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
13. Innovative tower wall purging device, improves the material recycling rate.
Product Paramenters

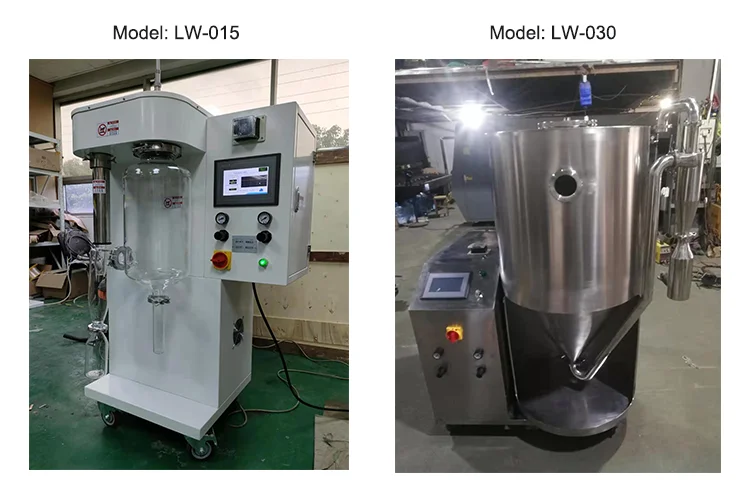

Model | LW-015 |
Inlet air temp. control | 30 ℃-300℃ |
Outlet temperature | 30 ℃-140℃ |
Temp. control accuracy | ±1℃ |
Evaporation water volume | 1500-2000ml/h |
Max. feed amount | up to 2000ml/h (adjustable) |
Min. feed amount | 50ml |
Feeding mode | peristaltic pump adjustment |
Electric heater power | 3KW |
Average drying time | 1.0 to 1.5S |
Air compressor | 4.2m3/h, 2-5bar |
Blowing rate | 0-330m3/h, 686Pa |
Nozzle dia | 0.7mm、1mm、1.5mm、2mm optional and can be customized according to customer requirements; |
Drying chamber dia | 300mm |
Voltage/ power | 3KW AC220V single phase + ground |
Equipment weight | about 130KG |
Equipment dimensions | 1350mm (H) × 750mm (L) × 520mm (W) |
Details Images
More Products
Company Profile
About Us
Shanghai Leewen Scientific Instrument Co.,Ltd. founded in 2016, mainly produce Lab spray dryers, bursting beads dropping pill machine, ultrasonic homogenizer lab instrument etc.
All employees of the company have 10 years of work experience in the industry, from design to customized production to export, with a complete system. Starting export trade in 2021, it is still a very young company.
Support customized production.
Certifications

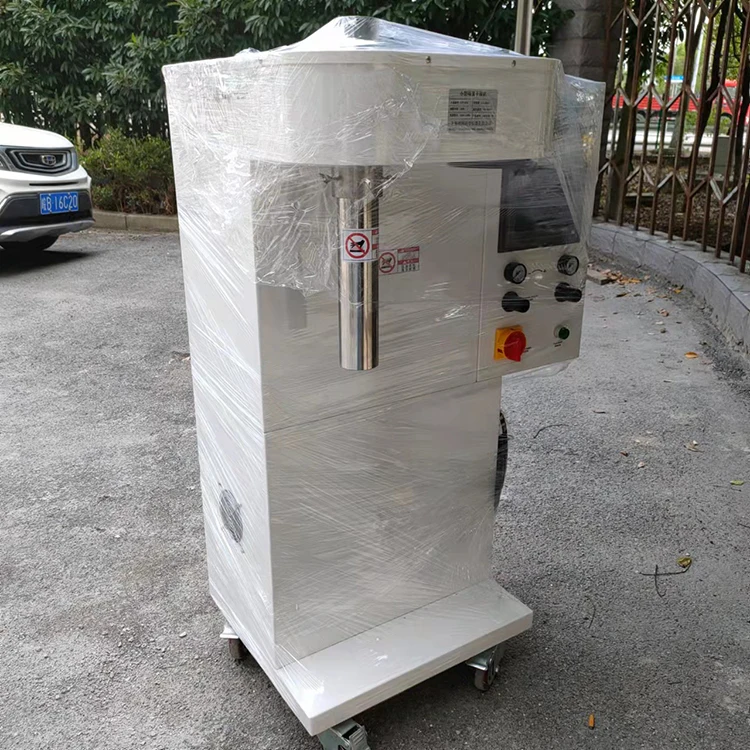

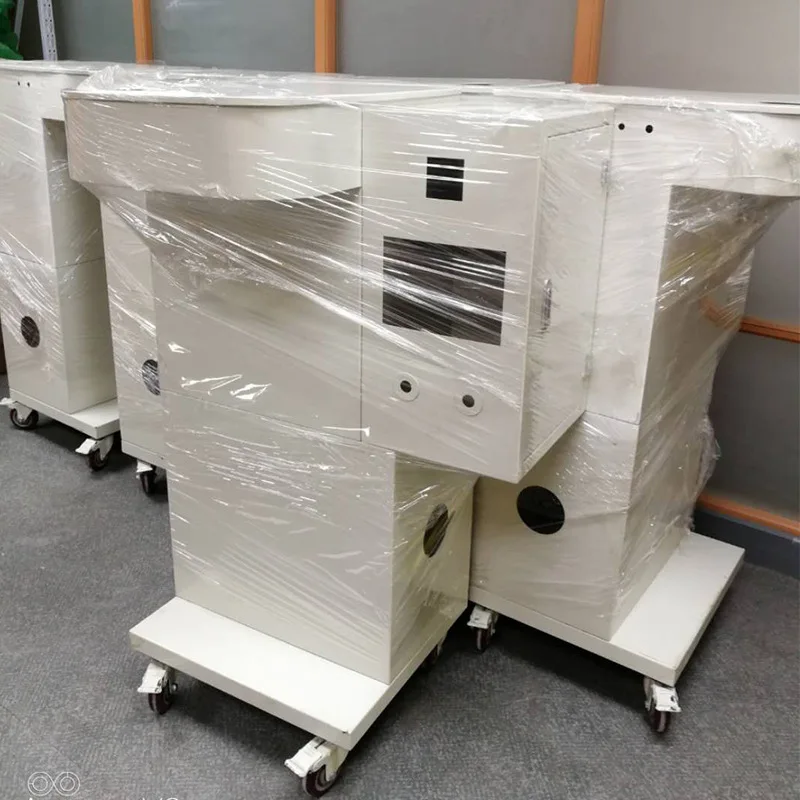

Shipping and Delivery
FAQ
Q: Do you offer the OEM service ?
A: Yes, we welcome OEM cooperation and will try our best to meet your special OEM requests.
Q: Can i trade online
A: Yes, I'm glad you can place an order online.
Q: What payment ways do you accept?
A: you can pay us by T/T, paypal and credit card.
Q: What is the MOQ?
A: The MOQ is 1 unit.
Q: What is your delivery time?
A: Shipment will be done 3~5 working days from the payment. if the order Qty ≥10 units, will be around 10 days or case by case.
Q: What is your warranty service?
A: 12 Months, except for special products.
Q: Can we visit your company and factory ?
A: Yes, you are welcomed.
