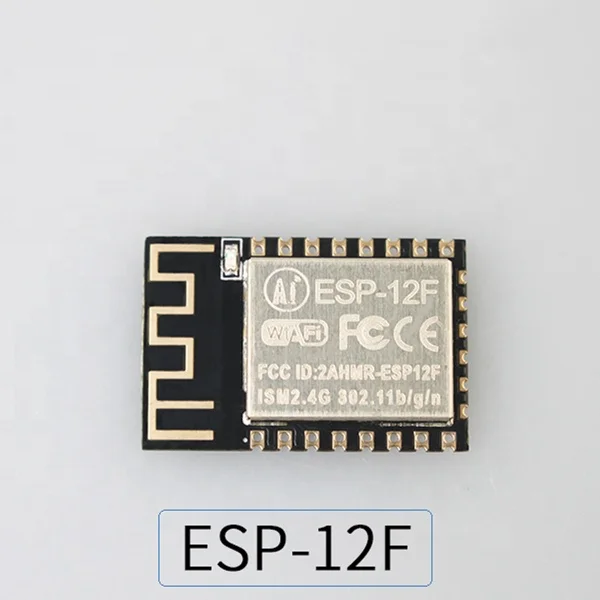

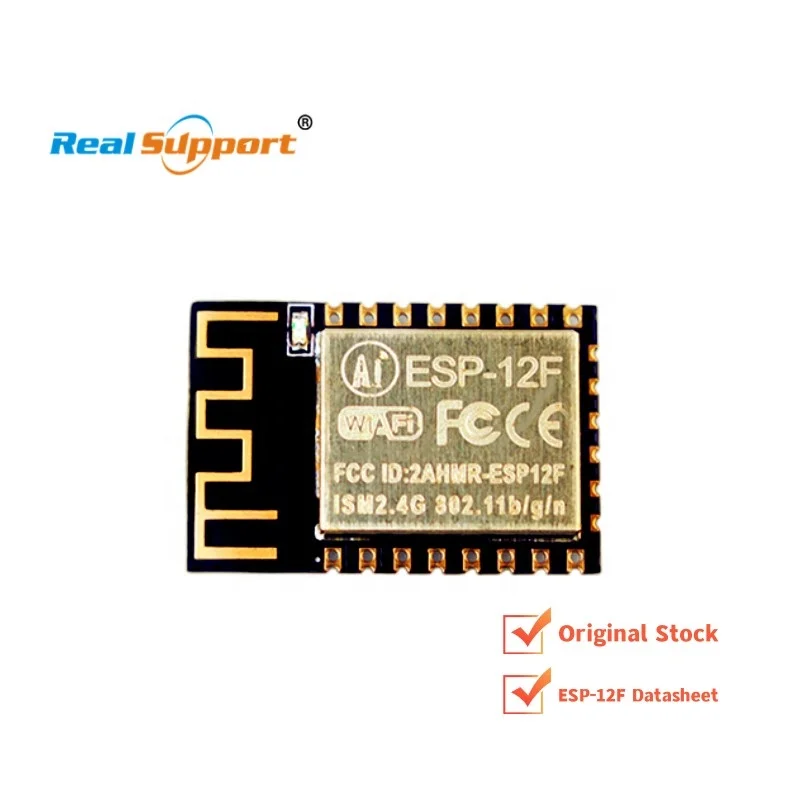

Authentic ESP 12F ESP8266 12F Remote Serial Port WIFI Wireless Module by Ai Thinker CE / FCC / ROHS / REACH
- Category: >>>
- Supplier: Real Support Electronic Co. Ltd.
Share on (1600464498316):
Product Overview
Description

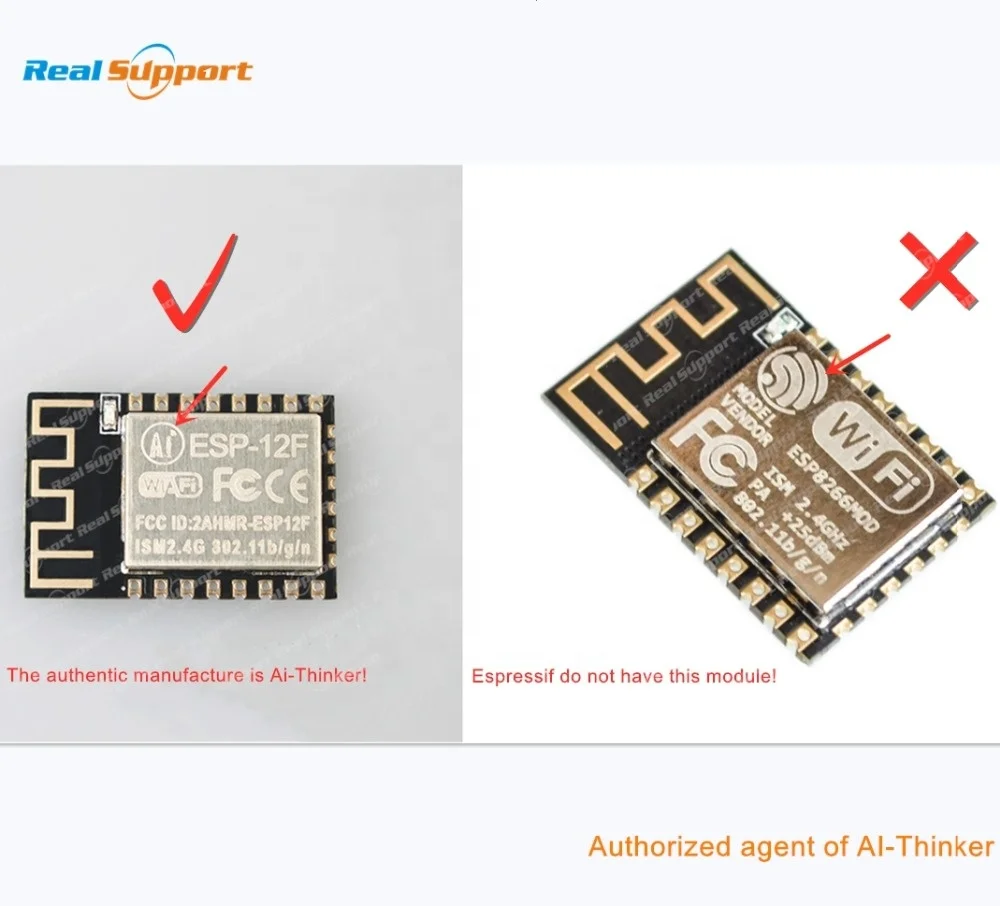

We are Ai-Thinker Authorized Distributors
Product Description
Product Name | ESP-12F |
Material | PVC |
Function | |
Package | Standard |

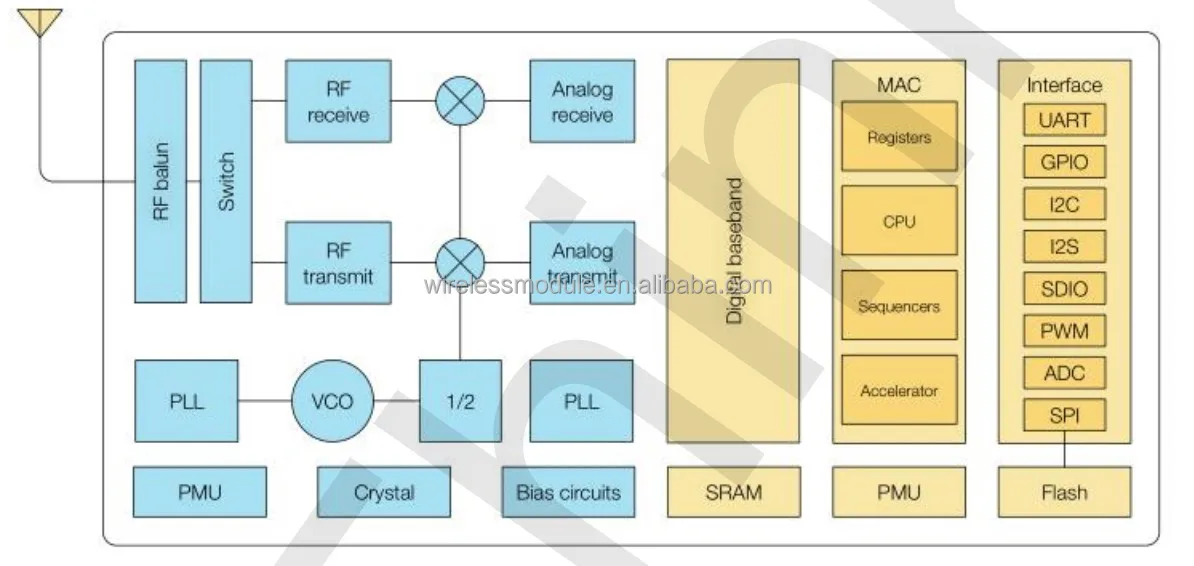

ESP-12F's core processor ESP8266 integrates the industry-leading Tensilica L106 ultra-low-power 32-bit micro MCU in a small package with 16-bit Lite mode, clocked at Supports 80 MHz and 160 MHz, supports RTOS, and integrates Wi- Fi MAC/BB/RF/PA/LNA.
ESP-12F WiFi module supports the standard IEEE802.11 b/g/n protocol, a complete TCP/IP protocol stack. Users can use this module to add networking capabilities to existing devices or to build separate network controllers. ESP8266 is a high- performance wireless SOC that offers maximum utility at the lowest cost and unlimited possibilities for embedding WiFi functionality into other systems.

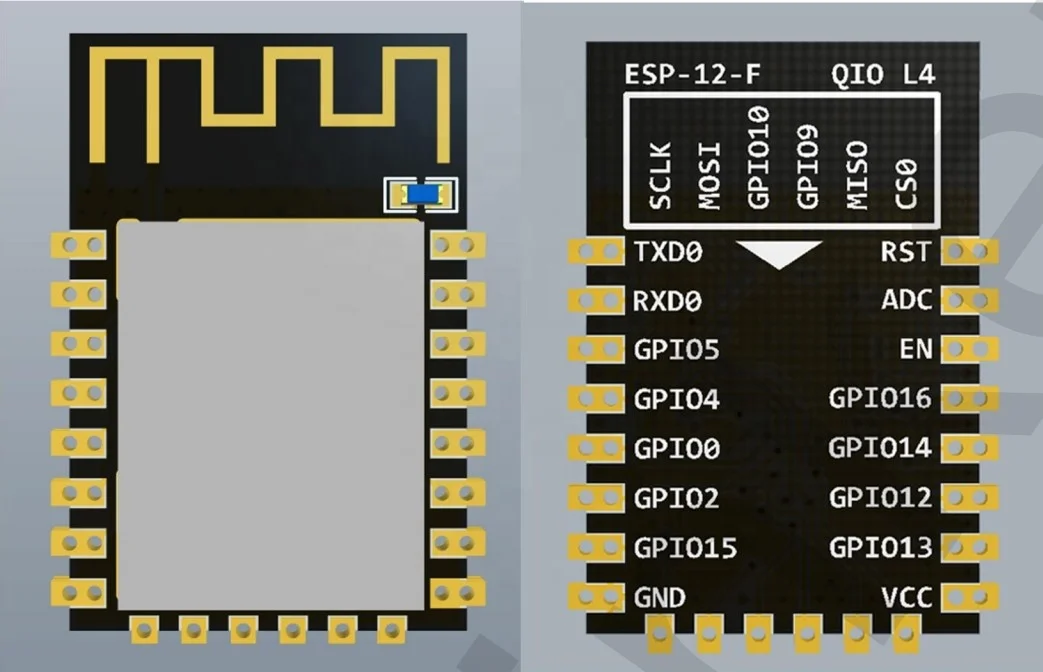

Appearance size:
1 | Module Model | ESP-12F |
2 | Package | SMD22 |
3 | Size | 24*16*3(±0.2)mm |
4 | Certification | FCC CE IC REACH RoHS |
5 | SPI Flash | Default 32Mbit |
6 | Interface | UART/GPIO/ADC/PWM |
7 | I/O Port | 9 |
8 | UART Baud rate | Support 300 ~ 4608000 bps ˈDefault 115200 bps |
9 | Frequency Range | 2412 ~ 2484MHz |
10 | Antenna | PCB Antenna |
11 | Transmit Power: | 802.11b:16±2dBm (@11Mbps) |
802.11g:14±2dBm (@54Mbps) | ||
802.11n:13±2dBm (@HT20, MCS7) | ||
12 | Receiving Sensitivity: | CCK, 1 Mbps:-90dBm |
CCK, 11 Mbps:-85dBm | ||
6 Mbps (1/2 BPSK):-88dBm | ||
54 Mbps (3/4 64-QAM): -70dBm | ||
HT20, MCS7 (65 Mbps, 72.2 Mbps):-67dBm | ||
13 | Power (Typical Values) | Continuous Transmission=>Average˖~71mAˈPeak˖500mA |
Modem Sleep: ~20mA | ||
Light Sleep: ~2mA | ||
Deep Sleep: ~0.02mA | ||
14 | Security | WEP/WPA-PSK/WPA2-PSK |
15 | Power Supply Voltage | 3.0V ~ 3.6VˈTypical 3.3VˈCurrent >500mA |
16 | Operating Temperature | -20 ~ 85 |
Product Usage
Features
\u0084 The smallest 802.11b/g/n Wi-Fi SOC module
\u0084 Low power 32-bit CPU, can also serve as the application processor
\u0084 Up to 160MHz clock speed
\u0084 Built-in 10 bit high precision ADC
\u0084 Supports UART/GPIO/IIC/PWM/ADC
\u0084 SMD-22 package for easy welding
\u0084 Integrated Wi-Fi MAC/BB/RF/PA/LNA
\u0084 Support multiple sleep patterns. Deep sleep current as low as 20uA
\u0084 UART baud rate up to 4Mbps
\u0084 Embedded LWIP protocol stack
\u0084 Supports STA/AP/STA + AP operation mode \u0084 Support Smart Config/AirKiss technology
\u0084 Supports remote firmware upgrade (FOTA) \u0084 General AT commands can be used quickly \u0084 Support for the two development, integration of windows, Linux development environment
