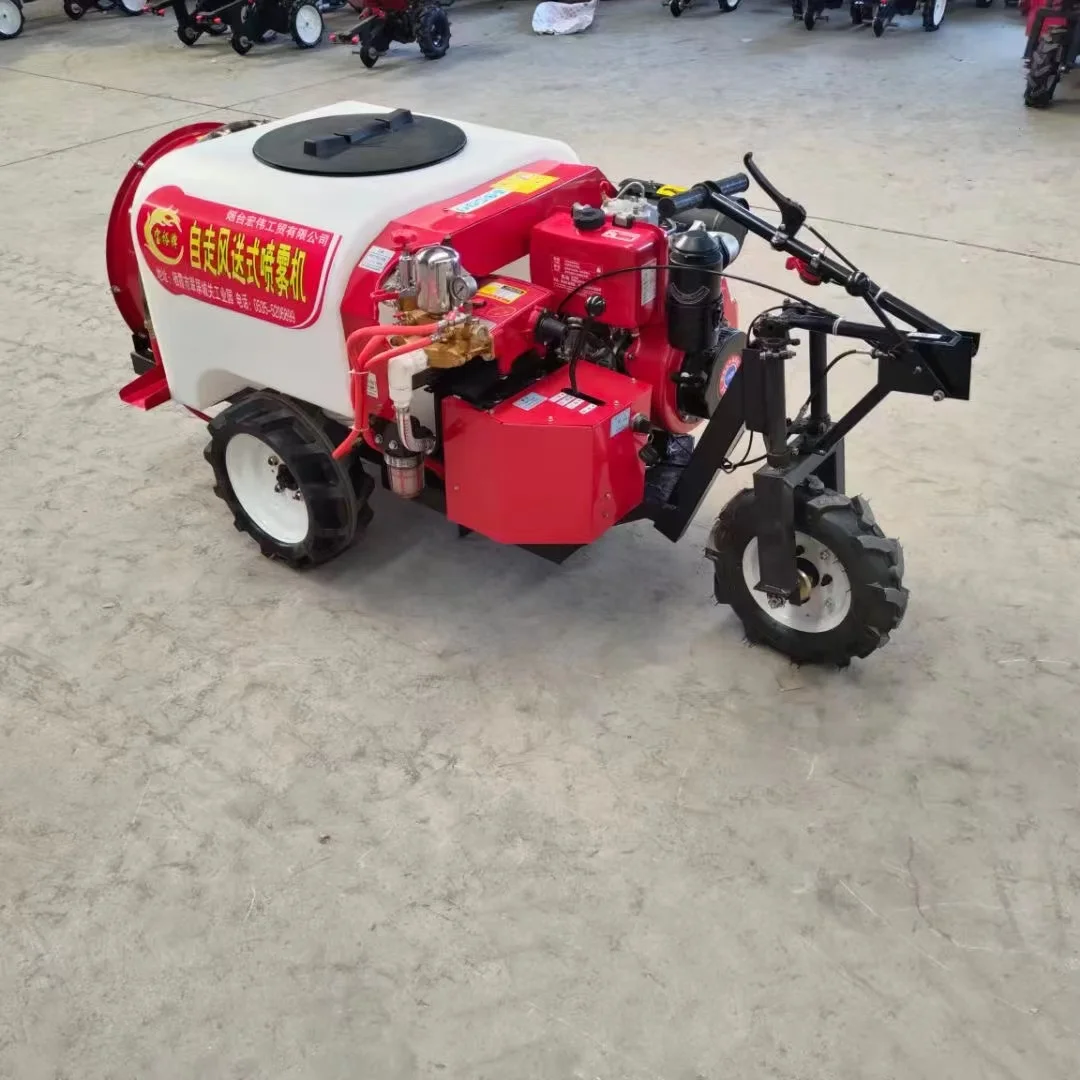

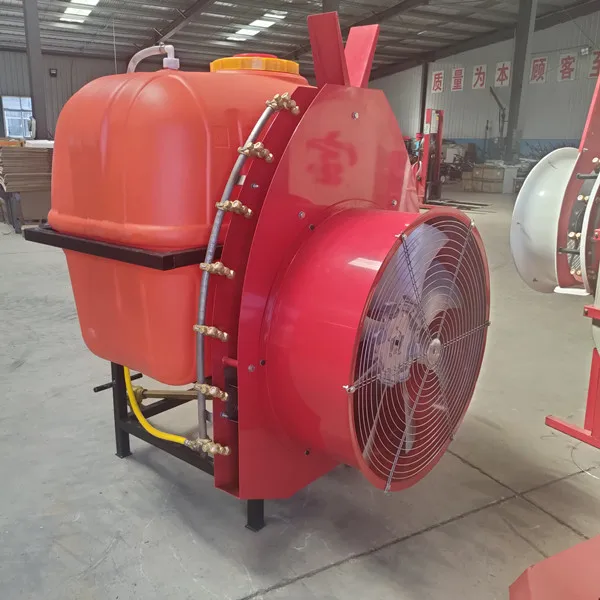

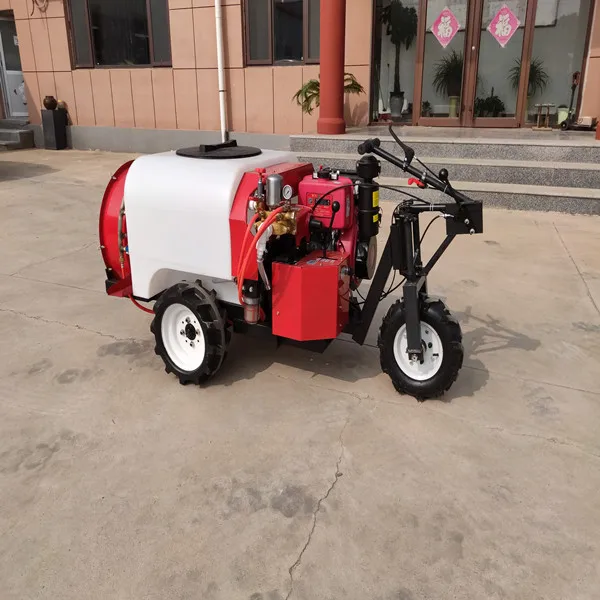

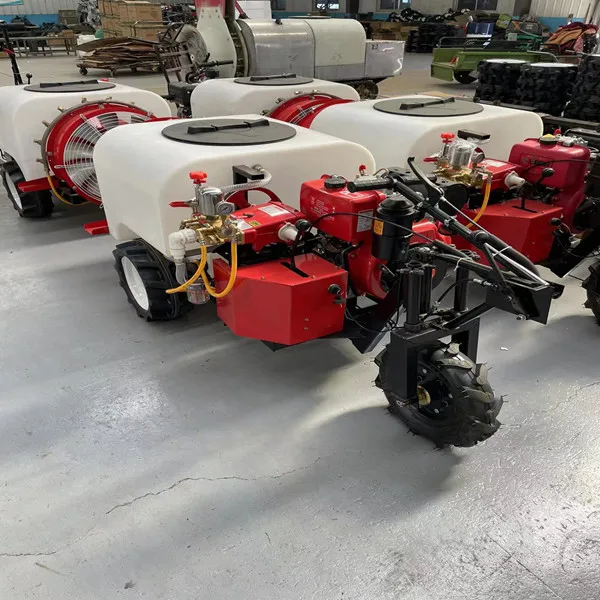

Orchard Self propelled air blast sprayer

Product Overview

Description

Garden water and pesticide orchard mist sprayer

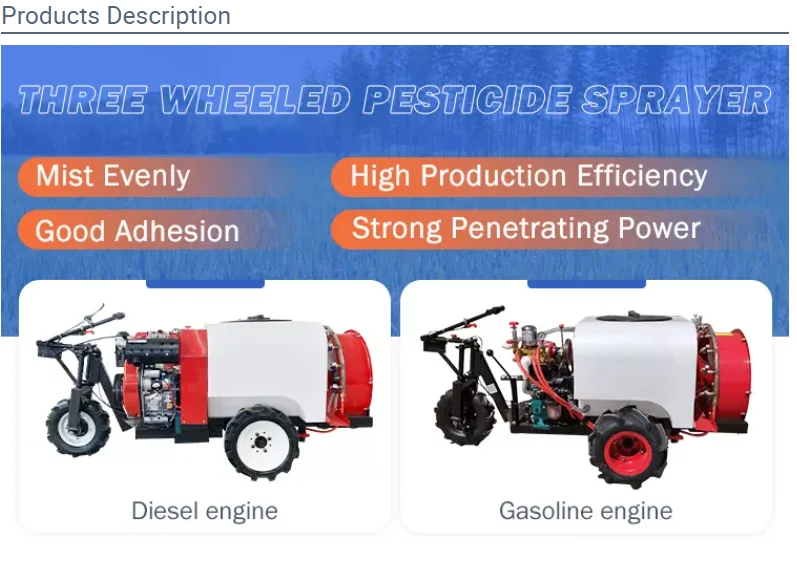

186 diesel engine / 170F/P, 177F/P gasoline engine
Dimensions :	2440×1010×885 (mm)
Work form:	self-propelled
Medicine box capacity:	200L
Common working pressure :	0.5-1MPa
Diesel /Gasoline engine:	6.3kw/4kw/5.5kw
output speed:	3600r/min

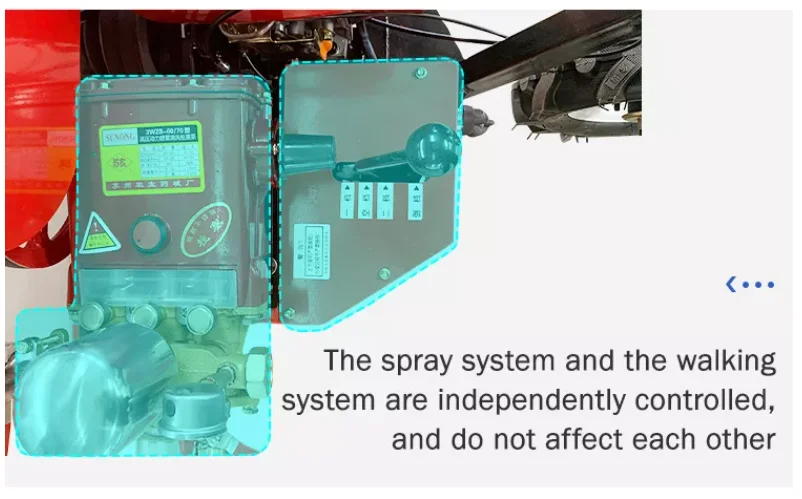

liquid pump:
type:	Triplex plunger pump
Working pressure:	2-3.5Mpa
Flow rate:	25-30 L/min
Rated speed:	500-800r/min

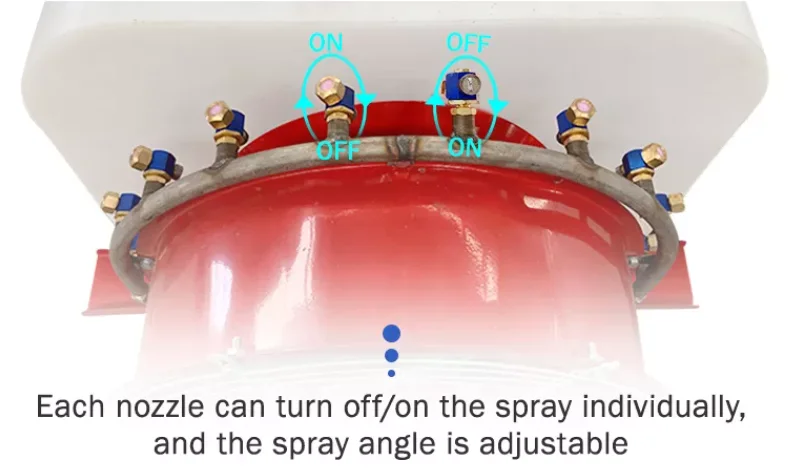

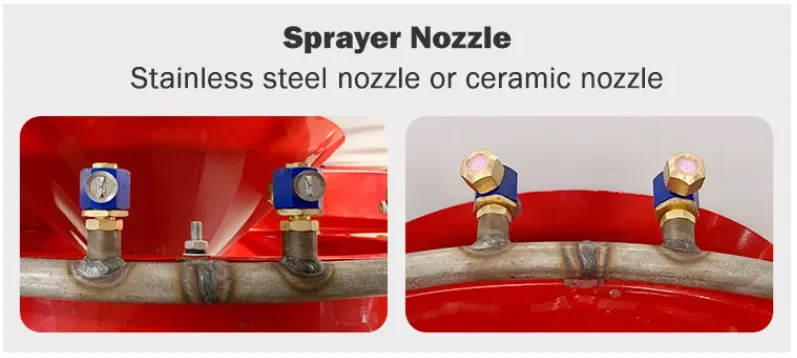

Matching nozzles
Type:	Fan nozzle
Quantity:	8
Spray volume: (single): Spray volume at 0.5MPa pressure:	1.04L/min
Note: The flow rate of the nozzle is relatively sensitive to the pressure. Please pay attention to measure and adjust the pressure before use

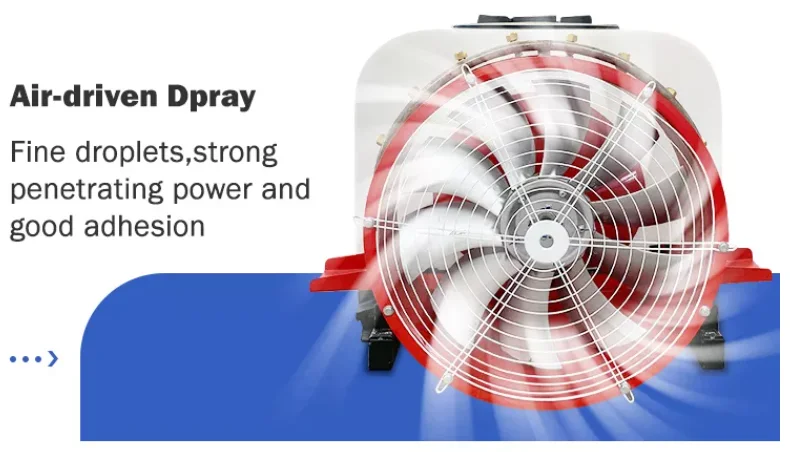

Fan type:	axial flow
Speed:	1800r/min
Impeller diameter:	540mm
Spraying width: radius	radius ≥ 6m
Machine walking speed:	≥2.6km/h
