Thermal Imaging Camera HD Night Vision Infrared Telescope For Hunting Sports Outdoor Camping Travel Rescue Patrol Search CS-1Pro
- Category: Night Vision >>>
- Supplier: Decca,Precision,Measuring,Instrument,(Shenzhen),Co.,Ltd.
Share on:
Product Overview
Description
Products Description
720 * 540 Handheld Small Thermal Imaging Infrared Monocular Night Vision
Built-in 32G Memory Card
Features
● New high-sensitivity, low-power uncooled focal plane detector, with more outstanding image performance;
●720×540 resolution LCOS display
● Smaller size (350g), easier for long-term observation;
● Support WIFI image transmission, mobile APP real-time browsing, video recording, photographing, playback and other operations;
● Built-in 32G memory card, support photo and video functions;
● IP66 protection grade, 1 meter drop resistance;
● More than 7 hours continuous running (with Wi-Fi hotspot function off);
● Smaller size (350g), easier for long-term observation;
● Support WIFI image transmission, mobile APP real-time browsing, video recording, photographing, playback and other operations;
● Built-in 32G memory card, support photo and video functions;
● IP66 protection grade, 1 meter drop resistance;
● More than 7 hours continuous running (with Wi-Fi hotspot function off);
Product Paramenters
Item | CS-1Pro | |
Type of Detector | Uncooled focal plane | |
Pixels | 384×288 | |
Field of View | 15.6° x 11.7" (土5%) /24.9*X18.7(土5%) | |
Focal Length | ||
Frame Rate | 50HZ | |
Focus | Fixed，focus lens | |
Spectral range | 8-14μ m | |
Digital zoom | 1.0~4.0X continuous zoom | |
Image transmission | WiFi real-time image transmission | |
Feature | Support Cross hair, Photographing and video, Hot pot tracking, Laser indicator | |

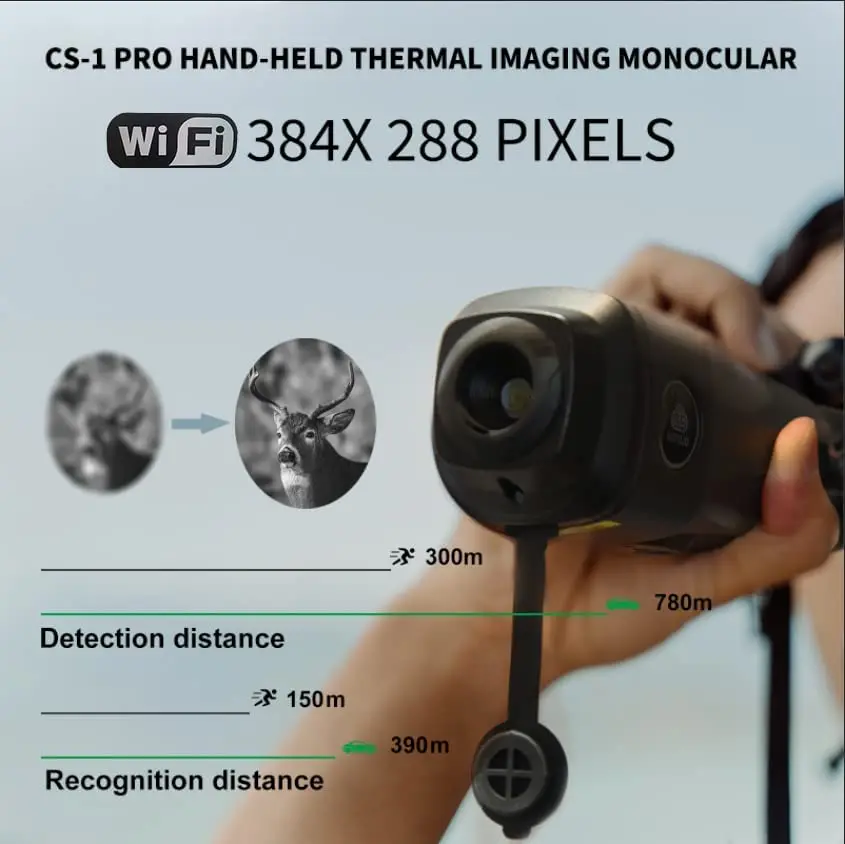

Target distance | People: detection distance:290m, recognition distance:245m | |
Wild boar: detection distance:148m, recognition distance:74m | ||
Vehicle: detection distance:680m, recognition distance:340m | ||
Displayer | Color screen 720X540 | |
Working Time | 5 hours continuous | |
Power interface | Type-C for external charging | |
Protection Class | IP66 | |
Fall | 1m | |
Weight | <0.4Kg | |
Size | <185X 60X 62mm | |

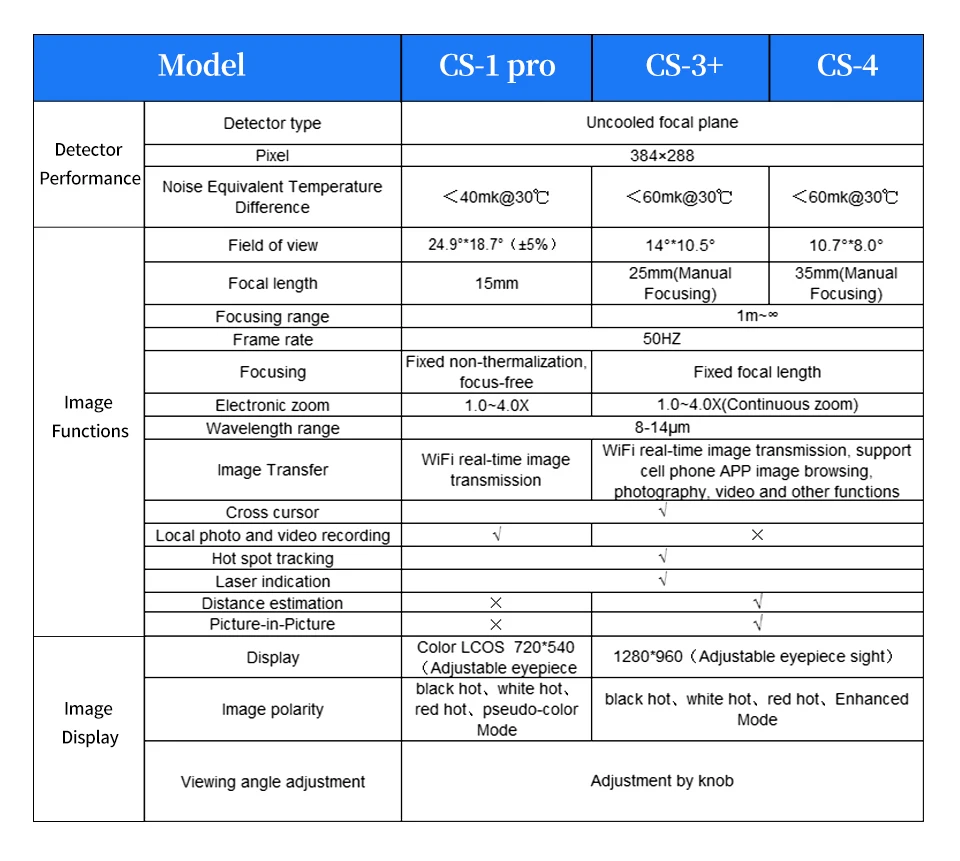

Compare with other models
Application
Tips and precautions for use:
Do not point the thermal imager to high-intensity energy sources (including solar laser emitting devices and the reflected sources of these devices) otherwise it may adversely affect the accuracy of the thermal imager and may permanent damage.
Do not point the thermal imager to high-intensity energy sources (including solar laser emitting devices and the reflected sources of these devices) otherwise it may adversely affect the accuracy of the thermal imager and may permanent damage.
Our service
1. Free technology training or machine inspection at our factory.
2. Free Installation and debugging: our engineers will teach you installation and debugging for free.
3. After-sales service: we will supply the free repairment on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage.)
4. Online remote control for software problems, Whatspp or Wechat for video checking.
5. We also provides customized services to meet different customer requirement.
