china electric boiler industrial heater high temperature furnace immersion heater electric for industry using
- Category: >>>
- Supplier: Jiangsu Solid Electric Heating Equipment Co. Ltd.
Share on (1600464604737):
Product Overview
Description

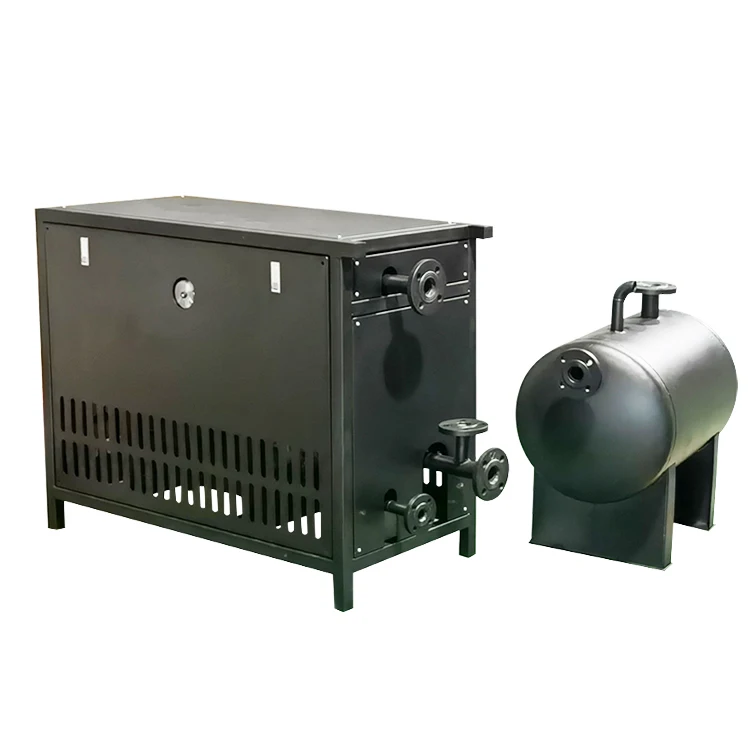

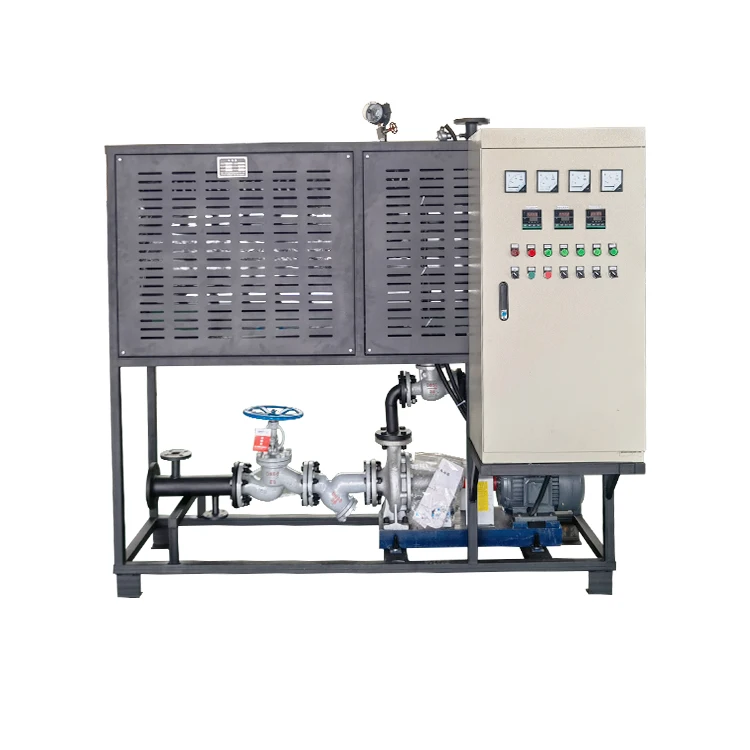

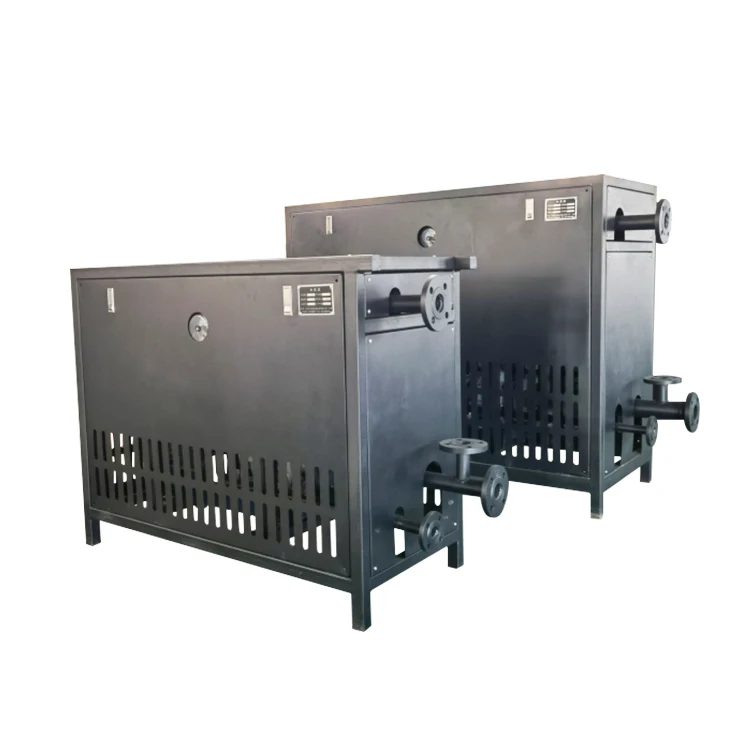

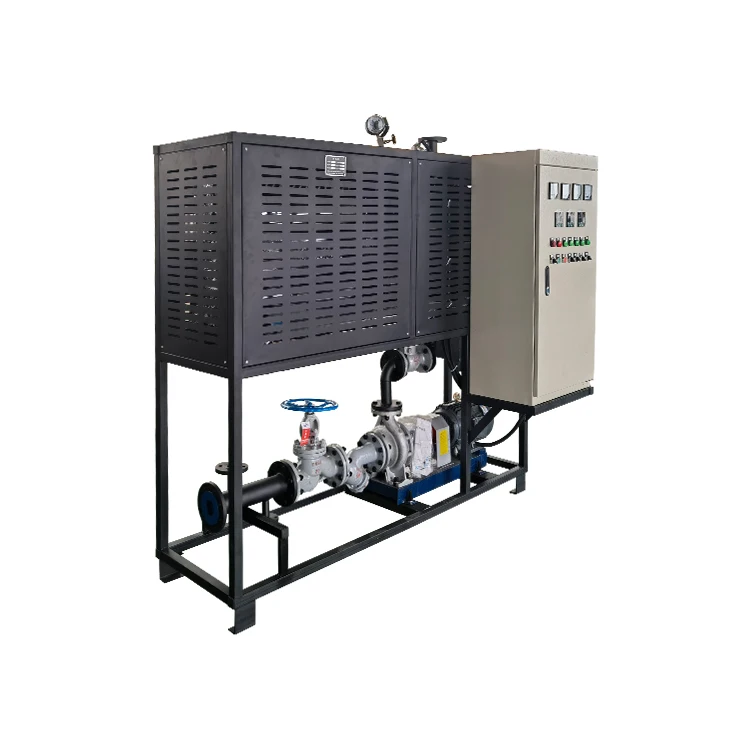

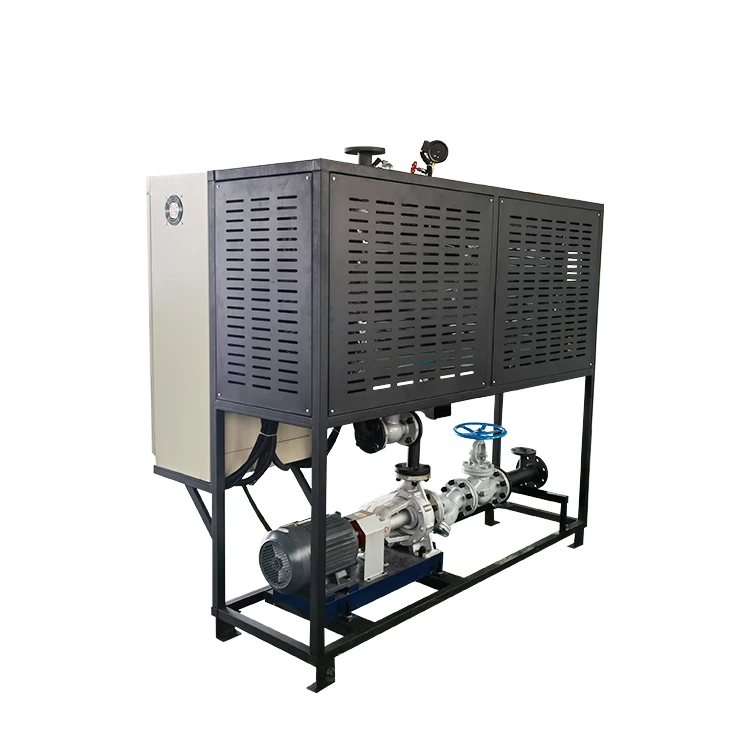

Thermal oil electric heater is a new type, safe, high efficiency and energy saving, low pressure (under normal pressure or lower pressure) and can provide high temperature heat energy special industrial furnace, It is a direct-flow special industrial furnace that uses electricity as the heat source and heat transfer oil as the heat carrier, and uses a circulating oil pump to force the liquid phase to circulate. The heat energy is transferred to the heating equipment and then returned to the reheated DC special industrial furnace, Repeatedly in this way, the continuous transfer of heat is realized, and the temperature of the heated object is increased to meet the heating process requirements.
Model | Heater Power (KW) | Oil Capacity (L) | Overall Dimension(L*W*H) | Heating-oil Pump | Expansion Tank(mm) | ||||
Power(kw) | Flow(m3/h) | Head(m) | |||||||
SD-YL-10 | 10 | 15 | 1400*500*1150 | 1.5 | 8 | 22 | φ400*500 | ||
SD-YL-18 | 18 | 23 | 1750*500*1250 | 1.5 | 8 | 22 | φ400*500 | ||
SD-YL-24 | 24 | 28 | 1750*500*1250 | 2.2 | 12 | 25 | φ400*500 | ||
SD-YL-36 | 36 | 48 | 1750*500*1250 | 3 | 14 | 30 | φ500*600 | ||
SD-YL-48 | 48 | 48 | 2000*550*1500 | 5.5 | 18 | 40 | φ500*600 | ||
SD-YL-60 | 60 | 52 | 2000*550*1500 | 5.5 | 18 | 40 | φ500*600 | ||
SD-YL-72 | 72 | 60 | 2000*550*1500 | 5.5 | 18 | 40 | φ500*600 | ||
SD-YL-90 | 90 | 68 | 2100*600*1550 | 7.5 | 25 | 50 | φ500*600 | ||
SD-YL-120 | 120 | 105 | 2100*600*1550 | 7.5 | 25 | 50 | φ600*700 | ||
SD-YL-150 | 150 | 195 | 2200*700*2000 | 7.5 | 25 | 50 | φ600*700 | ||
SD-YL-180 | 180 | 230 | 2200*700*2000 | 11 | 60 | 40 | φ700*800 | ||
SD-YL-240 | 240 | 260 | 2200*700*2000 | 15 | 80 | 40 | φ700*800 | ||
SD-YL-300 | 300 | 293 | 2600*950*2200 | 15 | 80 | 40 | φ700*800 | ||
SD-YL-400 | 400 | 358 | 2600*950*2000 | 15 | 80 | 40 | φ800*1000 | ||
SD-YL-500 | 500 | 510 | 2200*1000*2000 | 15 | 80 | 40 | φ800*1000 | ||
SD-YL-600 | 600 | 562 | 2600*1200*2000 | 22 | 100 | 55 | φ800*1000 | ||
SD-YL-800 | 800 | 638 | 2600*1200*2000 | 22 | 100 | 55 | φ1000*1200 | ||
SD-YL-1000 | 1000 | 750 | 2600*1200*2000 | 30 | 100 | 70 | φ1000*1200 | ||
Thermal oil electric heater is widely used on hot roller/hot rolling machine, calender/kneader, radiator/heat exchanger, reaction kettle/distillating machine, drying oven/drying room/drying tunnel, Laminator/ Vulcani zing machine
Jiangsu Solid Electronic Equipment Co.,Ltd is a comprehensive high-tech enterprise focusing on design, production and sales for electric heating elements, which is located on Yancheng City, Jiangsu Province, China. For a long time, the company is specialized on supplying the superior technical solution, our products have been export to many countries. Our Company adhere to the “Be strategic Partner With Our Customers”business philosophy, and insist to be“the comprehensive enterprise with high quality and excellent service”.We would like to provide best support to environmental protection industry. Welcome to visit, guide and have business negotiation!
